Hyundai H930C H940C Backhoe Loader Service Manual PDF

Description

File Details

• Manual type: Backhoe loader service manual — workshop repair, diagnostic and adjustment reference
• Brand: Hyundai
• Models covered: H930C and H940C backhoe loaders
• Engines covered: IVECO F4GE9484F·J and F4GE9454J·J (EPA Tier 3 / EU Stage III-A), PERKINS 1104C-44T (EPA Tier 2 / EU Stage II)
• Language: English
• File format: PDF
• Length: Approximately 529 pages

Chapters Covered

• Safety Hints — safe procedure, protective clothing, warning others, handholds and steps, emergency preparation, clean work area, flying debris, noise protection, parking and supporting the machine, cooling system safety, fluids and fire hazards, exhaust fumes, paint removal before welding, work area lighting, moving parts, high pressure fluids, battery explosions, acid burns, tool use, tire servicing, lifting equipment, fluid disposal, safety signs, ROPS

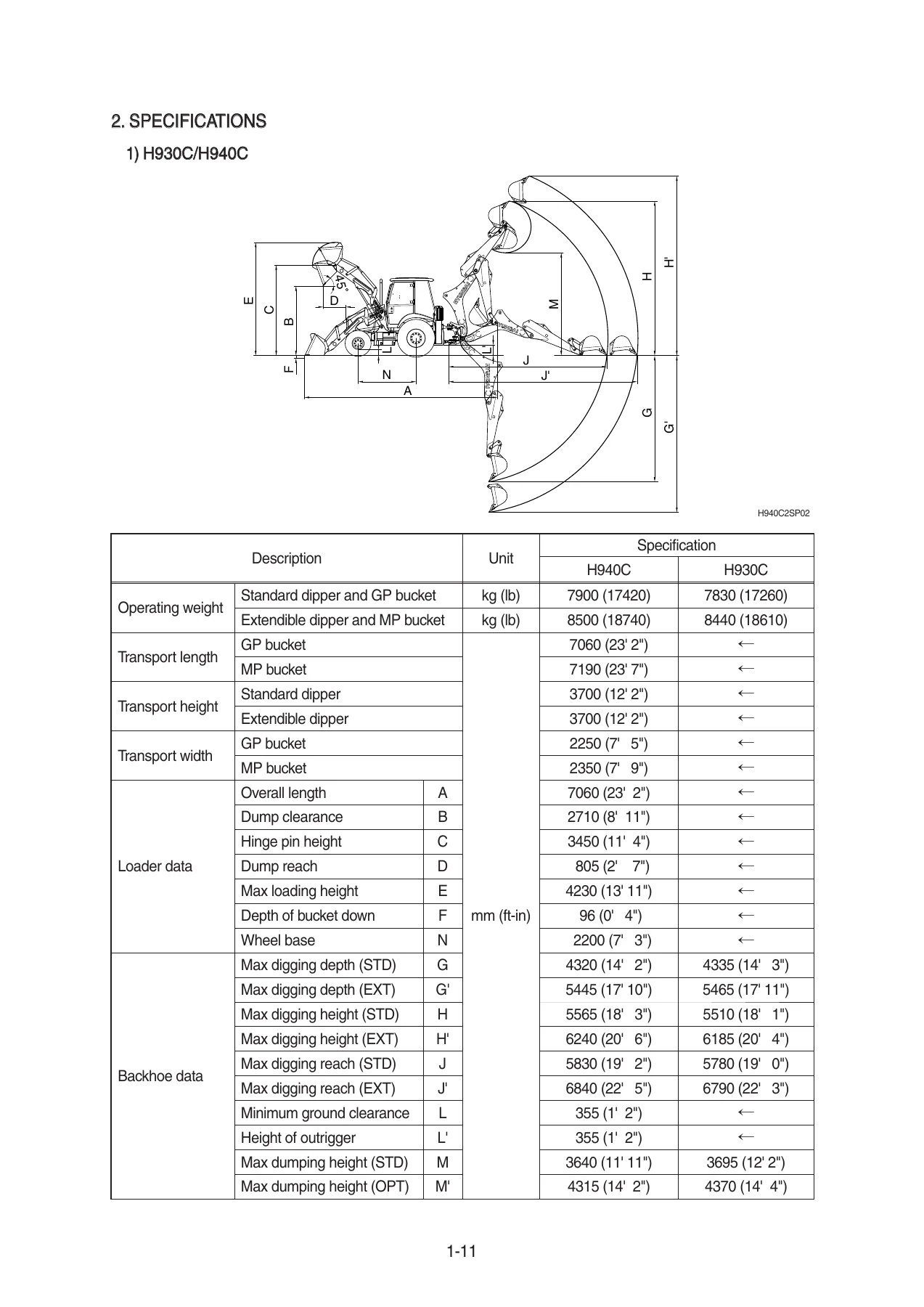

• Specifications — operating weights, transport dimensions, loader data, backhoe digging data, engine, main pump, loader and backhoe control valves, steering unit, pilot supply unit, accumulator, remote control valve, line filter, double pilot check valve, tires, powertrain, bucket capacities, recommended lubricants
• Operational Checkout Record Sheet — monitor and gauge checks, neutral start and reverse alarm checks, brake and clutch cut-off checks, driving checks, hydraulic system checks, steering system checks, accessory checks, cab component checks
• Engine — structure, lubrication system, oil vapour recirculating system, cooling system, air induction boost, inter-cooled version, exhaust gas recirculation (EGR), fuel system, turbocharger, cylinder head and valves, engine RPM checks
• Power Train — component overview, hydraulic circuits for 2WD and 4WD, torque converter, transmission layout and operation, gear selector, axle structure and differential, tire and wheel, operational checks, troubleshooting, measuring points, transmission disassembly and reassembly, clutch rebuilds, front axle, rear axle
• Brake System — outline, master cylinder type, booster type, service brake specification, master cylinder, brake valve, bleeding procedures, single cylinder and twin cylinder compensating operation, operational checks, troubleshooting, pedal adjustment, brake valve disassembly and assembly
• Steering System — outline, hydraulic circuit, neutral / left turn / right turn operation, steering unit structure with and without emergency steering, operational checks, troubleshooting, hydraulic oil clean-up, restriction test, leakage test, pressure test, priority valve LS port flow test, disassembly and assembly
• Work Equipment — hydraulic system outline, mechanical and pilot control circuits, loader and backhoe hydraulic circuits, loader main control valve, backhoe main control valve, main pump, backhoe RCV lever, loader and backhoe cylinders, hydraulic oil tank, accumulator, ride control valve, operational checks, troubleshooting, main control valve pressure tests, cylinder drift and leakage tests, pilot oil supply unit test, disassembly and assembly
• Electrical System — component location, electrical circuits for mechanical and pilot machines, illumination circuit, head light circuit, work light switch, starting circuit, charging circuit, preheating circuit, electric parking and declutch circuit, wiper and washer circuit, monitoring system, switches, electrical component specification, connector destination tables

IMAGES PREVIEW

This Hyundai H930C H940C Backhoe Loader Service Manual is built as a single working reference for the whole machine rather than a collection of unrelated sheets. Each major assembly is handled in the same way: the structure and function of the system is explained first, the hydraulic or electrical circuit is drawn out, then the operational checks and troubleshooting charts follow, and finally the tests, adjustments and the disassembly and assembly procedures finish the section. Because the loader and backhoe share a common hydraulic supply but use different control methods — linkage on the loader and pilot operation on the backhoe — the manual separates the two circuits so a technician can follow the correct flow for the machine in front of them.

Engine Coverage

Two engine families are documented for the H930C and H940C, and the manual is clear about which machine serial numbers carry which engine. The IVECO F4GE9484F·J and F4GE9454J·J units are covered on H930C machines up to serial #0077 and H940C machines up to #0125 plus the #0146–0152 range, while the PERKINS 1104C-44T is covered from H930C #0078 onward and H940C #0126–0145 and #0153 onward. Both are four-stroke turbocharged diesels, with the H940C version adding charge air cooling.

The engine chapters walk through the lubrication circuit, the oil vapour recirculating system, the closed circuit forced circulation cooling system and the air induction boost diagram. The TIER 3 engine description explains the modified exhaust cam profile used for internal exhaust gas recirculation and why it reduces NOx formation without any electronically controlled elements. The turbocharger section covers the turbine and compressor wheels, the wastegate and its diaphragm control, and the oil feed and return path through the bearing housing. Cylinder head and valve operation, the fuel system from tank to injector and the priming conditions that require the system to be bled are all included, along with the engine RPM check procedures for hydraulic stall, converter stall and full stall.

Powertrain, Axles and Tires

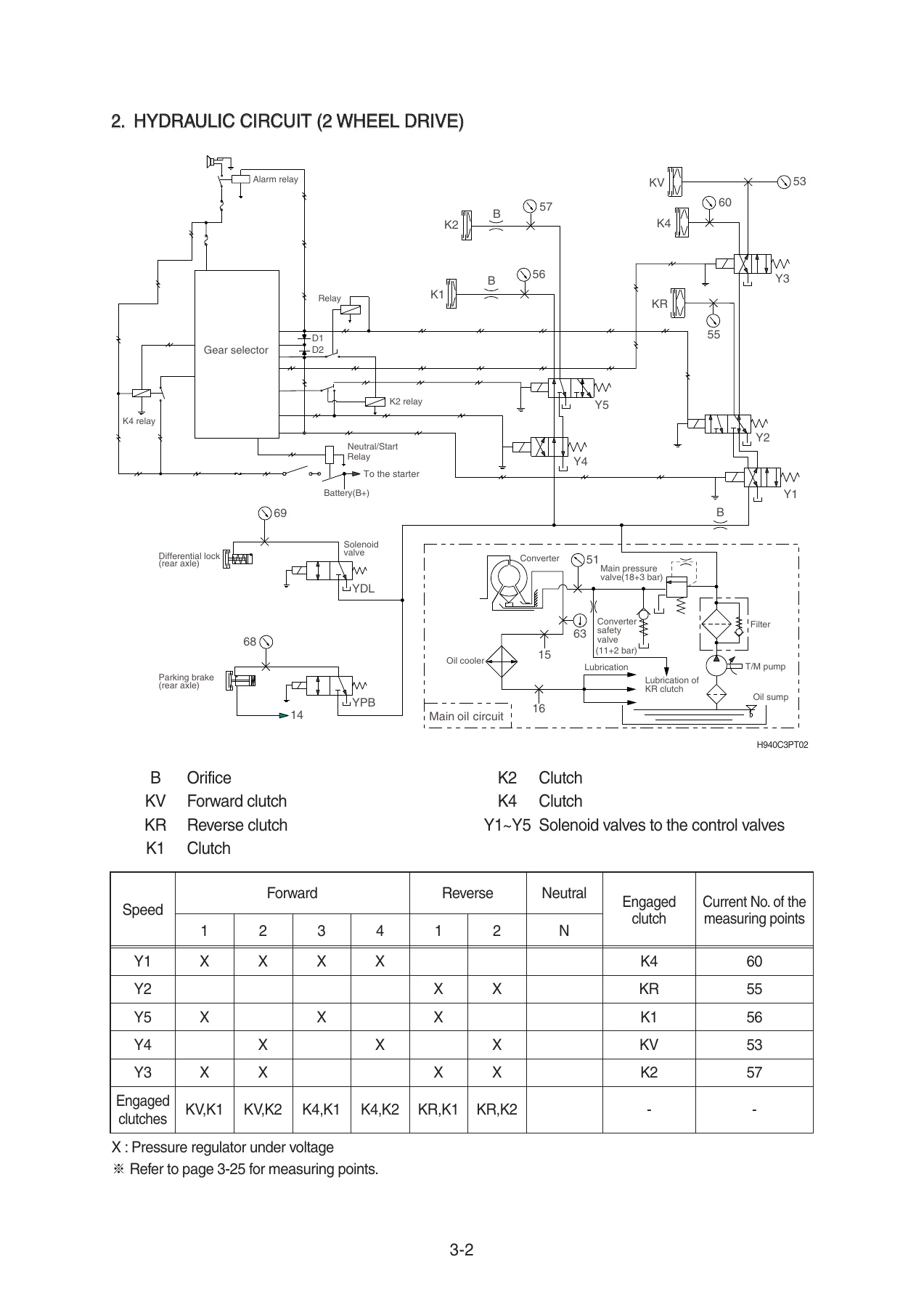

The power train section starts from the torque converter and works back through the transmission, drive shafts and axles. The transmission is a hydraulically engaged four speed forward, three speed reverse countershaft type power shift unit, and the manual lists the clutch combinations for each forward and reverse gear so the engaged clutch packs can be identified from a symptom. The converter is described using the Trilok principle, with the pump wheel, turbine wheel and stator, the torque multiplication relationship and the stator freewheel function all explained. Both the 2WD and 4WD hydraulic circuits are drawn, with the solenoid valves, measuring points and pressure tables listed for each.

The axle chapters cover the bevel pinion and bevel gear, the differential operation when driving straight and when turning, the front axle steering cylinder group, the swivel housing, the wheel hub group and the hydraulic lock differential on the rear axle. Tire and wheel assembly is covered including rim, side ring, lock ring and valve assembly identification. Backlash, bearing preload and gear tooth contact pattern checking are documented with worked measurement examples for the crown wheel and pinion.

Brakes and Steering

Two brake actuation types are described: the master cylinder type and the optional booster type. The service brakes are oil immersed multi-plate discs mounted inside the rear axle centre casing, with the parking brake inside the rear axle input casing. The manual explains single cylinder operation, twin cylinder compensating operation when the pedals are locked together, and what happens in a power-off condition when the engine is not running. Bleeding is covered in both low pressure and high pressure form, and the brake valve chapter includes a full disassembly and assembly sequence with the torque values for the plugs and cap screws.

The steering system chapter explains the priority valve inside the main pump, the load sensing line to the steer unit and how flow is distributed when the steering wheel is turned or held at lock. Steering unit structures are shown both without and with emergency steering. The test section gives restriction, leakage, pressure and priority valve LS port flow tests with their gauge and tool requirements, oil temperature and engine speed conditions, so a technician can isolate a fault instead of replacing parts.

Hydraulics and Work Equipment

The work equipment section covers the open centre hydraulic system supplied by the fixed displacement double gear pump, with P1 feeding the loader control valve and P2 passing through the priority valve to the steering unit. Loader boom raise, lower and float positions, bucket dump and roll back, and the low speed control function are all documented with circuit diagrams. Ride control, where fitted, connects the boom cylinder large chamber to the accumulator. The backhoe side covers boom up and down, dipper roll in and out, bucket crowd and dump, boom swing and stabilizer up and down, plus the extended dipper where specified. Main pump structure and operating principle, the loader and backhoe main control valves, the backhoe RCV lever, the loader and backhoe cylinders, the hydraulic oil tank with its return filter bypass and air breather, and the accumulator are each given their own treatment.

Electrical System

The electrical section is unusually detailed for a machine of this type. It opens with component locations, then provides the full electrical circuit for mechanical and pilot machines. Individual circuits are broken out with operating flow and check points: illumination, head lights, work light switches, starting, charging, preheating, electric parking and declutch, wiper and washer, and the monitoring system with its indicator lamps and gauges. The switch group explains the start switch, front console switches, side console switches, multi-function switch and the switches mounted on the control levers. Electrical component specifications with check items and values, and a connector destination table with connector numbers, pin counts, destinations and part numbers, round the section off.

What This Manual Lets You Do

With the Hyundai H930C H940C Backhoe Loader Service Manual on hand, a technician can identify the correct engine variant from the machine serial number before ordering parts, follow the hydraulic circuit from pump to cylinder, pressure test the loader and backhoe control valves against the published relief settings, and check the transmission clutch packs engaged in each gear when a shift problem appears. The operational checkout record sheet gives a structured way to work through the machine at service time rather than relying on memory.

Correct specifications matter on a machine like this. A torque converter stall test result outside the published band points to either low engine power or a converter fault, and knowing which is which saves a transmission removal. A hydraulic system restriction test showing pressure above specification at the loader control valve points to a kinked line or a binding spool rather than a pump problem. The torque values, clearances and adjustment figures in this manual are what keep those decisions accurate.

This Hyundai H930C H940C backhoe loader repair manual is delivered as an instant PDF download after payment. There is no shipping and nothing to wait for. The file opens on a workshop PC, laptop, tablet or phone, and any page or section can be printed for use at the machine when a paper copy is more practical.
