Hyundai Robex R140LC-7A R140LCD-7A R140LCM-7A Crawler Excavator Full Service Workshop Manual

Description

Hyundai Robex R140LC-7A R140LCD-7A R140LCM-7A Crawler Excavator Full Service Workshop Manual

This Hyundai Robex R140LC-7A / R140LCD-7A / R140LCM-7A crawler excavator full service workshop manual is the complete technical reference for servicing, repairing, and maintaining the entire R140LC-7A family. Whether you are a professional heavy equipment technician, a fleet maintenance manager, or an owner-operator performing your own repairs, this R140LC-7A full service workshop manual delivers the procedures and specifications needed to diagnose faults, disassemble components, and reassemble everything to correct tolerances.

File Details

• Manual Type: Full Service Workshop Manual
• Brand: Hyundai Heavy Industries Co., Ltd.
• Models Covered: R140LC-7A, R140LCD-7A, R140LCM-7A (including 2-piece boom variant)
• Language: English
• Page Count: 498
• File Format: PDF

Chapters Covered

The Hyundai Robex R140LC-7A crawler excavator full service workshop manual is organised into nine sections, each broken down into focused service groups that map directly to the machine’s systems. The contents span everything from general safety and specification data through to complete disassembly and reassembly instructions.

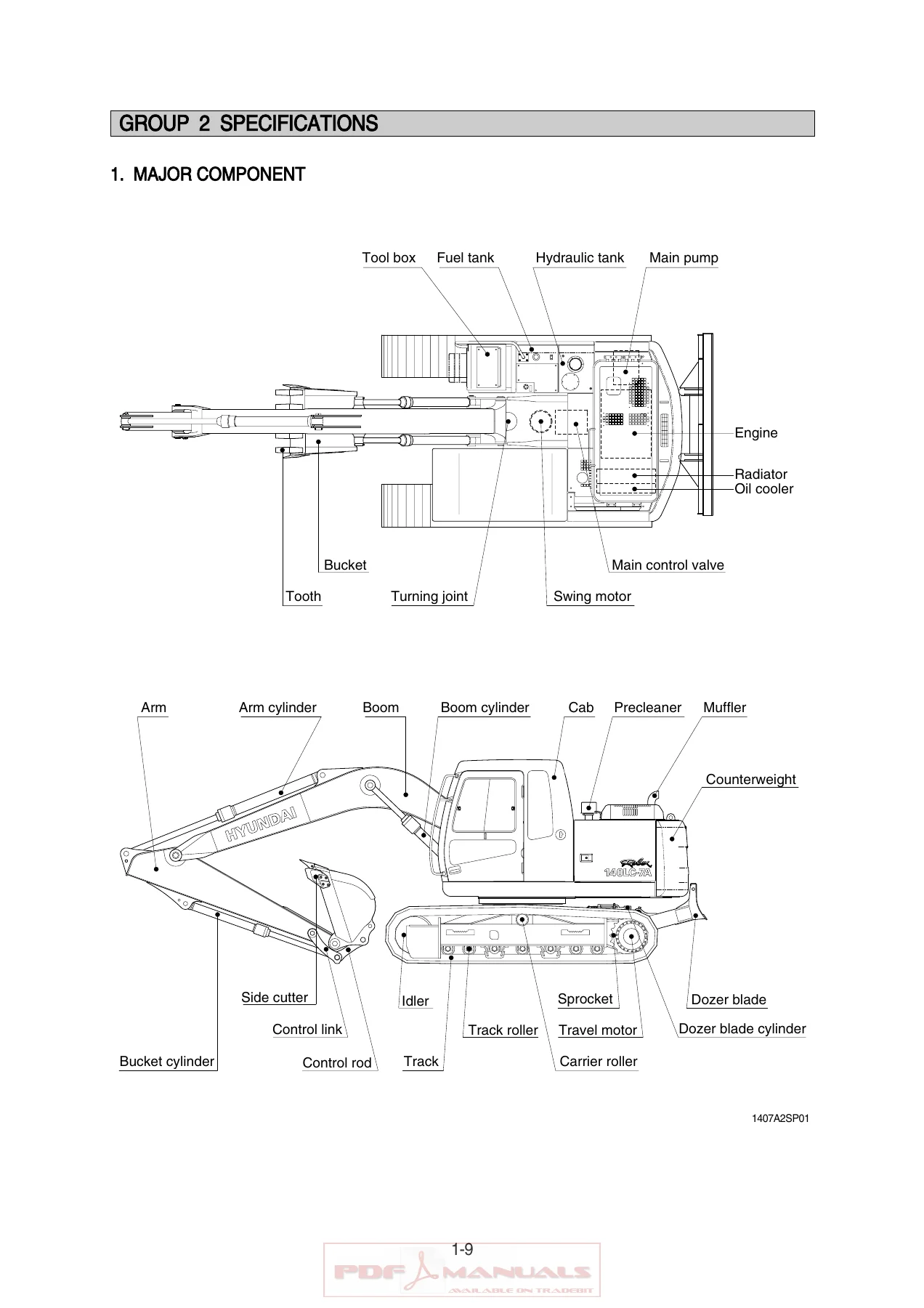

• Section 1 – General: Group 1 Safety Hints, Group 2 Specifications
• Section 2 – Structure and Function: Group 1 Pump Device, Group 2 Main Control Valve, Group 3 Swing Device, Group 4 Travel Device, Group 5 RCV Lever, Group 6 RCV Pedal

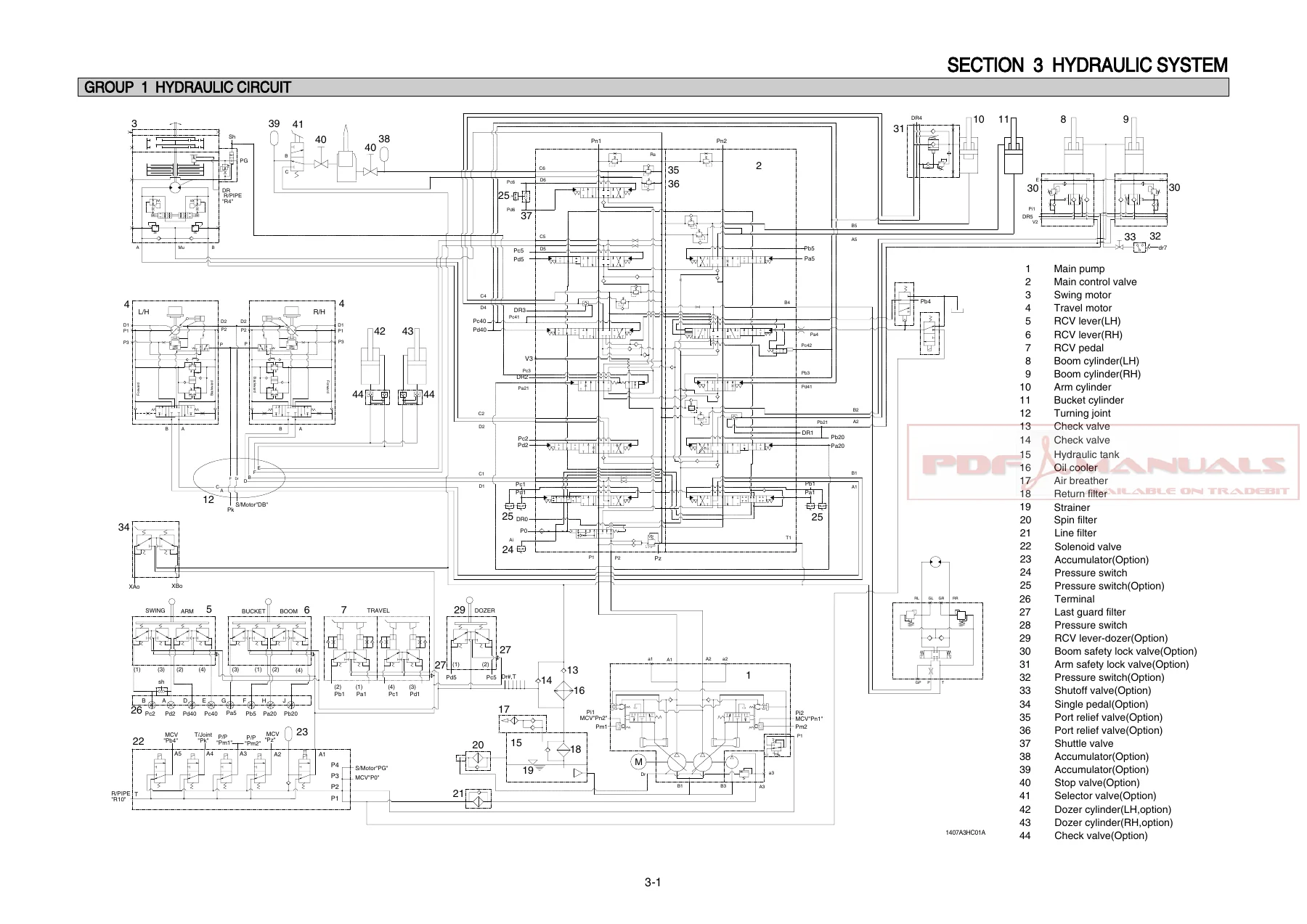

• Section 3 – Hydraulic System: Group 1 Hydraulic Circuit, Group 2 Main Circuit, Group 3 Pilot Circuit, Group 4 Single Operation, Group 5 Combined Operation
• Section 4 – Electrical System: Group 1 Component Location, Group 2 Electrical Circuit, Group 3 Electrical Component Specification, Group 4 Connectors
• Section 5 – Mechatronics System: Group 1 Outline, Group 2 Mode Selection System, Group 3 Automatic Deceleration System, Group 4 Power Boost System, Group 5 Travel Speed Control System, Group 6 Automatic Warming Up Function, Group 7 Engine Overheat Prevention Function, Group 8 Anti-Restart System, Group 9 Self-Diagnostic System, Group 10 Engine Control System, Group 11 EPPR Valve, Group 12 Monitoring System, Group 13 Fuel Warmer System
• Section 6 – Troubleshooting: Group 1 Before Troubleshooting, Group 2 Hydraulic and Mechanical System, Group 3 Electrical System, Group 4 Mechatronics System
• Section 7 – Maintenance Standard: Group 1 Operational Performance Test, Group 2 Major Components, Group 3 Track and Work Equipment
• Section 8 – Disassembly and Assembly: Group 1 Precaution, Group 2 Tightening Torque, Group 3 Pump Device, Group 4 Main Control Valve, Group 5 Swing Device, Group 6 Travel Device, Group 7 RCV Lever, Group 8 Turning Joint, Group 9 Boom Arm and Bucket Cylinder, Group 10 Undercarriage, Group 11 Work Equipment
• Section 9 – Component Mounting Torque: Group 1 Introduction Guide, Group 2 Engine System, Group 3 Electric System, Group 4 Hydraulic System, Group 5 Undercarriage, Group 6 Structure, Group 7 Work Equipment

Covering this much ground in a single volume means the manual works as both a diagnostic aid and a rebuild reference. Sections 1 and 2 establish the machine’s architecture and operating principles; Section 3 maps every hydraulic circuit path; Sections 4 and 5 decode the electrical and mechatronic control layers; Section 6 provides structured troubleshooting charts; Section 7 sets the measurement and maintenance acceptance criteria; Section 8 walks through component-level teardown and rebuild; and Section 9 closes with the mounting torque values needed to put everything back together correctly.

Detailed Coverage Inside the R140LC-7A Workshop Manual

The Hyundai Robex R140LC-7A series is powered by a Mitsubishi D04FD-TAA four-cylinder turbocharged diesel engine rated at 119 Hp (89 kW) at 2000 rpm with a 4249 cc displacement. The manual covers this powerplant in full, including high-idling and low-idling speeds, rated fuel consumption, starting and charging circuits, and the engine control system integrated into the mechatronics section.

Hydraulic coverage is equally thorough. The main pump is a variable displacement tandem axis piston pump delivering 2 x 130 l/min at 2000 rpm, with a maximum pressure of 330 kgf/cm2 (360 kgf/cm2 under power boost). The manual documents the pump’s rotary group, swash plate group, valve block, and regulator functions – including negative flow control, total horsepower control, power shift control, and Qmax cut control. The main control valve section details all eleven spools, the straight travel function, boom and arm regeneration, swing priority, holding valves, main relief and port relief operation, and the negative relief valve.

For the swing and travel systems, the manual provides complete structure and function explanations plus disassembly and assembly procedures for the swing motor, reduction gear, travel motor, and travel reduction gear. Hydraulic cylinder coverage includes the boom, arm, and bucket cylinders with their respective bore, rod, and stroke dimensions, plus the dozer cylinder option. Undercarriage topics span track rollers, carrier rollers, idlers, recoil springs, track chains, and track frame servicing.

Who This Hyundai Crawler Excavator Service Manual Is For

This manual suits anyone who needs to work on an R140LC-7A, R140LCD-7A, or R140LCM-7A with confidence rather than guesswork. That includes independent repair shops, dealership technicians, maintenance crews responsible for fleets of Hyundai excavators, and owner-operators who prefer to handle their own servicing. The troubleshooting sections are structured to help you move logically from symptom to cause, while the disassembly and assembly groups give you the sequence and precautions to avoid damaging precision components.

Because the manual covers the complete machine rather than isolated subsystems, you can use it for a routine maintenance task such as checking cylinder cycle times, as easily as for a full pump or motor rebuild. The tightening torque tables in Sections 8 and 9 remove the guesswork from reassembly, and the maintenance standard in Section 7 gives you the wear limits and service criteria to judge when a component needs replacement.

IMAGES PREVIEW

Instant PDF Delivery – Your R140LC-7A Workshop Manual on Any Device

The Hyundai Robex R140LC-7A R140LCD-7A R140LCM-7A crawler excavator full service workshop manual is delivered as an instant PDF download immediately after payment. There is no shipping, no waiting, and no physical book to store. You can open it on a laptop, tablet, or smartphone at the machine, print the pages you need for the workshop floor, and keep the complete manual on hand for every service job. Whether you are diagnosing a hydraulic fault, rebuilding a travel motor, or looking up a torque value, the information is exactly where you need it, when you need it.
