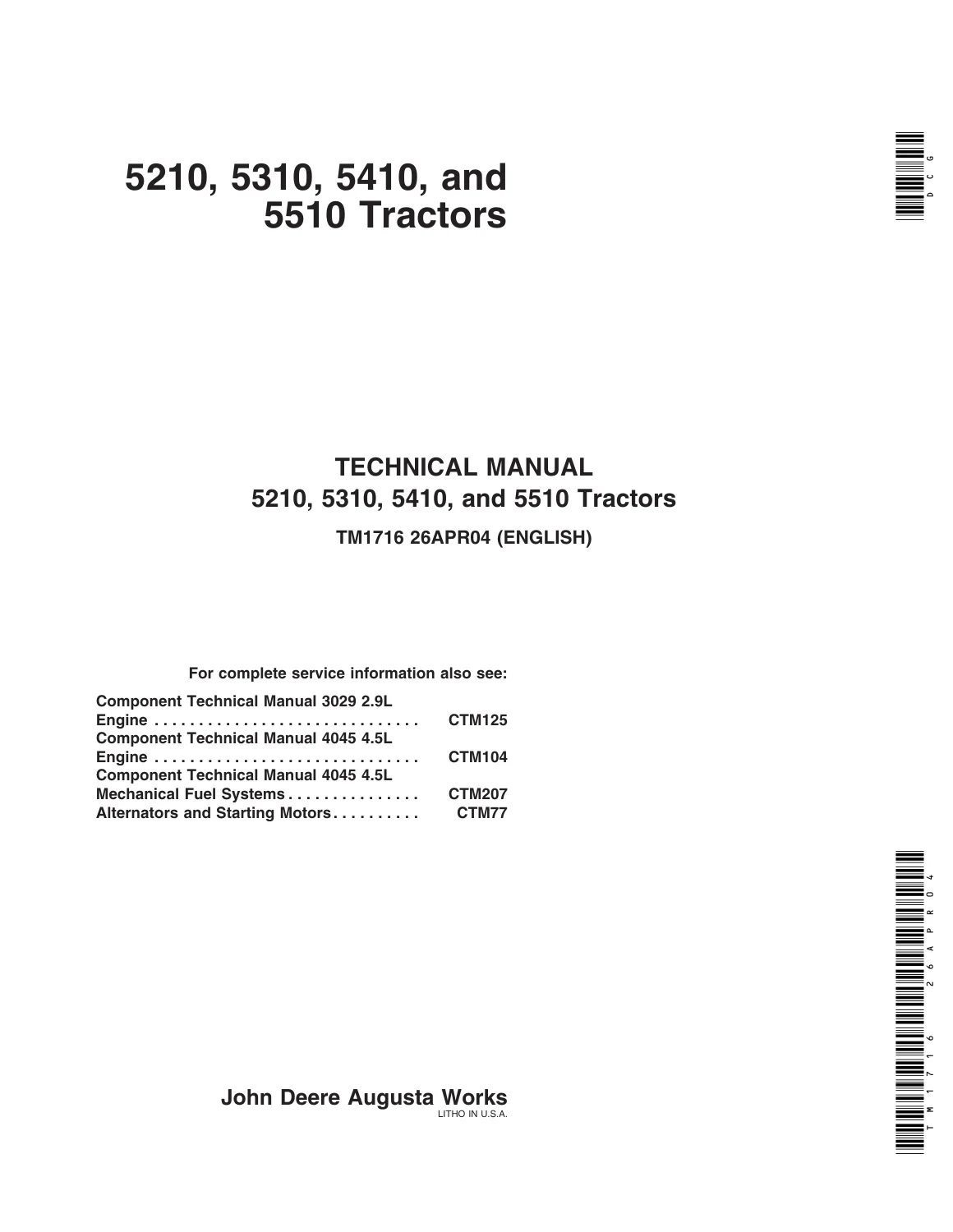

John Deere 5210, 5310, 5410 and 5510 Tractors Service Technical Manual TM1716

Description

Complete Service and Repair Guide for John Deere 5000 Series Utility Tractors

The John Deere 5210, 5310, 5410 and 5510 Tractors Service Technical Manual TM1716 delivers complete workshop servicing instructions, diagnostic routines, and overhaul procedures for professional technicians and equipment owners. Covering both two-wheel drive (2WD) and mechanical front-wheel drive (MFWD) models across open station and factory cab variants, this publication provides direct factory specifications to keep your utility tractor operating at peak performance. Whether troubleshooting an open-center hydraulic system, rebuilding a dual clutch pack, overhauling a CollarShift or PowrReverser transmission, or tracing electrical harnesses, this technical manual provides the necessary step-by-step guidance.

Manual File Details

• Manual Type: Technical Manual (Repair, Operation and Tests)
• Brand: John Deere
• Applicable Models: 5210, 5310, 5410, and 5510 Tractors
• Engines Covered: CD3029DLV50, CD3029TLV50, CD4045DLV50, and CD4045TLV50
• Document Number: TM1716
• Publication Date: 26APR04 (April 2004 Edition)
• Publisher: John Deere Augusta Works (Litho in U.S.A.)
• Language: English
• Page Count: 1436 Pages
• Format: Digital PDF

Chapters Covered in TM1716

• Section 10 — General Information: Safety precautions, general machine specifications, travel speed tables, O-ring boss and flat-face fitting recommendations, fastener torque charts, fuel and lubricant requirements, serial number plate locations, and standard/optional accessories.
• Section 20 — Engine Repair: Engine removal and installation for open station and cab tractors, front-end support separation, radiator removal and inspection, thermostat replacement, and belt tensioner testing.
• Section 30 — Fuel and Air Repair: Fuel tank removal and installation for open-station and cab chassis, fuel filter and hand primer pump assembly service, air cleaner maintenance, turbocharger removal and installation (5310 and 5510), turbocharger break-in, and speed control linkage adjustment with or without 540/540E PTO.
• Section 40 — Electrical Repair: Battery, starter motor, and alternator removal and installation (40A, 60A, and 65A units), electrical system components, key switch, light switches, turn signal controller, instrument clusters, neutral start switch, PTO safety switches, fuel sender replacement, and full wiring harness replacement for 3-cylinder and 4-cylinder tractors.
• Section 50 — Power Train Repair: Engine-to-clutch housing separation, clutch pedal linkage overhaul, dual clutch disassembly and rebuild (CollarShift and SyncShuttle), PowrReverser wet clutch pack and control valve overhaul, standard transmission teardown, rear PTO driveshaft service, differential and final drives, creeper gear assembly, and MFWD front axle repair.
• Section 60 — Steering and Brake Repair: Hydrostatic power steering valve, steering cylinder repair, brake pedals, and wet disk service brake assemblies.
• Section 70 — Hydraulic Repair: Engine gear-driven tandem hydraulic pumps, oil cooler lines, rockshaft lift cylinder and control valves, dual and single selective control valves (SCV), mid-mount couplers, and power beyond.
• Section 80 — Miscellaneous Repair: 2WD adjustable front axle, wheels, and 3-point hitch assemblies.
• Section 90 — Operator Station Repair: Seat suspension, console panels, ROLL-GARD ROPS structure, cab enclosure components, air conditioning compressor, and heater system.
• Section 210 — Operational Checkout Procedures: Step-by-step operational verification checks for all tractor systems.
• Section 220 to 290 — Operation, Tests, and Adjustments: Theory of operation, component location diagrams, diagnostic troubleshooting trees, pressure testing, and mechanical adjustments for engine, fuel/air, electrical wiring schematics, power train, steering, brakes, hydraulics, and cab climate control.
• Section 299 — Dealer Fabricated Tools: Dimensioned fabrication drawings for specialized clutch alignment and height gauges.

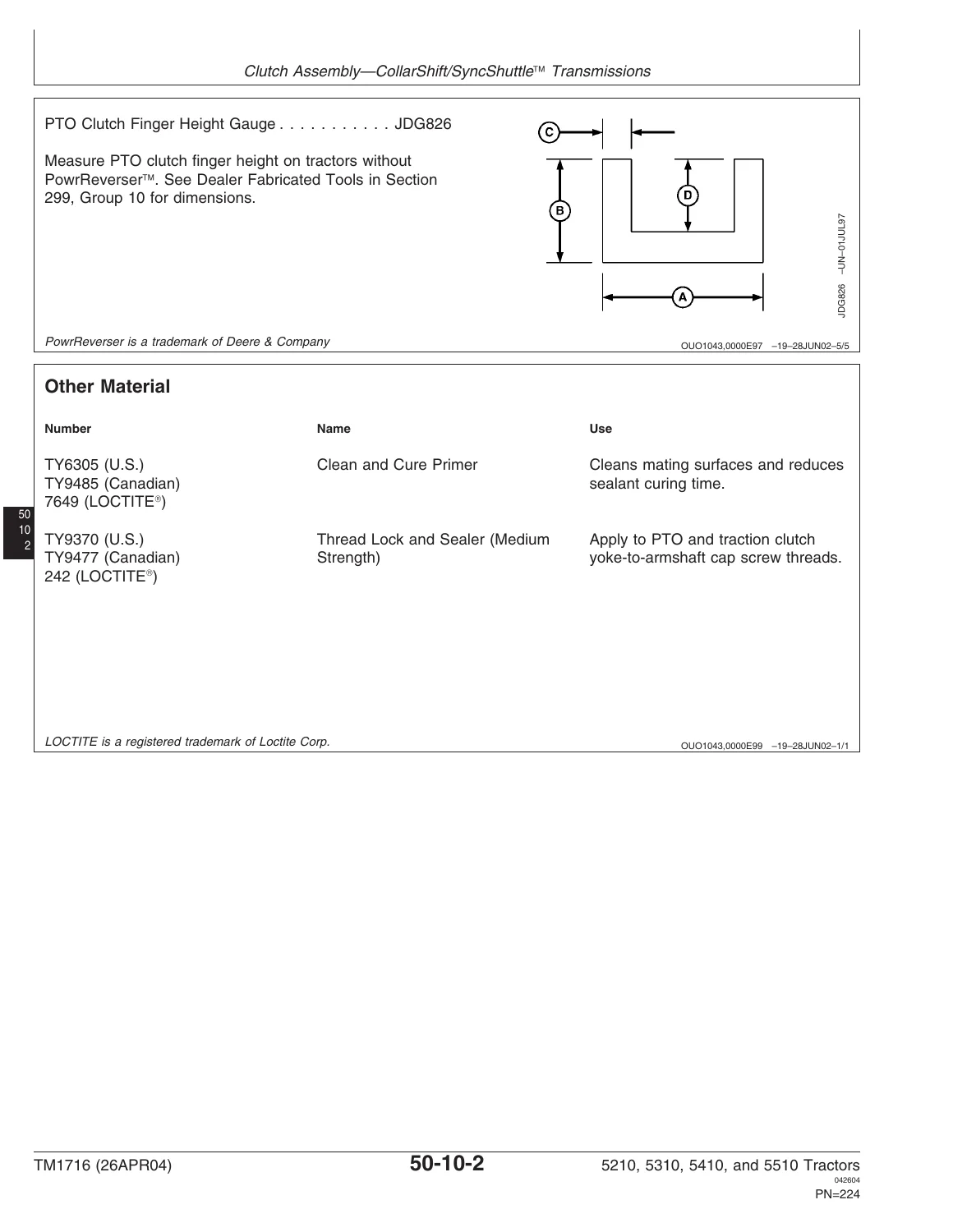

IMAGES PREVIEW

By pairing detailed mechanical repair instructions with dedicated operation and test sections, the John Deere 5210, 5310, 5410 and 5510 Tractors Service Technical Manual TM1716 equips service personnel to pinpoint hydraulic or electrical faults quickly and follow exact factory disassembly, reconditioning, and assembly procedures.

Engine, Fuel, and Cooling System Maintenance

Detailed service coverage addresses the John Deere 3000 Series 3-cylinder (2.9 L) engines powering the 5210 (naturally aspirated CD3029DLV50) and 5310 (turbocharged CD3029TLV50), as well as the 4000 Series 4-cylinder (4.5 L) diesel powerplants on the 5410 (naturally aspirated CD4045DLV50) and 5510 (turbocharged CD4045TLV50). Technicians receive full instructions for safely supporting and splitting the tractor chassis, disconnecting hydraulic lines and electrical leads, and removing the engine assembly from both open-station and cab platforms. Critical hardware torque specifications are clearly outlined, including 300 N·m (225 lb-ft) for 3-cylinder engine-to-clutch housing bolts, 350 N·m (255 lb-ft) for 4-cylinder engines on open-station models, and 318 N·m (235 lb-ft) on cab-equipped tractors. Additional procedures cover automatic belt tensioner inspection with a torque wrench (18–22 N·m / 13–16 lb-ft spring specification), turbocharger replacement, and mandatory pre-lubrication break-in procedures.

Transmission, Drivetrain, and Clutch Systems

The manual provides thorough coverage across all three drive train configurations: standard CollarShift (9 forward, 3 reverse), SyncShuttle (9 forward, 3 reverse with synchronized directional shift), and PowrReverser (12 forward, 12 reverse with hydraulic forward-reverse modulation). Inside the power train section, find exhaustive teardown and rebuild procedures for the dual dry clutch assembly on mechanical transmission units and the multi-disk wet clutch pack on PowrReverser tractors. Exact wear limits are documented, such as the 6.50 mm (0.260 in.) minimum traction clutch disk thickness, 5.50 mm (0.220 in.) minimum PTO clutch disk thickness, and 13.3 mm (0.523 in.) minimum clutch spring washer free height. Step-by-step instructions detail finger height adjustment using essential dealer tools (JDG826, JDG827, JDG828, and JDG919), ensuring chatter-free engagement and proper release clearance.

Hydraulics, Steering, and Electrical Architecture

Diagnostic testing and repair procedures cover the open-center hydraulic system energized by engine-timing-gear-driven tandem gear pumps. The manual details testing the rear pump circuit (supplying power steering, brake valve make-up oil, and top shaft transmission lubrication) and the front pump circuit (directing up to 85 L/min / 22.5 gpm to the rockshaft and selective control valves at main relief pressures between 18,995 and 19,700 kPa / 2,755–2,855 psi). Complete wiring harness layouts for 3-cylinder and 4-cylinder tractors allow rapid diagnosis of charging, lighting, safety interlock, and instrument panel circuits, including step-by-step terminal replacement for Weather Pack connectors.

Professional Capability, Verified Accuracy, and Instant Delivery

Investing in the John Deere 5210, 5310, 5410 and 5510 Tractors Service Technical Manual TM1716 gives you the exact technical capability required to undertake major machine overhauls, routine maintenance, and complex fault tracing with total confidence. Utilizing factory-verified torque values, wear tolerances, and hydraulic pressure settings eliminates costly guesswork, preventing premature component failure and preserving the working life of your machinery. This workshop manual is delivered as an instant PDF download immediately following payment—no waiting for physical shipping. Compatible with laptops, tablets, smartphones, and desktop computers, the file is fully searchable, portable to the field, and printable whenever physical shop pages are preferred.
