John Deere 5225 5325 5425 5525 5625 5603 Tractor Repair Technical Manual TM2187 PDF

Description

John Deere 5225 5325 5425 5525 5625 5603 Tractor Repair Technical Manual TM2187 PDF

The John Deere 5225 5325 5425 5525 5625 5603 Tractor Repair Technical Manual TM2187 PDF is the machine repair manual for six John Deere tractor models and is organized for experienced technicians working through component removal, inspection, installation, adjustment, and repair. TM2187 covers the tractor itself across engine installation, cooling, fuel and air systems, electrical components, power train, steering and brakes, hydraulics, chassis items, operator station components, air conditioning, heating, and dealer-fabricated tools. The manual is dated 18DEC06 and contains detailed repair sequences supported by photographs, drawings, specifications, torque values, service limits, and tool references.

This is specifically the Repair technical manual. The manual identifies a separate Operation and Test manual, TM2197, for operation, testing, and diagnostic information, and it also directs technicians to Component Technical Manuals for some complete component repairs. In particular, complete 3.0 L 5-cylinder engine work uses CTM301 and complete 4.5 L 4-cylinder engine work uses CTM104. The same component-manual approach is referenced for work such as injection pump, nozzle, governor, coolant pump, and turbocharger repair. TM2187 remains the primary machine-level repair guide for removal, installation, access, tractor-side repair procedures, system components, and the many specifications needed to put the tractor back together correctly.

File Details

• Manual type: Repair Technical Manual
• Brand: John Deere
• Models: 5225, 5325, 5425, 5525, 5625 and 5603
• Document number: TM2187
• Date: 18DEC06
• Language: English
• Pages: 1090
• File format: PDF

Model and Powertrain Coverage

The manual separates procedures and specifications where the tractors use different engine or chassis arrangements. The 5225 and 5325 specifications identify the John Deere 5030PF270 turbocharged 5-cylinder 3.0 L diesel engine. The 5425 and 5525 use the 4045TLV54 engine, while the 5625 and 5603 use the 4045TLV56; these are shown in the manual as turbocharged 4-cylinder 4.5 L diesel applications. This distinction carries through repair procedures, with separate illustrations and instructions for 4-cylinder and 5-cylinder configurations where required.

Transmission and driveline coverage is equally detailed. The repair material includes SYNCSHUTTLE and POWRREVERSER configurations, including clutch assemblies, the POWRREVERSER unit, SYNCSHUTTLE transmission, POWRREVERSER transmission, rear PTO drive shaft, differential, final drives, Hi-Crop final drives, mechanical front wheel drive, and creeper assembly. General specifications identify 9 forward/3 reverse SYNCSHUTTLE, 12 forward/12 reverse POWRREVERSER, and 24 forward/24 reverse POWRREVERSER with electro-hydraulic Hi/Lo configurations where equipped. The manual also addresses straddle mount, isolated open operator station, cab, 2WD, MFWD, and 5525 Hi-Crop arrangements where the repair or dimensional information differs.

Chapters Covered

• Section 10 – General Information
  • Safety
  • General Specifications
  • Fuel and Lubricants
  • Serial Number Locations
  • Features and Accessories
• Section 20 – Engine Repair
  • Engine
  • Cooling System
• Section 30 – Fuel and Air Repair
  • Fuel System
  • Air Intake System
  • Speed Control Linkage
• Section 40 – Electrical Repair
  • Battery, Starter and Alternator
  • Electrical System Components
  • Wiring Harness
• Section 50 – Power Train Repair
  • Clutch Housing
  • Clutch Assembly – SYNCSHUTTLE Transmissions
  • Clutch Assembly – POWRREVERSER Transmission
  • POWRREVERSER
  • SYNCSHUTTLE Transmission
  • POWRREVERSER Transmission
  • Rear PTO Drive Shaft
  • Differential
  • Final Drives
  • Hi-Crop Final Drives
  • Mechanical Front Wheel Drive
  • Creeper Assembly
• Section 60 – Steering and Brake Repair
  • Steering Repair
  • Brake Repair
• Section 70 – Hydraulic Repair
  • Hydraulic Pump and Filter
  • Hydraulic Oil Cooler
  • Rockshaft
  • Selective Control Valve
  • Hydraulic Mid-Mount Control Valve
• Section 80 – Miscellaneous Repair
  • Front Axle – 2WD
  • Wheels
  • 3-Point Hitch
  • Fenders
  • Hood
• Section 90 – Operator Station Repair
  • Seat and Support
  • Control Console and Panel
  • ROLL-GARD
  • Cab Components
  • Isolated Open Operator Station Components
  • Air Conditioning System
  • Heating System
• Section 99 – Dealer Fabricated Tools
  • Dealer Fabricated Tools

Taken as a whole, TM2187 moves from tractor identification and service data into practical disassembly and reassembly work across nearly every major machine system. It is especially useful when a repair requires several connected operations: separating the engine from the clutch housing, removing a front axle or MFWD assembly, accessing transmission and differential components, servicing hydraulic valves and rockshaft parts, or removing cab and operator-station assemblies before another repair can proceed.

Repair Procedures, Specifications and Service Data

The John Deere 5225 5325 5425 5525 5625 5603 Tractor Repair Technical Manual TM2187 PDF contains machine specifications for the covered tractor families together with extensive repair specifications. The general specification section records engine type and model, displacement, bore and stroke, compression ratio, rated speed, electrical system information, transmission choices, steering and brake type, hydraulic system pressure and pump capacity, PTO data, fluid capacities, ground-speed estimates, machine dimensions, and approximate shipping weights for applicable configurations.

Repair specification pages bring the service data directly into workshop jobs. They include engine-to-clutch housing and frame fastener torques, clutch dimensions and minimum thicknesses, transmission and differential settings, final-drive and MFWD torques, steering and brake fastener values, hydraulic pump and valve specifications, rockshaft and selective-control-valve data, wheel and axle fastener torques, ROLL-GARD mounting torque, and fitting torque charts. Metric and unified-inch bolt torque charts are also included, along with O-ring boss and flat-face O-ring seal fitting recommendations.

Illustrated procedures show the sequence of work and identify components with lettered callouts. Engine removal and installation, for example, covers cab-related air-conditioning connections, hood and battery removal, radiator and hydraulic oil cooler access, MFWD shaft removal where equipped, fuel and hydraulic lines, wiring harnesses, steering connections, frame and front support handling, lifting brackets, clutch alignment, specified tightening values, fluid refill, leak checks, and final adjustments. Cooling-system work includes coolant recovery tank service, radiator removal and inspection, radiator installation, separate thermostat procedures for 4-cylinder and 5-cylinder engines, and belt-tensioner inspection and replacement.

Fuel and air repair covers fuel-tank removal, inspection and installation for straddle-mount as well as isolated-open-operator-station and cab tractors, fuel filter/water separator replacement for both engine families, fuel filter/primer pump work, the fuel transfer pump on 5603 and 5625 tractors, air-cleaner element service, turbocharger removal and installation, and speed-control linkage repair. Electrical repair extends beyond the battery, starter, and alternator to switches, senders, instrument panels, controllers, load centers, lighting and cab electrical components, plus wiring harness work.

The power-train chapters are a major part of this 1090-page manual. They cover engine-to-clutch-housing separation, SYNCSHUTTLE and POWRREVERSER clutch work, transmission components, PTO drive components, differential service, final drives, Hi-Crop final drives, MFWD, and creeper equipment. Steering and brake sections add component-level removal, inspection, installation, and adjustment procedures. Hydraulic chapters address the pump and filter, oil cooler, rockshaft, selective control valves, and mid-mount control valve, with specifications and component illustrations positioned alongside the procedures.

IMAGES PREVIEW

Cab, Operator Station and Chassis Work

TM2187 also supports repairs that require access to the tractor structure and operator environment. The miscellaneous repair section includes the 2WD front axle, wheels, 3-point hitch, fenders, and hood. Operator-station chapters cover seats and supports, control consoles and panels, ROLL-GARD structures, cab components, isolated open operator station components, air conditioning, and heating. Cab procedures include trim and glass removal, doors and roof components, cab removal and installation, while the air-conditioning section covers refrigerant recovery/recycling, receiver/dryer, condenser, compressor, compressor clutch and internal service, evaporator/heater core, expansion valve, oil charge, flushing, evacuation, and charging procedures.

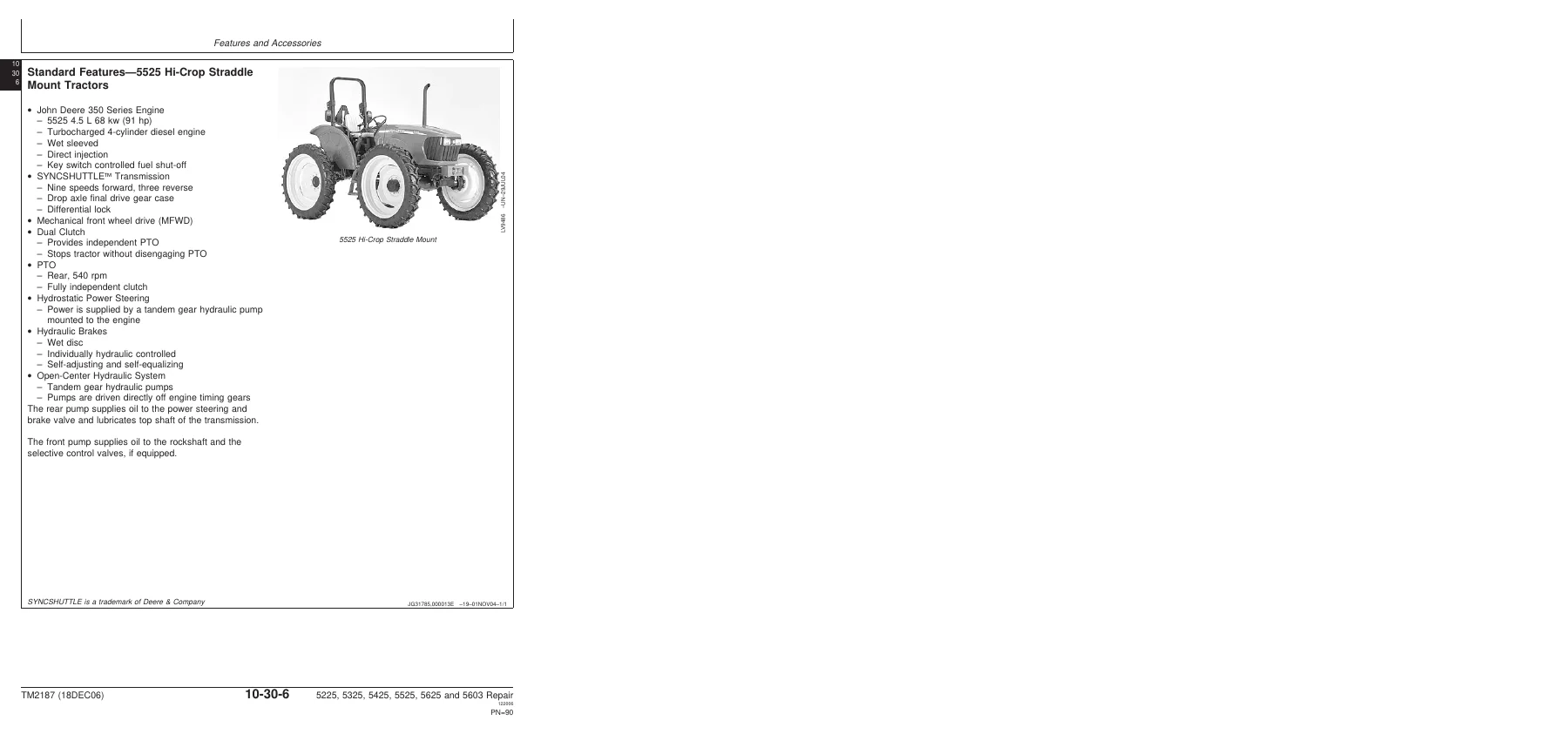

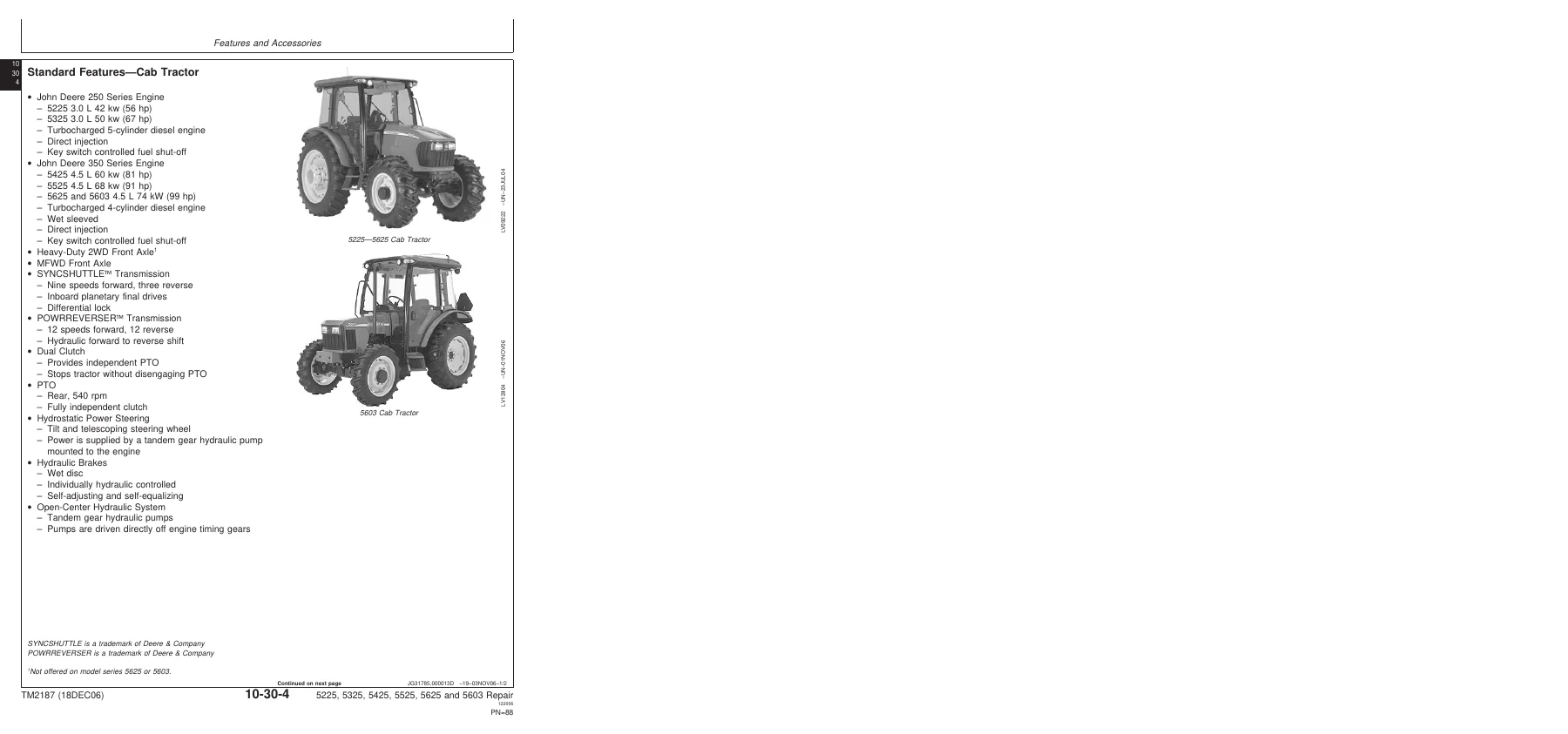

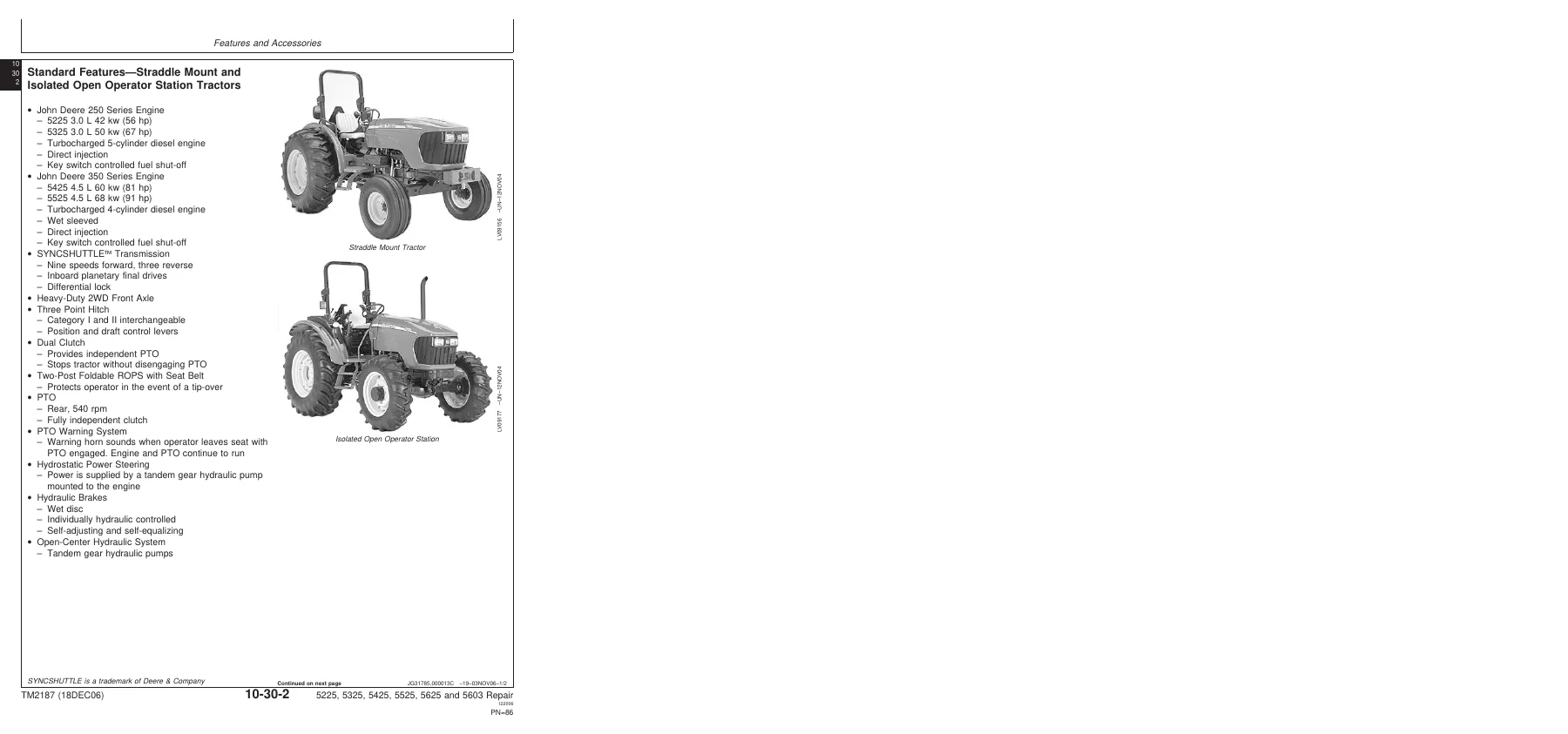

Photographs throughout the manual help distinguish tractor layouts and component locations. Serial-number location pages identify the product identification plate and component identification locations for 4-cylinder and 5-cylinder engines, fuel injection pump, alternator, power steering valve, starter, transmission, 2WD axle, MFWD axle, air-conditioning compressor, and cab. Feature pages also illustrate straddle mount, isolated open operator station, cab, 5603 cab, and 5525 Hi-Crop tractor configurations, which is useful when matching the repair procedure to the machine in front of you.

Get the Repair Information at the Workbench

The John Deere 5225 5325 5425 5525 5625 5603 Tractor Repair Technical Manual TM2187 PDF gives owners and technicians a structured reference for major tractor disassembly, component removal and installation, clutch and transmission work, steering and brake repair, hydraulic repairs, electrical component replacement, cooling and fuel-system service, MFWD and final-drive work, cab and operator-station repairs, and the torque values and service specifications needed to complete those jobs correctly. Using the documented sequence, measurements, tightening values, safety steps, and component identification reduces guesswork during complex repairs and helps ensure assemblies are returned to the tractor in the intended configuration. After payment, the manual is delivered as an instant PDF download with no shipping required; it can be viewed on compatible phones, tablets, laptops, or desktop computers and printed for workshop use.
