John Deere 6000 6010 6020 Series Tractor Maintenance Parts Catalog PC4962 2010 PDF

Description

File Details

• Manual type: Maintenance Parts Catalog
• Brand: John Deere
• Coverage: 6000, 6010 and 6020 Series European tractors
• Document number: PC4962
• Edition date: 31-AUG-10
• Language: English (with a multilingual remarks-code legend for English, French, German, Italian and Spanish)
• Page count: 374 pages
• File format: PDF

What This John Deere 6000 6010 6020 Series Tractor Maintenance Parts Catalog Covers

This is the maintenance parts catalog John Deere technicians and parts departments use to identify the fast-moving service items on the 6000, 6010 and 6020 Series European tractors. Every entry is grouped by system, keyed to an illustration, and followed by the part number, quantity, serial-number breakpoint and any applicable remarks code (primary or final fuel filter, with air conditioning, with AutoPowr, for SE tractors, and so on). The document is organized so you can open a chapter, find the exploded view, match the item number on the drawing to the row in the table, and order the exact replacement. It is a parts catalog rather than a repair manual: the value is in the part numbers, serial breakpoints and diagram callouts, not in step-by-step service procedures.

Models listed on the opening coverage pages include 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, 6200L, 6300L, 6400L, 6500L, 6300, 6400, 6500, SE6100, SE6200, SE6300, SE6400, 6010, 6110, 6210, 6310, 6410, 6205, 6510, 6610, 6810, 6910, 6910S, 6505, 6110L, 6210L, 6310L, 6410L, 6510L, 6310S, 6410S, 6510S, 6405, 6605, SE6010, SE6110, SE6210, SE6310, SE6410, SE6510, SE6610, 6020, 6120, 6220, 6320, 6420, 6420S, 6215, 6520, 6620, 6820, 6920, 6920S, 6615, 6120L, 6220L, 6320L, 6420L, 6520L, 6415, 6715, SE6020, SE6120, SE6220, SE6320, SE6420, SE6520 and SE6620. Engine coverage noted across the filter tables includes the 4045 and 6068 families — 4045HL472/473/474/475/476, 4045TL270/271/272, 4045HL270/271/272/273, 4045HLA70/72/73, 4045HL072/070, 4045DL070, 4045TL070/071/072/073, 4045TL064, 6068HL270/271/272/273, 6068DL070/071, 6068TL072/073, 6068HLA70/71/72/73 and 6068HL470/471/472/473/474/475.

Chapters Covered

• 10 — General Information
• 15 — Filter
• 20 — Engine
• 40 — Electrical Components
• 50 — Transmission
• 60 — Brakes
• 70 — Hydraulics
• 80 — Front Axles
• 90 — Operator’s Station
• 180 — Numerical Index

10 — General Information

The front matter explains the codes used in the Remarks column (APPL, AR, ID, INCL, KIT, LGTH, LH, MF, NSEP, OD, ORD, SUB FOR, W/ and W/O), so you can decode every abbreviation and substitution note that appears beside a part number. This is the reference page to keep open while ordering because it tells you what each flag means before you commit to a part.

15 — Filter

The filter chapter covers the regular service items: fuel pump and filter overviews, air filters, oil filters, fuel filters and filter elements. Each section has a table keyed to an exploded illustration with serial breakpoints so you can order the correct primary or final fuel filter, element or kit for the engine in front of you. Remarks call out SE tractors, AutoPowr, engines 4045HL472 through 4045TL272 and 6068 variants, and the air-conditioning option.

20 — Engine

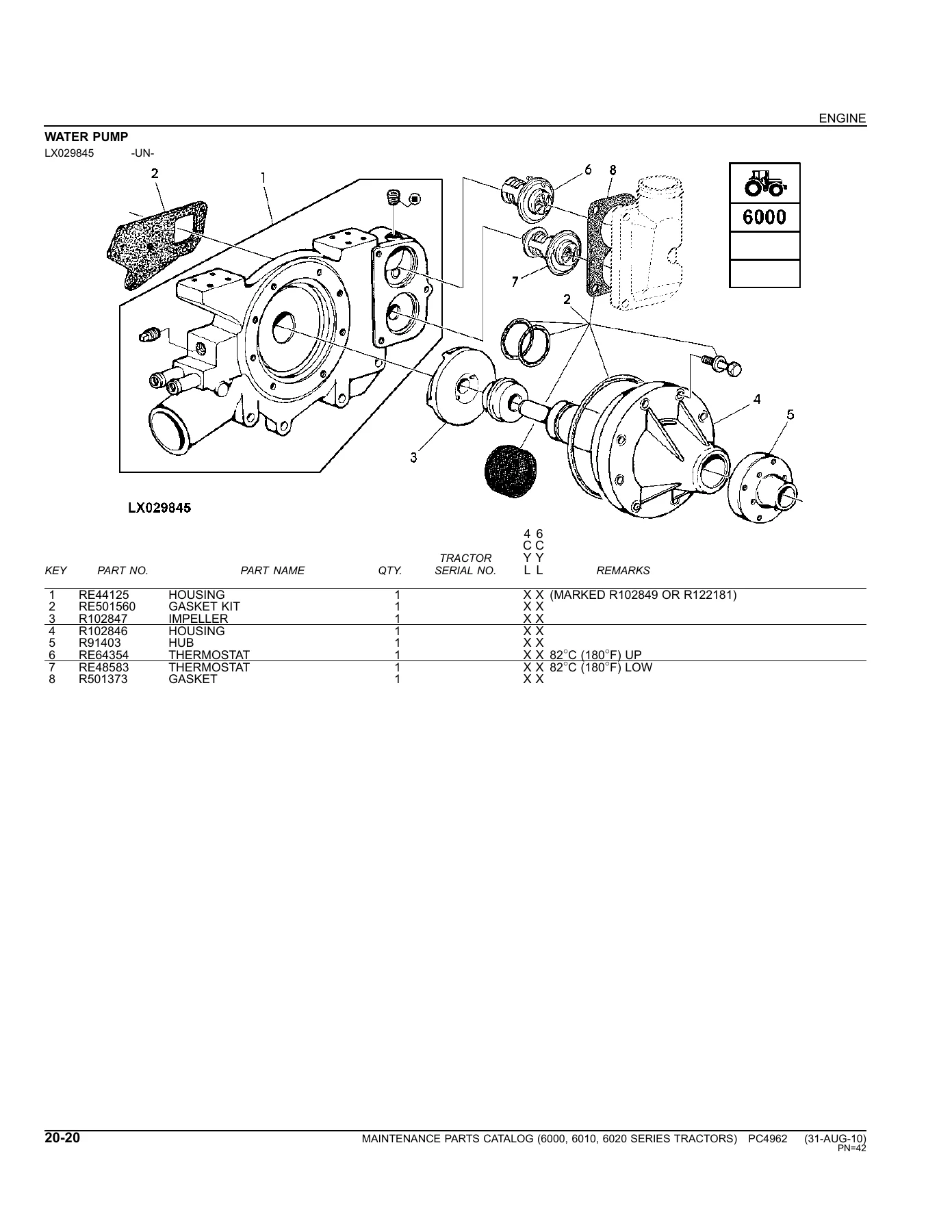

Engine-side maintenance parts include water pumps, engine kits, gaskets, seals, impellers, thermostats (with 78°C, 82°C and 83°C callouts where printed), radiator and fan shroud assemblies, coolant hoses and clamps. The thermostat tables distinguish 6010-6410, 6205 and 6505/6605 coverage, and the radiator section breaks coverage by tractor model and serial range for 6100/6200, 6300/6400, 6506/6600/6800 and 6900.

40 — Electrical Components

Starter motors, alternators (14V 55A, 85A and 120A variants), fuses, diodes, bulbs and lamp assemblies are listed here. The alternator illustrations break out the pulley with dampener, fan, washer and flange nut, and the fuse list covers 10A through 160A ratings. This is where you source the electrical maintenance items without guesswork.

50 — Transmission

Transmission-side maintenance parts center on bearings, bearing cups and cones, wear rings, seals, shims, snap rings and tapered roller bearings. The chapter is set up with exploded views of the transmission housing end and the shaft assemblies, with serial-number breakpoints so the correct bearing set is chosen for the transmission in the tractor. Part numbers such as L154620, L154621, AL156503, AL156506 and RE61190 appear with the quantity and position marked on the diagram.

60 — Brakes

The brake chapter is a good example of how much maintenance detail is packed into this catalog. Pistons, compression springs, O-rings, brake discs (with 4.9 mm and 5.9 mm thickness callouts), brake actuating discs and heavy-duty variants are listed against serial breakpoints and regional notes such as “not for Italy and Spain”. The exploded diagram lets you identify the exact disc and spring set for the differential housing on your tractor.

70 — Hydraulics

Hydraulic pumps (25 cm³, 27 cm³, 28 cm³, 40 cm³ and 41 cm³ displacements are all called out in the remarks), gaskets, adapter fittings, O-rings and mounting hardware are listed. The chapter also includes quick coupler sockets, dust shields, leak-off oil parts and selective control valve plumbing, with a conversion kit entry for going from 25/40 cm³ to 25/41 cm³.

80 — Front Axles

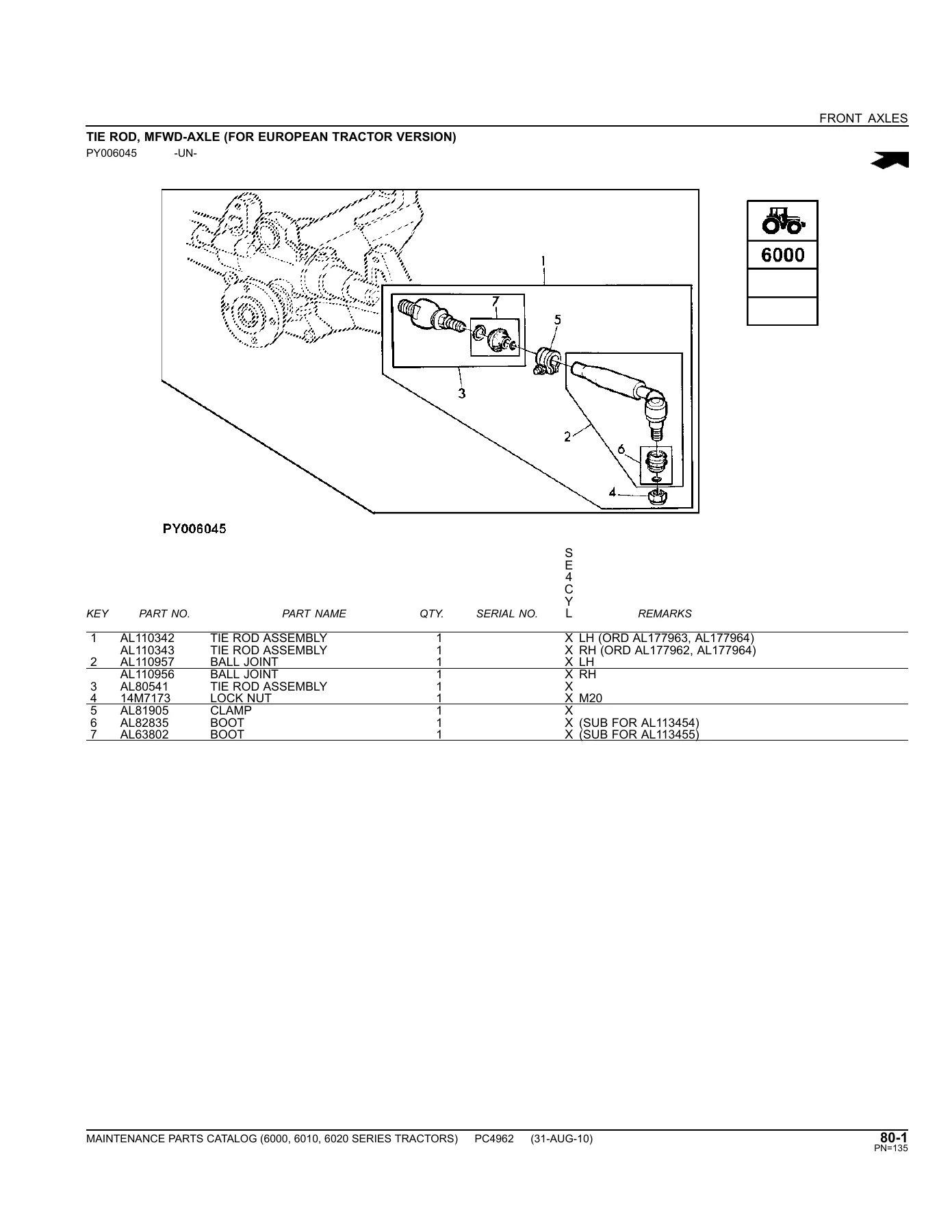

This is the biggest single chapter in the book and covers tie rods, tie rod ends, ball joints, boots, gaskets, clamps, lock nuts and knuckle housings for the MFWD front axles fitted across the 6000, 6010 and 6020 Series. Coverage is split by axle type — APL2025/AS2025, APL2035/AS2035, APL2045/AS2045, APL2060/AS2060 and 730, 733, 740, 745/750, 045JD/045JDS — and by region (European and North American tractor versions). Housing, hub, kingpin, bearing, seal and shim part numbers are all present with their position marked on the exploded view.

90 — Operator’s Station

Gas-operated cylinders (windscreen, door, rear window, roof hatch, hood), cab glass and door panels, outside mirrors, wiper blades, seats and seat suspensions (MSG44-A1, MSG83, MSG85, MSG95, DS85), seat belts, armrests, repair kits and the instructional seat are listed. This chapter is what you use to replace a leaking gas strut, a cracked window pane, a worn seat suspension or a broken seat belt on any of the covered tractors.

180 — Numerical Index

The numerical index maps every part number back to its key and page, so once you have a part number from the dealer or a previous invoice you can jump straight to the illustration and confirm the fitment before ordering.

Who This Parts Catalog Is For

This is the right document for anyone maintaining a fleet or a single 6000, 6010 or 6020 Series tractor and wanting the correct part number on the first attempt: independent workshops, dealer parts counters, farm mechanics, resellers of used parts and owners who prefer to source their own filters, belts, water pumps, thermostats, brake discs and front-axle components. It is also the reference behind every quotation, because the serial breakpoints and remark codes remove the guesswork that causes wrong-part returns.

Because the catalog is organized by system with exploded views and serial breakpoints, it doubles as a fitment reference: compare the drawing to the tractor, match the key number, confirm the serial range, and order. If you are rebuilding the front axle, replacing a dragging brake, chasing a hydraulic pump leak, or simply stocking the annual filter kit, the illustration and the part table sit on the same spread.

Why the Correct Part Number Matters

John Deere used several engine variants, two hydraulic pump families, multiple front-axle designs and a long list of SE-tractor and AutoPowr exceptions across these three series. An air filter that looks identical can carry a different part number once the engine code or cab option changes, and brake discs come in 4.9 mm and 5.9 mm thicknesses with regional restrictions. The PC4962 catalog encodes those differences in the Remarks column and serial breakpoints, which is why it is still the working reference for these tractors. Order once, fit once, and keep the tractor in the field instead of waiting on a return.

Get Your Copy

The John Deere 6000 6010 6020 Series Tractor Maintenance Parts Catalog PC4962 is delivered as a PDF that opens on any phone, tablet, laptop or desktop, and every page is printable for the workshop wall or the parts binder. There is no shipping, no waiting on a disc, and no region lock — you get the full 374-page catalog the moment payment clears. Whether you are pricing a single fuel filter or planning a front-axle overhaul, having the complete parts reference in your hand is what separates a quick fix from a comeback.
