Jungheinrich EJC 216 Spare Parts Manual – Serial 90351510

This illustrated spare parts catalogue covers the Jungheinrich EJC 216 electric pallet stacker with serial number 90351510. Every assembly is broken down into its individual components with order numbers, descriptions and exploded-view illustrations so you can identify and order exactly the right part for your truck.

File Details

• Manual Type: Spare Parts Manual
• Brand: Jungheinrich
• Model: EJC 216
• Serial Number: 90351510
• Language: English (with multilingual technical abbreviations)
• File Format: PDF
• Page Count: 121
• Document Date: 2009

Chapters Covered

The spare parts catalogue is organised into the following assembly groups, each with its own exploded-view drawings and parts lists:

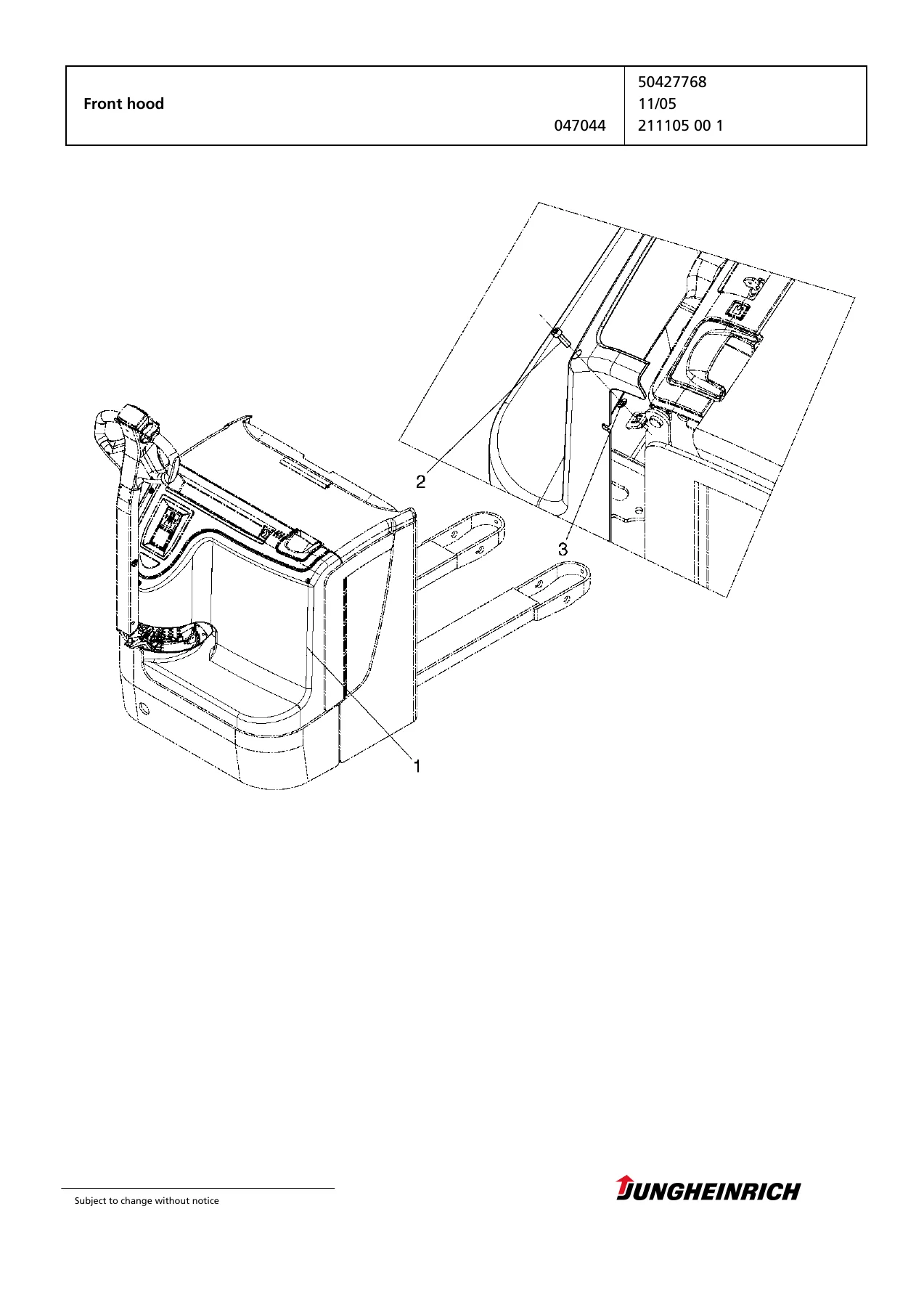

• A – Frame and Superstructure: Front hood, battery hood, drive cover, labels and decals, chassis, mounting hardware, battery door, roller conveyor and safety devices.
• B – Electric Drive Unit: Drive unit mounting parts, transmission, four-point bearing, traction motor 24V/1.6kW, motor end plate, drive pinion, seal rings, wheel studs and drive traction assembly.
• D – Brake Assembly: Spring pressure brake 12Nm with complete exploded view and component breakdown.
• E – Wheels / Axles: Load wheel D85xL110/VU, supporting wheel assembly with steering fork, axle, bearings, seals and mounting hardware.
• F – Steering System: Control head upper part CANOPEN, steer handle, tiller arm, gas strut, control head lower part, pushbutton, bushings and mounting parts.
• Hoist Frame / Load Lifting Device: Mast double ML=2560, mast ZT h1=2600(ML+40)/1.6t, connecting elements, lift cylinder, load chain, safety shield 1505×722, safety device and carriage with forks 185/570×1150/ZT/1.6t.

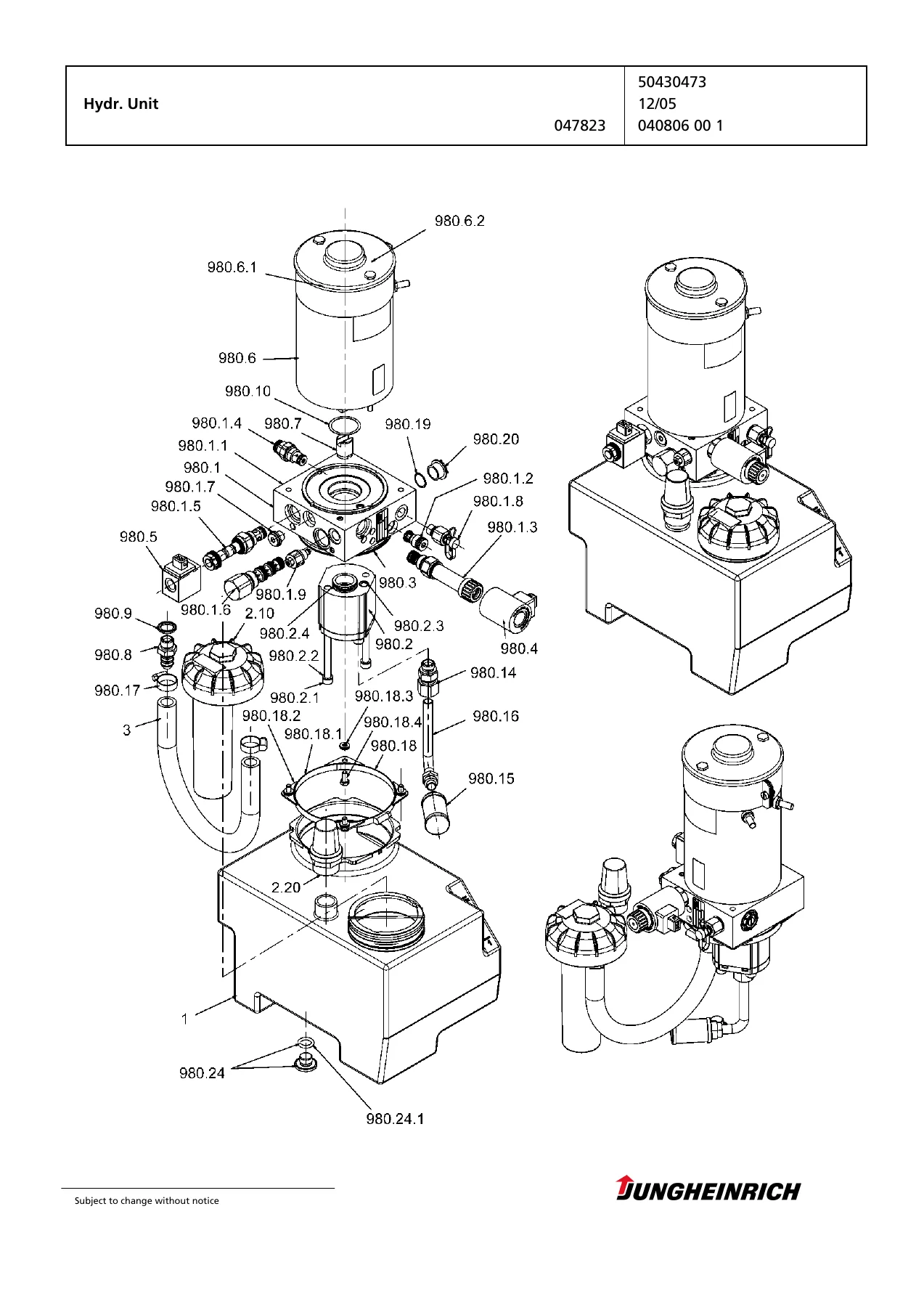

• Hydraulic System: Return line filter, hydraulic unit, hydraulic system assembly, aeration filter, seal kits, adaptors, brackets and mounting components.
• Electric System: Key switch, auxiliary electrical system, switch, control system, connecting elements, instrument cover, multi gauge, cable control, control head upper part and electrical system for the truck.
• K – Battery / Charger: Battery roller and bracket assembly.
• G1 – Attachment: Load carriage with forks and associated mounting components.

This Jungheinrich EJC 216 spare parts manual gives you the complete component-level breakdown of the entire truck. Every part is listed with its Jungheinrich order number, description and quantity, and the exploded-view drawings show exactly how the assemblies fit together. Whether you are replacing a worn load wheel, servicing the brake, repairing the hydraulic unit or rebuilding the hoist frame, this catalogue ensures you identify and order the correct part every time.

Why This Spare Parts Manual Matters

Ordering the wrong part costs time and money. This Jungheinrich EJC 216 parts catalogue eliminates the guesswork by showing every component in its assembly context with the exact order number. The exploded views make it easy to see how parts relate to each other, so you can trace a failure to its source and order everything you need in one go — from a single O-ring to a complete hydraulic unit.

Jungheinrich spare parts are built to the latest state of development and using the correct components ensures your truck retains its EC conformity and operational safety. This manual is the definitive reference for keeping your EJC 216 running reliably.
