Kalmar DCE160-6 Spare Parts Catalogue F40200159

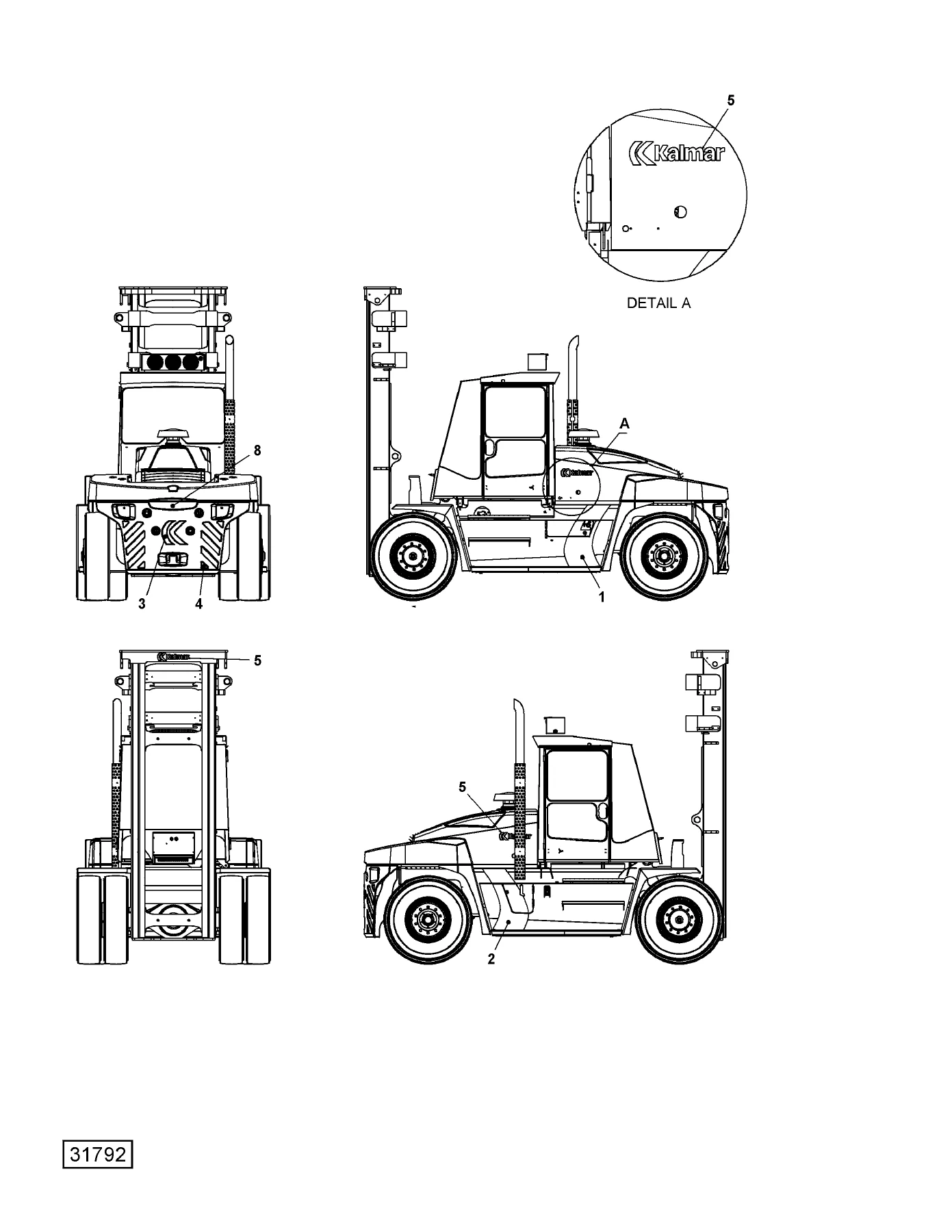

This is the spare parts catalogue for the Kalmar DCE160-6 forklift truck, published under document number F40200159 and catalogue number B8313. The catalogue is built on master catalogue 920936.0155 covering the DCE90-180 Tier 3 series, and it is tailored to the specific machine serial F40200159. Every illustration page carries exploded views or plan drawings keyed to itemised parts lists, so a parts counter, workshop or fleet maintenance team can identify and order the correct components without guesswork.

File Details

• Manual type: Spare Parts Catalogue (Reservdelskatalog)
• Brand: Kalmar
• Model: DCE160-6
• Document number: F40200159
• Catalogue number: B8313
• Master catalogue: 920936.0155 (DCE90-180 Tier 3)
• Language: Swedish / English (bilingual)
• Page count: 502
• File format: PDF

Chapters Covered

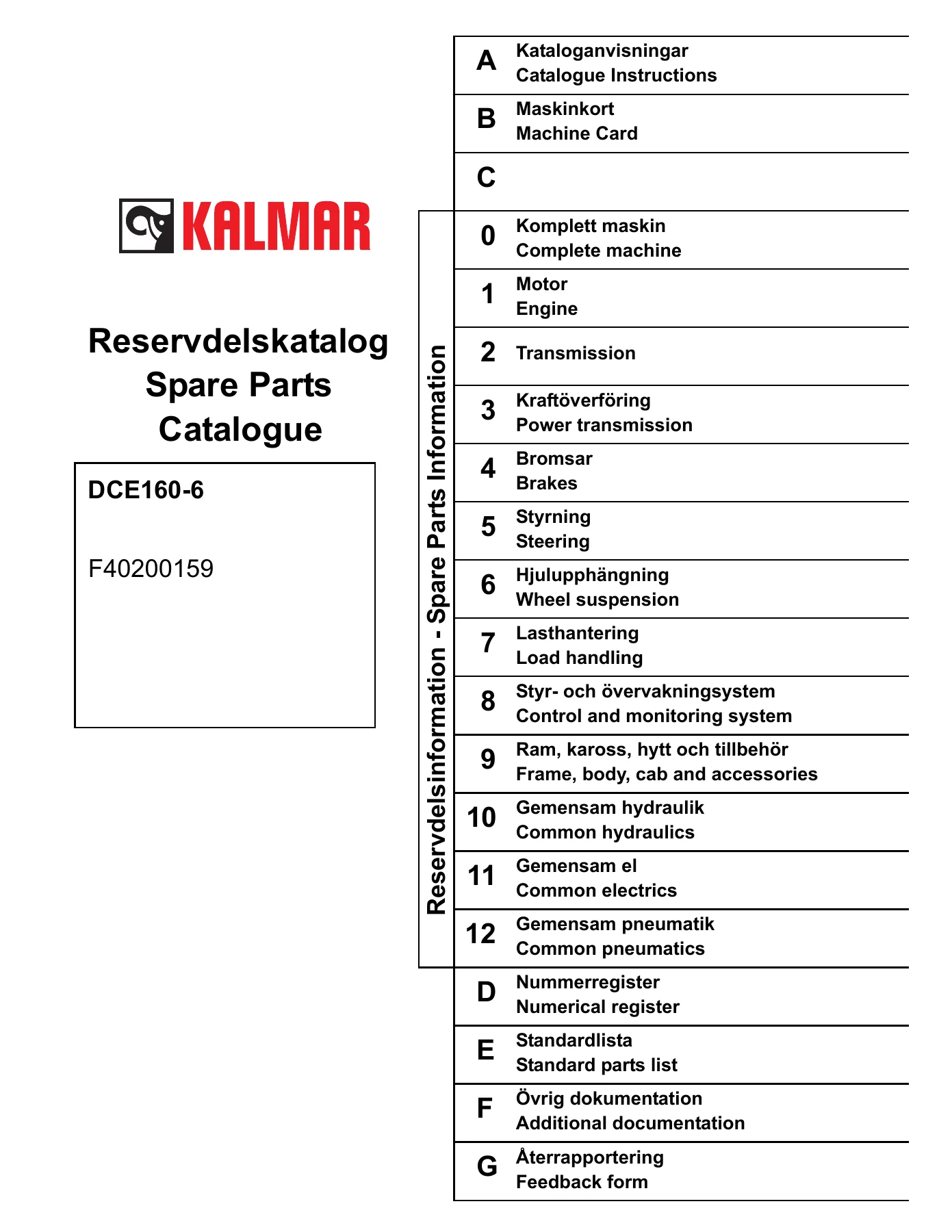

The Kalmar DCE160-6 spare parts catalogue is divided into twelve main groups, with each group holding its own contents page, illustration pages and matching text pages.

• 0 – Complete machine
• 1 – Engine (Cummins QSB6.7, fuel system, cooling system, air cleaning, exhaust, electrical engine installation, pre-heating, starter)
• 2 – Transmission (Dana TE13 / 300TE13310 gear box, torque converter, clutch groups, charging pump, cooling system, control valve, gear box electrics)
• 3 – Power transmission (drive shaft, drive axle, hub assembly, planetary gear, differential carrier)
• 4 – Brakes (hydraulic drive axle, brake terminal block, hydraulic brake cab and frame, drive wheel brake, parking brake, main valve and hoses)
• 5 – Steering (steering axle, steering cylinder, wheel hub, hydraulic steering cab, hydraulic steering frame, mounting clamp)
• 6 – Wheel suspension (steering axle suspension, wheel and rim mounting, tyre)
• 7 – Load handling (lifting cylinders, lifting mast FFKT, carriage SS, hose wheel, chain tightener, chain wheel, mast wheel, friction plates, hose laying, servo control hoses, mast hydraulics, carriage hydraulics, spreading cylinder, tilt mounting kit, tilt cylinder, tilt function, fork holders, coil ram)
• 8 – Control and monitoring system (ECU, monitor, firmware, programme units)
• 9 – Frame, body, cab and accessories (foot throttle, brake pedal, wipers, switches, servo controls, instrument panel, heater, air conditioning, lighting, reversing alarm, rear view mirror, doors, cabin tilt, cabin mounting, insulation, cable holders, cover plate, mud guards, hood, steps, body details, counterweight)
• 10 – Common hydraulics (hydraulic tank, accumulator, charging pump, hydraulic pump, main valve, breathing filter)
• 11 – Common electrics (main fuses, battery, alternator, chassis electrical installation, ECU base module, cab electrics, electronic box)
• 12 – Common pneumatics

Each group ends with a text page that lists position numbers, part numbers, descriptions in Swedish and English, quantities and any applicable notes or footnotes. The catalogue also includes a numerical register (tab D) and a standard parts list (tab E) so any part number can be traced back to its group and page.

What This Parts Catalogue Gives You

This is not a workshop manual — it is the parts identification document for the DCE160-6. It tells you which components make up each assembly on the machine and what part number to quote when ordering. For a machine as heavily spec’d as the DCE160-6, with a Cummins QSB6.7 engine, a Dana TE13 transmission, a triplex FFKT mast, a side-shifting carriage and a FlexCab with air conditioning, having the exact exploded views and itemised part numbers is what separates a quick correct order from a wrong-part return. The level-dot structure on the text pages shows which sub-components are included when a higher assembly is ordered, so you can see at a glance whether you need the complete unit or just a seal kit.

Who This Kalmar DCE160-6 Parts Catalogue Is For

This PDF suits anyone maintaining or repairing a DCE160-6: workshop parts managers, fleet technicians, service engineers and owners who prefer to source their own components. Because the catalogue is tied to machine serial F40200159 and catalogue B8313, the parts listings match the actual build of the truck rather than a generic model-series list. The bilingual Swedish/English descriptions mean the catalogue is usable across markets without translation.

Whether you are ordering a replacement hydraulic hose, tracking down the correct seal kit for a lifting cylinder, identifying the right chain wheel for the triplex mast, or checking which ECU module is fitted, the parts catalogue gives you the position number, part number and description to order with confidence.

Why the Kalmar DCE160-6 Spare Parts Catalogue Matters

Forklift downtime is expensive. Ordering the wrong part because you guessed at a part number or misread a diagram costs a second delivery, a second strip-down, and lost operating hours. This catalogue eliminates that risk by showing every component in context — the exploded view on the image page, the itemised list on the text page, the position number linking the two. The level-dot convention shows which parts come with a complete assembly and which must be ordered separately, so there is no confusion about whether a seal, bearing or gasket is already included.

The Kalmar DCE160-6 is a heavy-duty 16-tonne forklift and its systems are correspondingly complex: a turbocharged Cummins QSB6.7, a Dana TE13 powershift transmission, a triplex free-lift mast, side-shifting and spreading carriage, hydraulic brakes, hydrostatic steering, air conditioning and a full electronic control and monitoring system. Trying to identify a part on a machine like this without the exploded views and numbered lists is slow and error-prone. With the catalogue, you go straight to the right group, find the position number, and read off the part number.
