Kiekhaefer Mercury Outboard 1966-1974 Service Manual

This is the full service and repair manual written for Kiekhaefer Mercury outboards built between 1966 and 1974. It is a single 506-page document that walks a technician through every major system on these engines, from a routine tune-up and lubrication schedule to a complete powerhead or lower unit overhaul. Sections are separated by tabbed dividers and each divider carries its own table of contents, so a job that starts with a misfire can be traced from the electrical troubleshooting pages into the ignition section and on into the timing and synchronization procedures without losing your place. The Kiekhaefer Mercury Outboard 1966-1974 Service Manual is written in the model-by-model style these engines were actually serviced in: a mechanic working on a Merc 650 four-cylinder and a mechanic working on a Merc 1100 six-cylinder will each find their own procedures, their own timing values and their own lower unit assembly in the same book.

File Details

• Manual type: Service, repair and overhaul manual
• Brand: Kiekhaefer Mercury / Mercury Outboards
• Coverage years: 1966 through 1974
• Language: English
• Page count: 506 pages
• File format: PDF

Chapters Covered

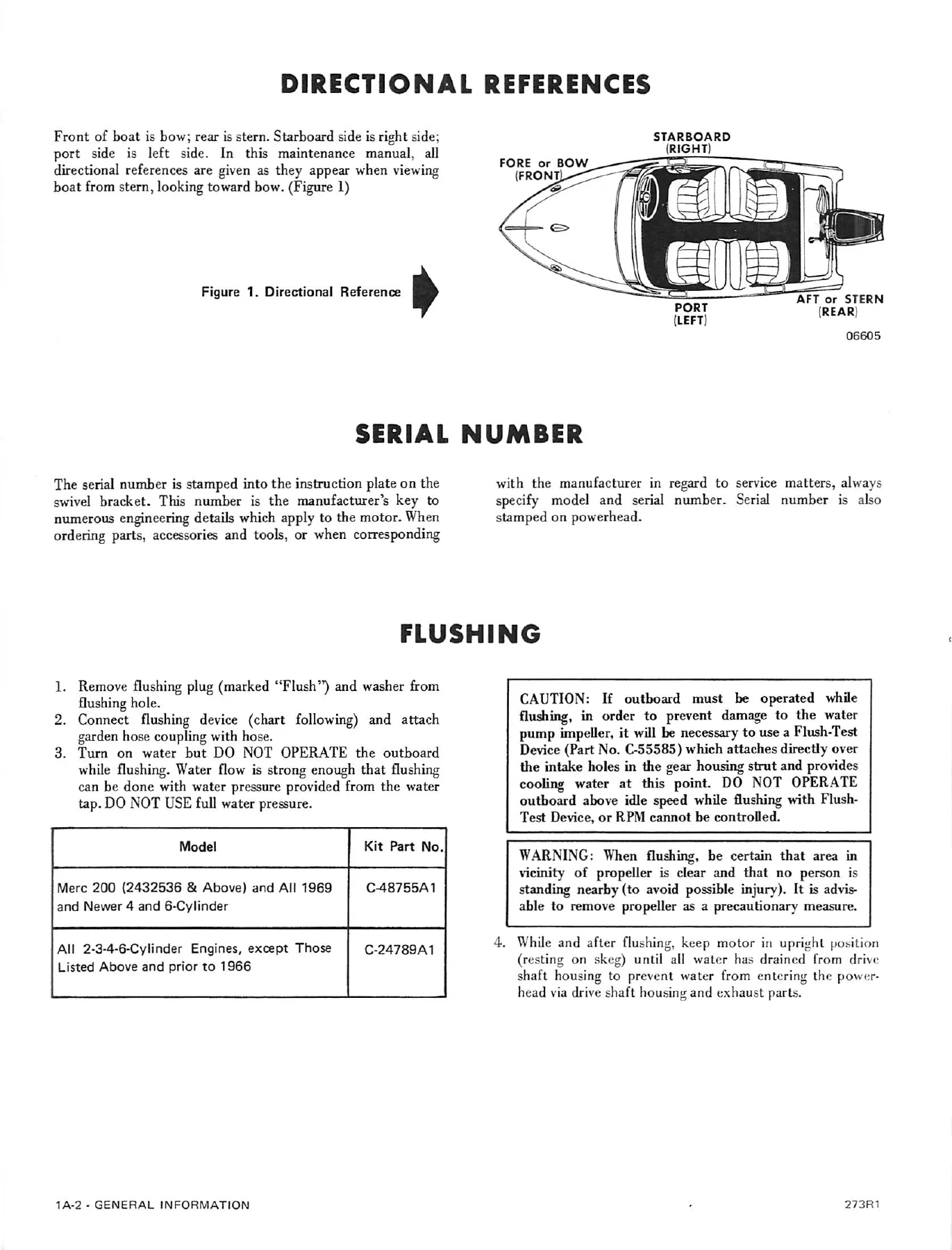

• Section 1, Part A – General Information: how to use this manual, page numbering, directional references, serial number location, flushing, winter storage and shipment, complete submersion recovery, trim tab removal and adjustment, tilt pin adjustment, boat performance, pre-ignition and detonation, fuel and fuel mixing procedure
• Section 1, Part B – Tuneup: compression, Quicksilver engine cleaner, spark plugs, carburetors, float level and drop adjustments, hard starting, fuel systems, fuel pumps, ignition system, starter motor and solenoid, alternator and rectifier, water pump impeller, boat test, water pressure test, fuel pressure, low speed performance, preventive maintenance, 25-hour checkup
• Section 1, Part C – Lubrication: outboard lubricant and maintenance chart, Quicksilver engine cleaner, Quicksilver storage seal, anti-corrosion lubricants, lubricant guns, marine cleaner, corrosion and rust preventive, lower drive unit lubrication

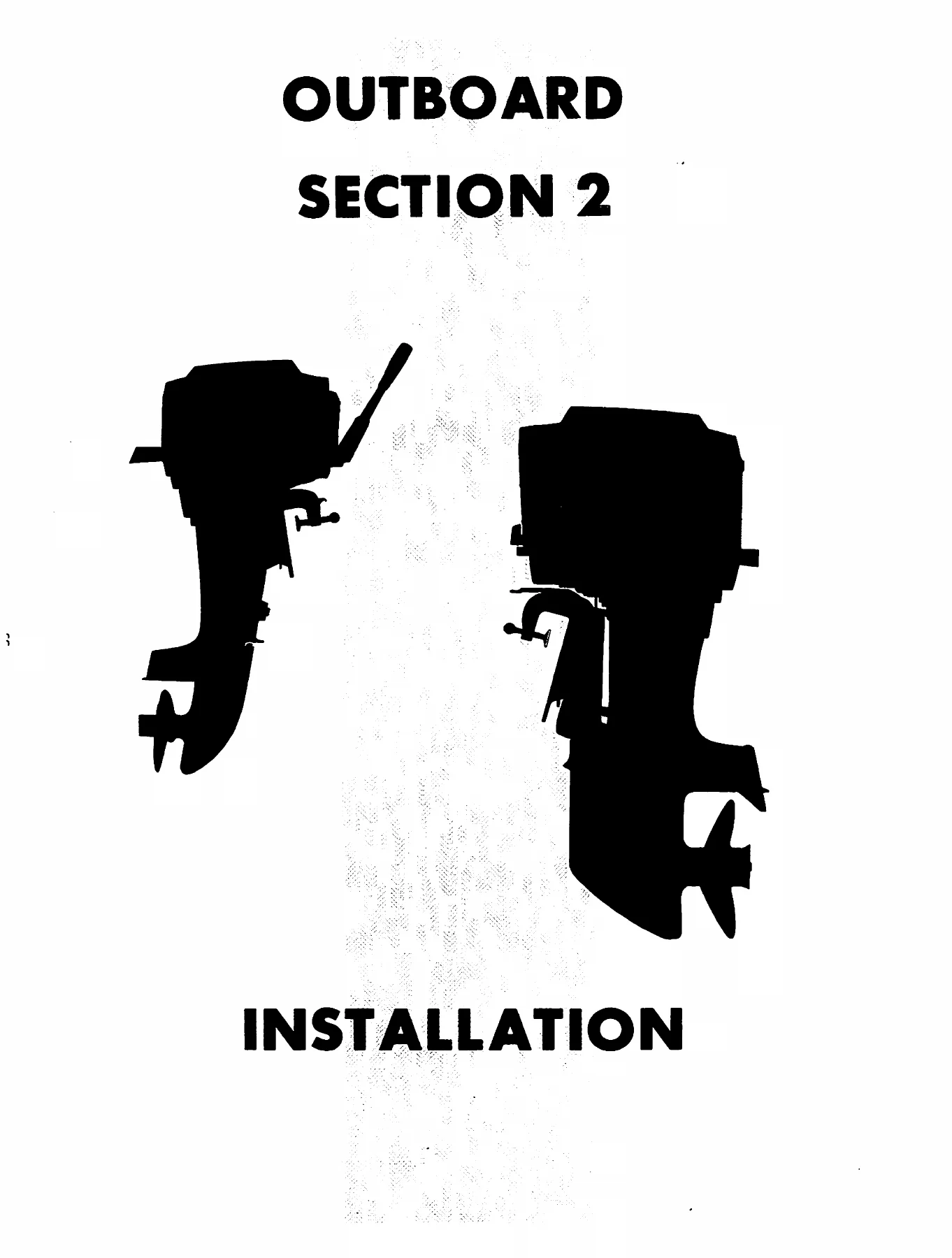

• Section 2, Part A – Installation: motor installation, standard and Universal Ride-Guide dimensions, transom mounting specifications, tilt pin adjustment, remote control cable installation and measurement
• Section 2, Part B – Propeller Selection: right-hand and left-hand rotation charts for Mark and Merc models, Quicksilver racing propellers, Speedmaster propellers, 1972-73 and 1974 Merc model charts
• Section 3, Part A – Manual Starting: automatic rewind starters, removal and disassembly, reassembly and installation

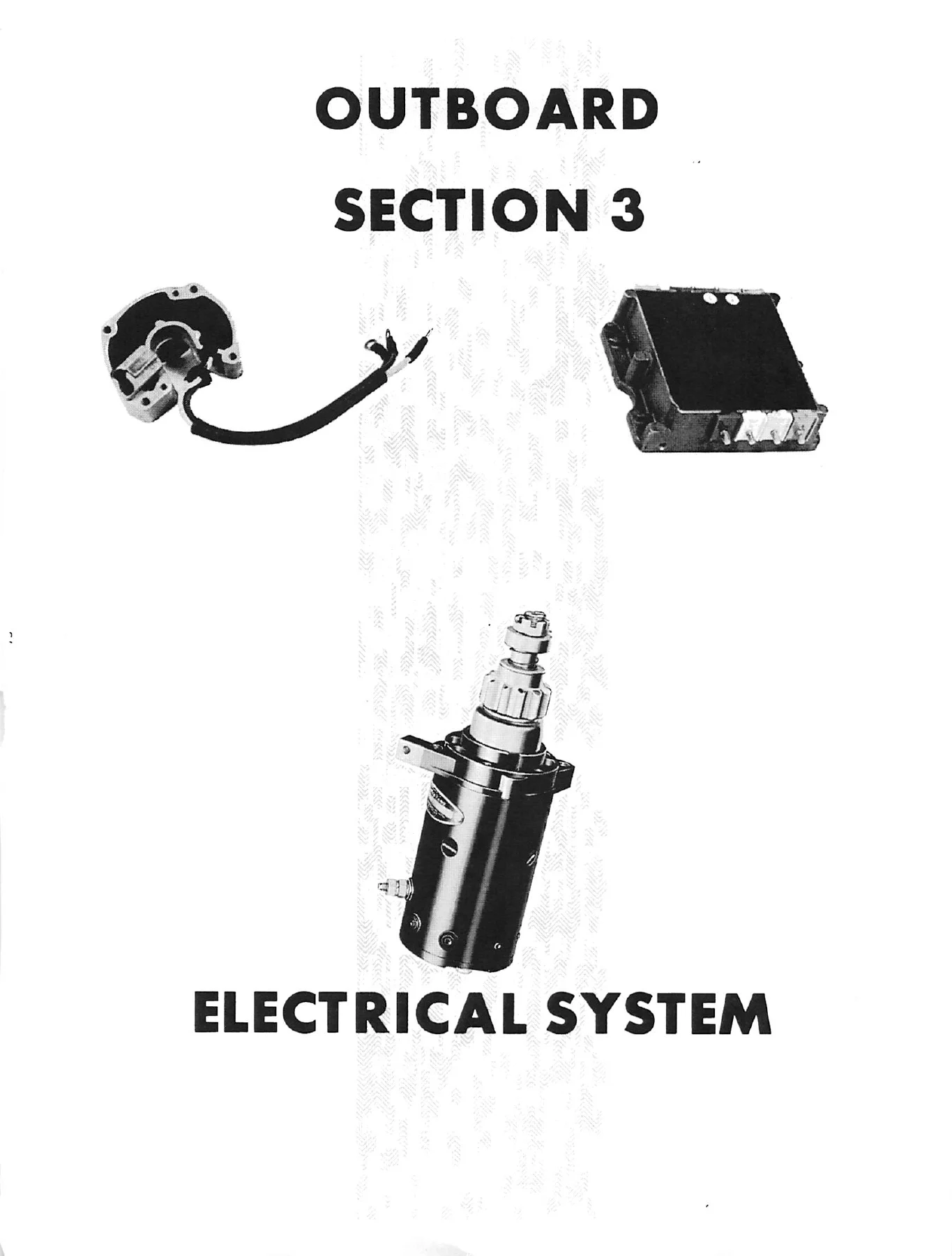

• Section 3, Part B – Electric Starting System: starter motors, Delco-Remy starter, Kiekhaefer starter for six-cylinder models, inertia drive, rectifiers, starter solenoid, choke solenoid, battery testing and storage
• Section 3, Part C – Troubleshooting and Component Testing: coil tests, condenser capacity and leakage tests, distributor resistance, continuity, resistor and rectifier tests, Lightning Energizer ignition, Thunderbolt ignition troubleshooting
• Section 3, Part D – Ignition System: Phelon magneto, Kiekhaefer four-cylinder magneto, Kiekhaefer six-cylinder distributor, Thunderbolt breaker-less ignition, Thunderbolt maker-point ignition with module
• Section 3, Part E – Timing, Adjusting, Testing: model-by-model timing, pickup and synchronization procedures for two, three, four and six-cylinder engines
• Section 3, Parts F and G – Instrumentation and Wiring Diagrams
• Section 4 – Fuel Systems: fuel pumps, carburetors, fuel tanks
• Section 5 – Powerhead: Merc 39-40-60-75-110-200; Merc 350-400 (2-cylinder) and 500; Merc 650 and 800 (4-cylinder) and six-cylinders
• Section 6, Part A – Lower Unit: Merc 200-110-75-60-40-39 gear housing, propeller shaft, water pump, drive shaft, shifting and reverse lock mechanism, drive shaft housing, Dyna-Float suspension
• Section 6, Part B – Lower Unit: Merc 500-402-400 and 350
• Section 6, Part C – Lower Unit: six-cylinder and 800 (4-cylinder) and 650
• Section 7, Part A – Steering Systems: Ride-Guide, Super Ride-Guide, Ride-Guide tilt mount, rotary Ride-Guide, dual engine installations, Universal Ride-Guide for all outboard motors
• Section 7, Part B – Remote Control Systems: cable replacement, MerControl models, single lever full gear shift, dual station controls
• Section 7, Part C – Power Trim: troubleshooting, electrical and hydraulic diagnosis, installation, operation, maintenance and bleeding
• Section 7, Part D – General Accessories: steering handle assemblies, heavy-duty water pump kits, Keenserts, Heli-Coil thread repair, MerCathode anti-corrosion system, bonding kit for radio noise suppression
• Section 8 – Specifications: master specifications, powerhead torque, tune-up data, lower unit and component specifications, VOA and multi-meter test values
• Section 9 – Tools: special service tools listed by model group, electrical testers, hand tools and shop supplies

What makes this document worth keeping on the bench is the way it links diagnosis to repair. The troubleshooting charts in Part C are written to point at a component, and that component then has its own removal, disassembly, inspection and reassembly procedure further into the book. Timing and synchronization is not a single generic page either — every family of engines has its own sequence, its own dial indicator or timing gauge values, and its own pickup adjustment, from the single-cylinder Merc 40 up to the six-cylinder Thunderbolt breaker-less engines. For anyone rebuilding a lower unit, the sections cover gear lash measurement, shimming, bearing carrier installation, water pump reassembly and reverse lock adjustment, with exploded views to work from.

What This Manual Lets You Do

The Kiekhaefer Mercury Outboard 1966-1974 Service Manual supports the jobs that actually keep these engines running: a full tune-up with compression checks, spark plug servicing and carburetor float adjustment; ignition diagnosis through coil, condenser, stator and trigger testing; timing and synchronization on two, three, four and six-cylinder models; complete powerhead teardown and rebuild; lower unit disassembly with gear lash and backlash measurement; water pump impeller replacement; remote control and steering cable installation and adjustment; and Power Trim installation, bleeding and fault-finding. Propeller selection charts and transom mounting specifications are included so the engine can be set up correctly rather than just repaired.

Working from the correct procedures and the printed specifications matters here. Torque values, breaker point gaps, dwell settings, timing gauge dimensions, gear backlash limits and fuel mixture ratios all appear in the manual, and getting them wrong on a two-stroke outboard is the difference between a season of reliable running and a scored piston or a failed lower unit. The tune-up, lubrication and maintenance chart section also lays out the service intervals so a preventive schedule can be built around the engine rather than around guesswork.

IMAGES PREVIEW

Delivery is instant. The manual arrives as a downloadable PDF the moment payment clears — no shipping, no waiting for a parcel, no bulky binder taking up shelf space. It opens on a laptop, tablet or phone in the workshop, and individual pages or whole sections can be printed when you want a paper copy beside the engine. Because it covers the whole 1966 to 1974 range in one file, it stays useful across a collection of engines instead of being tied to a single model year.

Whether you are servicing your own outboard, running a small repair shop, or restoring an older Mercury back to working condition, this is the reference that tells you what to measure, what to torque and in what order to take things apart. Grab the Kiekhaefer Mercury Outboard 1966-1974 Service Manual download and have the full 506-page workshop guide on hand the next time an engine comes in.
