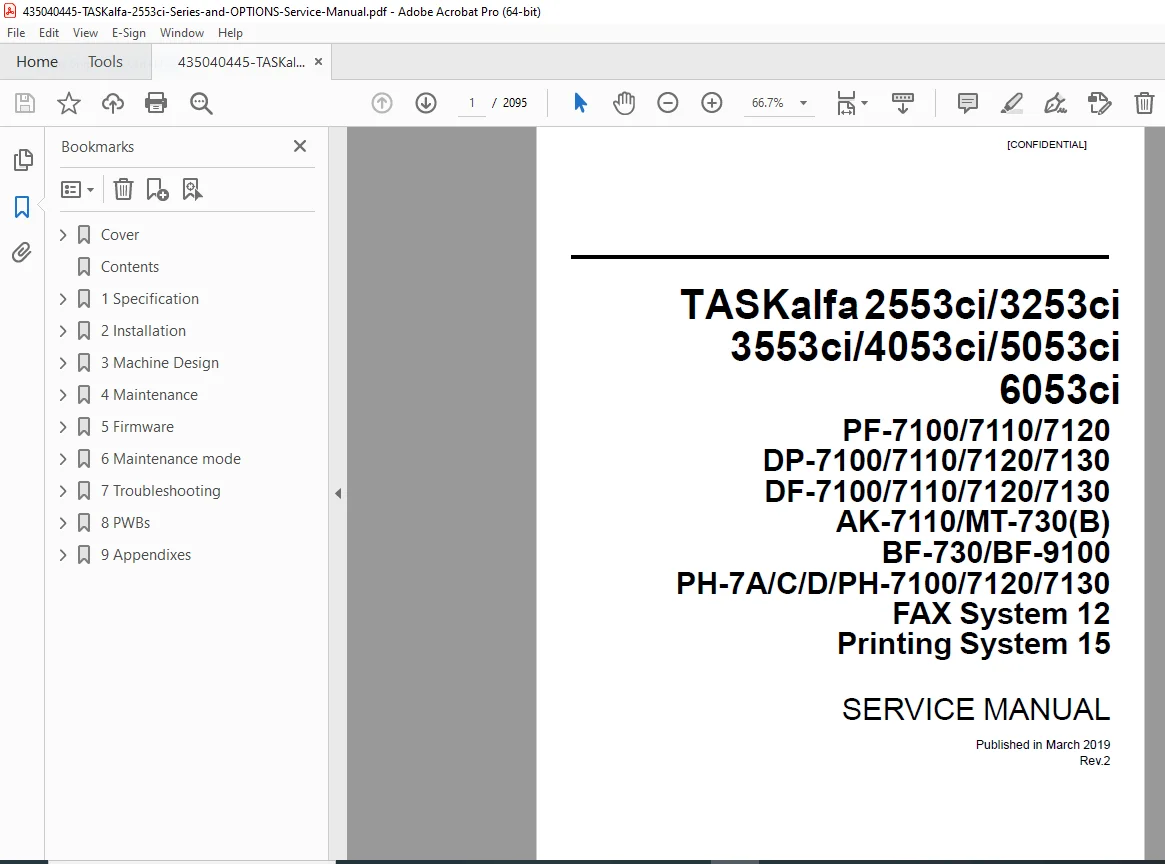

Kyocera TASKalfa 2553ci–6053ci Service Manual PDF (Rev.2, 2019)

Description

This is the official service manual for Kyocera TASKalfa 2553ci/3253ci/3553ci/4053ci/5053ci/6053ci color multifunction printers, including major accessories and controller options. It’s built for technicians who need accurate procedures, diagnostics, service modes, error code logic, and full disassembly/reassembly guidance—not generic user instructions.

✅ Models Covered (A4 Speed ID in Manual)

• TASKalfa 2553ci — 25/25 ppm

• TASKalfa 3253ci — 32/32 ppm

• TASKalfa 3553ci — 30/30 ppm

• TASKalfa 4053ci — 40/40 ppm

• TASKalfa 5053ci — 50/50 ppm

• TASKalfa 6053ci — 60/55 ppm

✅ Options / Systems Covered (highlights)

• Paper feeders: PF-7100 / PF-7110 / PF-7120

• Document processors: DP-7100 / DP-7110 / DP-7120 / DP-7130

• Finishers: DF-7100 / DF-7110 / DF-7120 / DF-7130

• Booklet/Folding: BF-730 / BF-9100

• Punch units: PH-7A/7C/7D / PH-7100/7120/7130

• FAX System 12, Printing System 15 (Fiery Controller)

🗂️ Table of Contents (Neatly Categorized)

1) Specifications & Part Names

• General specs + copy/printer/scanner functions

• Optional items overview

• Main unit exterior/interior part names & connectors

• Operation panel keys

2) Installation

• Environment requirements

• Main unit setup: unpacking, transportation notes, locks/stoppers, tray attachment

• Cable connections (incl. FAX)

• Paper loading (cassette, side feeder, large capacity feeder)

• Power-on, toner setup, default settings (date/time, network, paper/media)

• Altitude setting + initial adjustments (maintenance modes)

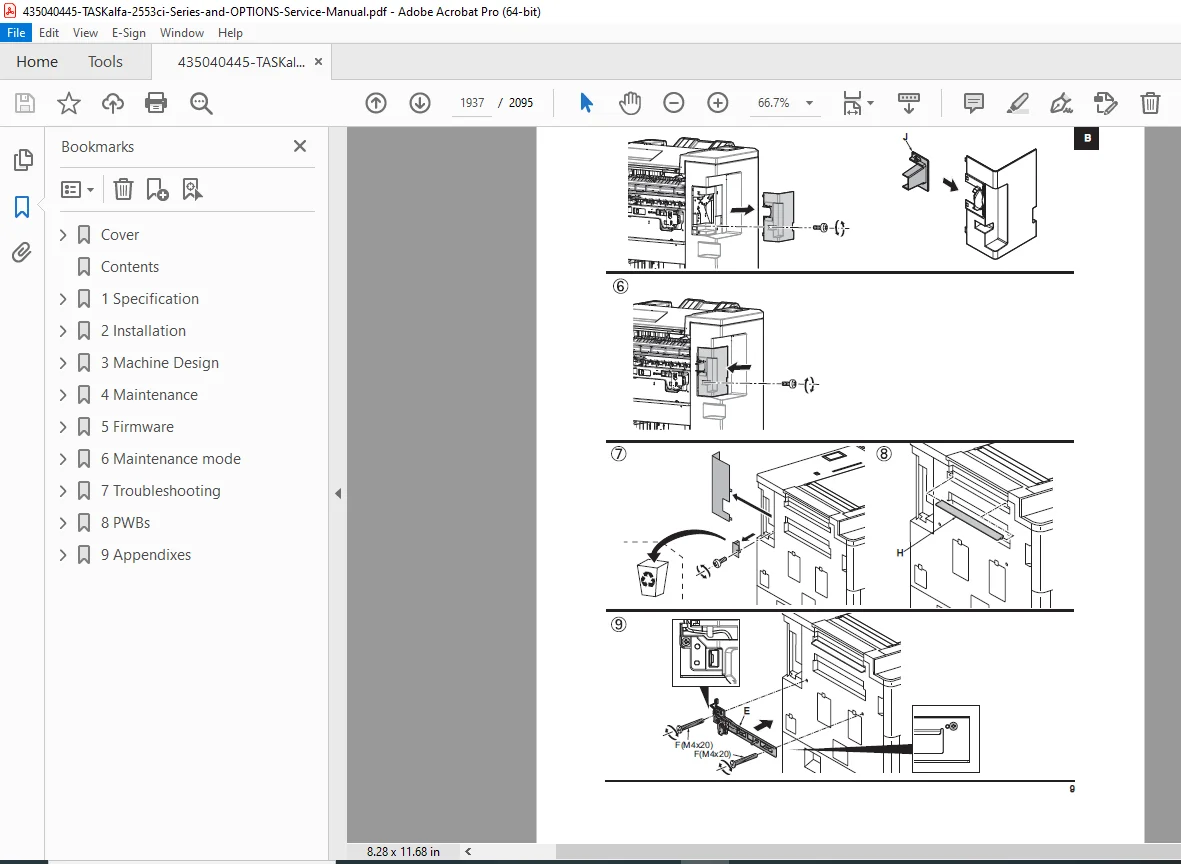

• Optional unit installation procedures (PF/DP/DF/BF/PH, etc.)

3) Machine Design

• Mechanical configuration (low/high-end cross-sections)

• Electric parts layout + major PWBs

• Sensors/switches, motors, drive system

• Mechanical construction: paper feed, scanner/LSU, developer/drum, transfer, fuser, duplex

• Optional unit mechanisms (feeders, DP, finishers, mailbox, folding/booklet)

4) Maintenance

• Maintenance precautions + drum/toner handling

• Maintenance kits + required service modes after replacement

• Maintenance parts replacement (rollers, transfer, drum, developer, fuser, filters)

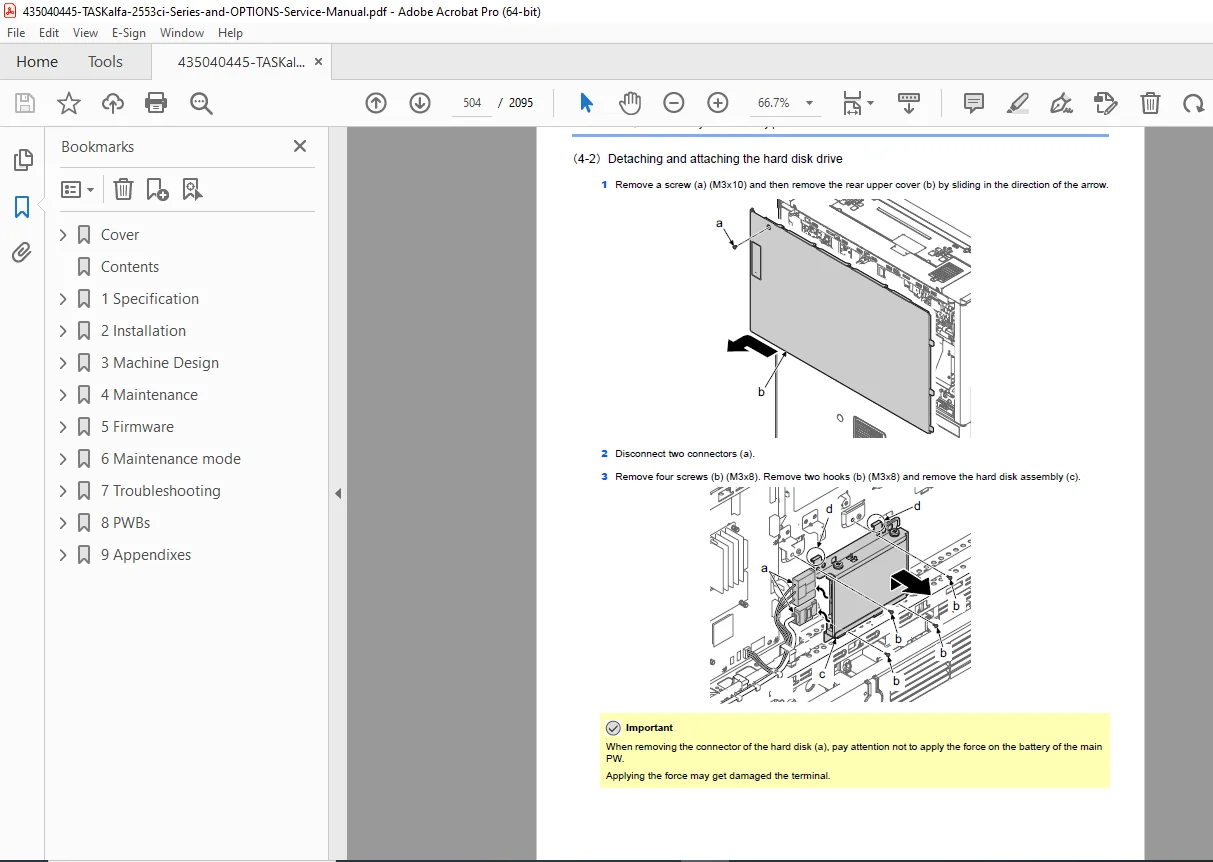

• Disassembly/assembly: covers, LSU/lens/lamp, drives, SSD/HDD, lift motor, waste toner, PWBs

• Scheduled maintenance procedures (main unit + each option)

5) Firmware

• Firmware update procedure

6) Maintenance Mode (Service Mode / U-Codes)

• Entering maintenance mode

• Maintenance mode list + detailed descriptions

• Event log + service status pages

7) Troubleshooting (Deep Technician Coverage)

• Image formation problems (scanner + engine factors, density, streaks, color shift, blank image, etc.)

• Feeding/conveying failures + jam detection + jam codes

• Self diagnostic codes + system errors (Fxxxx)

• FAX related errors + communication errors

• Send (scan) related errors (SMTP/FTP/SMB codes)

• Print errors + user-visible error messages

• Abnormal noise diagnosis

📌 File Details

This is the service-level manual technicians rely on—with service modes, error codes, teardown steps, and option-unit procedures all in one place. Download instantly and repair your TASKalfa the right way today.
