Linde E16C E16CH E16P E16PH E20PH Forklift Spare Parts Catalogue 1275 801 00 01 – PDF

Description

Linde E16C / E16CH / E16P / E16PH / E20PH Spare Parts Catalogue – Document 1275 801 00 01

This is the complete Linde spare parts catalogue covering the E16C, E16CH, E16P, E16PH and E20PH counterbalance forklift trucks. Published under document number 1275 801 00 01 and dated 03.12.2020, it is the lookup reference used to identify and order replacement components across the whole truck, from the traction motor and drive axle through to the mast, fork carriage and auxiliary hydraulic services. Every assembly is presented as an exploded illustration keyed to a figure number, with the matching part number, quantity and description listed alongside it, so a part can be traced visually and then confirmed numerically before ordering.

File Details

• Manual type: Spare parts catalogue (Ersatzteilkatalog / Spare Parts List / Catalogue de pieces detachees / Catalogo parti di ricambio / Catalogo de recambio)
• Brand: Linde
• Models covered: E16C, E16CH, E16P, E16PH, E20PH
• Document number: 1275 801 00 01
• Date: 03.12.2020
• Languages: German, English, French, Italian, Spanish, Chinese
• Page count: 691
• File format: PDF

Chapters Covered

• Power unit: engine
• Drive transmission
• Chassis, bodywork and fittings
• Steering axle and steering components
• Control
• Electric equipment
• Hydraulic unit
• Mast assembly and auxiliary hydraulic services
• Special equipment
• Miscellaneous

Drive Transmission and Drive Axle

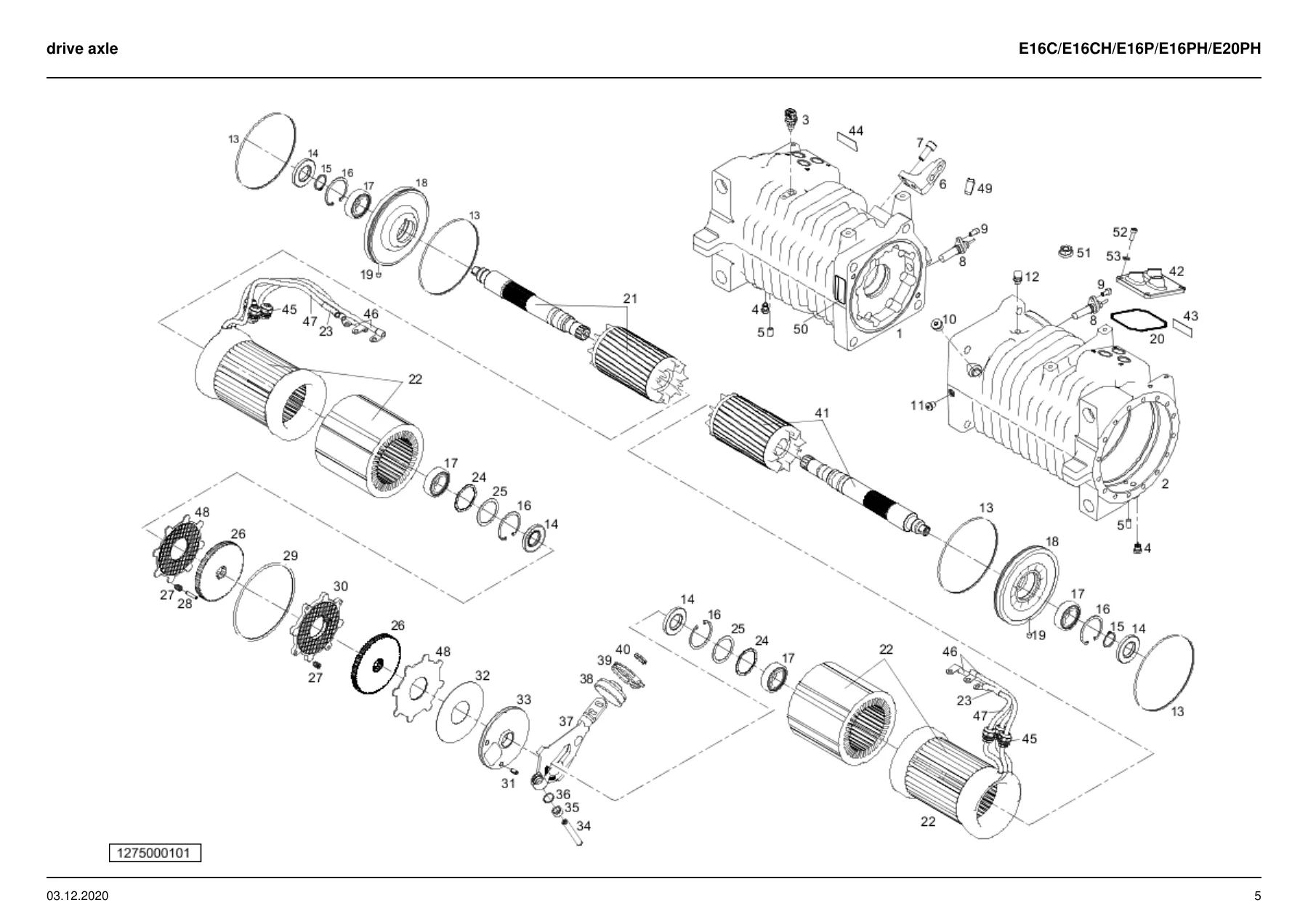

The drive axle section opens with the traction motor assembly listings for left and right hand installation, then breaks the motor down into housing assemblies, temperature sensor, screw plugs, threaded pins, angle bracket, driving speed sensors, radial seal rings, locking rings, grooved ball bearings, bearing flanges, rotor and stator assemblies, shim rings, discs, compression springs, slotted spring pins, O-rings, thrust piece, brake lever, bellows, cable shoes and cable grommets. The wheel gear group follows with the wheel gear GR2E-05 assembly, wheel shaft GR2E, shaft seals, tapered roller bearings 32012X, spacer rings, transmission housing, annular gear, slotted nut KM12-M60x2, planet gear carriers for stage 1 and stage 2, sun wheels, sun gear, cylindrical roller bearings 18×30,86×13, planet gears GR2E-05 and GR2E-02, and the associated locking rings. Every position carries its own figure number so a single bearing or seal can be isolated without guesswork.

Chassis, Bodywork, Overhead Guard and Counterweight

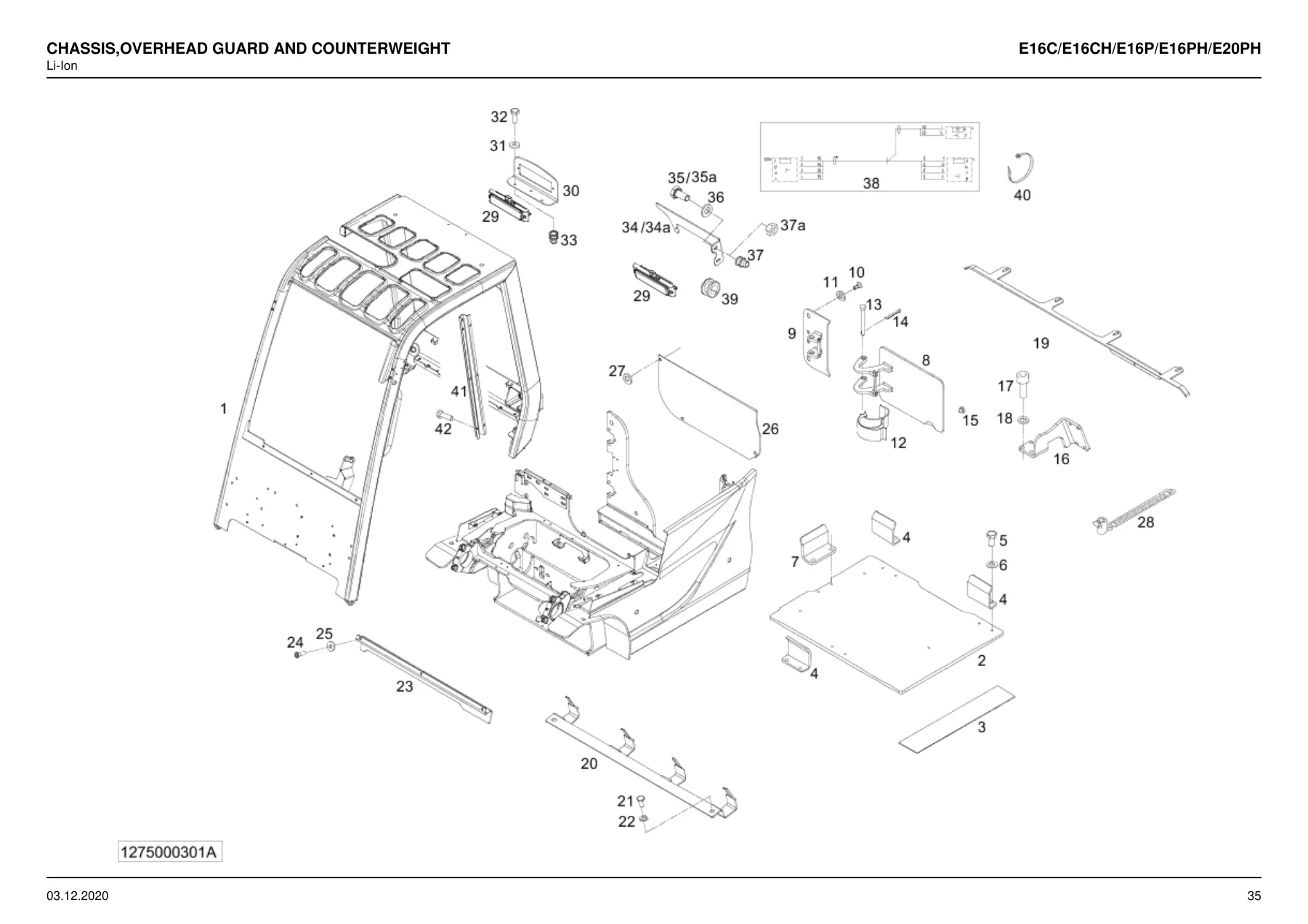

This is one of the largest groups in the catalogue. It covers the overhead guard assemblies in high and low variants and in the different window, cabin and Drive-in configurations, the chassis assemblies in low and high form including the wide mudguard version, and the counterweights listed individually for E16C, E16P, E16CH, E16PH and E20PH with their cut-in serial references. Supporting detail includes doors, hinges, bolts, hexagon nuts, washers, panelling, adhesive foils, rubber mats, edge protection, rear-view mirrors, side plates, roof assemblies and roof panels, driver’s seat assemblies with upholstery, seat belts, seat guides, microswitches, gas springs and joining plates, plus the heating system housings, spacers and wiring harnesses used on the cold store and standard versions.

Steering Axle and Hydrostatic Steering

The steering axle group is split into the 340 C truck and 1601 P truck variants. It lists the steering axle assemblies, axle casing, steering pivot pins, wheel hubs, hub caps, shaft seals, tapered roller bearings, locking rings, Nilos rings, shim rings, transmitters, sensors, pin housings, pin contacts and single wire seals, plus the rack rail, pistons, grooved rings and cylinder pipe assemblies for the steering cylinder. Track rod assemblies, spherical bearings, lubricating nipples, seal kits, bush assemblies, wiper rings and O-rings are all itemised. The hydrostatic steering section adds the steering control valve, steering column, bushes, covers, support assemblies, consoles, steering wheel, signal button, sliding contact, sensors, panelling, hose lines for E16C, E16CH, E16P, E16PH and E20PH, pipes, pipe adaptors, elbow unions, clamping pieces, cover plates and the pipe unions that complete the circuit.

Control, Actuator of Pilot Valve and Tiltable Armrest

The control group covers the driver’s seat, seat support, adjustable spindle, handles, levers, tension springs, spring elements, microswitches, seat guides, joining plates and stop plates in the numerous build configurations. The actuator of pilot valve section details the joystick central lever, consoles, socket head screws, bellows, handle, wiring harnesses for buckle monitoring, supports and bushes, while the tiltable armrest section lists the cover assembly, retainer plate, support assembly, microswitch, gas spring, angle assembly, bearing bushes and cable ties that make up the optional armrest. The E-parking section adds the dashboard, parking brake assembly ELF 2.0 RX20, brake cable pulls, toggle switch, wiring harness, pin housings and fuse links.

Electric Equipment, Battery and Cables

Electrical coverage is extensive and includes the armatures, battery and cable group with battery cables, supports, cable guides, bearing bushes, hose clamps, terminals, holding fixtures, contactor boards, contactors, joining plates, fuse links, spring washers, batteries in 48V5PzS575LA and 48V5PzS700L-A ratings, horns, signal transmitters, clamps, electric cables in the various C35x8 and F35x8 lengths with their circuit references, covers, housings, sensors, fuses, relays, voltage transformers, electronic control units, resistors, switches, key switches and battery female connector assemblies. The lighting group lists rear lights, headlights, flashing lights, bulbs, buzzers, sealing plugs, cable grommets, cable ties, wiring harnesses, toggle switches and display units. Main cable looms, spot lights, flash and warning lights, lift mast positioning, LED lighting, position lights, chargers, Smartlink, pedestrian alarm system and fan sections are all present with their plug housings, pin contacts and socket contacts listed by pole count.

Hydraulic Unit, Pump, Tank and Valves

The hydraulic unit opens with control valve and lines, listing the 2-way, 3-way and 4-way control valves with their set of seals, clamp bushes, threaded studs, hose lines for standard, duplex and triplex masts, banjo bolts, pipe unions, O-rings, sealing rings and lubricating nipples. The hydraulic pump, oil tank, filter and lines section covers the gear pump, union, flexible formed hose, hose clips, breather filter, oil dipstick, oil tank assembly, suction flange, suction filter, filter inserts, filter housing, seal, clamping piece, support assembly and flow control valve priority with its hose lines. The pump motor section breaks the electric motor assembly down to stator, sensor driving speed, temperature sensor, parallel pins, sealing plug, seal, terminal strip, grooved ball bearings, locking rings, transmitter, rotor, spring washer, shaft seal and bearing flange.

Mast Assembly and Auxiliary Hydraulics

Mast coverage is divided into standard mast type 180, duplex mast type 180, triplex mast type 180 and triplex mast type 1581, each with lift mast outer, middle and inner assemblies listed by lift height, chain rollers, guide rollers, leaf chains by link count, chain anchors, chain pins, line break safety valves, pipes and hose lines. The lift cylinder sections list cylinder pipes, piston rods, piston barrels, piston covers, cylinder heads, seal kits, guide rings, grooved rings, wiper rings, O-rings and valve inserts across the full lift height range. Fork carriage and fork arm listings give the carriage assemblies by mast type and the fork arms by dimension. Auxiliary hydraulics for each mast type detail the pipe unions, double hose lines by lift height, clamping piece pairs, cover plates, supports, guides and the retainers and joining plates needed for fork carriage or sideshift attachment. The sideshift assemblies are given both as standard crossmember versions and as the 6-roller versions with grooved rings, wiper rings, bearing shells, bearing bushes, wear strips, piston rods, cam rollers and lubricating nipples.

Special Equipment, Plates and Operating Material

The special equipment group covers highway equipment with rear-view mirrors and supports, load backrests for mast type 180 in several widths and heights, assembly positions for plates, and mirror assemblies for cabin versions. The plates section lists the capacity rating plates by model and mast configuration, name plates for domestic, export, LX, LX+CE and LMH variants, warning and caution labels, joystick labels, battery hood labels and QR code adhesive labels. Operating material closes the catalogue with spray cans, chain spray including the cold store specification, and lubricating grease in cartridge form.

Why This Parts Catalogue Belongs in the Workshop

Ordering the wrong component on a counterbalance truck is expensive in both money and downtime, and visual identification alone is unreliable once a part has been superseded. This Linde E16C, E16CH, E16P, E16PH and E20PH spare parts catalogue solves that problem by tying every illustration to a numbered parts list, so a technician can confirm the exact part number, the quantity required and the description before the order is placed. It also exposes the internal build of each assembly, which is what you need when a seal kit, bearing, locking ring, hose line or valve cartridge has to be identified separately from the assembly it sits in. For anyone maintaining, rebuilding or restoring these trucks, it is the reference that turns a vague description of a broken part into a number that can be quoted, cross-checked and ordered with confidence.
