Linde Series 394 Service Training Manual — H40D, H40T, H45D, H45T, H50-500D, H50-500T

This Linde H40D H40T H45D H45T H50-500D H50-500T Series 394 Service Training Manual (document number 394 804 2401, Edition 01/2005) is the complete modular training document used by Linde service personnel for the IC engine truck range. It covers the H40D, H40T, H45D, H45T, H50-500D and H50-500T models — both LPG and diesel variants — with deep technical instruction on the hydrostatic drive, Linde Truck Control (LTC), working hydraulics, mast systems and engine management.

File Details

• Manual type: Service Training Manual (modular)
• Brand: Linde
• Models covered: H40D, H40T, H45D, H45T, H50-500D, H50-500T
• Series: 394
• Document number: 394 804 2401
• Edition: 01/2005 (supersedes Edition 10/2004)
• Language: English
• File format: PDF
• Page count: approximately 330 pages

Chapters Covered

• 00 Product information and diagnosis — truck series overview, LTC basic structure, LTC traction control codes, LTC lift control codes, composite instrument fault codes

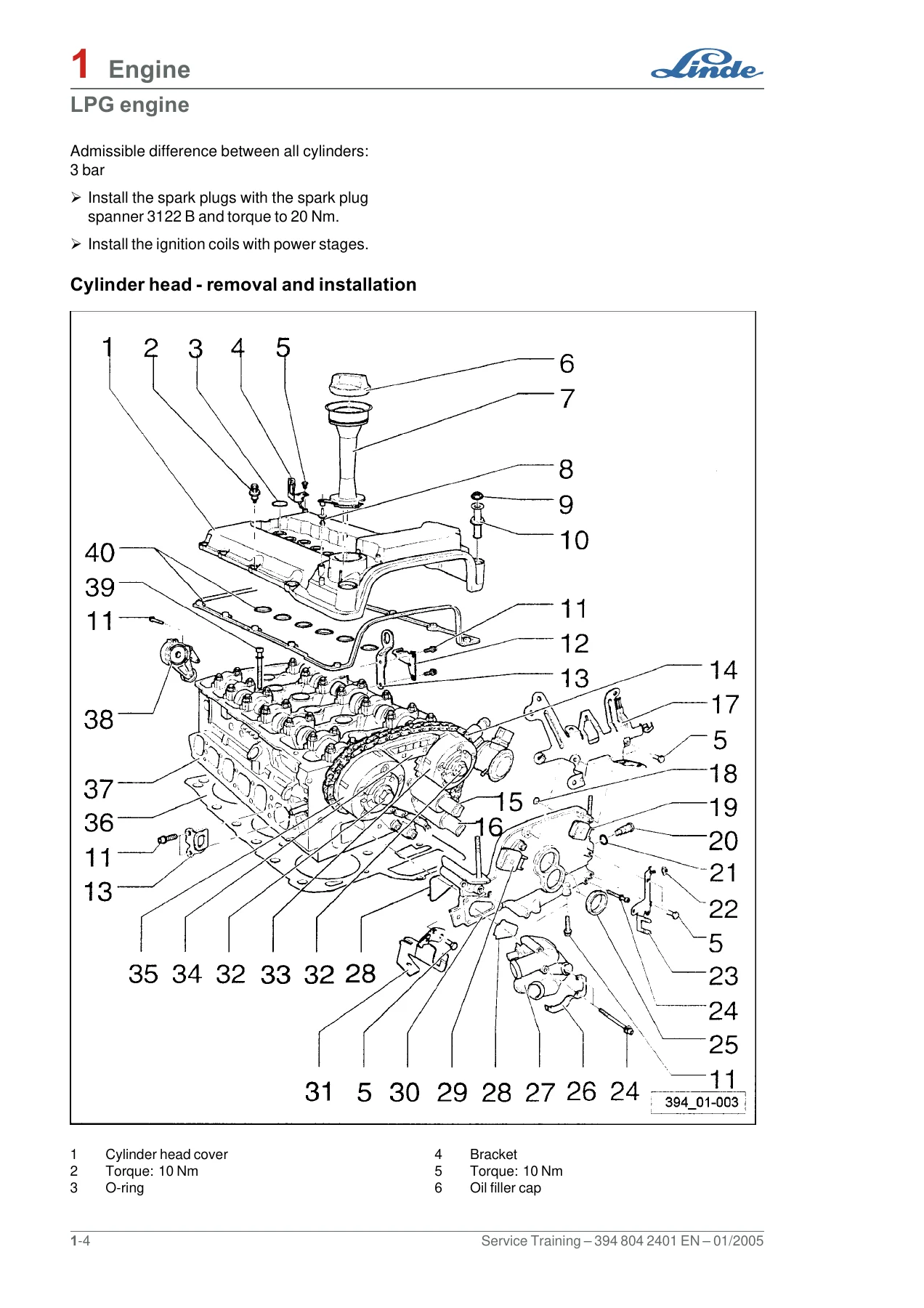

• 01 Engine — LPG (VW BMF VR6) — technical data, engine block, ribbed V-belt removal and installation, compression test, cylinder head removal and installation, engine valve timing check and adjustment, cylinder head cover, cooling system, coolant draining and filling, thermostat housing, alternator, LPG installation functions, vaporiser operation, mixer functions, LPG shut-off valve, gas failure cut-off, LPG system leakage test, catalytic converter with and without Lambda control, exhaust gas composition, Lambda sensor, three-way catalytic converter
• 01 Engine — Diesel (VW BJC 1.9L TDI) — technical data, electronic engine control unit, sensors (coolant temperature, engine speed, fuel temperature, intake pipe temperature and pressure, needle stroke, control sleeve position, actual speed, mass air flow), preheating system, glow plugs, fuel quantity positioner, fuel shut-off valve, injection timing device, injection nozzles, one-way restrictor, injection pump removal and installation, toothed belt removal and tightening, crankshaft oil seal and sealing flange, cylinder head removal and installation, valve gear, oil sump, hydraulic bucket tappets, camshaft, vacuum pump, boost pressure control, turbocharger, cooling system, water pump, alternator, self-test and safety concept, standardised data blocks
• 02 Transmission — technical data of travel drive, Linde Truck Control (LTC) overview, travel drive introduction, hydraulic pump control with electronic control, start of delivery of the pump, bypass valve, discharge device, hydraulic fan drive, hydraulic truck diagnosis, hydrostatic travel drive check, hydraulic motor HMF 135-02, HPV 105-02 pressure tests
• 03 Chassis — axle suspension
• 04 Undercarriage — steering system functional description, brake release valve, brake cable adjustment, brake valves, brake system check
• 06 Electrical/electronic system — central electrical system, interface connectors, relay and fuse layout for standard and optional equipment, composite instrument, positions of working lights

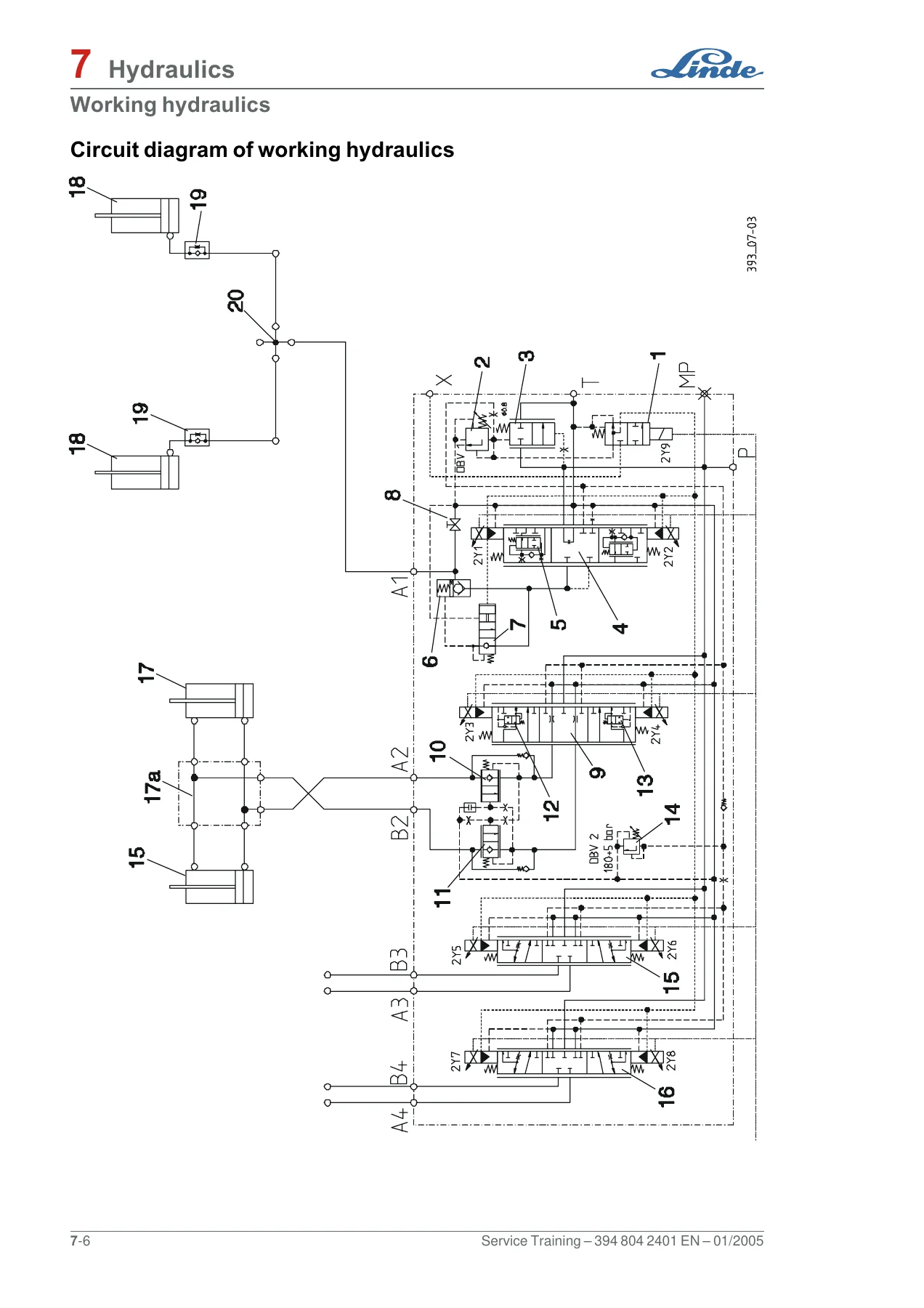

• 07 Hydraulics — working hydraulics functional description of control valve, circuit diagram of working hydraulics, hose layouts for pump/control valve, control pressure supply, lifting, tilting, return flow, auxiliary hydraulics for standard, duplex and triplex mast
• 08 Loading system — mast identification, removal and installation, lift chain adjustment, roller clearance adjustment, slide pad removal (standard, duplex, triplex), lift cylinder removal and installation, lift cylinder sealing, tilt angle sensor adjustment, tilt cylinder removal and sealing, hose reel removal and sealing
• 09 Circuit diagrams — hydraulic circuit diagrams, electrical circuit diagrams for LPG and diesel standard equipment, optional lighting, truck data management, heater, soot filter, wipers

Across roughly 330 pages, this Linde 394 service training manual gives a technician structured, module-by-module instruction on everything from routine engine service and hydrostatic pump adjustment to LTC fault code diagnosis and complete mast overhaul. The document follows Linde’s own training centre structure, with numbered main sections that mirror the curriculum — product information, engine, transmission, chassis, undercarriage, electrical/electronic, hydraulics, loading system and circuit diagrams.

The engine chapters alone make this manual indispensable. For the LPG-powered trucks, the VW BMF VR6 section covers compression testing, cylinder head removal and installation, valve timing adjustment with the camshaft setting jig, cooling system repair, and the complete Impco LPG installation — vaporiser, mixer, shut-off valve, gas failure cut-off and leakage testing. For diesel trucks, the VW BJC 1.9L TDI chapter walks through the Electronic Diesel Control (EDC) system, sensor testing, injection pump removal and installation, toothed belt replacement, cylinder head and valve gear service, turbocharger and charge air system diagnosis, and standardised data block evaluation for fault finding.

The transmission section explains the hydrostatic travel drive in detail, including the Linde Truck Control (LTC) system, hydraulic pump control with electronic regulation, start of delivery adjustment, bypass valve for towing, discharge device, hydraulic fan drive, and the complete pressure test procedures for the HPV 105-02 variable-displacement pump and HMF 135-02 hydraulic motors. The hydraulic truck diagnosis chapter provides step-by-step fault-finding tables with pressure test points, desired values and corrective actions.

The working hydraulics chapter covers the LS control valve with electrohydraulic activation, balance valve for recirculating oil, pressure reducing valves, brake valves for tilting, and auxiliary hydraulic sections. Complete hose layouts are provided for the pump, control valve, control pressure supply, lifting, tilting, return flow and auxiliary hydraulics on standard, duplex and triplex masts.

The loading system chapter details mast identification, removal and installation, lift chain adjustment, roller clearance settings for fork carriage and mast sections, slide pad removal on all mast types, lift cylinder removal and sealing, tilt angle sensor calibration with reference point measurements and angle tables, tilt cylinder removal and sealing, and hose reel service. The electrical section covers the central electrical system, relay and fuse layouts, interface connectors, composite instrument functions and working light positions.

The circuit diagram annex provides hydraulic circuit diagrams and electrical circuit diagrams for both LPG and diesel standard equipment, plus optional lighting, truck data management, heater, soot filter and wiper systems. These are essential for tracing faults and understanding system interconnections.

What This Manual Enables You to Do

With this Linde Series 394 service training manual on hand, you can confidently perform engine diagnostics and repair on both LPG and diesel variants, test and adjust the hydrostatic travel drive, troubleshoot LTC fault codes, service the working hydraulics and control valve, adjust and repair mast systems, calibrate the tilt angle sensor, and interpret the complete hydraulic and electrical circuit diagrams. The manual includes the technical data, torque values, pressure settings, wear limits and adjustment procedures needed to carry out these jobs correctly.

Linde trucks of the 394 series are built around the hydrostatic drive and Linde Truck Control — systems that demand precise adjustment and understanding. Using incorrect procedures or specifications can lead to poor performance, increased wear or unsafe operating conditions. This manual gives you the manufacturer’s own procedures and values, so you can work to the correct standard.
