Linde R10 R12 R14 R16 R20 R25 Spare Parts List – 1120 801 00 01

Description

Linde R10 R12 R14 R16 R20 R25 Spare Parts List – Document 1120 801 00 01

This Linde R10 R12 R14 R16 R20 R25 Spare Parts List is the full factory parts catalog for the R10, R12, R14, R16, R20 and R25 electric reach truck series, published under document number 1120 801 00 01 with a print date of 28.09.2014. Across 735 pages, every major assembly of the truck is broken down into exploded illustrations with numbered positions, and each position is tied to its part number, designation, required quantity and – wherever Linde annotates it – a replacement part or an availability remark. The result is a lookup tool that lets a workshop, parts counter or fleet owner identify exactly which component belongs on the machine in front of them, rather than guessing from a generic parts diagram.

The catalog covers the complete truck, not just the drivetrain: traction motor, transmission, chassis and overhead guard, steering and wheels, operator controls, electric equipment and controllers, hydraulic unit, lift mast 1500/1501/1502, special equipment, and the miscellaneous labels and operating materials. Each register is divided into logical sub-sections (for example, Register 08 – Lift Mast is split into standard mast type 1500, duplex mast type 1500, triplex mast 1500, triplex mast 1501, triplex mast 1502, chain heads and leaf chains, lift cylinders, reach cylinders, drive units, fork carriages and integrated sideshift), so the correct exploded view can be located quickly by system rather than by scrolling through hundreds of pages.

File Details

• Manual type: Spare Parts List (Illustrated Parts Catalog)
• Brand: Linde
• Model series: R10, R12, R14, R16, R20, R25 electric reach trucks
• Document number: 1120 801 00 01
• Publication date: 28.09.2014
• Language: English
• Page count: 735
• File format: PDF

Chapters Covered

The document is organised into ten Registers, each holding the exploded views and part lists for one system of the truck:

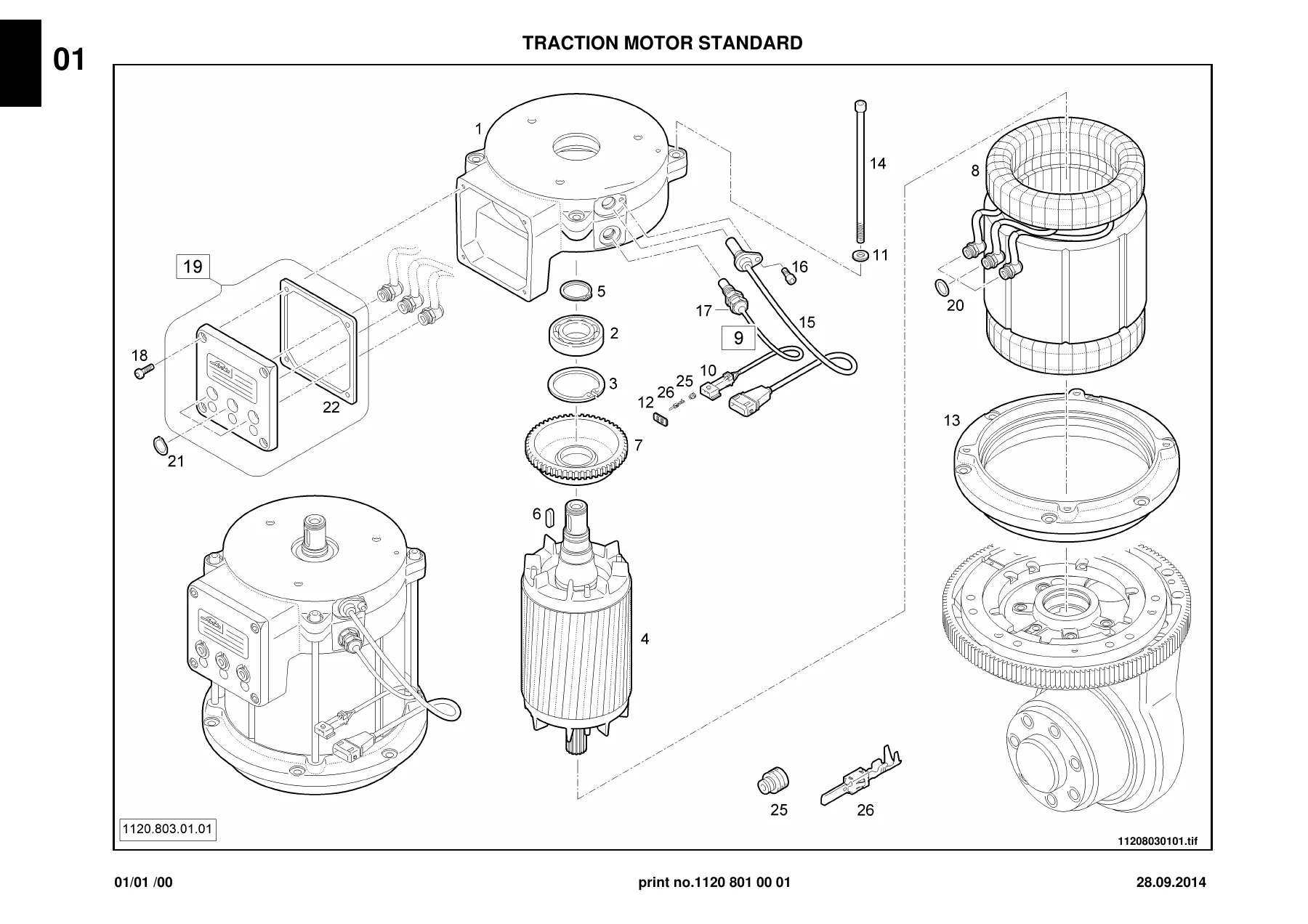

• Register 01 – Power Unit: Engine/Motor (traction motor standard, traction motor G, forced ventilation standard, forced ventilation G)
• Register 02 – Drive: Transmission (axle driven gear standard, axle driven gear G, wheel drive standard, wheel drive G)

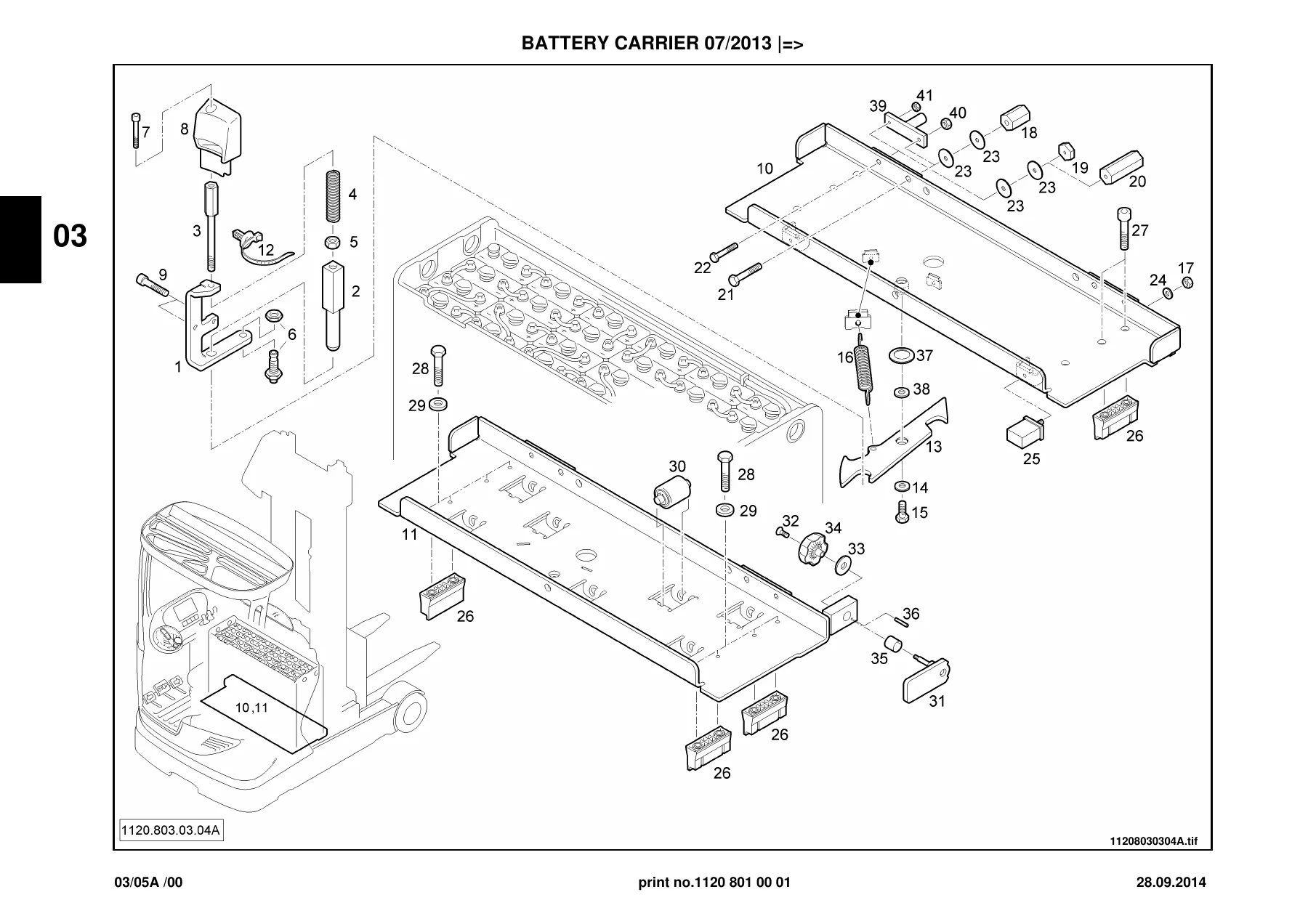

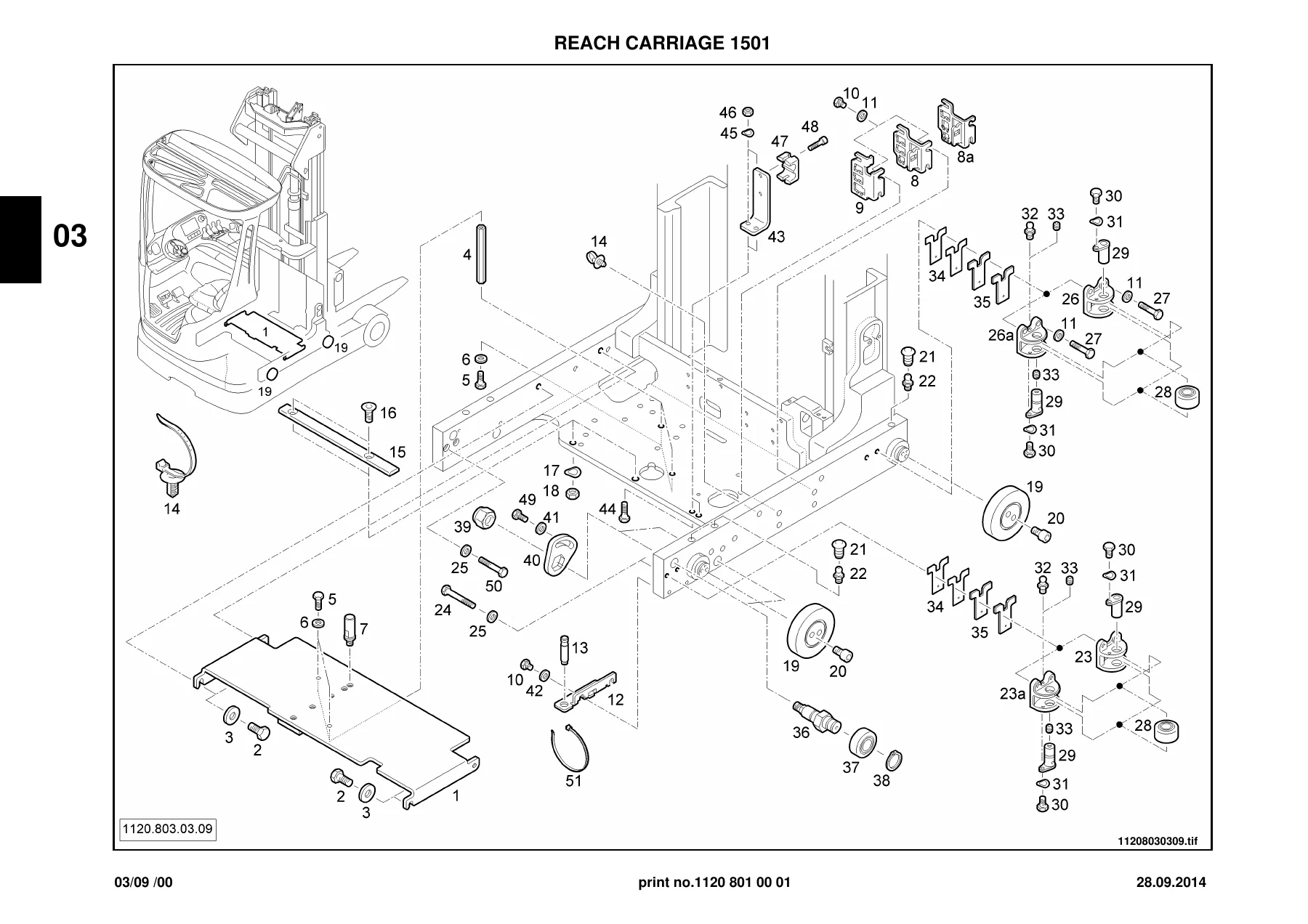

• Register 03 – Chassis Unit (lower chassis standard, lower chassis G, upper chassis and overhead guard, battery carrier, side guidance, reach carriage 1500/1501/1501 DMC/1502/1502 DMC/1502 wide version, driver’s cab cold store, driver’s cab weather protection, washer system, driver seat, driver’s seat high backrest, battery cover, covers, covers cab, covers DIR, heater, parts configuration driver’s compartment, weather protection door)
• Register 04 – Steering and Wheels (steering unit standard, steering unit G, electric steering, drive wheel & tyre standard, load wheel standard, wheel hub G, wheels and tyres G, electrical operating brake, hydraulic operating brake, mechanical operating brake)
• Register 05 – Controls (pedal operation, operator’s console, actuator of pilot valve)
• Register 06 – Electric Equipment (electric armatures, central electrical system and controller, output module and wiring, battery accessories, main harness, wiring harnesses for reach carriage, various cable looms, wiring harnesses armrest, flashing beacon, LFM data management, camera systems, height indicators, fan)
• Register 07 – Hydraulic Unit (hydraulic tank, basic hydraulics, lift pump & motor versions 1/2/3, control valve, working hydraulic for lift masts 1500/1501/1502, tilt cylinder 1500, auxiliary hydraulic services and auxiliary control valve 1501/1502)
• Register 08 – Lift Mast (standard, duplex and triplex mast 1500, triplex mast 1501, triplex mast 1502, chain heads and leaf chains, lift cylinders, middle and external cylinders, reach cylinders and lines, drive unit DMC, fork carriages 1500/1501/1502, cylinder sideshift/tilt, automatic centring, fork arms and extender, integrated sideshift)
• Register 09 – Special Equipment (special equipment overhead guard, load backrest type 1500, load backrest type 1501/1502, battery stand)
• Register 10 – Miscellaneous (labels & livery, plates for joystick, operating material)

Read together, these ten registers turn the parts list into a complete map of the machine. A technician chasing a leaking lift cylinder, a parts desk trying to match a chain head to a specific mast height, or a workshop rebuilding a reach carriage can all find the relevant exploded view and the numbered part behind it without leaving the document.

How the Catalog Is Organised

Every register opens with a short contents page that lists its sub-sections, and each sub-section then presents an exploded drawing followed by a parts table. The table columns are consistent throughout: position number, part number, designation, quantity, replacement part (where one exists), and remarks. Remarks call out version (standard, G, DMC, cold store, weather protection), chassis width, model-specific applicability (R10/R12, R14, R16, R20, R25, R14G/R16G, R20G, R10B-R16B, R14N/R16N, R20N, R20HD), and where a part is packaged in minimum quantities, restricted in availability, being phased out, or not available individually. The Key to Part Numbers section at the end of the file cross-references each part number back to its page in the catalog, which is useful when you already have a part number and need to see the drawing and its neighbours in one step.

Linde also tags components with engineering references – DIN or ISO standard numbers, loctite call-outs, seal kit references – so a buyer can see at a glance whether an item is a standard fastener, a Linde-only assembly, or a serviceable seal kit that can be ordered as one number instead of piece by piece.

What This Parts List Covers in Practice

Because the manual spans the full R10 through R25 range, the same catalog serves several different truck capacities and both standard and G variants. Drivetrain sections cover the traction motor, the axle driven gear and the wheel drive across their standard and G forms, so a workshop repairing a final drive can find the correct gear, bearing and seal for the exact version on the machine. Chassis sections deal with the lower and upper chassis, the overhead guard, side guidance and the various reach carriage variants including the 1500, 1501, 1501 DMC, 1502 and 1502 DMC, plus the wide version, and the battery carriers for different battery sizes.

Hydraulic and lift mast sections are unusually detailed for a parts list of this size, covering the lift pump and motor in three separate versions (14 kW, 13 kW and 14 kW), the control valve and auxiliary control valve, working hydraulics for the 1500, 1501 and 1502 masts, tilt cylinders, lift cylinders, middle and external cylinders, reach cylinders and their lines. The lift mast register also includes the leaf chains, chain heads and fasteners needed to service the mast safely, with chain part numbers tied to specific lift heights.

Electric equipment is covered in depth as well: controllers, output modules, main harnesses, reach carriage harnesses, armrest harnesses, camera systems, height indicators and the LFM data management wiring. Battery accessories include the full cable assembly list across PzS and PzV battery types, both Flex and Perfect terminal versions, with and without electrolyte circulation.

Why This Parts List Matters

Ordering the wrong part on a reach truck is expensive in both time and money, and a generic catalog will often leave you guessing between two visually similar components. This Linde R10 R12 R14 R16 R20 R25 Spare Parts List removes that guesswork by tying every part number to a specific position on a specific exploded view, with the version, chassis width and model applicability spelled out in the remarks column. That means a technician can confirm a fitment before placing the order, and a parts desk can quote accurately the first time instead of arranging returns.

The catalog is equally useful as a reference when rebuilding an assembly: the exploded views show the correct sequence and orientation of each component, and the quantity column confirms how many of each fastener, seal or bearing is needed. Combined with the part-number index at the back, it becomes a day-to-day lookup tool rather than a document that gets opened once and filed away.

Delivery

IMAGES PREVIEW

The manual is supplied as an instant PDF download – no shipping, no waiting for a courier. Once payment is confirmed, the file is available immediately and can be opened on a PC, laptop, tablet or smartphone, printed for the workshop, or stored on a shared drive for the whole team. Because it is a PDF, individual pages, exploded views and parts tables can be printed or emailed to a supplier exactly as needed.
