Lycoming Direct Drive Aircraft Engine Overhaul Manual – 4, 6 & 8 Cylinder Series – Part No. 60294-7

Description

Lycoming Direct Drive Aircraft Engine Overhaul Manual – Part No. 60294-7

This Lycoming Direct Drive Aircraft Engine Overhaul Manual is the factory-format procedural manual covering the horizontally opposed, air-cooled, direct drive engine family built by Lycoming, a Textron Company. Approved by the F.A.A. and issued as Part No. 60294-7 (Sixth Printing, December 1974, with revision content carried through later updates), this Overhaul Manual walks a technician through every stage of tearing an engine down, inspecting it against factory limits, repairing worn components, and rebuilding it to airworthy condition.

• Manual Type: Overhaul Manual
• Brand/Manufacturer: Lycoming (A Textron Company)
• Publication/Part No.: 60294-7

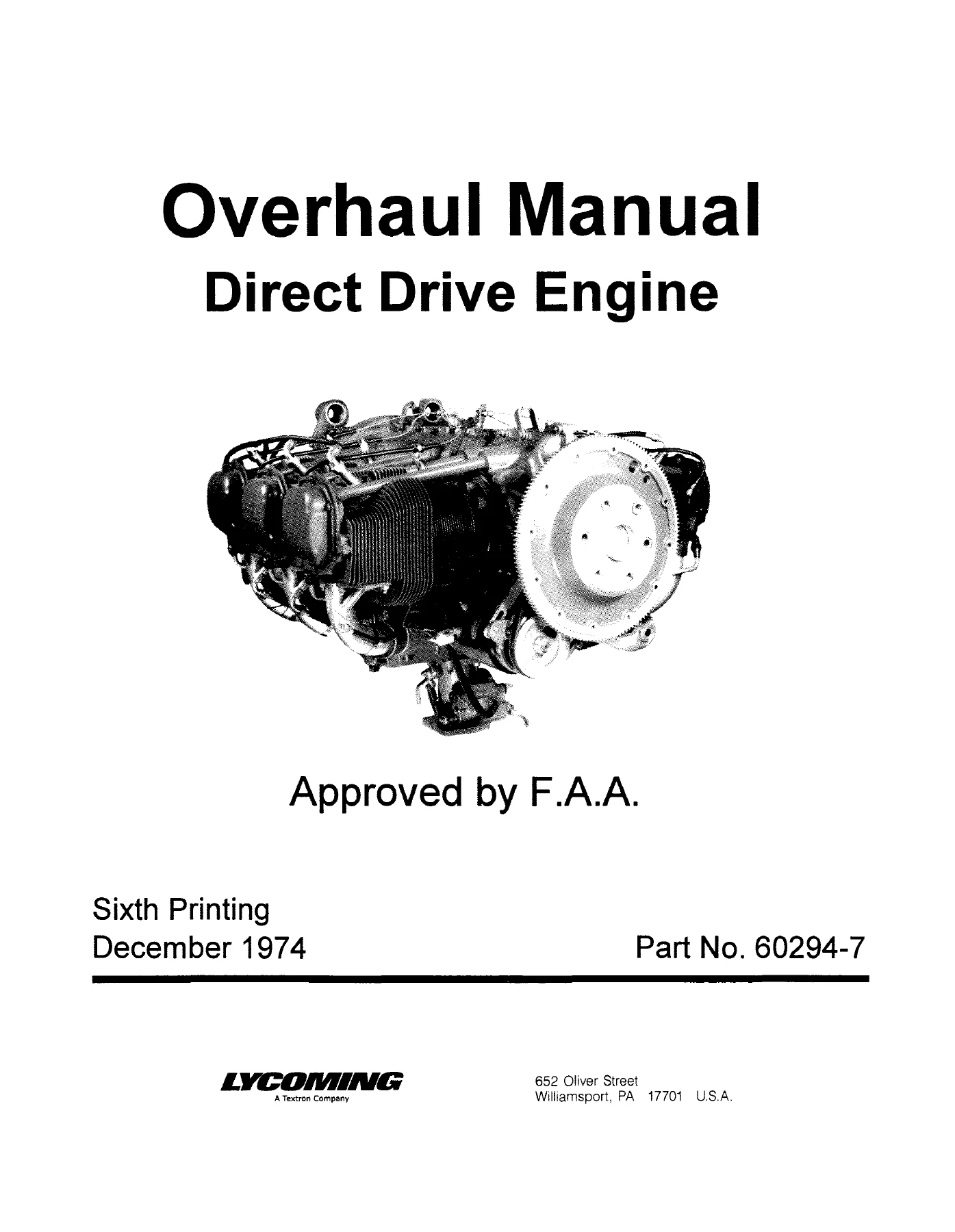

• Printing/Edition: Sixth Printing, December 1974
• Language: English
• Page Count: 285 pages
• File Format: PDF

Scope of Coverage

This Overhaul Manual is written to apply broadly across Lycoming’s direct drive, four, six, and eight cylinder, horizontally opposed engine family rather than to a single model number. Throughout the manual, procedures apply equally to all covered models, with model-specific notes called out where a particular series or prefix requires different handling. Engine designations referenced throughout the text include O-235, O-290-D, O-320, O-340, O-360, IO-320, IO-360, IO-540, IO-720, TIO-360, TIO-540, LTIO-540, LIO-320, LIO-360, AIO-320, AIO-360, HO-360, HIO-360, VO-360, and IVO-360 variants. Because this Direct Drive Overhaul Manual spans the whole engine series, Lycoming’s applicable parts catalog is intended to be used alongside it for model-specific part numbers.

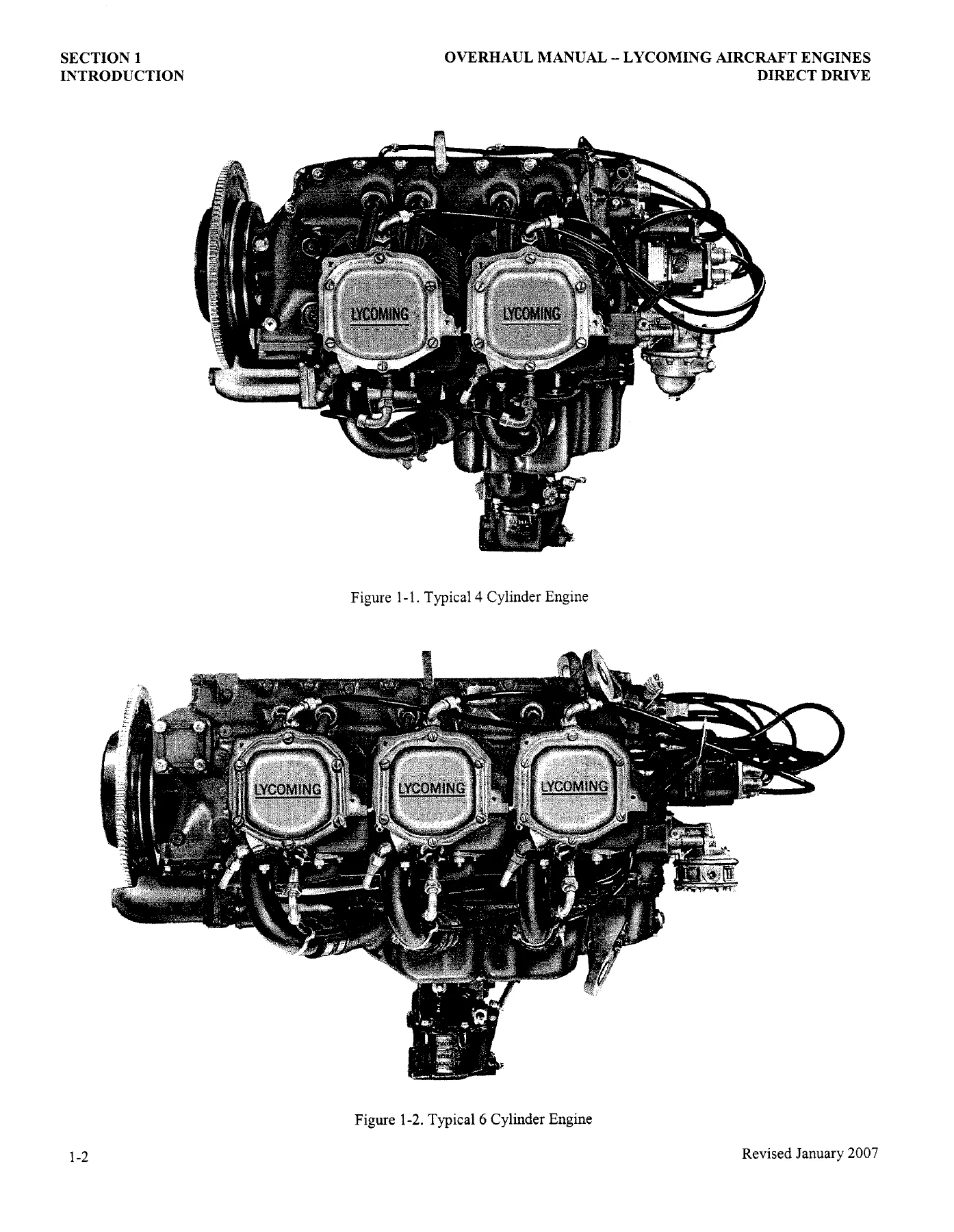

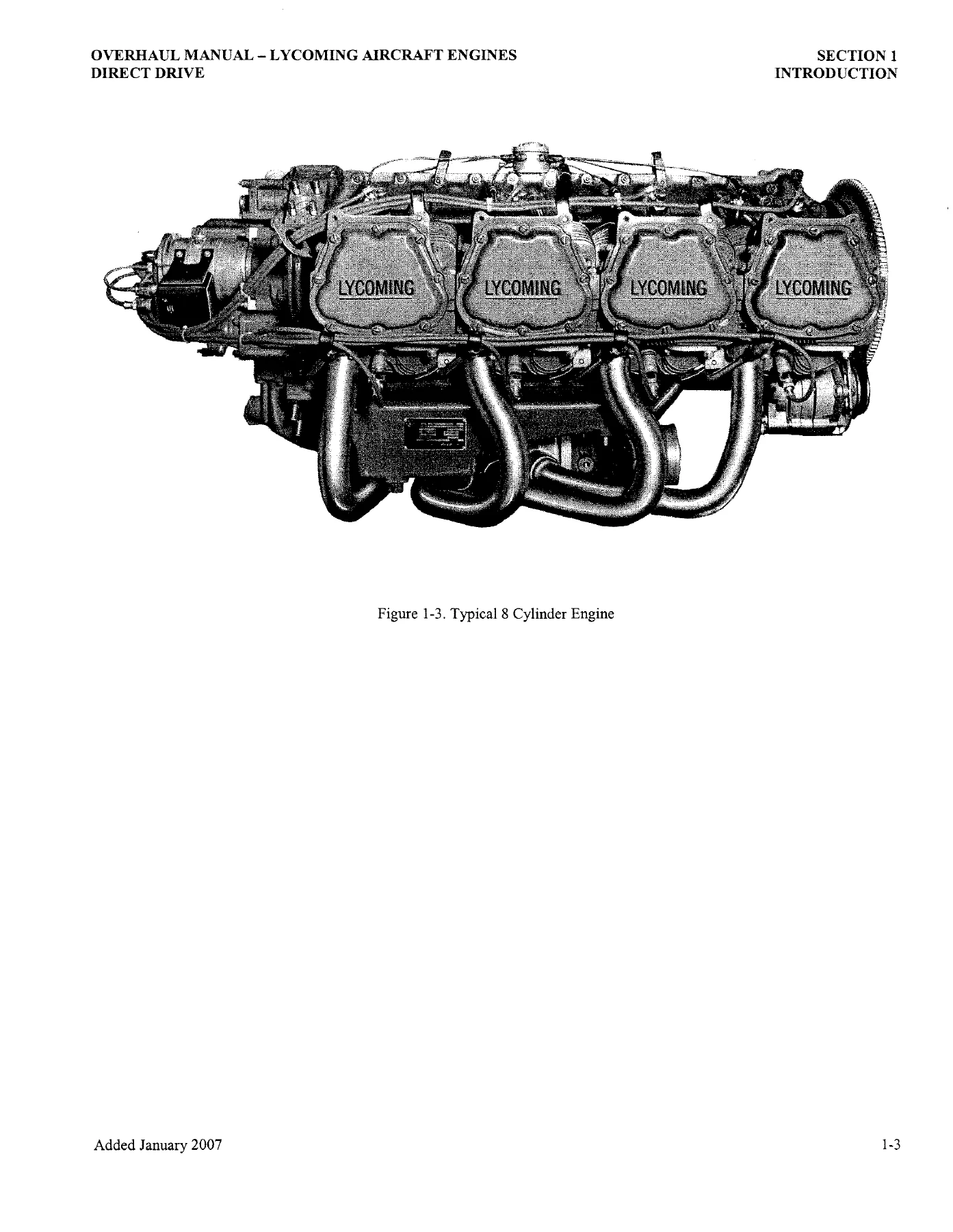

IMAGES PREVIEW

Chapters Covered

• Section 1 – Introduction: manual scope, model code explanation, cylinder/rotation orientation conventions
• Section 2 – General Description: cylinders, valve operating mechanism, hydraulic tappets, crankcase, crankshaft, accessory housing, connecting rods, pistons, lubrication and cooling systems, induction system (carbureted and fuel injected), turbocharger controls, ignition system
• Section 3 – General Overhaul Procedures: degreasing and hard carbon removal, bearing/gear/corrosion inspection, damaged and painted parts repair, stud replacement, table of limits usage, oil seals and gaskets, pitch alignment and backlash in bevel gear assemblies
• Section 4 – Ignition System: magnetos, impulse coupling, retard breaker, ignition harness and spark plug removal, inspection, repair, reassembly, installation, and timing magneto to engine
• Section 5 – Accessory Housing: disassembly, dual drives, fuel pumps, oil filter, oil cooler bypass valve, vacuum and hydraulic pump driven gears, turbo and oil scavenge pumps, reassembly
• Section 6 – Cylinders, Pistons and Valve Train: removal, disassembly, cleaning, inspection of cylinders/pistons/valve rockers/push rods/valves/hydraulic tappets/valve springs, spark plug insert repair, valve seat and guide repair, plain/nitrided/chrome plated cylinder barrel handling, reassembly and installation
• Section 7 – Crankcase, Crankshaft and Reciprocating Parts: accessory and crankcase disassembly, crankshaft counterweights and sludge tubes, bearing inspection, magnetic particle inspection, connecting rod dimensional and squareness checks, crankshaft straightening and bushing repair, oil relief valve, reassembly of crankshaft, camshaft, and crankcase, oil seal, hydro control valve, crankshaft idler gears
• Section 8 – Oil Sump and Fuel Induction: intake pipes, carburetor and fuel injector removal/cleaning/inspection/repair, induction housing, flow dividers, nozzle assembly reassembly
• Section 9 – Test Procedures: general test setup, test limits, turbocharged engine testing, pressure carburetors, run-in procedure and schedule, oil consumption run, oil pressure relief valve test, idle speed and mixture adjustment, preservation and storage
• Section 10 – Table of Limits: Service Table of Limits and Torque Value Recommendations (SSP-1776-5), including crankcase/crankshaft/camshaft limits, cylinder limits, gear train and backlash limits, and torque/spring specification tables with standard bolt, pipe plug, flexible tube, and metal tube fitting torque charts

Together these sections give a technician the complete procedural path from initial teardown through final test run – everything needed to bring a direct drive Lycoming powerplant back to factory tolerances rather than isolated tips or a summary overview.

Why This Lycoming Overhaul Manual Belongs in Your Shop

With this Direct Drive Aircraft Engine Overhaul Manual, a technician can properly disassemble an engine, measure every critical component against Lycoming’s published limits, identify which parts require repair or replacement, and reassemble the engine with correct torque values and clearances. Working outside factory-specified limits and torque values on an FAA-approved powerplant risks both airworthiness and safety, so having the original Lycoming procedures and the SSP-1776-5 Table of Limits in hand matters. This Lycoming Direct Drive Overhaul Manual is delivered as an instant PDF download – no shipping, no waiting. Read it on a laptop, tablet, or phone in the hangar, or print the pages you need at the bench.
