Maersk Line Reefer Container Repair Manual (April 2009) – PDF Download

Description

Maersk Line Reefer Container Repair Manual (April 2009) – PDF Download

This is the official Maersk Line repair manual for reefer containers, dated April 2009. It is a comprehensive guide for repair shops and technicians working on Maersk Line’s fleet of refrigerated containers. The manual is designed to ensure that all repairs are carried out correctly, using the right materials and procedures to maintain the containers’ structural integrity, thermal efficiency, and watertightness as per ISO, CSC, TIR, and ATP regulations.

File Details

• Manual Type: Official Maersk Line Repair Manual
• Brand: Maersk Line
• Model: Aluminium and Stainless Steel Reefer Containers
• Language: English
• Page Count: 250 Pages
• File Format: PDF
• Publication Date: April 2009

Chapters Covered

The manual is structured to guide the user from damage assessment through to final repair and re-foaming. It covers all major structural components of both aluminum and stainless steel reefer containers.

• Chapter 0: Scope – Purpose of the manual, repair methods, structure, and how to use it.
• Chapter 1: General Requirements – Quality standards, economical criteria for repair, and the Standard Time System (STS).
• Chapter 2: Materials – Detailed specifications for steel, stainless steel, aluminum, fasteners (rivets, lock-bolts), foam tape, sealants, insulation foam, solvents, welding, painting, and markings.

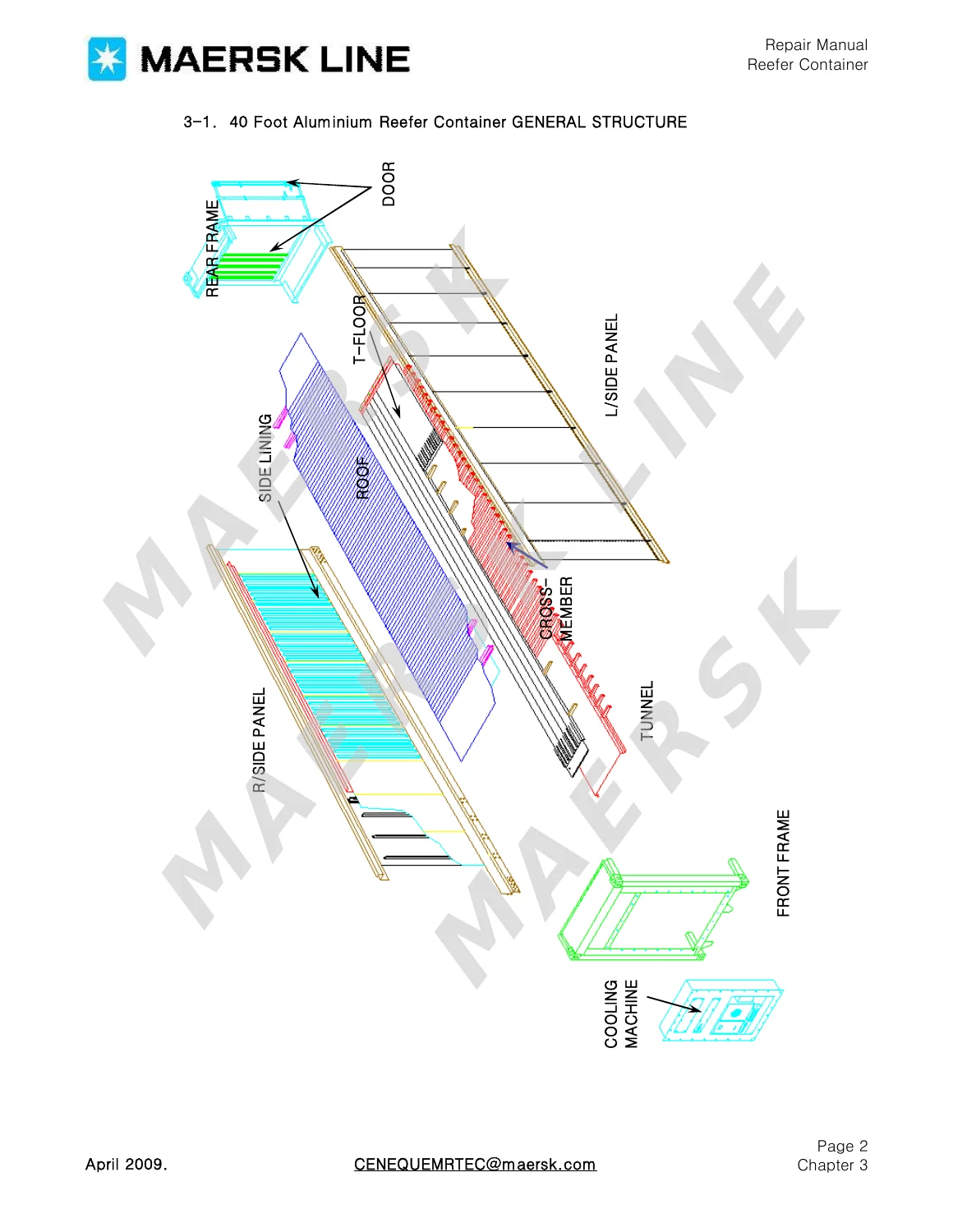

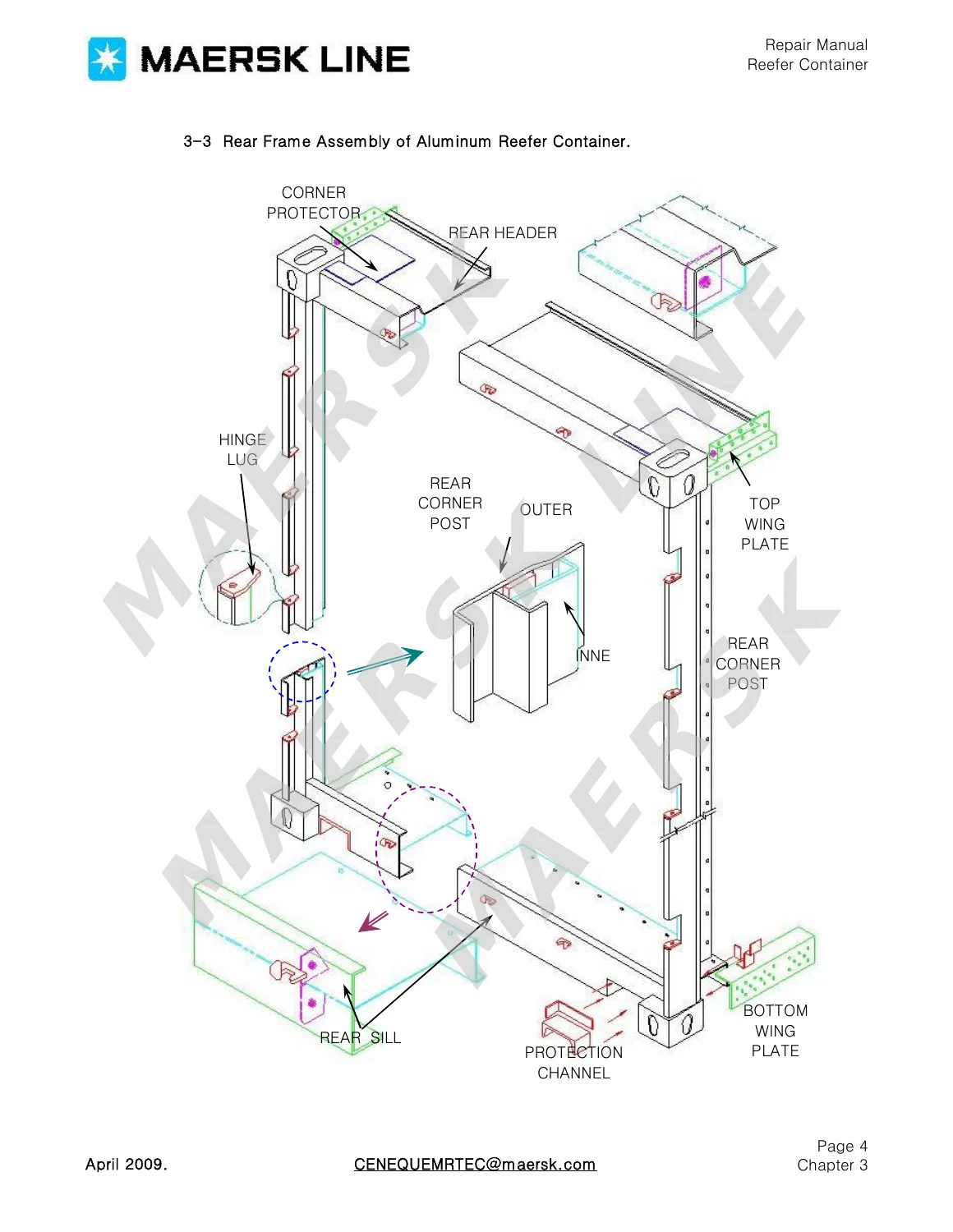

• Chapter 3: General Structure of Reefer Container – Comprehensive technical drawings and assembly breakdowns for 40ft aluminum and stainless steel reefers, including front/rear frames, roof, side, base, and door assemblies.
• Chapter 4: Inspection and Criteria of Repair – Defines acceptable and non-acceptable damage, wear and tear, manufacturing defects, and detailed inspection/repair criteria for rails, headers, posts, floor understructure, floors, doors, and panels.
• Chapter 5: Decision Diagram for Repair Works – A series of decision trees (flowcharts) to guide the technician in choosing the correct repair method for components like top/bottom side rails, roof panels, side panels, T-floors, corner posts, and door assemblies.
• Chapter 6: Repair Procedure – Step-by-step instructions for the most common repairs, including straightening, patching, inserting, sectioning, and replacement procedures for all major container parts.
• Chapter 7: Insulation Foam – General repair policy, types of foam, calculation of required chemicals, and detailed procedures for injection and manual re-foaming.
• Chapter 8: Photos Damages – Example photographs of various types of damage and completed repairs for reference.

This Maersk Line Reefer Container Repair Manual is an essential resource for any facility responsible for maintaining these specialized containers. It provides the precise engineering data, material specifications, and repair procedures required to return a damaged reefer to full service, ensuring it remains capable of safely transporting temperature-sensitive cargo.

Working with this Maersk repair manual ensures that all repairs are compliant with international standards and the container’s structural integrity is not compromised. It includes specific instructions for repairing damage to aluminum and steel structures, addressing potential issues like galvanic corrosion, and correctly restoring the critical polyurethane foam insulation.

Capability & Key Jobs Covered

The manual equips technicians to undertake a wide range of repairs, from minor cosmetic fixes to major structural overhauls. It covers:

IMAGES PREVIEW

• Straightening and Welding: Procedures for straightening damaged rails, posts, and panels, with specific guidelines for aluminum, steel, and stainless steel.
• Patching & Sectioning: Techniques for installing riveted overlays, welded inserts, and complete section replacements for panels and structural members.
• Component Replacement: Detailed instructions for replacing entire assemblies, including corner posts, headers, sills, and doors.
• Foam Insulation Repair: Critical procedures for removing water-damaged or compromised foam and properly re-foaming cavities to restore thermal efficiency.
• Door Repair & Hardware: Repairs to door panels, gaskets, locking bars, hinges, and cam keepers.
• Floor Repair: Straightening and sectioning aluminum T-floors, repairing cross members and outriggers.

Delivered as a PDF Download, the manual is instantly available after payment. It can be used on any device, printed for workshop use, or kept as a digital reference on a tablet or laptop. The pdf format allows for easy searching, zooming, and navigation, making it a practical tool for any professional dealing with Maersk reefers.
