Mercury 30 40 BigFoot EFI FourStroke Outboard Service Manual 2010 – 3 Cylinder Repair PDF

Description

Mercury 30/40 BigFoot EFI FourStroke Service Manual – 3 Cylinder Outboard Repair

This Mercury Service Manual covers the 40 and 30 BigFoot EFI FourStroke 3-cylinder outboard motors from serial number 1C104334 and above. Published by the Mercury Marine Service Department (part number 90-883064R03, November 2010), this is the full workshop reference for dealers, marine mechanics, and owners who service their own Mercury outboard.

Whether you are adjusting valve clearance, troubleshooting an EFI no-start, rebuilding the gear housing, or chasing a power trim leak, this Mercury 30 40 BigFoot EFI FourStroke service manual puts the factory procedures, torque values, resistance tests, and system theory in one place.

File Details

• Manual type: Service / Workshop Manual
• Brand: Mercury Marine
• Models covered: 40, 30 BigFoot
• Engine family: EFI FourStroke, 3 Cylinder
• Serial number range: 1C104334 and Above
• Document number: 90-883064R03
• Publication date: November 2010
• Language: English
• Page count: 505 pages
• File format: PDF

Chapters Covered

• 1 – Important Information
  • A – Specifications
  • B – Maintenance
  • C – General Information
  • D – Outboard Motor Installation
• 2 – Electrical
  • A – Ignition
  • B – Charging and Starting System
  • C – Timing, Synchronizing, and Adjusting
• 3 – Fuel System
  • A – Theory of Operation
  • B – Diagnostics and Troubleshooting
  • C – Service Procedures
  • D – Emissions
• 4 – Powerhead
  • A – Cylinder Head
  • B – Cylinder Block/Crankcase
  • C – Lubrication
• 5 – Mid-Section
  • A – Clamp/Swivel Brackets and Driveshaft Housing
  • B – Power Trim
  • C – Gas Assist Manual Trim/Tilt
• 6 – Gear Housing
  • A – Gear Housing – EZ Shift (2:1 Gear Ratio)
• 7 – Attachments/Control Linkage
  • A – Throttle/Shift Linkage
  • B – Tiller Handle

Every chapter is written at the level a working technician needs. Section 1 lays out the master specifications and the maintenance schedule, then walks through outboard installation with transom height charts and steering link rod torque. Section 2 handles the capacitor discharge ignition (CDI) system, stator and CPS resistance testing, DVA measurements, charging output, starter solenoid and suppression diode diagnostics. Section 3 breaks down the sequential EFI system – vapor separator tank, high-pressure fuel pump, fuel cooler, regulator, injectors, and the full CDS G3 fault code tables with freeze frame data. Section 4 covers the cylinder head (camshaft, valve guides, valve seat reconditioning, timing belt, oil pump) and the cylinder block (crankshaft, main bearings, pistons, connecting rods, thermostat, exhaust cover). Sections 5 and 6 handle the mid-section (swivel brackets, adapter plate, driveshaft housing, power trim hydraulics, gas assist manual tilt) and the EZ Shift 2:1 gear housing (water pump, shift shaft, bearing carrier, pinion gear depth and forward gear backlash setup, pressure testing). Section 7 finishes with throttle/shift linkage and the tiller handle assembly.

What This Manual Lets You Do

This is not a generic outboard guide – it is the model-specific service document for the 30/40 BigFoot EFI FourStroke 3-cylinder platform. You get the exact clearances, torque sequences, and troubleshooting logic Mercury dealers use, including:

• Valve clearance adjustment (intake 0.15-0.25 mm, exhaust 0.25-0.35 mm cold) with the driven-gear alignment marks
• Fuel pressure diagnosis – 290-303 kPa (42-44 psi) at the Schrader valve, mechanical pump vacuum and pressure tests
• Ignition coil, stator, CPS, and spark plug lead resistance values for pinpoint testing
• CDS G3 diagnostic interface connections, active tests, and the full fault text table (MAP, TPS, ECT, IAT, EST, injector, fuel pump, Guardian)
• Power trim up and down pressure checks (2800 psi minimum up) with the test gauge kit
• Gear housing pinion height (0.64 mm) and forward gear backlash (0.28-0.43 mm for 2:1) with the shim adjustment procedure
• Tiller handle throttle cable routing and wide-open throttle stop setting

Correct procedures and factory specifications matter because EFI FourStroke outboards are sensitive to setup. A MAP sensor reading out of range, a pinion set too deep, or a valve clearance left too tight will all show up as performance complaints or, worse, internal damage. Having the resistance tables, pressure specifications, and torque sequences on hand means diagnosing the actual fault instead of replacing parts by guesswork.

Who This Is For

Marine mechanics servicing Mercury 30 and 40 BigFoot EFI FourStroke outboards, boat owners who run their own maintenance and repairs, and anyone who needs the electrical schematics, fuel system theory, or disassembly/assembly sequences for this specific 3-cylinder platform. The manual covers both remote control and tiller handle configurations, and both power trim and gas assist manual tilt variants.

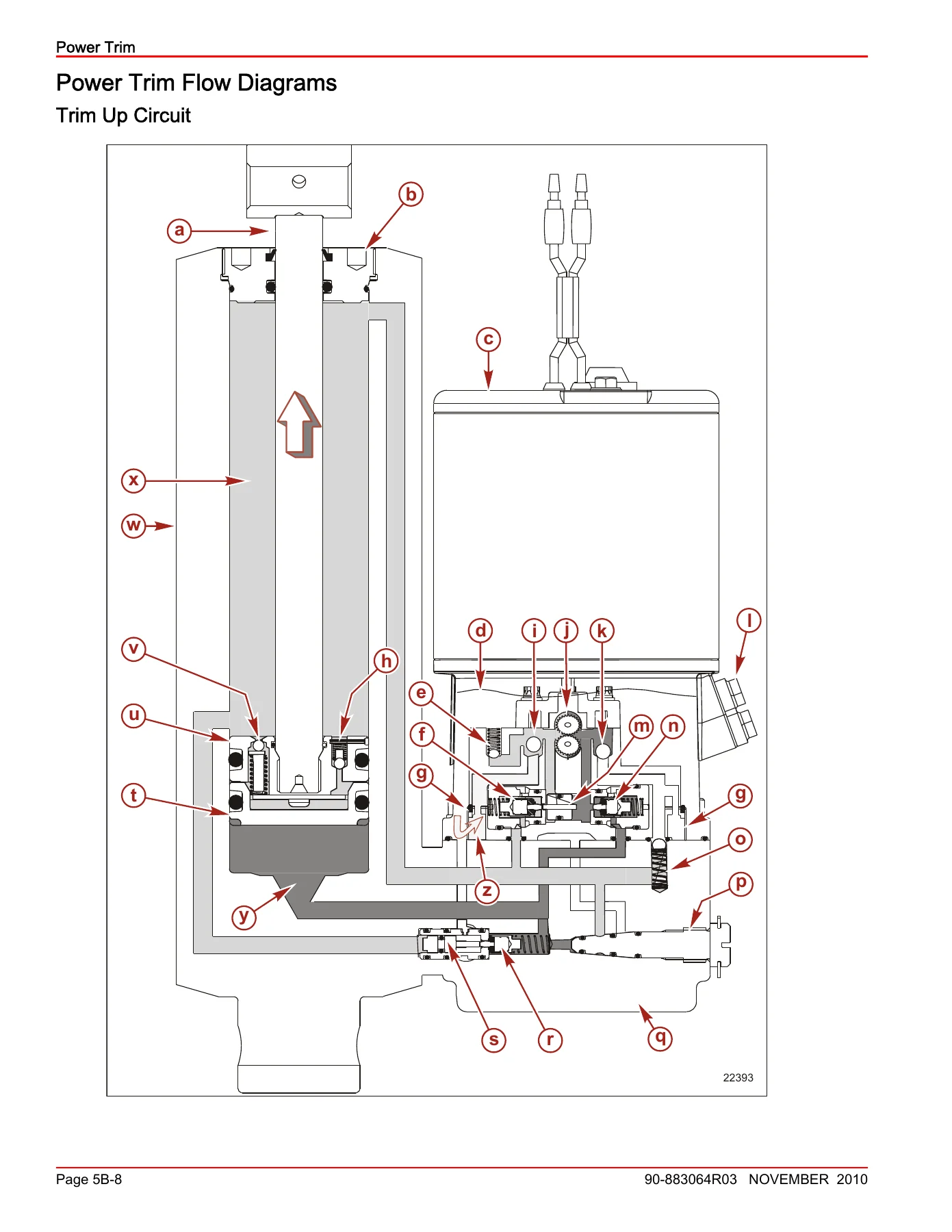

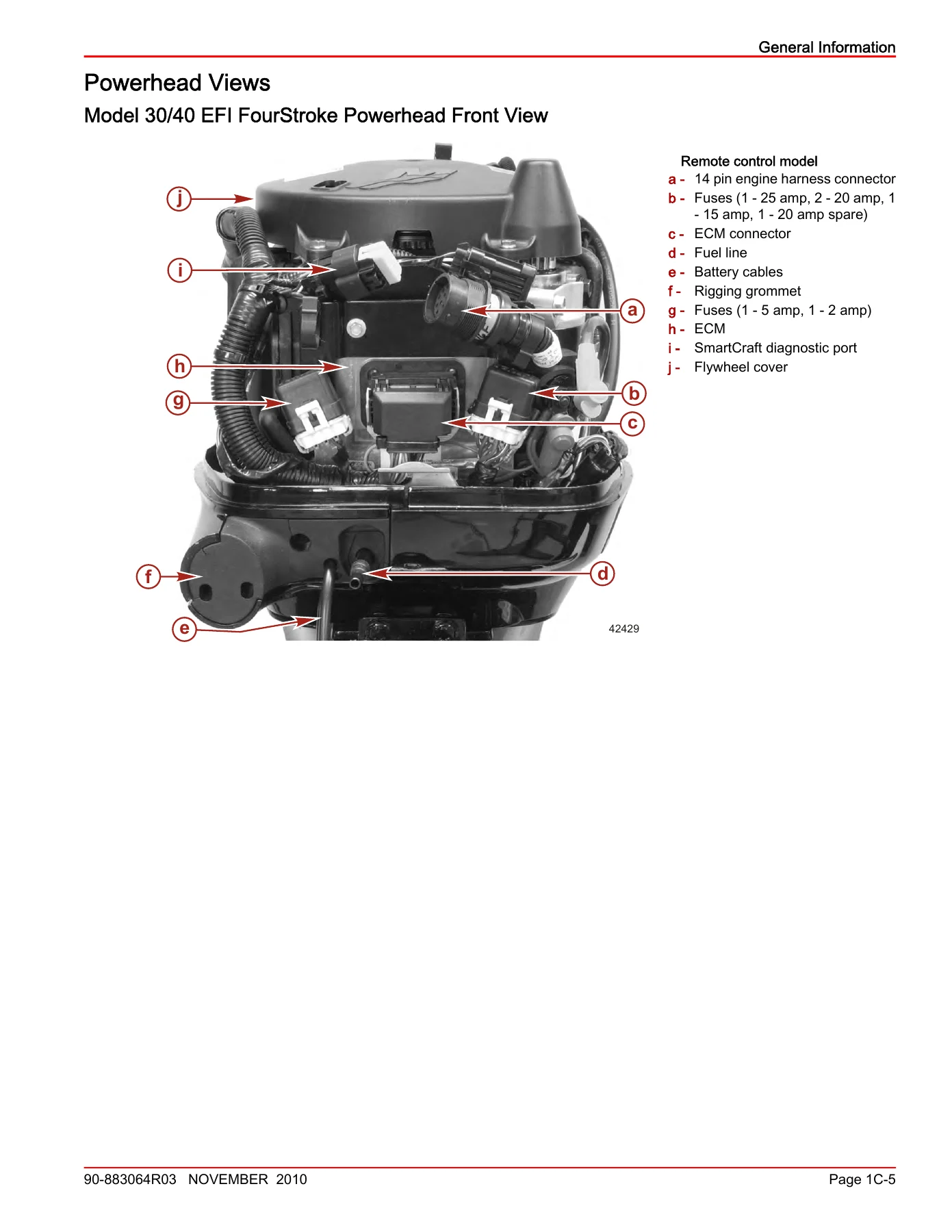

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as a downloadable PDF immediately after purchase – no shipping, no waiting. Read it on a laptop, tablet, or phone in the workshop, or print the pages you need for the job and keep them next to the engine. Every diagram, spec table, and step is included in the file you receive.
