Mercury 40 50 60 FourStroke EFI Outboard Service Manual 2002+ Repair PDF

Description

Mercury 40 50 60 FourStroke EFI Service Manual – Document 90-883065

This is the full Mercury Marine service manual covering the 40/50/60 FourStroke EFI outboard family, starting with model year 2002. Published by the Mercury Marine Service Department under document number 90-883065 (April 2001), it is the same reference used to guide mechanics through electrical diagnosis, fuel injection service, powerhead teardown, gear housing rebuilds, and control linkage adjustment on these four-stroke electronic fuel injection outboards.

Whether you are a dealer technician, a marine mechanic, or an owner who does their own maintenance, this Mercury 40 50 60 FourStroke EFI Outboard Service Manual 2002+ Repair PDF gives you the factory procedure, the factory specifications, and the factory torque values needed to do the job correctly the first time.

File Details

• Manual type: Service Manual
• Brand: Mercury Marine
• Model family: 40/50/60 FourStroke EFI
• Document number: 90-883065
• Publication date: April 2001
• Starting model year: 2002
• Language: English
• Page count: 590
• File format: PDF

Chapters Covered

Every section of the Mercury 40 50 60 FourStroke EFI service manual is included. The chapter structure follows the factory layout:

• Section 1 – Important Information: Specifications, Maintenance, General Information, Outboard Motor Installation
• Section 2 – Electrical: Ignition, Charging & Starting System, Timing / Synchronizing & Adjusting
• Section 3 – Electronic Fuel Injection: Theory of Operation, Diagnostics and Troubleshooting, Service Procedures, Emissions
• Section 4 – Powerhead: Cylinder Head, Cylinder Block / Crankcase, Lubrication
• Section 5 – Mid-Section: Clamp / Swivel Brackets & Drive Shaft Housing, Power Trim, Manual Tilt Assist
• Section 6 – Lower Unit: Non-Bigfoot Gear Housing, Bigfoot Gear Housing
• Section 7 – Attachments / Control Linkage: Throttle / Shift Linkage, Tiller Handle
• Section 8 – Color Diagrams: Wiring diagrams, fuel flow, oil flow, and water flow diagrams

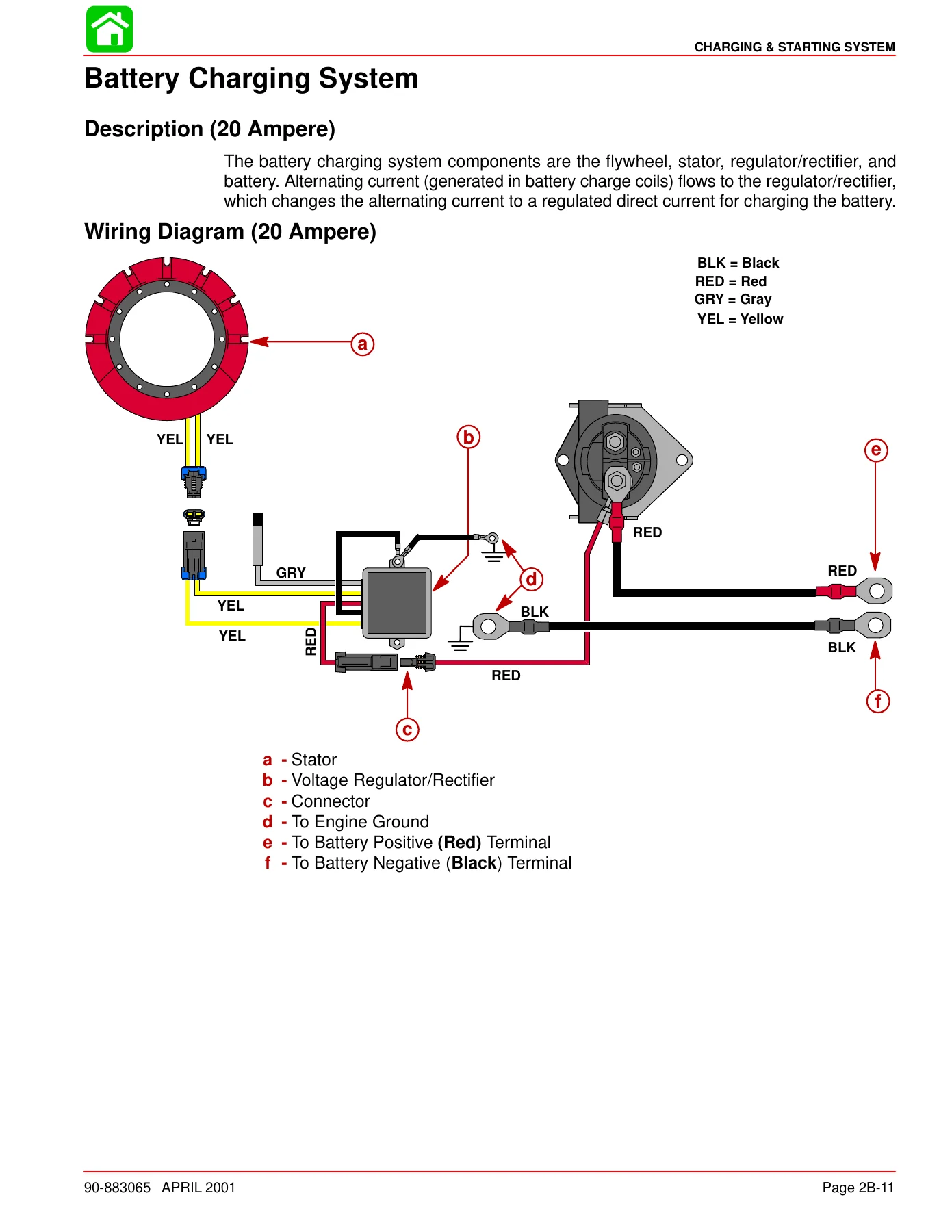

Within those chapters, the manual drills down into the procedures that matter most in the shop. Section 2 opens with the Capacitor Discharge Ignition (CDI) description, EST coil resistance tests, and high-tension lead service, then moves into the 20 Ampere charging system and Bendix starter motor teardown. Section 3 walks through the EFI air induction system, vapor separator tank, fuel cooler, pressure regulator, throttle position sensor, idle air control valve, and fuel injector service – including the Digital Diagnostic Terminal (DDT) troubleshooting flow and the Guardian Protection System warning modes. Section 4 covers camshaft, valve, and cylinder head service on the powerhead side, plus main bearing selection, piston ring installation, and crankcase cover sealing on the block side. Section 5 handles swivel bracket, steering arm, transom bracket, adaptor plate, driveshaft housing, and the full power trim and manual tilt hydraulic circuits. Section 6 breaks out the 1.83:1 Non-Bigfoot gear housing and the 2.31:1 Bigfoot gear housing, including pinion gear depth, forward gear backlash, water pump service, and the gear housing pressure test. Section 7 covers remote and tiller handle throttle / shift linkage adjustment.

In short, this Mercury 40 50 60 FourStroke EFI repair manual is not just a tune-up guide. It is the complete factory service reference, from the smallest O-ring size to the largest powerhead procedure.

What This Manual Lets You Do

Here is the practical value. With the Mercury 40/50/60 FourStroke EFI service manual open on your bench, you can:

• Diagnose a no-start, hard-start, or stall complaint on the EFI system using the factory troubleshooting tables and Guardian System warning codes.
• Test ignition coil resistance, stator resistance, crank position sensor resistance, and suppression diode function with the printed values.

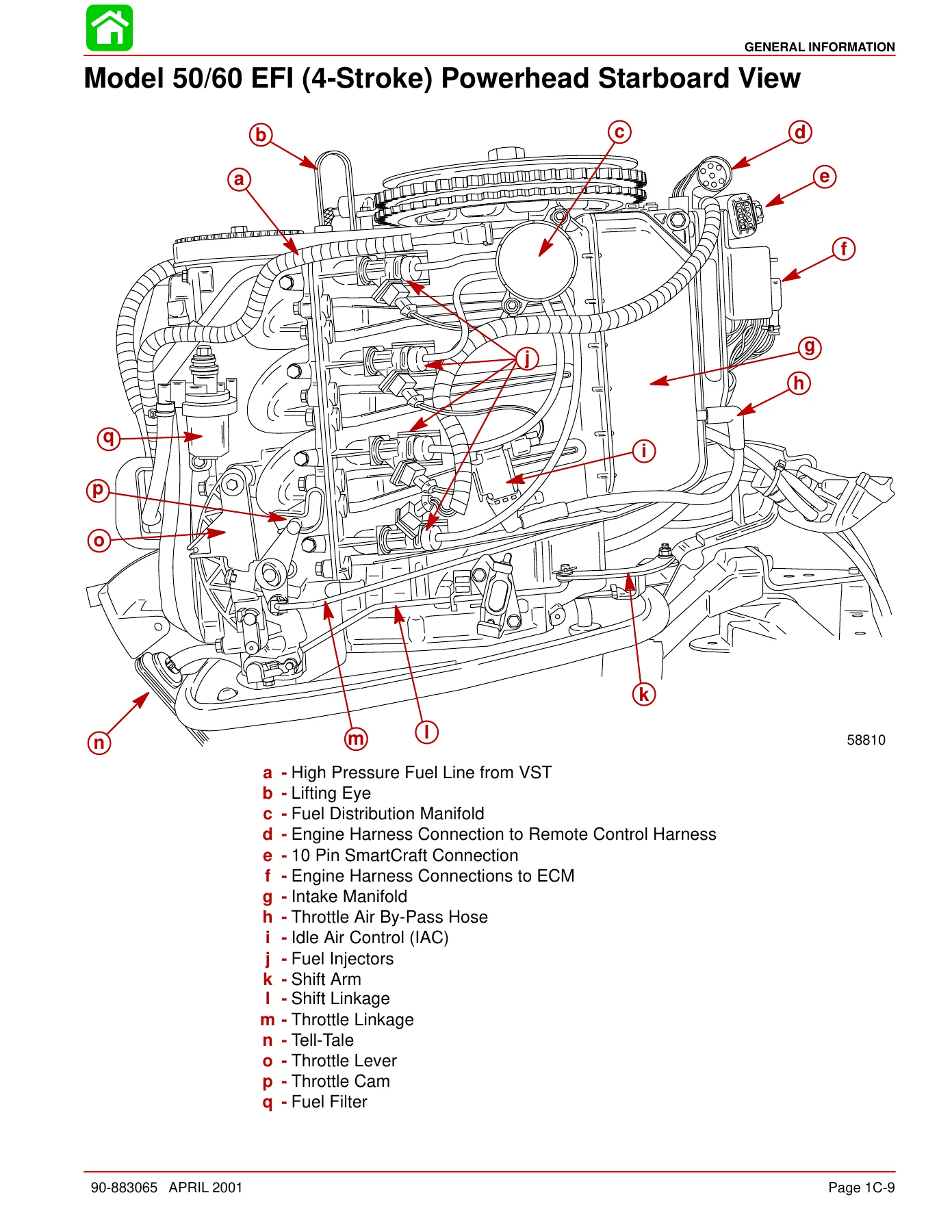

• Remove and reinstall the intake manifold, throttle body, idle air control, fuel distribution manifold, and fuel injectors with the correct torque sequences.
• Service the vapor separator tank, high-pressure electric fuel pump, pressure regulator, and fuel cooler.
• Rebuild the powerhead – cylinder head, camshaft, valves, valve guides, oil pump, pistons, rings, crankshaft, main bearings, and connecting rod bearings.
• Set valve clearance, install the timing belt, and confirm ignition timing windows.
• Remove and reinstall the adaptor plate, driveshaft housing, swivel bracket, steering arm, and transom bracket.
• Diagnose and rebuild the power trim system or the manual tilt assist system, including shock rod, memory piston, and manual release valve service.
• Tear down and reassemble the Non-Bigfoot (1.83:1) or Bigfoot (2.31:1) gear housing, set pinion gear depth, adjust forward gear backlash, and rebuild the water pump.
• Adjust throttle / shift linkage on both remote control and tiller handle models.
• Read the color wiring diagrams, fuel flow diagram, oil flow diagram, and water flow diagram for the 2002 models.

That list alone shows why the Mercury 40 50 60 FourStroke EFI service manual 90-883065 is one of the most useful documents an owner or shop can have on hand for these engines.

Engine Specifications You Will Find Inside

The specification chapter alone justifies the purchase. It lists the 995 cc displacement, 65 mm bore, 75 mm stroke, 9.7:1 compression ratio, 180-210 psi cylinder compression, 725 ± 25 rpm idle, 5500-6000 rpm wide-open throttle range, 42-44 psi electric fuel pump pressure, 30-40 psi engine oil pressure at 3000 rpm, and the 20 Ampere / 252 Watt charging system output. Oil capacity is 3 quarts or 3 liters. Non-Bigfoot gear case capacity is 11.5 fl oz (340 mL) and Bigfoot is 24 fl oz (710 mL) of Quicksilver Gear Lube Premium Blend. The manual also lists all the electrical resistance values for the ignition coils, stator, crank position sensor, fuel injectors, idle air control, and main power relay.

Torque specs are given throughout, in both lb-in / lb-ft and N·m, so you do not have to convert anything mid-job.

Who This Mercury 40 50 60 FourStroke EFI Service Manual Is For

This Mercury outboard service manual is written for mechanics who already know their way around hand tools and marine engines, and it assumes familiarity with common service procedures. That said, an experienced DIY owner who is comfortable with a torque wrench, a multimeter, and basic engine teardown can absolutely use it to do serious work. If you are paying a shop $100+ per hour to work on your 40, 50, or 60 FourStroke EFI, one or two jobs paid for out of this manual usually cover the cost.

Because the document covers the entire 40/50/60 FourStroke EFI family – including ELPT and Bigfoot variants – you get coverage for multiple horsepower ratings in one file.

Why the Factory Procedure Matters

Four-stroke EFI outboards are not forgiving of guesswork. Valve clearance set wrong, pinion gear depth set wrong, backlash out of spec, an O-ring installed backwards, or a torque value missed by a few foot-pounds can turn a simple repair into a powerhead or gear housing replacement. The Mercury 40 50 60 FourStroke EFI service manual gives you the exact sequence, the exact measurement, and the exact torque the factory specifies for each step. Following it is the difference between a repair that lasts and a repair that comes back.

IMAGES PREVIEW

Instant PDF Delivery

This is a digital PDF download. No physical book to ship, no waiting for the mail. You get the file immediately after checkout, and you can open it on a laptop, tablet, or phone – or print the pages you need for the bench. The Mercury 40 50 60 FourStroke EFI Outboard Service Manual 2002+ Repair PDF is the same document a Mercury Marine dealer would use, delivered in a format that works in the shop and on the water.
