Mitsubishi EP16KT EP18KT EP20KT Electric Forklift Service Manual – Chassis, Mast & Controller 99719-67110

Description

Mitsubishi EP16KT, EP18KT and EP20KT Electric Forklift Service Manual (99719-67110)

This Mitsubishi EP16KT EP18KT EP20KT electric forklift service manual is the full chassis, mast and controller workshop guide for the 1.6, 1.8 and 2.0 tonne battery-powered counterbalance trucks built on the ETB4A, ETB4B, ETB5A and ETB5B chassis. Published under document number 99719-67110, it walks a technician through every major system on the truck: the central vehicle monitor and console electrics, the IGBT/MOSFET main controller, the traction and pump motors, the EPS steering motor, the transfer units and rear axle, the hydraulic disc brake system, the steering control valve, the hydraulic pump and control valve assembly, and the simplex, duplex and triplex mast and fork assemblies. If you work on these trucks, this is the manual that tells you what to test, how to test it, and what the correct reading, torque or clearance should be.

File Details

• Manual type: Service Manual (Chassis, Mast & Controller)
• Brand: Mitsubishi
• Models covered: EP16KT, EP18KT, EP20KT
• Document number: 99719-67110
• Language: English
• File format: PDF
• Page count: 392 pages
• Applies to serial ranges: EP16KT ETB4A-00011-99999 (48 V), EP16KT ETB4B-00011-99999 (36 V), EP18KT ETB5A-00011-49999 (48 V), EP18KT ETB5B-00011-49999 (36 V), EP20KT ETB5A-50001-99999 (48 V), EP20KT ETB5B-50001-99999 (36 V)

Chapters Covered

• General Information — Serial number locations, dimensions, technical data
• Vehicle Electrical Components — Console box, key switch, lamp specification chart
• Main Controller — Controller components, inspection and adjustment, service data
• Troubleshooting for Control Circuits — Faulty central vehicle monitor system, faulty diagnosis indication, other abnormalities
• Power Train — Procedure and key points for removal and installation
• Motors — Drive motor, pump motor, EPS motor
• Transfer Unit — Procedures and key points for disassembly and assembly
• Rear Axle — Rear axle, rear wheels
• Brake System — Caliper, brake pedal, master cylinder
• Steering System — Steering control valve
• Hydraulic System — Tank, pump, control valve, lift and tilt cylinders, flow regulator valve, down safety valve
• Masts and Forks — Simplex mast, duplex mast, triplex mast
• Service Data — Inspection standards, periodic replacement of parts, lubrication standards, main component weight, tightening torque for standard bolts and nuts, special tools

As a whole, the document is a system-by-system teardown and repair guide rather than a quick-reference sheet. Each chapter opens with component identification, then moves into removal, disassembly, inspection, assembly and reinstallation, with the specific service limits, clearances, preloads and tightening torques tucked in alongside the procedure that needs them. The troubleshooting chapter at the front of the electrical section is the fault-code decoder for the truck — it lists the E-series, H-series and numeric error displays that the central vehicle monitor can show, tells you what each one means, and then walks through the diagnostic path to isolate the faulty current sensor, IGBT, contactor, wiring harness or logic card behind it.

What the Mitsubishi EP16KT EP18KT EP20KT Service Manual Gives You

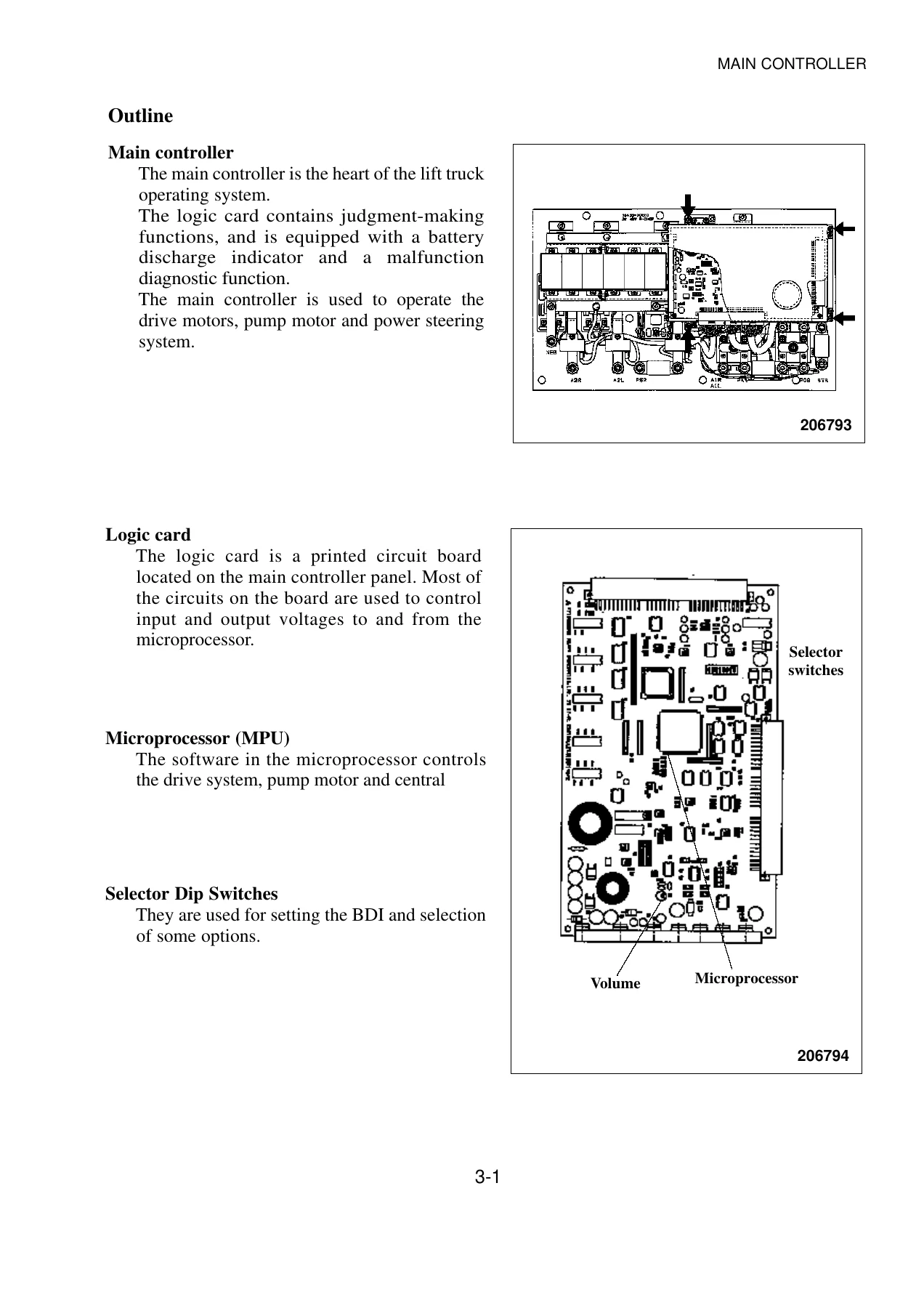

The Mitsubishi EP16KT EP18KT EP20KT service manual is organised so that a technician can use it as a bench reference as well as a diagnostics tool. The main controller chapter alone is worth the price of entry — it covers the logic card layout, the selector DIP switches, the trimmer potential adjuster for the BDI calibration, the setup option (SUO) table, self-diagnosis mode, the malfunction data history folder, and the tightening torque table for high-tension cable terminals, head capacitors, diodes and IGBTs. If you have ever chased an intermittent fault code on an EP-series electric forklift, you know how quickly the cost of guessing adds up; this manual replaces the guessing with the exact voltage, resistance and continuity checks the logic card expects to see at each pin of connectors CH2-P1, CH2-P2 and CH2-P3.

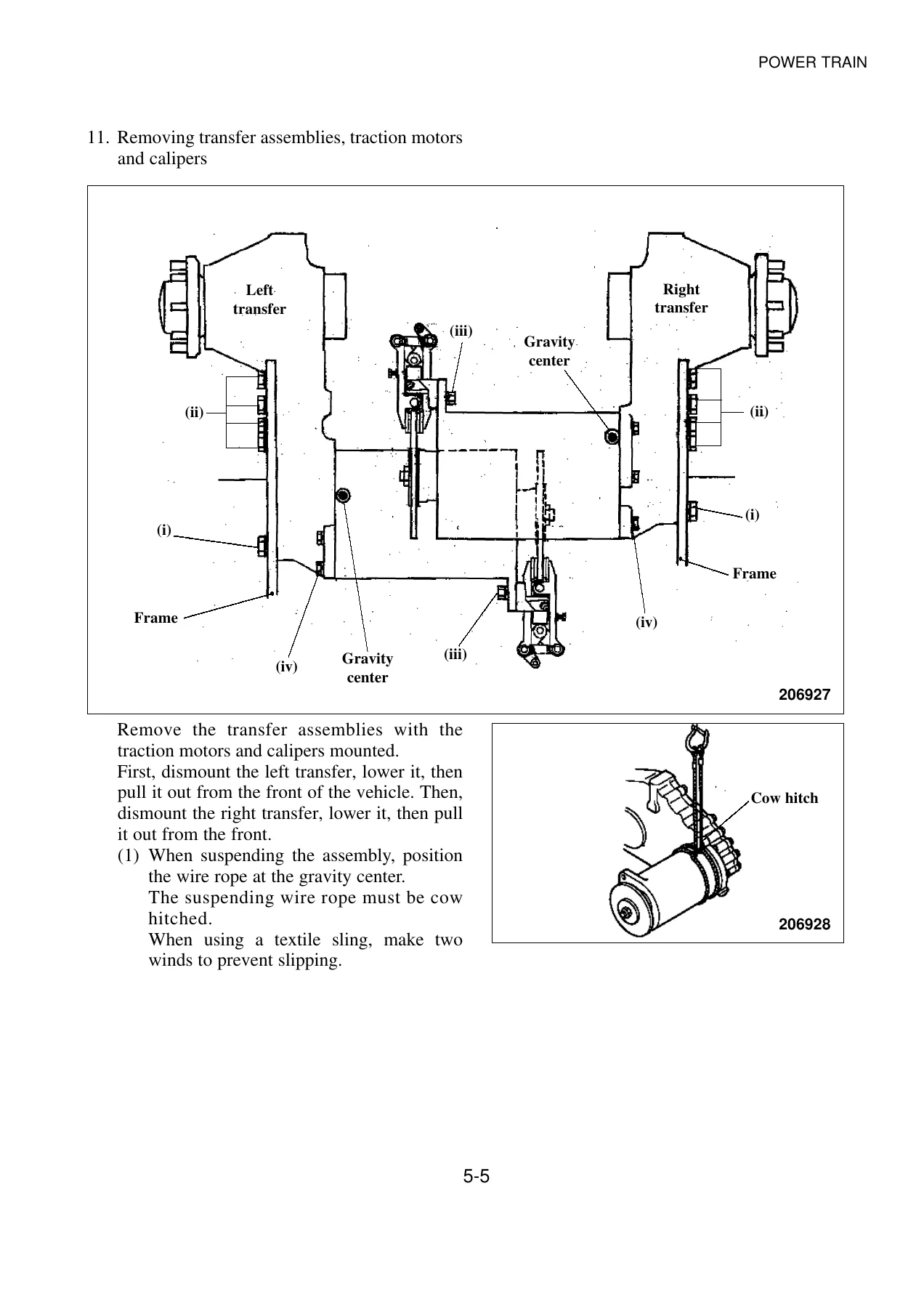

The chassis half of the book is just as thorough. Power train removal and installation is documented step by step, with the lifting points and sling arrangements illustrated so you can pull a complete transfer-and-motor assembly safely. The transfer unit chapter includes the reducing gear ratio (17.478), the backlash tolerances for each gear pair, the hub bearing preload range, the lock-nut tightening torque and the silicone/backlash checks needed after reassembly. The rear axle chapter covers the steering axle, hub bearings, rack and pinion, pistons and oil seals with the same service-data approach. The brake section details the hydraulic (mechanical) motor disc brake, caliper, master cylinder and parking brake lever, and gives you the pad clearance window, brake disc wear limits, push rod length and pedal height values that the truck needs to stop safely and evenly.

Hydraulics and masts round the manual out. The gear pump section is a full strip-down guide — bushings, drive gears, body seals, oil seal, backing rings — and the control valve section covers the lift, tilt and attachment valve bodies, the main relief valve, the tilt lock valve, and the microswitch adjustment values that govern the two-stage lift speed. The mast and fork chapter is where the truck’s lifting geometry lives: main roller and side roller sizes (S, M, L, LL), shim adjustment for longitudinal and lateral clearance, mast strip clearance, chain tension settings, fork blade thickness tolerances, tilt angle adjustment and lift cylinder stroke matching. For any shop that services these trucks on a regular basis, that section alone saves hours of trial-and-error on a mast rebuild.

Jobs This Manual Supports

• Decoding and repairing central vehicle monitor (CVMS) error codes E0 through E6, H1 through H4, and numeric codes 10 to 69
• Testing logic card voltages pin-by-pin, replacing the logic card, drive board, H bridge board and head capacitors
• Diagnosing and replacing armature, field and pump current sensors (CS1, CS2, CS3)
• Testing and replacing IGBTs (T1R, T1L, T1P), diodes (D1R, D1L, D1P, D2) and contactors
• Removing and installing the power train, transfer assemblies, traction motors and brake calipers
• Rebuilding drive, pump and EPS motors — brush wear inspection, brush spring tension, commutator wear, undercut depth, bearing replacement
• Servicing the rear axle — hub bearings, steering axle, pinion and rack, oil seals, minimum turning radius check
• Overhauling the brake master cylinder, caliper and parking brake, and bleeding the brake fluid line
• Rebuilding the steering control valve (gerotor set, control spool, centering springs, seal gland bushing)
• Servicing the gear pump, control valve, flow regulator valve, lift cylinders, tilt cylinders and down safety valve
• Adjusting mast roller clearance, chain tension, mast strip clearance, tilt angle and lift cylinder stroke on simplex, duplex and triplex masts
• Checking hydraulic pressures — main relief, power steering relief, optional overload relief

Why This Mitsubishi Forklift Manual Matters

Electric forklift faults are rarely obvious. A weak lift or a shudder under acceleration can come from a worn brush, a drifting current sensor, a leaking piston seal, a stuck flow regulator valve, a mis-set microswitch or an overheated controller — and the only way to know which one is to test the truck the way the manufacturer intended. This manual gives you the resistance values, voltage windows, torque figures, clearances and service limits that turn a symptom into a diagnosis. It also tells you the order to do things in so you do not damage a component that was still good. On a truck with a 48 V or 36 V battery pack and an IGBT chopper controller, that difference between guessing and knowing is real money — both in parts and in downtime.

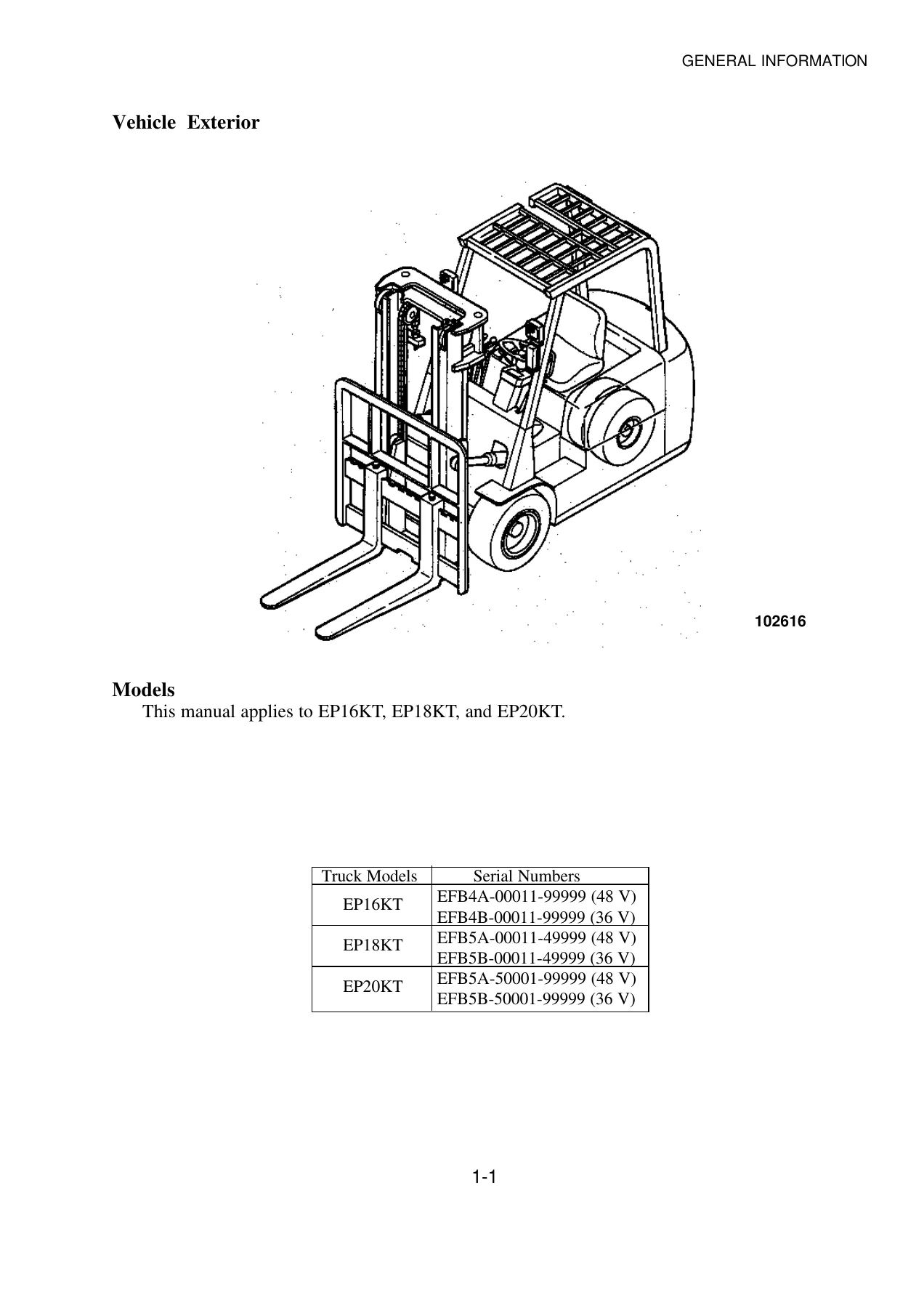

IMAGES PREVIEW

Instant PDF Delivery

The Mitsubishi EP16KT EP18KT EP20KT electric forklift service manual (99719-67110) is delivered as an instant-download PDF, so there is no shipping and no wait. Once your order goes through you can open it on a laptop, tablet or phone, print the pages you need for the shop floor, or keep the whole 392-page reference on a service tablet. Whether you are troubleshooting an error code on an EP16KT, rebuilding a transfer on an EP18KT, or shimming the mast rollers on an EP20KT, the correct procedure and the correct numbers are in the same file — searchable by chapter, ready when you need it.
