MTU 12V2000M93 & 16V2000M93 Diesel Engine Operating Instructions Manual M015655-05E PDF Download

Description

File Details

• Manual Type: Operating Instructions
• Brand: MTU (MTU Friedrichshafen GmbH)
• Models Covered: 12V2000M93, 16V2000M93
• Application Group: 1DS, continuous operation, variable, low load factors
• Language: English
• Page Count: 163
• File Format: PDF
• Document Number: M015655-05E
• Edition/Date: © 2015

Chapters Covered

• 1 Safety
• 2 General Information
• 3 Technical Data
• 4 Operation
• 5 Maintenance
• 6 Troubleshooting
• 7 Task Description
• 8 Appendix A
• 9 Appendix B

Safety

Opens with the provisions that govern every job on the 12V2000M93 and 16V2000M93 — nameplate identification, correct use, emission-label obligations, and the personnel, clothing and protective-equipment requirements that apply before any work begins. Separate sections cover transport, startup, operation, maintenance and repair, plus fire prevention, fluids and lubricants handling, and the standardised safety-notice system (DANGER, WARNING, CAUTION, NOTICE) used throughout the manual.

General Information

Contains the tightening specifications tables for setcrews, studs, stainless-steel fasteners, self-locking hex nuts, stress bolts, plug screws, banjo screws, spigot unions and hose fittings — each with hand-tightening and machine-tightening torque values. Also defines engine side and cylinder designations (A-side, B-side, driving end, free end), the product description of the engine, the sensor and actuator layouts, and the electronic management system architecture.

Technical Data

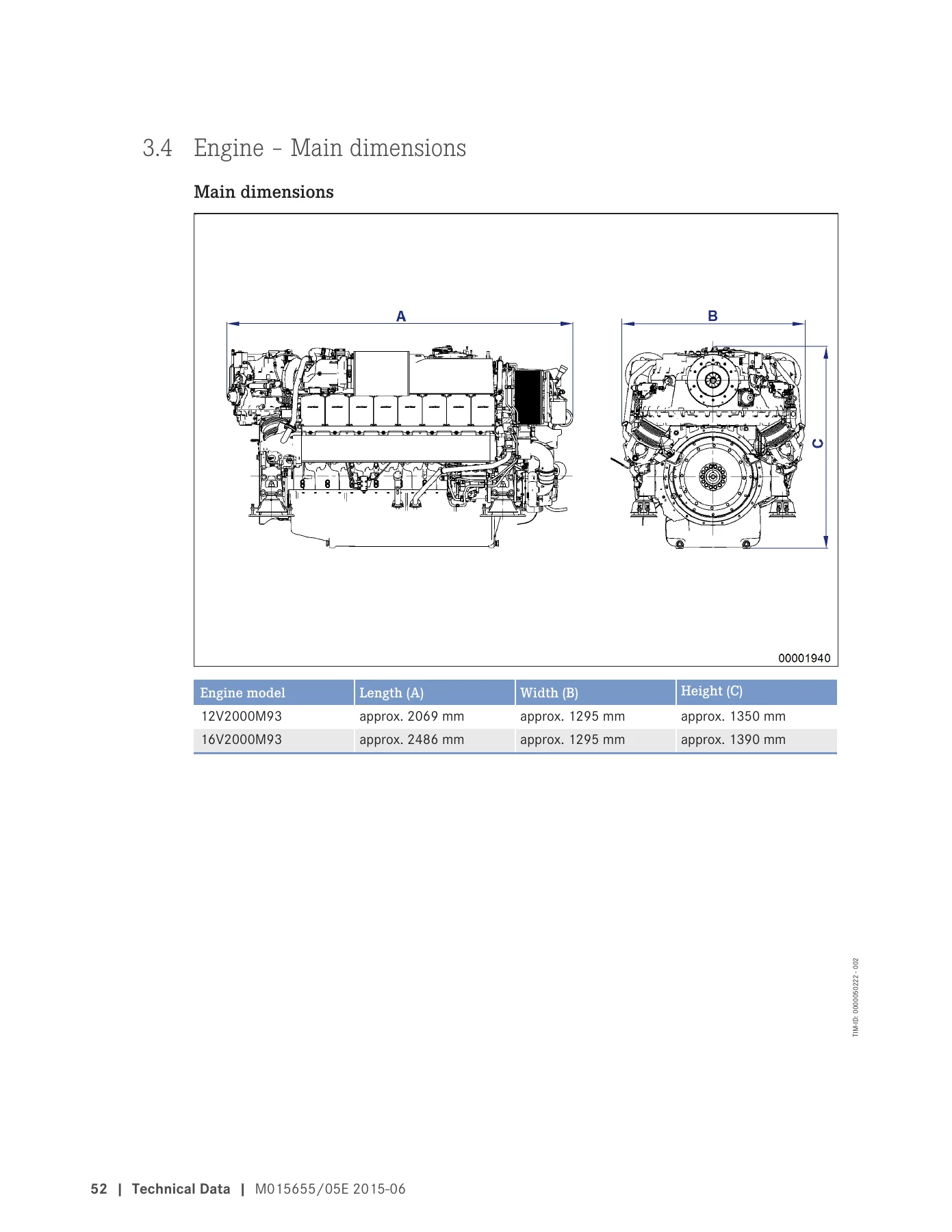

Two dedicated data sets: one for the 12V2000M93 and one for the 16V2000M93. Each lists reference conditions, power ratings, general conditions for maximum power, model-related data (bore, stroke, displacement, V-angle), lube oil system pressures and temperatures, fuel system pressures and supply flow, firing speeds, starter voltage, permissible inclinations, coolant and oil capacities, dry weights, noise levels, and the firing order for each engine. Main dimensions are given in a separate drawing.

Operation

Covers putting the engine into operation after extended out-of-service periods (both over 3 months and scheduled intervals), checks prior to start-up, fuel treatment system startup and shutdown, operational checks, starting and stopping the engine, emergency engine stop, and plant cleaning. The fuel treatment system overview, initial operation procedures for HAT, and simulation of power failure for both HAT and SAT are described.

Maintenance

Provides the maintenance task reference table [QL1] with task numbers linked to the Maintenance Schedule. Tasks include engine oil level checks, leak inspections, intercooler drain checks, service indicator checks, relief bore checks, fuel prefilter draining, differential pressure gauge checks, fuel filter replacement, valve clearance inspection, drive belt condition checks, air filter replacement, injector replacement, oil filter replacement, centrifugal oil filter cleaning, coolant filter replacement, crankcase breather cleaning, and more.

Troubleshooting

Two sections: fuel treatment system troubleshooting (water alarm, pump fault, warning filter, replace filter element indicators) and general engine troubleshooting. Engine symptom tables cover failure to turn on starter, failure to fire, uneven firing, failure to reach nominal speed, unsteady speed, high charge-air temperature, low charge-air pressure, coolant leaks at intercooler, black/blue/white exhaust gas, and the corrective actions for each.

Task Description

The largest chapter, with detailed step-by-step procedures grouped by system: SOLAS shielding installation (including MTN 5233 shields and installation locations), engine barring and cranking, cylinder liner endoscopic examination with evaluation criteria, crankcase breather cleaning and oil separator replacement, valve clearance check and adjustment, cylinder head cover removal and installation, injector replacement and removal/installation, fuel system venting, fuel filter and prefilter procedures (differential pressure, draining, flushing, element replacement), intercooler condensate drain checks, air filter replacement, service indicator checks, starter condition checks, engine oil level and change, engine oil filter and centrifugal oil filter service, coolant circuit drain/vent/fill/change/sample, HT coolant pump relief bore checks, raw water pump relief bore checks, drive belt condition, battery-charging generator drive belt replacement, fuel supply system checks (water drain valve, differential pressure gauge, water level probe, pump capacity, coalescer filter element), engine cabling checks, and electronic governor/ECU/EMU/EIM cleaning, plug connection checks, self-tests, and removal/installation.

Appendices

Appendix A lists abbreviations used throughout the manual and MTU contact persons/service partners. Appendix B lists special tools with part numbers and the sections they are used in, followed by an alphabetical index.

Why This MTU Operating Instructions Manual Matters

The 12V2000M93 and 16V2000M93 are liquid-cooled four-stroke diesel engines with common rail injection (up to 1800 bar), sequential turbocharging and charge-air cooling, governed by an electronic management system. Correct operation and maintenance depend on following MTU’s exact procedures and specifications — from the tightening torques for high-pressure fuel lines to the permissible relief-bore discharge rates on the coolant and raw water pumps. This manual gives you those values and procedures directly, in the wording MTU published for these engines.

Whether you are commissioning an engine after an extended out-of-service period, adjusting valve clearance, replacing an injector, flushing a fuel prefilter, or diagnosing black exhaust gas, the relevant task is covered with the tool required, the torque to apply, and the measurement to check. Troubleshooting tables map symptom to cause to corrective action so you are not guessing.

The SOLAS shielding section is particularly relevant for marine installations — it shows the exact installation locations for the MTN 5233 shields on the fuel delivery pump, HP fuel pump, fuel filter, fuel priming pump, air flap, turbocharger flaps, brazed-on unions and valve plates, so you can bring a vessel into compliance without guesswork.

IMAGES PREVIEW

Instant PDF Delivery

This MTU 12V2000M93 and 16V2000M93 Operating Instructions manual is delivered as an instant PDF download — no shipping, no waiting. Open it on any device: laptop, tablet or phone. Print the pages you need for the workshop. Keep the file on hand for reference during operation, maintenance and troubleshooting. Buy once, use it for the life of the engine.
