New Holland Kobelco E385 Excavator Workshop Manual – Full PDF Service Documentation

This is the complete workshop manual for the New Holland Kobelco E385 excavator, published under document number 60413467. It covers the E385EL, E385LC, E385LCM and E385BEH configurations, and is built around five major service areas: Safety Precautions, Operational Principle, Operational Performance Test, Troubleshooting, and Repair Instructions. Every procedure is written for the experienced technician, with tightening torques, wear limits, test values and step-by-step disassembly and assembly sequences throughout. The manual runs to 984 pages and is the full service reference for these machines.

File Details

• Manual type: Workshop Manual (Service, Repair & Troubleshooting)
• Brand / Model: New Holland Kobelco E385
• Document number: 60413467 / 604.13.467.00
• Edition: III – 2005
• Language: English
• Page count: 984
• File format: PDF

Chapters Covered

• Safety Precautions
• Operational Principle
• Operational Performance Test
• Troubleshooting
• Repair Instructions

Safety Precautions

The opening section sets out the safety framework for working on the E385: general precautions, starting and operating rules, stopping and parking procedures, maintenance safety, transfer and transportation guidance, engine, electrical and hydraulic system hazards, and the safety plates fitted to the machine. Each safety plate is illustrated and its meaning explained, so the technician can identify the warning, forbidden-practice and mandatory-action decals on the machine and understand what each one requires.

Operational Principle

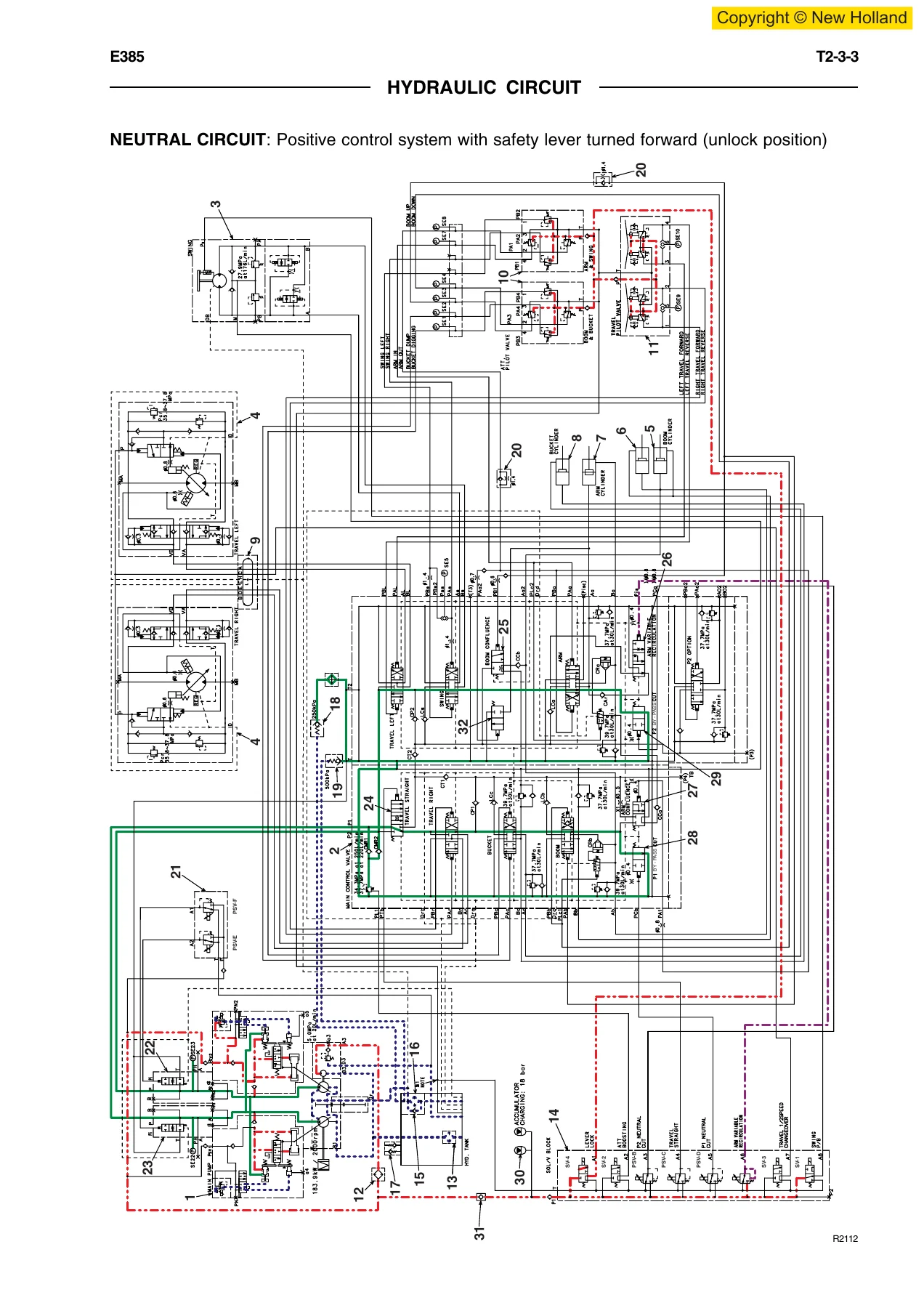

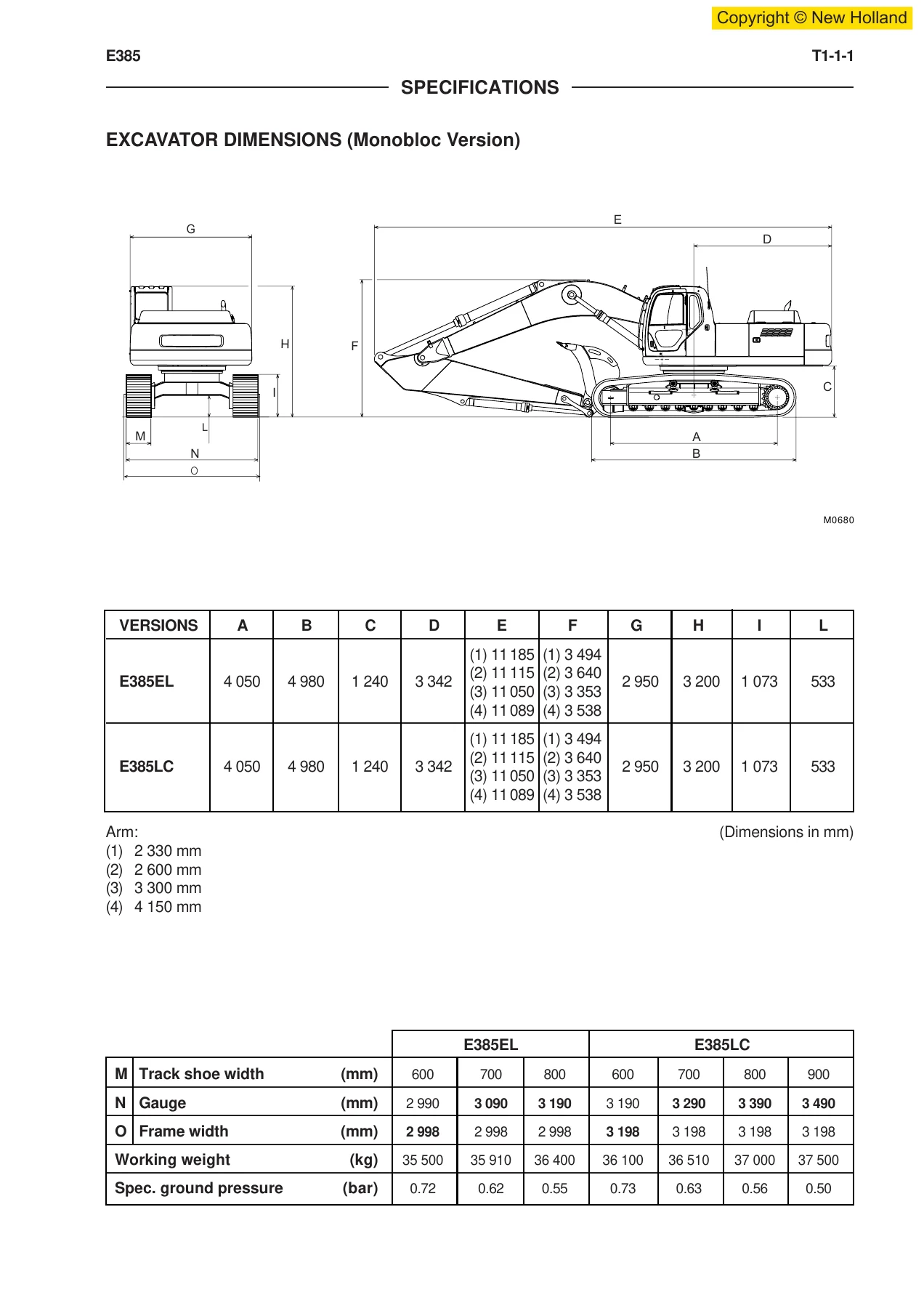

This section explains how the E385 systems work. It begins with specifications and component layout, then moves into the mechatro control system, the mechatro controller, the hydraulic system and the electrical system. The hydraulic circuit is broken down operation by operation: neutral circuit, travel circuit, bucket circuit, boom circuit, swing circuit, arm circuit, combined operation, pressure drain circuit, crusher and breaker circuit, and the positioning circuit for the triple articulation version. Each circuit is shown in schematic form and the role of the proportional valves, bypass cut valves, conflux valves and recirculation valves is explained. Component operation is covered for the hydraulic pump assembly, regulator, pilot valve, control valve, swing device, travel device, swivel joint, cylinders and air conditioner. The mechatro controller section covers self-diagnosis, service diagnosis, trouble history and cumulative time correction.

Operational Performance Test

This group gives the technician the procedures to measure engine speed, hydraulic pressure, travel performance, swing performance, attachment operating performance and swing bearing performance. It includes the standard performance inspection table, the measuring conditions, the standard and reference values, and the adjustment points for relief valves. The section also covers mechatro controller adjustment, electronic governor control and engine stop control.

Troubleshooting

Troubleshooting is divided into four groups: mechatro control, hydraulic system, electrical system and engine. The mechatro control group maps operating conditions against the sensors, proportional valves and solenoid valves involved. The hydraulic system group works through symptom-based flow charts for no-operation, slow operation, poor power, travel deviation, swing problems and fine-control problems. The electrical system group covers sensor and wiring checks, pressure measurement by service diagnosis, fuse and fusible link inspection, battery voltage checks and replacement procedures. The engine group covers hard starting, unstable idling, insufficient power, excessive fuel and oil consumption, cooling trouble, exhaust smoke and abnormal noise, plus engine diagnosis through the Electronic Control Unit self-diagnosis function with diagnosis codes and backup modes.

Repair Instructions

The repair section is the largest part of the manual. It opens with general information on disassembly and assembly precautions and the tightening torque chart, including piping joint torque specifications, split flange recommendations and nut-and-bolt locking methods. It then covers the upperstructure: cab removal and installation, air conditioner, counterweight, main frame, pump device, control valve, swing device, pilot valve and solenoid valve unit. The undercarriage section covers the swing bearing, travel device, swivel joint, track adjuster, front idler, upper and lower rollers, and tracks. The front attachment section covers removal and installation of the front attachment and cylinders, with maintenance standards, bucket teeth and standard dimensions for arm and bucket connection. The engine and accessory section covers general repair instructions, maintenance procedures, engine overhaul, lubrication, cooling, fuel, induction, starting and charging, troubleshooting, and the electronic control system with its RED IV governor.

Engine and Hydraulic Specifications

The manual documents the ISUZU 6HK1TC engine: four-cycle, water-cooled, in-line, overhead camshaft, direct injection, six cylinders, 115 mm bore, 125 mm stroke, 7,790 cm³ displacement, 17.3:1 compression ratio, 184 kW net power at flywheel, 921.8 Nm torque at 1600 min⁻¹ and 1000 min⁻¹ idle. Hydraulic data includes the K5V140DTP main pump with 140 × 2 cm³ displacement, 35 MPa rated pressure and 276 × 2 L/min maximum flow, the KMX15YC/B33071 control valve with 34.3 MPa main relief setting and 37.8 MPa boost setting, the M5X180CHB swing motor with 180.1 cm³ displacement and 28 MPa relief setting, and the M3V290/170C travel motor with 290.7/170.1 cm³ displacement and 34.3 MPa working pressure. Cylinder bore and rod diameters, strokes and cushion arrangements are listed for boom, arm, bucket and positioning cylinders.

What This Manual Enables You to Do

With this workshop manual, you can carry out the full range of service work on the E385: engine overhaul, hydraulic pump and control valve repair, swing and travel device disassembly, cylinder resealing, electrical diagnostics, mechatro controller adjustment and troubleshooting of every major system. The manual gives the tightening torques, wear limits, test pressures and adjustment values needed to do the job correctly, rather than relying on guesswork. The troubleshooting flow charts are structured around the actual symptoms these machines develop, so a technician can move from a complaint to the failed component without unnecessary disassembly. The operational principle section explains how the circuits work, which makes diagnosis faster and repair more accurate. The maintenance standards give the wear limits that determine whether a part can be reused or must be replaced, so the machine goes back into service within specification. The safety section covers the precautions that apply to high-pressure hydraulic systems, rotating components, hot fluids and electrical circuits, which is important when working on a machine of this size.

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as a PDF file available for immediate download after payment. There is no shipping and no waiting for a physical book. The file can be opened on a computer, tablet or smartphone, and pages can be printed when a paper copy is needed in the workshop. The search function in a PDF reader makes it practical to jump straight to a specification, a tightening torque or a troubleshooting chart during a repair. Because the document is 984 pages and covers the whole machine, it is the complete reference rather than an extract, which means the technician has the same information available for every system on the E385.
