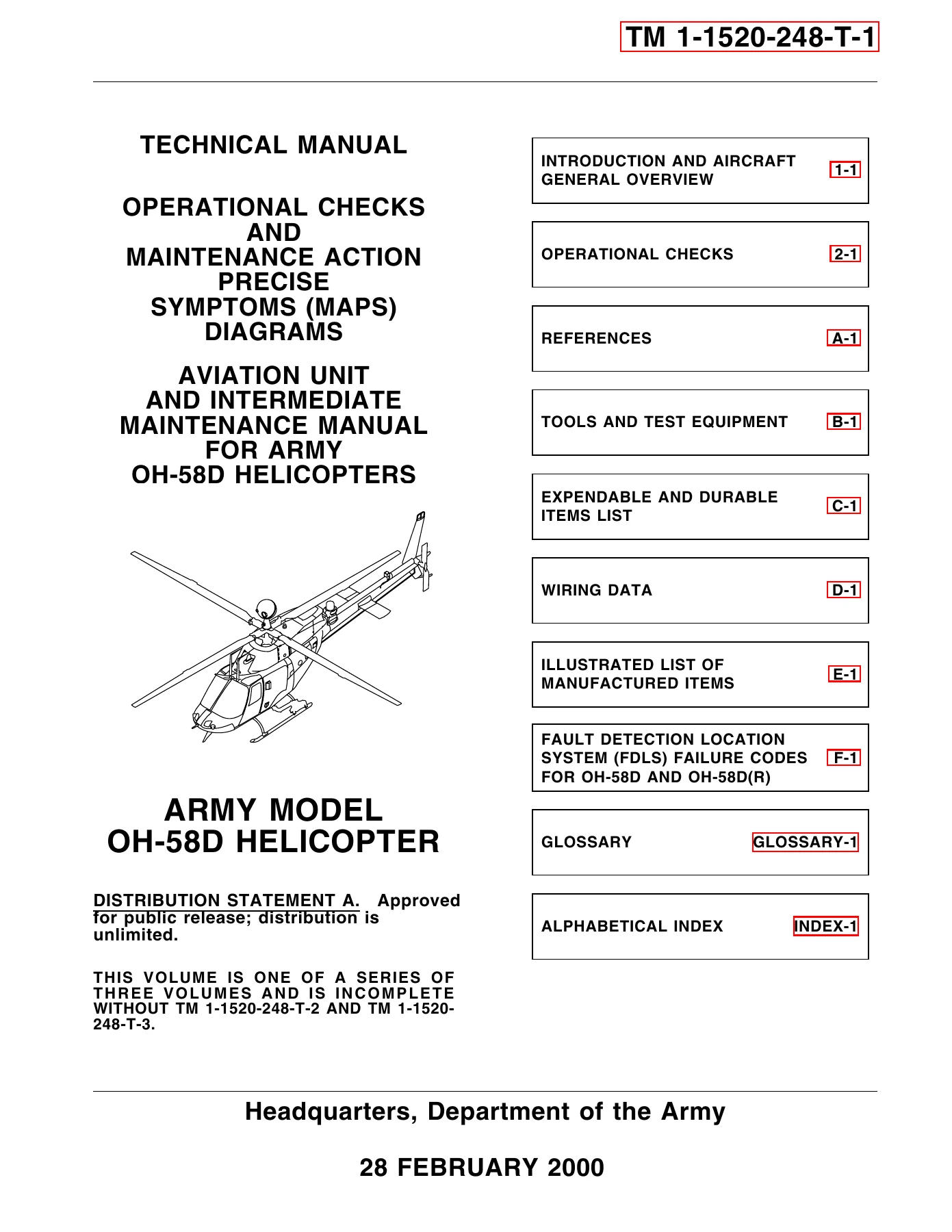

OH-58D OH-58D(R) Helicopter Operational Checks Maintenance Manual TM 1-1520-248-T-1

Description

OH-58D OH-58D(R) Helicopter Operational Checks Maintenance Manual TM 1-1520-248-T-1

This technical manual provides detailed operational-check and maintenance-support information for the OH-58D Improved Observation/Armed Helicopter and OH-58D(R) Digital Observation/Armed Helicopter. TM 1-1520-248-T-1 is Volume 1 of the three-volume troubleshooting manual set and concentrates on aircraft description, system principles of operation, equipment data, and step-by-step operational checks for powerplant, hydraulic, instrument, fuel, armament, and electrical systems.

The procedures are arranged around individual maintenance tasks with initial setup requirements, applicable configurations, tools, materials, personnel, references, equipment conditions, inspection points, procedural checks, and follow-on maintenance where required. Numerous drawings identify aircraft components, control panels, displays, electrical equipment, hydraulic components, armament interfaces, fuel-system parts, and test points. This makes the OH-58D OH-58D(R) Helicopter Operational Checks Maintenance Manual TM 1-1520-248-T-1 particularly useful when confirming system operation after maintenance or tracing a malfunction to the point where further troubleshooting or corrective maintenance is required.

File Details

• Manual type: Aviation Unit and Intermediate Maintenance Manual – Operational Checks and Maintenance Action Precise Symptoms support
• Models: OH-58D and OH-58D(R)
• Document number: TM 1-1520-248-T-1
• Publication date: 28 February 2000
• Change status: Change 3 material incorporated
• Language: English
• Pages: 879
• File format: PDF

Aircraft and System Coverage

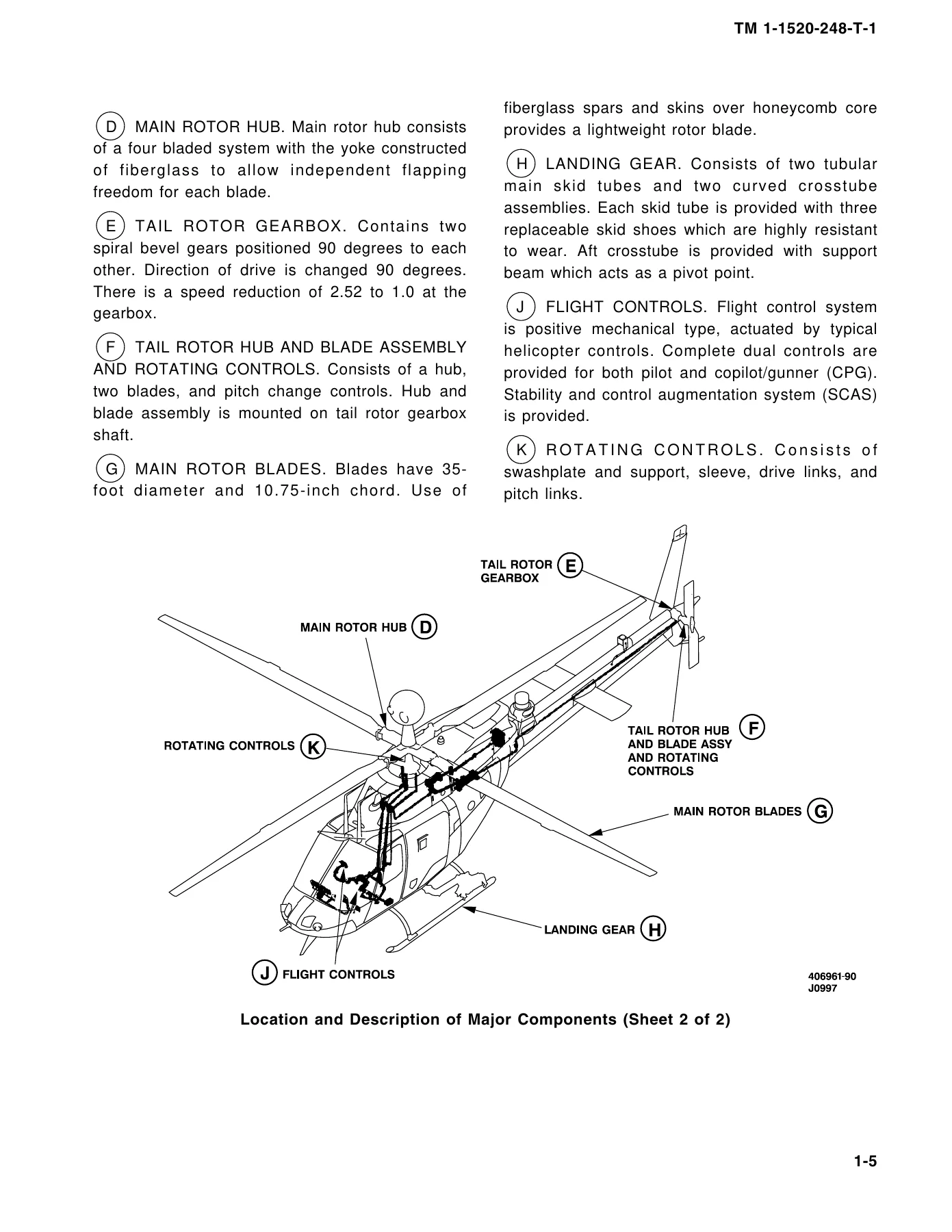

The introductory material establishes the differences between the two helicopter configurations and provides the data needed to understand later operational checks. The OH-58D is shown with the 250-C30R engine, while the OH-58D(R) is covered with the 250-C30R/3 engine and FADEC-related differences. The manual explains major components including the engine-to-transmission driveshaft, main transmission, main and tail rotor systems, landing gear, flight controls, universal weapons pylon, engine oil system, and rapid-deployment features.

System descriptions extend well beyond component identification. The powerplant section explains the compressor, combustion, turbine, accessory gearbox, engine fuel and lubrication systems, electrical controls, anti-icing system, particle separator, Engine Barrier Filter system, oil cooling, and related monitoring. Drive-train coverage follows power from the engine through the freewheeling assembly, driveshaft, transmission, mast, tail rotor driveshaft, and tail rotor gearbox. Hydraulic-system material identifies the reservoir, pump, filters, relief valve, solenoid valve, pressure switch, ground-test connections, pressure manifold, and cyclic, collective, and directional-control actuators.

IMAGES PREVIEW

The manual also documents the integrated cockpit and its warning, caution, and advisory indications. Illustrations show the OH-58D and OH-58D(R) instrument panels, multifunction displays, multiparameter display, dual tachometer, TGT/TRQ indicator, SCAS controls, circuit-breaker panels, and related controls. Fuel-system coverage describes the self-sealing fuel cell, boost pump, emergency shutoff valve, quantity indication, low-level warning, filter-bypass indication, pressure switch, closed-circuit refueling receiver, and sump/defuel arrangements.

Operational Check Procedures

Chapter 2 is built around on-helicopter operational checks. Each check identifies the applicable configuration and the setup needed before testing begins. Depending on the job, the procedure may call for electrical or hydraulic test equipment, ground power, mechanic or electrical repairer tool kits, maintenance stands, special work aids, particular materials, specified personnel, and references to related technical manuals.

The powerplant checks include the oil cooler bypass valve, fuel differential switch, Engine Barrier Filter differential-pressure sensing system, EBF bypass-door actuator, and bypass-door position switch. Hydraulic testing goes substantially further, including external test-stand connections, pressure application, control cycling, leakage inspection, LOW HYD PRESS indication verification, solenoid-valve function, relief-valve operation, servoactuator assistance, and actuator irreversibility checks.

Instrument procedures cover engine, rotor and transmission indications as well as standby instruments. Tasks include standby altimeter, standby attitude indicator, standby airspeed indicator, pitot-static/air-data system, standby compass lighting, mechanical and digital clocks, and pitot-tube heating. The engine/rotor/transmission instrument check exercises display-test functions, digital readouts, multifunction-display backup indications, lighting, built-in-test operation, and failure-code displays. Pitot-static testing includes leakage checks, altitude comparison, airspeed comparison, and use of the specified pitot-static tester and work aid.

Fuel-system procedures include operational checking of the check valve and fuel probe/indicating system. The procedures specify setup conditions, connections, observations, limits, and follow-on actions rather than merely describing the components.

Armament System Operational Checks

A major portion of the OH-58D OH-58D(R) Helicopter Operational Checks Maintenance Manual TM 1-1520-248-T-1 is devoted to armament-system checks for both aircraft configurations. The task list covers setup procedures and operational checks for:

• Air-To-Air Stinger (ATAS) missile system – OH-58D
• Air-To-Air Stinger (ATAS) missile system – OH-58D(R)
• .50 caliber machine gun system – OH-58D
• .50 caliber machine gun system – OH-58D(R)
• HELLFIRE Missile System – OH-58D
• HELLFIRE Missile System – OH-58D(R)
• 2.75-inch rocket system – OH-58D
• 2.75-inch rocket system – OH-58D(R)
• Jettison circuit

These procedures work with the helicopter’s integrated armament controls, multifunction displays, weapon-selection functions, Universal Weapons Pylon installation, ejector-rack interfaces, and associated electrical circuits. The introductory system description also illustrates how the ATAS, HELLFIRE, rocket, and .50 caliber gun installations interface with cockpit controls and displays.

Electrical, CDS and Built-In Test Coverage

The electrical-system chapter contains a large series of operational checks beginning with AC power-system tests for both engine-running and inverter operation. It also includes battery charger-monitor and battery checks, Control Display System interface tests, and extensive CDS Fault Detection Locator System/Built-In Test procedures. OH-58D(R) procedures include FADEC-monitor functions, while fault results and associated codes are tied to the manual’s FDLS reference material.

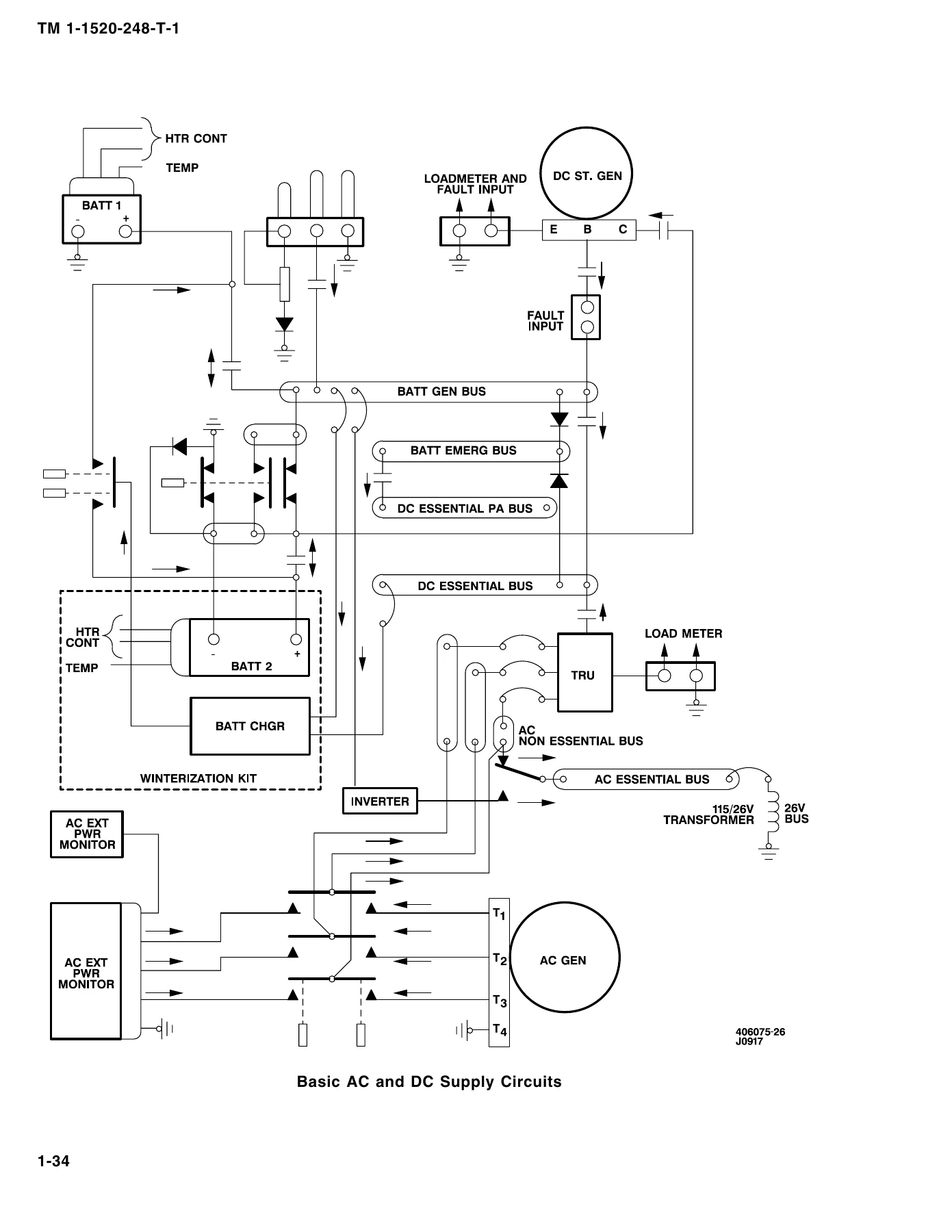

The system description explains the helicopter’s AC and DC distribution, generator, transformer/rectifier, starter-generator, inverter, battery emergency power, essential buses, external power provisions, and automatic backup functions. Drawings provide circuit relationships and identify cockpit circuit-breaker locations for both OH-58D and OH-58D(R) configurations.

Chapters Covered

• Chapter 1 – Introduction
  • General Information
  • Equipment Description and Data
  • Principles of Operation
• Chapter 2 – Operational Checks
  • Powerplant
  • Hydraulic System
  • Instruments
  • Fuel System
  • Armament Systems
  • Electrical System
• Appendix A – References
• Appendix B – Tools and Test Equipment
• Appendix C – Expendable and Durable Items List
• Appendix D – Wiring Data
• Appendix E – Illustrated List of Manufactured Items (AVUM, AVIM)
• Appendix F – Fault Detection Location System (FDLS) Failure Codes for OH-58D/OH-58D(R)
• Glossary
• Alphabetical Index

Appendix material adds practical maintenance support to the operational checks. The tools and test-equipment section identifies equipment referenced by individual tasks, while the expendable-material list supports task setup. Wiring data covers electrical equipment identification together with wire repair and replacement information, including wire sizes, part numbers, construction, marking, soldering, support, stripping, routing, and grouping. The manufactured-items appendix provides fabrication information for authorized work aids, including jumper-wire aids, a pitot-static tube extension, and fuel/oil-resistant flexible tubing. FDLS failure-code information provides a reference for faults reported during built-in testing.

Important Volume Coverage

TM 1-1520-248-T-1 is Volume 1 of a three-volume OH-58D/OH-58D(R) troubleshooting manual set. This PDF contains the introductory material, operational checks and Volume 1 appendices. The manual itself identifies TM 1-1520-248-T-2 and TM 1-1520-248-T-3 as the companion volumes containing the Maintenance Action Precise Symptoms (MAPS) diagrams. Those companion volumes are required for the complete three-volume troubleshooting set and are not part of this Volume 1 PDF.

Technical Reference for OH-58D and OH-58D(R) Maintenance

The OH-58D OH-58D(R) Helicopter Operational Checks Maintenance Manual TM 1-1520-248-T-1 supports technicians performing system verification, post-maintenance checks, instrument and display checks, hydraulic testing, fuel-system checks, electrical-system verification, armament-system functional checks, and built-in-test evaluation. Its value is in the detailed sequence of setup conditions, test actions, expected indications, pressure or electrical limits where specified, inspection points, and follow-on requirements needed to perform checks consistently and identify when further corrective action is required.

Instant PDF delivery means there is no physical book and no shipping delay. The manual can be opened on compatible computers, tablets, or phones and pages can be printed as needed for workshop reference. For work on OH-58D and OH-58D(R) operational checks, TM 1-1520-248-T-1 provides a substantial 879-page technical reference with system descriptions, test procedures, diagrams, wiring data, tools information, manufactured work aids, and failure-code references in one downloadable PDF.
