Z9EH Helicopter Standard Practice Manual (I) – Harbin AVIC 2010 PDF

Description

Z9EH Helicopter Standard Practice Manual (I) – Complete Overview

This is the original English-language Z9EH Helicopter Standard Practice Manual (I), issued July 15, 2010 by AVIC Harbin Aircraft Industry Group Co., Ltd. and structured according to ATA100 chapter-section-subject numbering. The Z9EH Standard Practice Manual is written for technicians working on the Z9 series helicopter and sets out the general practices, approved materials, and repair standards that apply across the airframe rather than a single system, making it a foundational reference to keep alongside type-specific maintenance data.

File Details

• Manual type: Standard Practice Manual (Volume I)
• Aircraft: Z9EH / Z9 series helicopter
• Publisher: AVIC Harbin Aircraft Industry Group Co., Ltd.
• Language: English
• Page count: 440 pages
• Original issue: July 15, 2010
• Numbering standard: ATA100 (Air Transport Association of America)
• Format: Digital PDF download

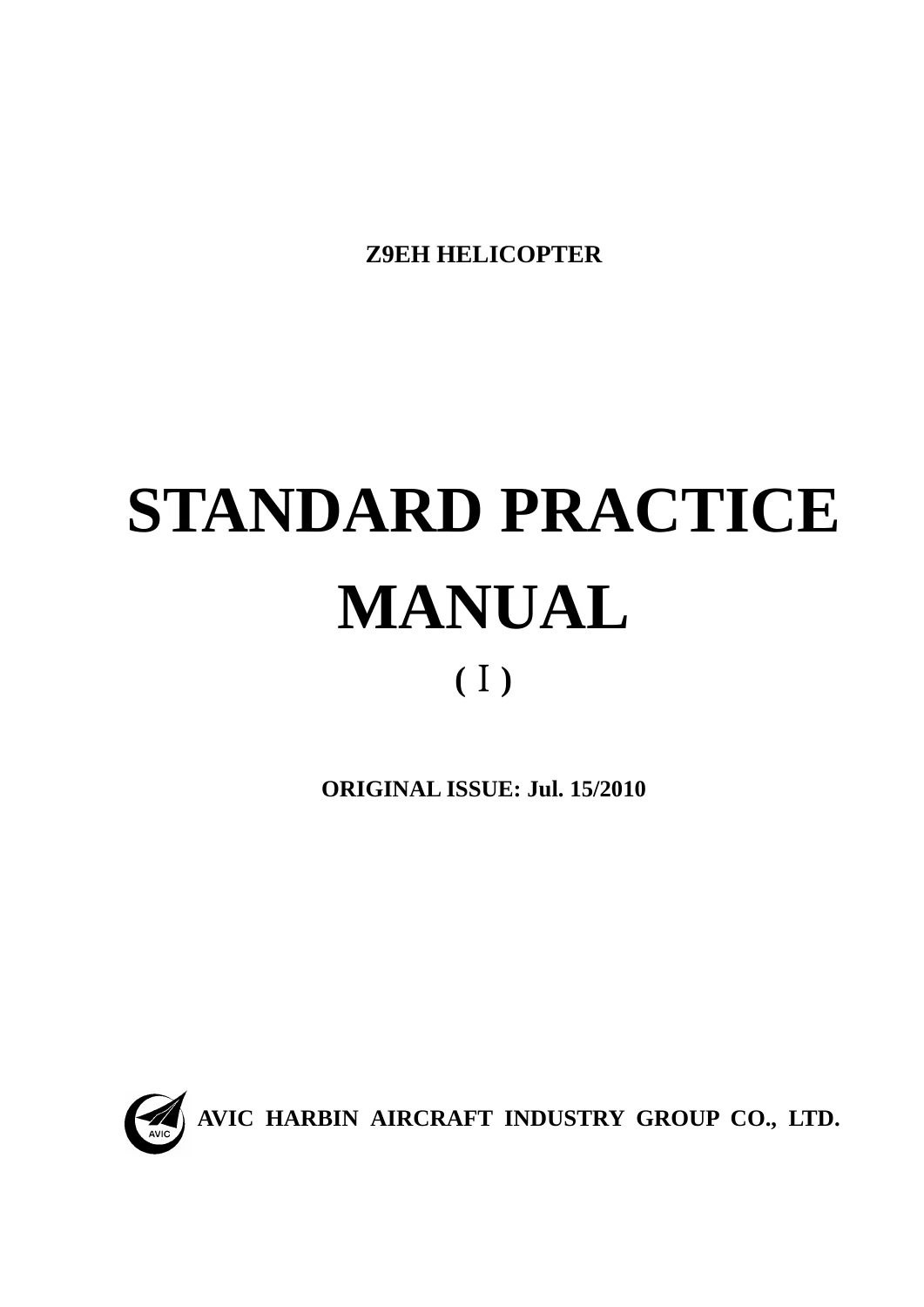

IMAGES PREVIEW

Chapters Covered in This Z9EH Standard Practice Manual

• Chapter 20-01 – Cleaning, Protection Treatment and Spraying Coating
  • Approved lubricating greases and lubricating oils by supplier and specification
  • Protection materials and special materials
  • Hydraulic oil and jet fuel technical data
  • Polysulfide and fluorocarbon sealing compounds, including application symbols
  • Classification, use, and analysis of water (deionized, tap, and other sources)
  • Selection criteria for aluminum alloy
• Chapter 20-02 – General Maintenance and Repair Procedure

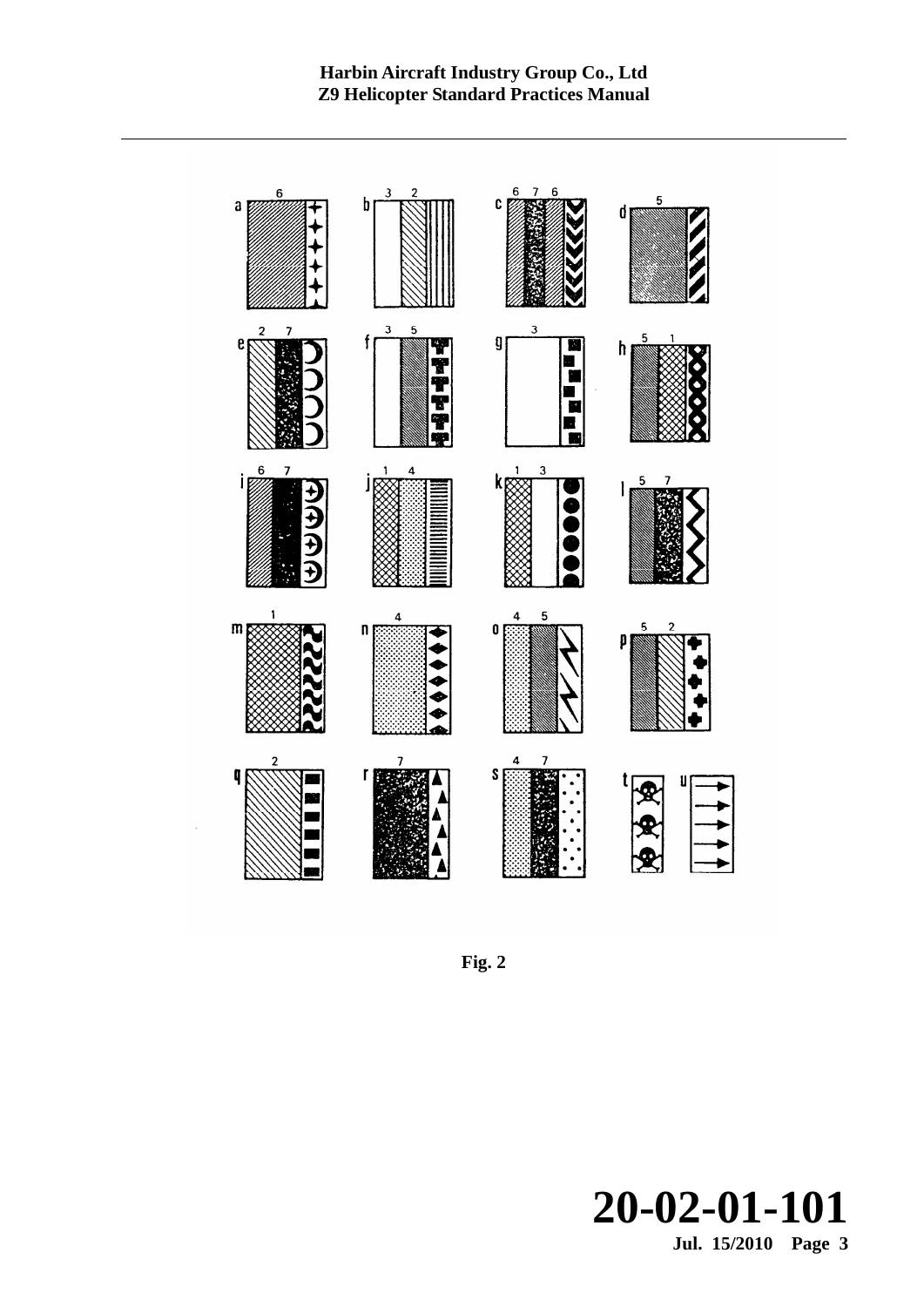

  • Marking systems for fluid pipelines, hydraulic lines, and the electrical network
  • Installation of pipe lines, rotary joints, pin-boards, and heat-shrinkable self-sealing sleeves
  • Installation of US, ARSAERO, and FLEXIRAC hydraulic joints and seal protection measures
  • Cable stripping, crimping, binding, marking, and shielding
  • Rivet forming, hole spacing/countersinking, and riveting acceptance criteria
  • Left-handed thread identification, welding, and bushing assembly
  • Self-locking nut/screw checks and safety methods: shaft pins, locking wire, locking plate, split pins, jam nuts, peening, slotted nuts, turnbuckles, and LOCTITE
  • Bonding paint and insulation varnish, conducting grease
  • Installation, removal, and tightening of bearings and self-aligning bearings, including transition liners and arc recess bearings
  • Replacement of DU wear-resistant liners, ROSAN liners/studs, and sandwich-plate inserts
  • Engine intake strainer, vortex tube, and conic outflow nozzle installation and repair
• Chapter 20-03 – Repair of Parts and Components
  • General repair principles and damage assessment for structural parts
  • Rivet removal and replacement: general rivets, AVDEL, JO screw rivets, SLC/SLF, HUC, and CHERRY-MAX rivets

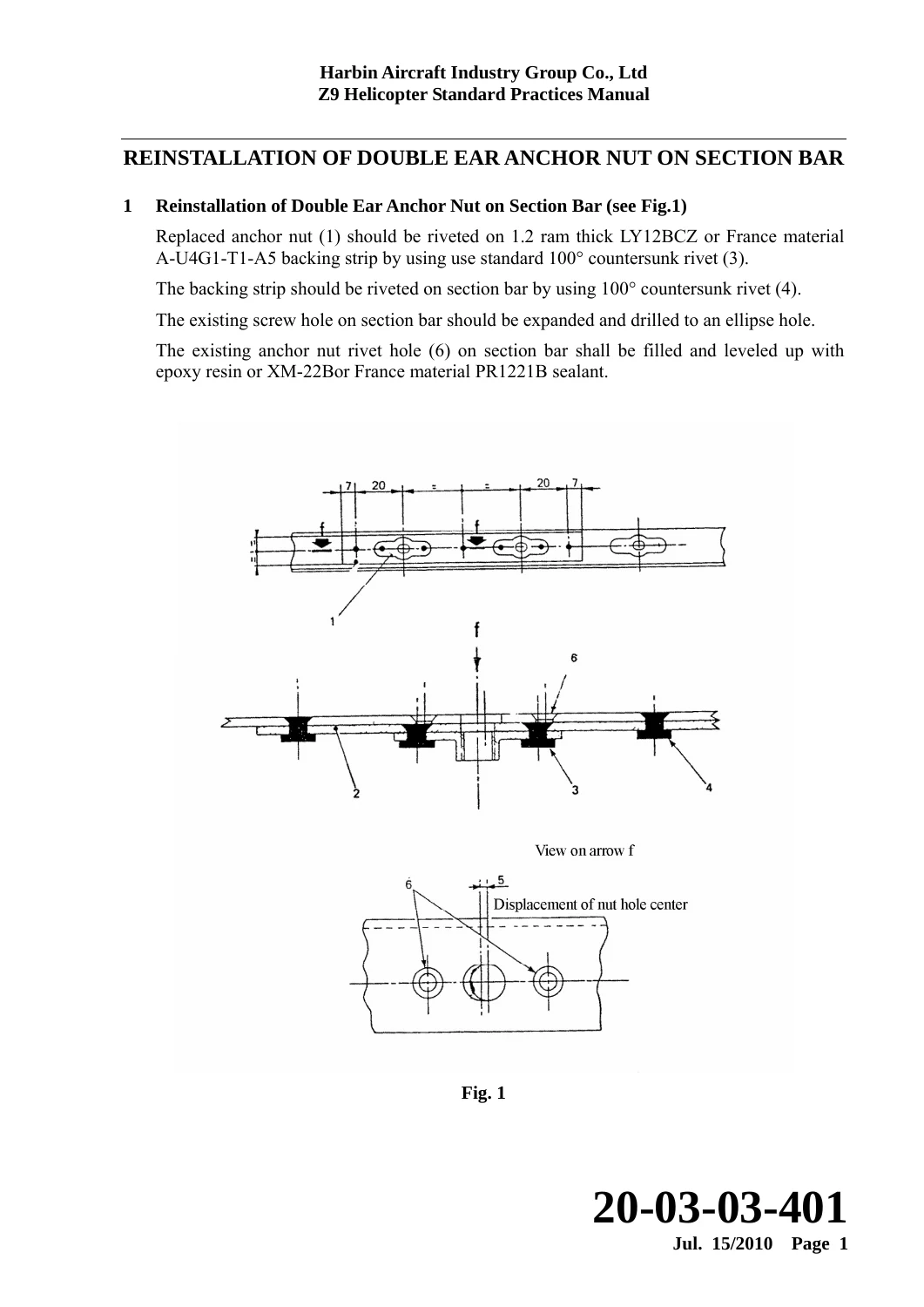

  • Anchor nut replacement and reinstallation, including double-ear and single-ear types
  • Oversized screw and bolt tables (R1-R4) for hole repair
  • Repair of cracks and holes on sheet-metal parts, flanges, skin, stringers, and fuselage internal/external structure
  • Repair of skin holes on stringers and skin cracks between stringers
  • Repair of metal and laminated honeycomb sandwich panels
  • Repair of transparent plastic/polycarbonate panels
  • Repair of non-slipping cover surfaces

Together these three chapters give a technician the reference data needed to identify approved materials, mark and install fluid and electrical lines correctly, apply proper fastening and locking practices, and carry out standard sheet-metal, bearing, and structural repairs on the Z9 helicopter using methods and tolerances set by the manufacturer. This particular PDF contains chapters 20-01 through 20-03 in full; later chapters referenced in the manual’s own summary listing (covering sealing, bonding, ground safety inspections, periodic monitoring, parking/preservation, and rotor blades) are part of a separate volume and are not included in this file.

Why Technicians Rely on This Z9EH Manual

Working from the correct Z9EH Standard Practice Manual matters because general practices like rivet selection, hole oversizing limits, bearing installation torque sequence, and honeycomb panel repair are easy to get wrong without manufacturer-specified tolerances and material callouts. This manual documents those standards directly from AVIC Harbin, including reference tables for oversized fasteners, approved lubricant and sealant suppliers by specification code, and step-by-step repair procedures illustrated with figures for anchor nut reinstallation, bearing removal, and structural crack repair.

Get Instant Access to the Z9EH Helicopter Standard Practice Manual

This Z9EH Helicopter Standard Practice Manual (I) equips a technician to correctly identify approved materials, apply fluid and wiring identification standards, execute proper fastener locking methods, and carry out sheet-metal and structural repairs to the standards Harbin specifies for the Z9 series helicopter. Using the correct standard practice data protects both airworthiness and the long-term integrity of repaired structure. The manual is delivered as an instant PDF download after checkout – no shipping, no waiting – so you can open it immediately on a laptop, tablet, or phone, or print any section you need in the hangar.
