Mi-171Sh Helicopter Airframe Maintenance Manual Book II Part 1 – 2011
Original price was: $49.95.$29.95Current price is: $29.95.
421-page Mi-171Sh helicopter airframe maintenance manual covering structure, doors, emergency exits, cargo ramp and hydraulic system, fuselage, horizontal stabilizer, windows and airframe standard practices.
Description
Mi-171Sh Helicopter Airframe Maintenance Manual Book II Part 1 – 2011

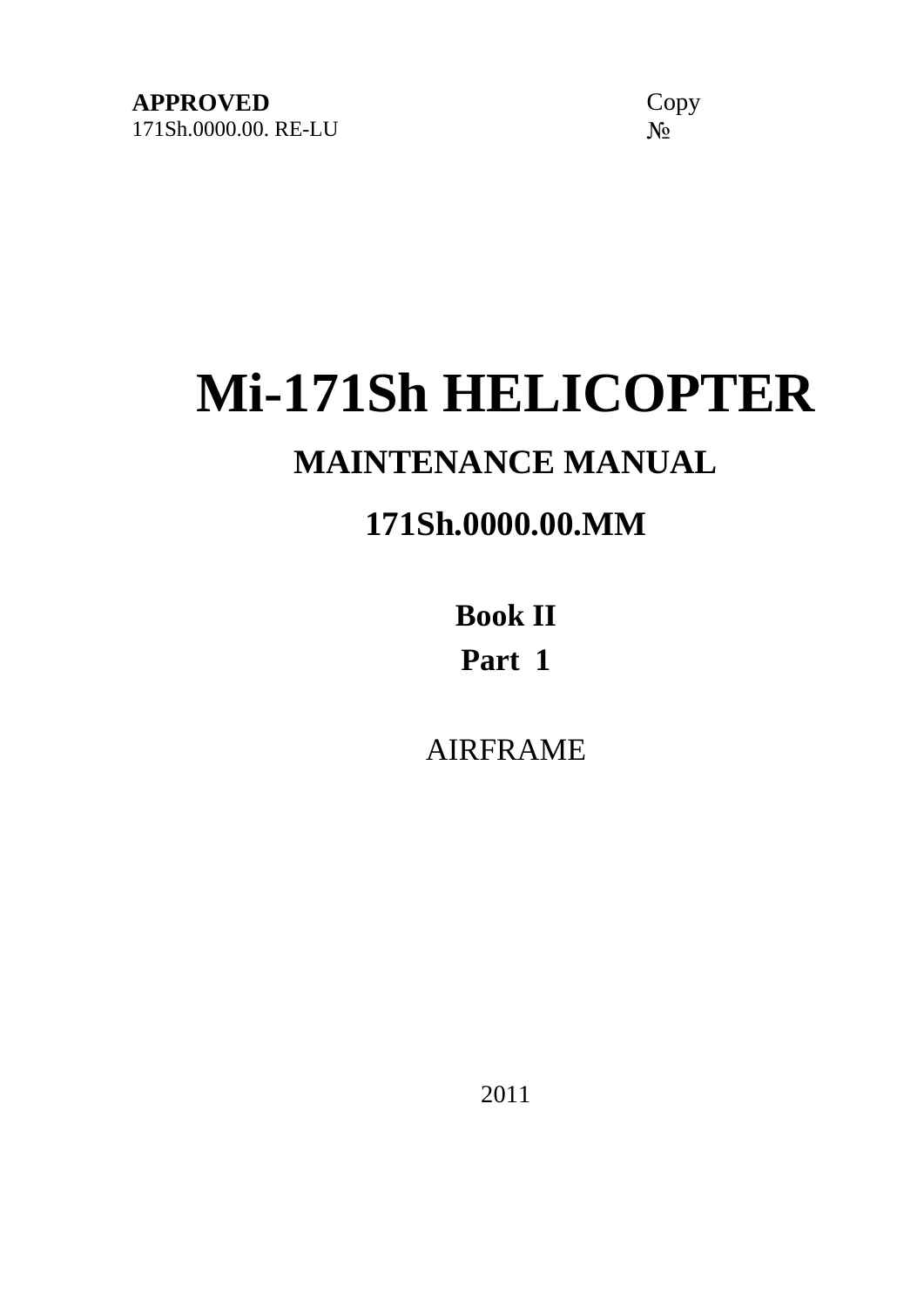

The Mi-171Sh Helicopter Airframe Maintenance Manual Book II Part 1 – 2011 is a comprehensive 421-page technical reference dedicated to the helicopter airframe. This volume, identified as Book II, Part 1, AIRFRAME, carries document number 171Sh.0000.00.MM. Dated 2011, with section pages dated March 31/11, it consolidates descriptions, operations, troubleshooting, and maintenance information for major structural and airframe assemblies of the Mi-171Sh.
The manual is systematically organized by numbered airframe sections. It begins with the general airframe structure, then progresses through doors and emergency exits, fuselage construction, horizontal stabilizer, windows, and standard practices. The document provides in-depth coverage of critical areas such as cargo compartment entrance doors, ramp and ramp hydraulic systems, fuselage structure and skin, tail boom and pylon, horizontal stabilizer, cockpit and cargo windows, along with related inspection or removal/installation procedures.
File Details
- Manual type: Maintenance Manual, Book II, Part 1 – Airframe
- Model: Mi-171Sh helicopter
- Document number: 171Sh.0000.00.MM
- Date: 2011; section pages dated March 31/11
- Language: English
- Page count: 421 pages
- File format: PDF
Airframe Construction and Structural Reference
The airframe material provides a practical structural overview before delving into individual assemblies. The fuselage is described as an all-metal, variable-section semimonocoque structure consisting of a nose section, center section, tail boom and tail boom pylon. The manual identifies production breaks and explains how the sections are joined, including relevant frame locations and attachment-bolt diameters. It also details frame and stringer construction, stressed skin and floor, and the use of riveted, cemented and welded joints.

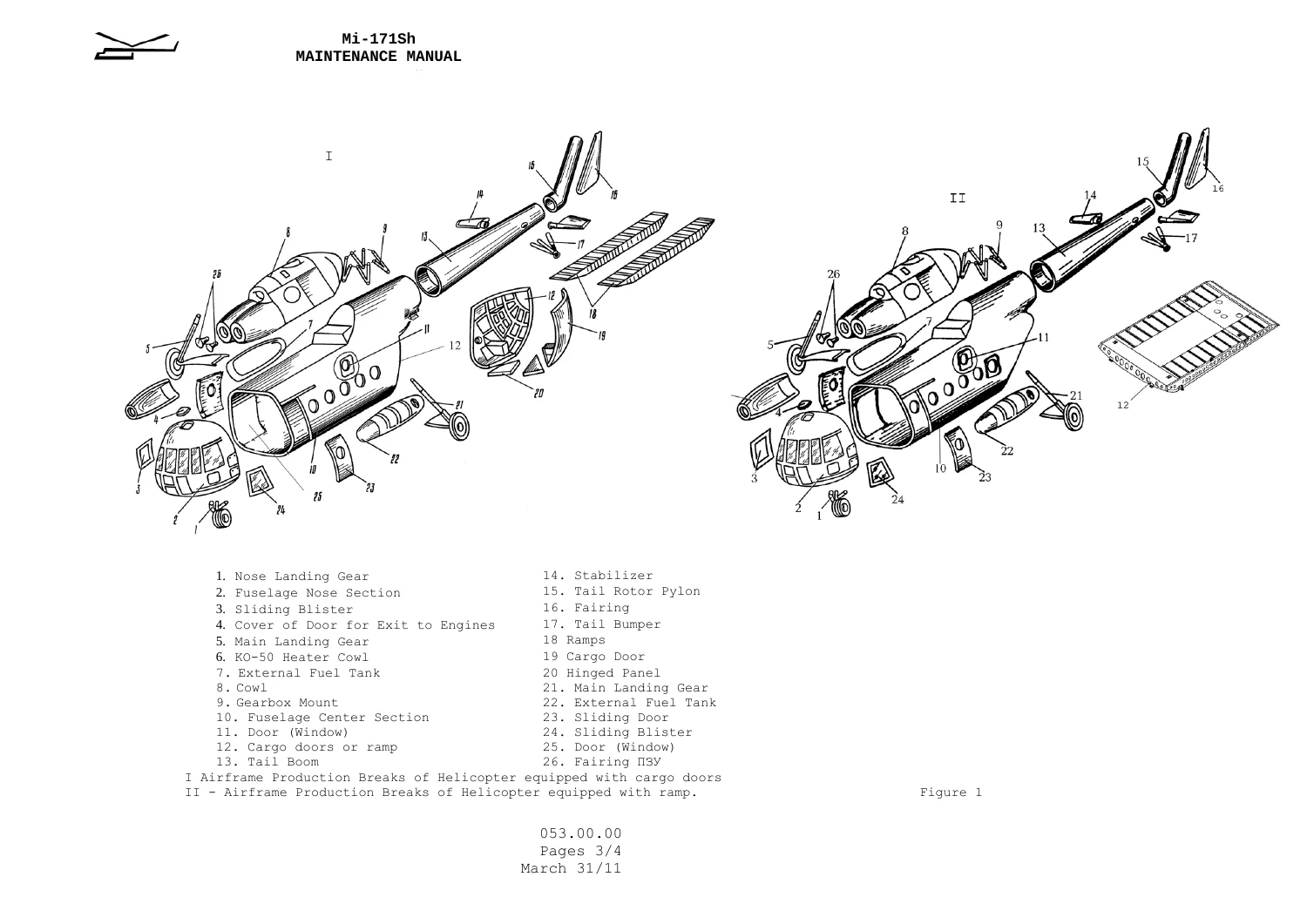

Detailed fuselage material covers the nose section and its flight-compartment arrangement, the center-section main frame, strong frames, stringers, cargo compartment floor, skin, tail boom, tail boom pylon, attachment fittings and aerodynamic fairings. Illustrations identify airframe production breaks for helicopters equipped with cargo doors and those equipped with a ramp. The skin section discusses the nose, center section, tail boom and pylon skins, including sheet materials, thicknesses, access openings and construction details. Maintenance references include inspection tasks as well as removal and installation procedures for the tail boom and tail boom pylon.
IMAGES PREVIEW
Doors, Emergency Exits and Cargo Ramp Systems
A substantial portion of this Mi-171Sh helicopter airframe maintenance manual is devoted to doors and rear cargo access. It describes the LH cargo compartment entrance door, the RH passenger and crew sliding door, emergency exit doors, cargo doors, the ramp, the hydraulic system of the ramp, structural access doors, inner stationary partition doors, ramps and door indication.
The LH cargo compartment entrance door section explains its guide and roller arrangement, locking mechanism, inside and outside handles, emergency release linkage and PARKING/FLIGHT locking-device positions. The RH sliding door section covers the corresponding construction and operating features and notes its role in emergency escape and loading or unloading small-size cargoes. Door figures show the sliding door structure, locking mechanism and emergency release hardware in component-level detail.
The rear cargo area receives even deeper treatment. The manual covers clamshell cargo doors and a ramp configuration, including the ramp’s construction, control system and hydraulic system. It contains a multi-sheet wiring diagram for the ramp control system and maintenance practices for ramp removal and installation, removal and installation of ramp junction boxes, inspection of the ramp, external inspection of control panels and junction boxes, operational testing of the ramp closing/opening control system, and operation using the 305NP-01 hand pump. The ramp hydraulic section also includes troubleshooting and removal/installation procedures for hydraulic system assemblies.
Horizontal Stabilizer and Window Maintenance
The stabilizer section describes the horizontal stabilizer, its RH and LH halves, structural components and attachment arrangement. Two stabilizer versions are documented: one with fabric skin and one with metal skin. The manual explains the riveted spar and rib structure, attachment fittings and adjustment links, and states that the stabilizer setting can be changed on the ground through a range of +9 degrees to -9 degrees. Troubleshooting addresses conditions such as skin punctures or ruptures, water in the stabilizer, damaged bolt locking, loose tip fasteners, spar-cap cracking, hinge-fitting play, and surface damage on metal-skin stabilizers. Maintenance practices include external and internal inspection and removal and installation of the horizontal stabilizer.
The windows section covers flight-compartment windows and windshields, cargo-compartment windows and door windows. It describes the transparent panels, framing and sealing arrangements, including heated triplex windshields for the pilot and copilot and organic-glass panels used elsewhere. Troubleshooting and maintenance practices are provided for the flight-compartment glazing, while separate inspection references cover cargo and door window panels.
Chapters Covered
- 051.00.00 – Airframe Structure General
- General airframe structure and main components
- 052.00.00 – Doors
- 052.10.00 Cargo Compartment Entrance Door
- 052.11.01 RH Sliding Door
- 052.20.00 Emergency Exit Doors
- 052.30.00 Cargo Doors
- 052.31.00 Ramp
- 052.32.00 Hydraulic System of the Ramp (HSR)
- 052.40.00 Structural Access Doors
- 052.50.00 Inner Stationary Partition Doors
- 052.60.00 Ramps
- 052.70.00 Doors Indication
- 053.00.00 – Fuselage
- Fuselage nose section, center section, tail boom and tail boom pylon
- 053.10.00 Main Frame
- 053.30.00 Skin
- 053.40.00 Attachment Fittings
- 053.50.00 Aerodynamic Fairings
- 055.00.00 – Stabilizers
- 055.10.00 Horizontal Stabilizer – description, troubleshooting and maintenance practices
- 056.00.00 – Canopy, Windows
- 056.10.00 Flight Compartment Windows and Windshields
- 056.21.00 Cargo Compartment Windows
- 056.30.00 Door Windows
- 060.00.00 – Standard Practices
- 060.10.00 Washing-out and removal of paint-and-varnish coating from main rotor blade surfaces
- 060.20.00 Elimination of traces of mechanical damage and corrosion on main rotor blade spar
- 060.30.00 Reconditioning of paint-and-varnish coating on main rotor blade spars and trailing edge sections
- 060.40.00 Reconditioning of sealant between trailing edge sections and along front edge of trailing edge section skin
Taken as a whole, the manual gives technicians a structured airframe reference rather than a simple component overview. The numbered sections combine construction descriptions with diagrams, troubleshooting where provided, maintenance-practice indexes and selected step-by-step removal or installation procedures. Its illustrations range from door and lock mechanisms to complete airframe production-break diagrams and electrical schematics for the cargo ramp control system.
Standard Practices for Blade Surface Repair
The final standard-practices section is focused on main rotor blade surface work referenced elsewhere in the Maintenance Manual. It includes procedures for removing paint-and-varnish coatings, eliminating mechanical damage and corrosion traces on the blade spar, restoring paint-and-varnish coatings on spars and trailing-edge sections, and reconditioning sealant around trailing-edge sections. These pages provide specific process steps and materials for controlled surface restoration rather than general maintenance advice.
Work With the Correct Mi-171Sh Airframe Procedures
The Mi-171Sh Helicopter Airframe Maintenance Manual Book II Part 1 – 2011 supports detailed airframe study, inspection, troubleshooting and maintenance work across doors, ramp systems, fuselage structure, tail components, stabilizer assemblies, windows and selected standard repair practices. It is useful when a task requires the documented construction, component relationships, maintenance sequence, troubleshooting guidance or installation details instead of relying on memory or a generic helicopter reference.
Using the correct Mi-171Sh airframe maintenance manual matters when checking structural arrangements, door and emergency-release mechanisms, ramp controls, attachment hardware, glazing, stabilizer condition and airframe repair practices. The PDF is delivered instantly after purchase, with no shipping required. It can be opened on compatible phones, tablets and computers and printed whenever a paper working copy is preferred.
