PG Drives Technology i-Drive Controller Family Technical Manual SK76977-08 – PDF Download

Description

PG Drives Technology i-Drive Controller Family Technical Manual SK76977-08

File Details

• Manual Type: Technical Manual
• Brand: PG Drives Technology (PGDT)
• Document Number: SK76977-08
• Language: English
• Page Count: 113 pages
• File Format: PDF
• Models Covered: i24-45, i36-45, i24-70, i36-70, i24-140, i36-140, i24-180, i36-180, i24-200, i36-200

Chapters Covered

• Chapter 1 – Operation: Controls and functionality including On/Off switch, status indicator, throttle types (wig-wag, single-ended, unipolar), tiller switch, direction switches, reverse switch, speed limiting potentiometer, belly button, slow/fast switch, and audible alarm. Also covers getting ready to drive, driving technique, precautions for use, daily and weekly safety checks, status indication for single lamp/LED and TruCharge/iGauge indicators, self-help guide, battery gauge reading, pushing the machine, programming, warranty, and servicing.

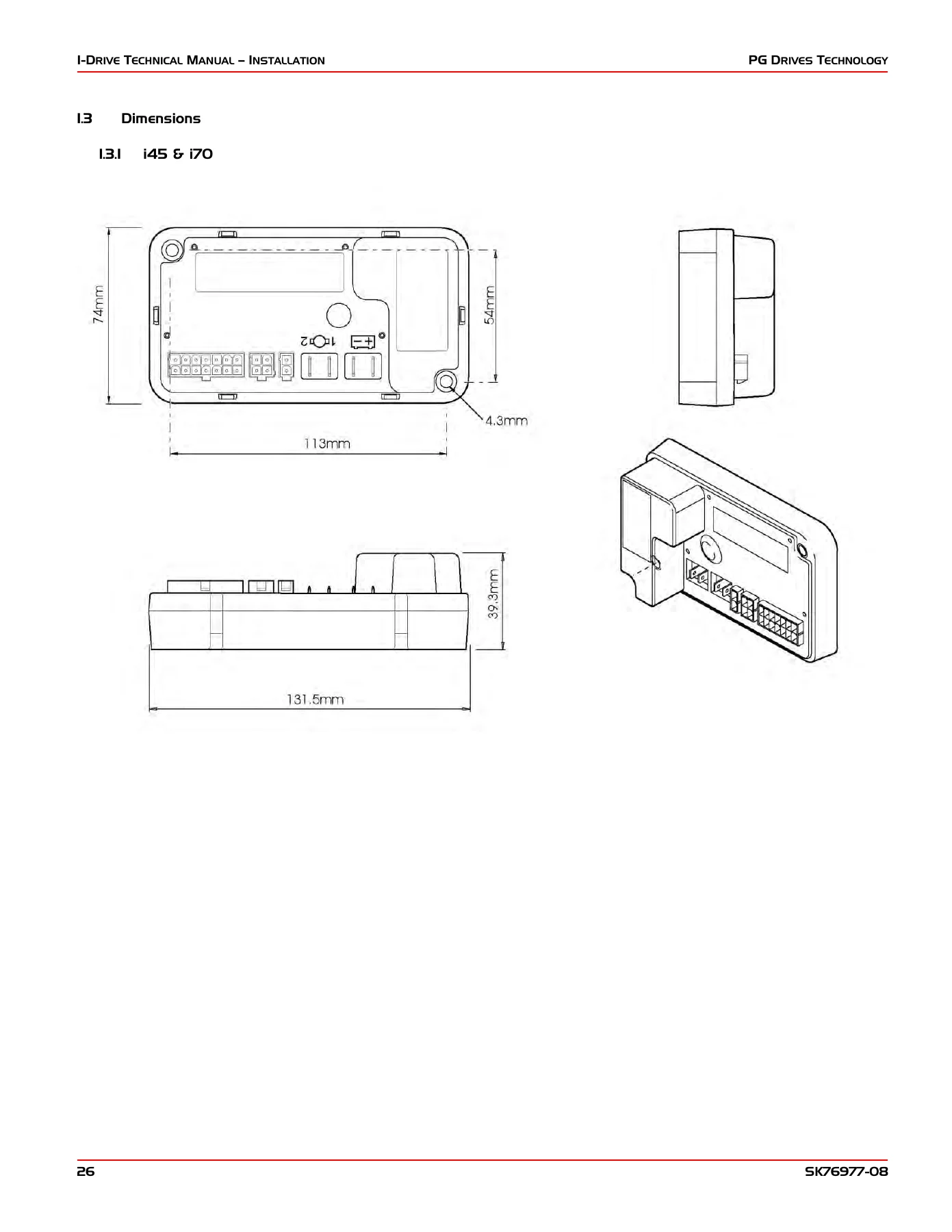

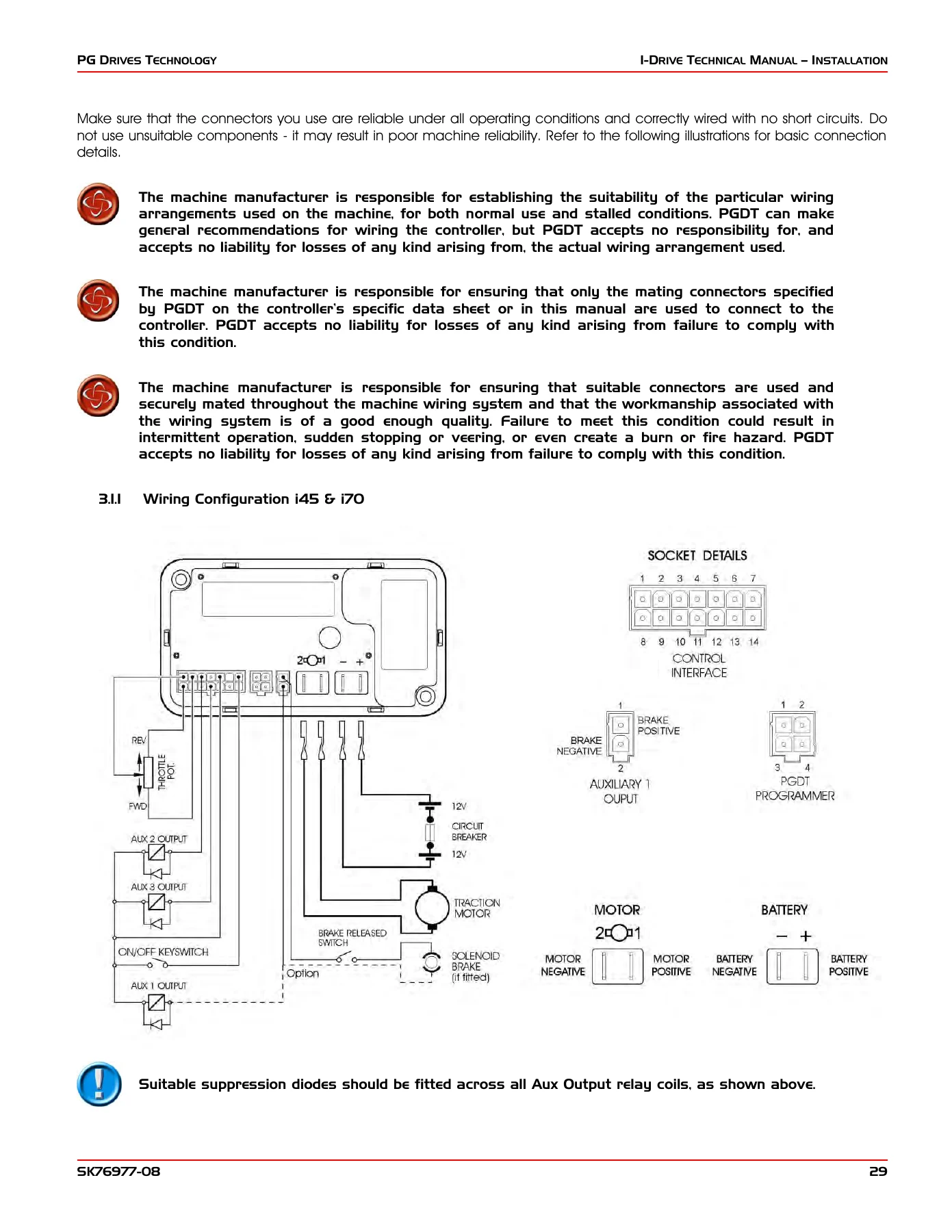

• Chapter 2 – Installation: i-Drive versions, controller operation, dimensions for i45/i70 and i140/i180/i200, program settings, soft-stop, immobilizing the machine, charger interlock, connections (wiring configurations, connectors and kits), crimping, wire gauge and types, battery connection, motor connection, auxiliary outputs, tiller interface (throttle potentiometer configuration, speed limiting potentiometer/belly button input, fused B+ supply, On/Off switch, status indicator, slow/fast switch, reverse switch/auxiliary inputs, auxiliary outputs, 0 volts, inhibit inputs), drive motors, programming connection, batteries, mounting (controller and i-Cover), battery discharge indicator (iGauge and TruCharge module), electromagnetic compatibility, electro-static discharge, and production tests.
• Chapter 3 – Programming: Speed parameters (forward/reverse acceleration and deceleration, max/min forward and reverse speed, speed limit pot enabled), operation parameters (sleep timer, throttle invert), throttle parameters (throttle type, deadband, gain, operated at power-up, reference test, ISO tests resistor, direction switches), battery parameters (cable resistance, calibration factor, battery lockout voltage/time/type/input select, low battery alarm), inhibit parameters (inhibit 1 and 2 debounce, mode, operation, speed and target, tiller switch), general parameters (soft-stop, brake time, output voltage, status output type, diagnostic flash sequence, reverse alarm, pulsed reverse alarm, diagnostic alarm, brake disconnected alarm, brake fault detect, freewheel speed limit), motor parameters (current limit, boost drive current and time, current foldback threshold/time/level/temperature, motor compensation, slope factor, anti-rollback level and velocity, pull-away delay), belly button parameters (switch type, speed, time), factory settings (safety fences, supply voltage), auxiliary outputs (aux 1/2/3 output mode, off delays, aux 3 input type, aux 3 output voltage), and memory functions (diagnostic logs, timer).
• Chapter 4 – Diagnostics: Diagnostic procedure, detecting a trip has occurred, trip types and possible causes for all 10 trip types (low battery voltage, motor open circuit, motor wiring trip, inhibit active, throttle trip, possible controller fault, solenoid brake trip, high battery voltage, programmable setting changed), and servicing of defective units.
• Chapter 5 – Warning Summary: Summarizes all warnings given throughout the manual, covering driving technique, precautions for use, hazards, safety checks, pushing your machine, programming, servicing, program settings, charger interlock, general, motor and battery, i140/i180/i200, programming connector, crimping, wire gauge and types, battery connection, belly button configuration, fused B+ supply, inhibit speeds, drive motors, freewheeling, programming connection, position, production tests, forward acceleration, forward/reverse deceleration, max forward speed, speed limit pot enabled, throttle operated at power-up, soft-stop, brake fault detect, freewheel speed limit, current foldback temperature, motor compensation, pull-away delay, belly button time, safety fences, and servicing of defective units.
• Chapter 6 – Specifications: Electrical specifications for all controller variants including supply voltage, operating voltage, peak voltage, reverse battery voltage, auxiliary outputs, status output, inhibit input, output current, PWM frequency, power connection, brake connection, programmer connection, tiller connection, moisture resistance, operating temperature, storage temperature, safety, EMC susceptibility, EMC emissions, and ESD ratings.

This technical manual for the PG Drives Technology i-Drive Controller Family provides complete coverage of the i24-45, i36-45, i24-70, i36-70, i24-140, i36-140, i24-180, i36-180, i24-200, and i36-200 controllers. Spanning 113 pages, it guides technicians through every aspect of these controllers – from operation and safety checks to installation, programming, and diagnostics. The manual details all programmable parameters, wiring configurations for both the i45/i70 and i140/i180/i200 controller groups, tiller interface connections, auxiliary output modes, and battery discharge indicator options including the iGauge and TruCharge modules. The diagnostics chapter is particularly valuable, breaking down all ten trip types with possible causes and corrective actions. Whether you are installing a new controller, programming parameters for a specific machine application, or troubleshooting a fault, this manual provides the technical foundation needed to work with the i-Drive family correctly.

IMAGES PREVIEW

Controller Models Covered in Detail

The i-Drive controller family includes ten distinct models, all documented in this manual. The i24-45, i36-45, i24-70, and i36-70 models use 0.25″ 6.35mm Faston spade terminals for battery and motor connections, while the higher-rated i24-140, i36-140, i24-180, i36-180, i24-200, and i36-200 models use M6 screw terminals. The 24V-only models operate on 24V dc systems, while the 36V-capable models can operate on either 24V or 36V dc. Output ratings range from 45 Amps on the i45 models up to 200 Amps on the i200 models. Each model has specific current limits, boost drive currents, and auxiliary output ratings that are detailed in the programming and specification chapters.

What This Manual Enables You To Do

• Understand the function and operation of every control on an i-Drive equipped machine, including throttle types, switches, and safety features
• Perform daily and weekly safety checks to ensure the controller and machine remain safe to operate
• Interpret status indicator flashes and TruCharge/iGauge displays to diagnose faults quickly
• Mount and connect the controller correctly for both the i45/i70 and i140/i180/i200 models
• Wire the tiller interface for various throttle configurations, speed limiting potentiometers, belly buttons, and auxiliary outputs
• Program all parameters to match the controller to the machine, including speeds, accelerations, current limits, and motor compensation
• Configure and troubleshoot the battery discharge indicator, whether using an iGauge or TruCharge module
• Diagnose and resolve all ten trip types using the detailed diagnostic tables
• Understand and apply the safety warnings and precautions throughout the manual

Getting the PG Drives Technology i-Drive Controller Family Technical Manual SK76977-08 means having the complete factory documentation at your fingertips. Every connector pinout, every programmable parameter, every diagnostic code, and every specification for these controllers is included. The manual is delivered as an instant PDF download – no shipping, no waiting. Access it on any device, print the pages you need for the workshop, and keep this reference ready whenever you service or program an i-Drive controller.
