Raymond 7600 7620 7640 Reach-Fork Truck Maintenance Manual – ACR System 1087967

Description

Raymond 7600 7620 7640 Reach-Fork Truck Maintenance Manual – Publication 1087967

This is the full maintenance manual for the Raymond Model 7600, 7620 and 7640 Reach-Fork truck built with the ACR System. Publication 1087967, original issue 1087967A dated 15 Apr 2009, applies to Series A trucks from serial number 00001 and up, plus all subsequent releases of the product until superseded by a later edition or bulletin. It is the document a service technician works from when servicing, diagnosing, testing and repairing these reach trucks.

File Details

• Manual type: Maintenance Manual
• Brand: The Raymond Corporation
• Models: 7600, 7620, 7640 Reach-Fork Truck with The ACR System
• Series: A, serial number 00001 and UP
• Publication number: 1087967
• Original issue: 1087967A – 15 Apr 2009
• Language: English
• File format: PDF
• Page count: 475 pages

Chapters Covered

The manual is organised into numbered sections plus an appendix, and the table of contents is broken down by component rather than by a single flat list.

• How to Use This Manual – manual design, abbreviations and symbols
• Safety – general safety, battery safety, static precautions, jacking safety, tie-down for transport, welding safety
• Systems Overview – lift truck specifications, model designation, battery specifications, FlashWare, Operator Display, modes of operation, Program Mode menu
• Scheduled Maintenance – maintenance guidelines, Maintenance Minder tool, 250/500/2000 deadman-hour intervals, lubrication points, chain and fork inspection
• Troubleshooting – electrical troubleshooting, shorts to frame, fuse chart, DC motors, AC motors, battery state-of-charge, hydraulic troubleshooting guidelines and symptom tables for auxiliary, lift/lower, travel, electrical and Vantage Point systems
• Messages, Codes, and Tests – Power Amplifier LED diagnostics, full fault code list with reasons and corrective actions, electrical connector locator, circuit card connectors, Analog Tests, Digital Input Tests, Digital Output Tests, Loop Back Tests
• Component Procedures – component locator photos, special tools, decals and plates, baselegs, steering and controls, drive and brake, electrical components, motors, hydraulic components, cylinders, mast/chain/hose/cable, mast removal and installation for each model
• Theory of Operation – traction system functional operation, cold storage, hydraulic system functional operation, electric brake, pinout matrix

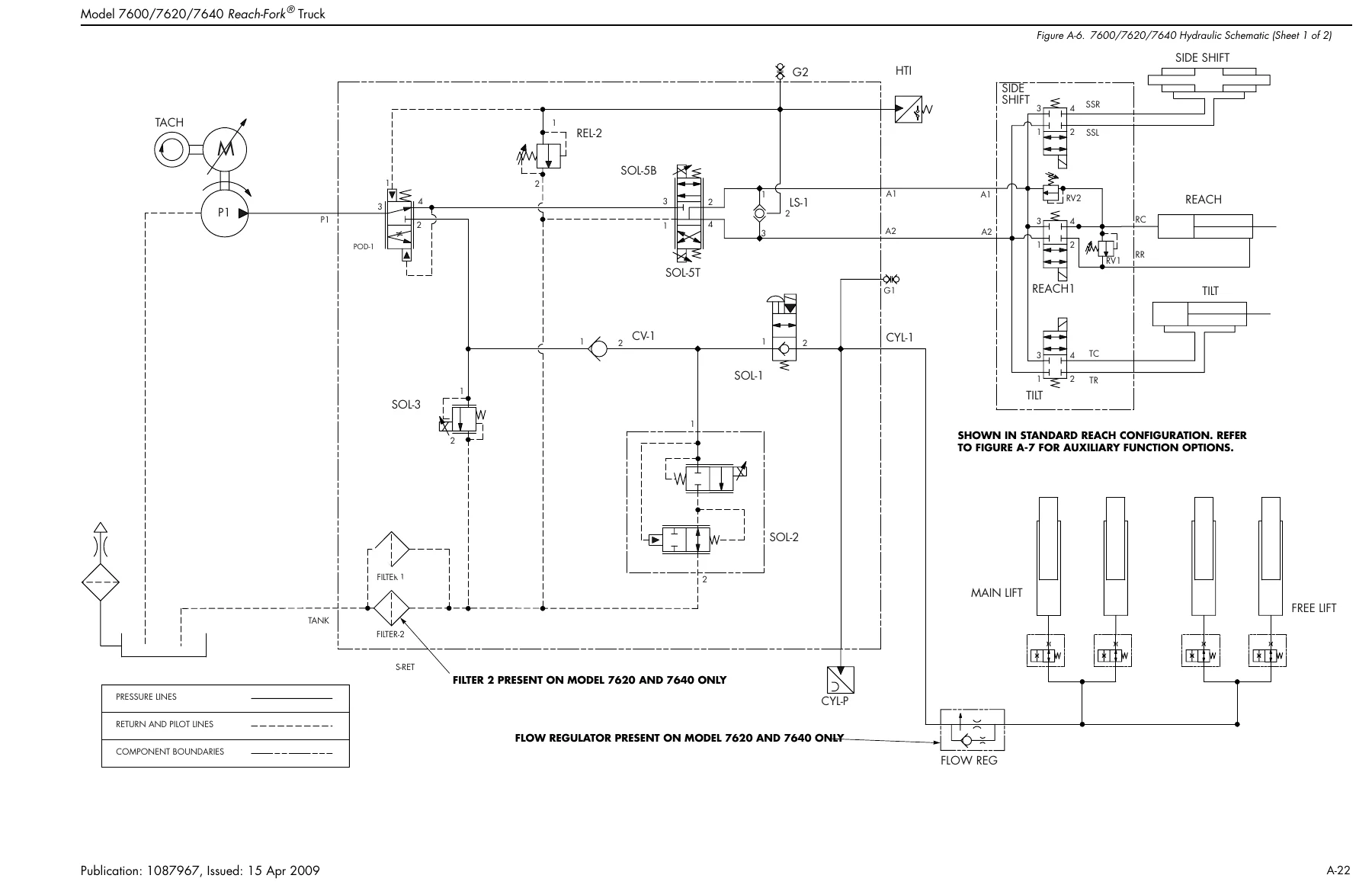

• Appendix – lubrication specification chart, thread adhesives/sealants/lubricants, component specific service and torque charts, torque charts for hydraulic fittings, straight thread face seal O-rings, standard and metric ferrous and brass fasteners, decimal equivalent chart, standard/metric conversions, electrical and hydraulic schematics

Underneath that structure sits the real working content. The maintenance section runs initial 90 day / 250 deadman hour tasks, the 180 day or 500 HD schedule, and the 2000 HD / 360 day tasks, backed by 13 numbered lubrication points with locator photos for the steering linkage, A-frame, idler wheel, drive unit, scissor mechanism, reach cylinder, sideshift carriage, mast and load wheels. Chain maintenance is supported with a wear gauge procedure and a condition-cause chart, and fork inspection covers blade and shank straightness, fork angle with the Cascade caliper, tip height, hook wear and legibility of the load rating. On the electrical side the manual runs the full diagnostic route from the Power Amplifier LEDs through CAN bus errors, contactor faults, motor overtemperature and throttle pot faults, with a diagnosis and repair table for most tests. Hydraulic coverage goes from bleeding the system through filter replacement, lift pressure, proportional valve and auxiliary pressure adjustment, main and auxiliary manifold layouts, free lift and main lift cylinder removal and seal repacking, reach and tilt cylinders, flow limiters and carriage drift correction. The mast chapter carries full removal, disassembly, shimming and reassembly procedures for the 7600, 7620 and 7640, including separating tractor from mast and re-mating them. The appendix closes it out with the torque values, lubricants and conversion tables a technician needs at the bench.

What This Manual Lets You Do

This is not a light operator booklet. The Raymond 7600/7620/7640 maintenance manual gives you the fault codes and the test procedures to go with them, so a truck that shows a traction shutdown, a lift cutout or an overtemp icon can be traced to the actual failing circuit rather than guessed at. You get the diagnosis and repair tables with probe points, meter scales and expected readings for the analog, input and output tests, plus the loop back test values for when a connector has to be isolated from the Vehicle Manager.

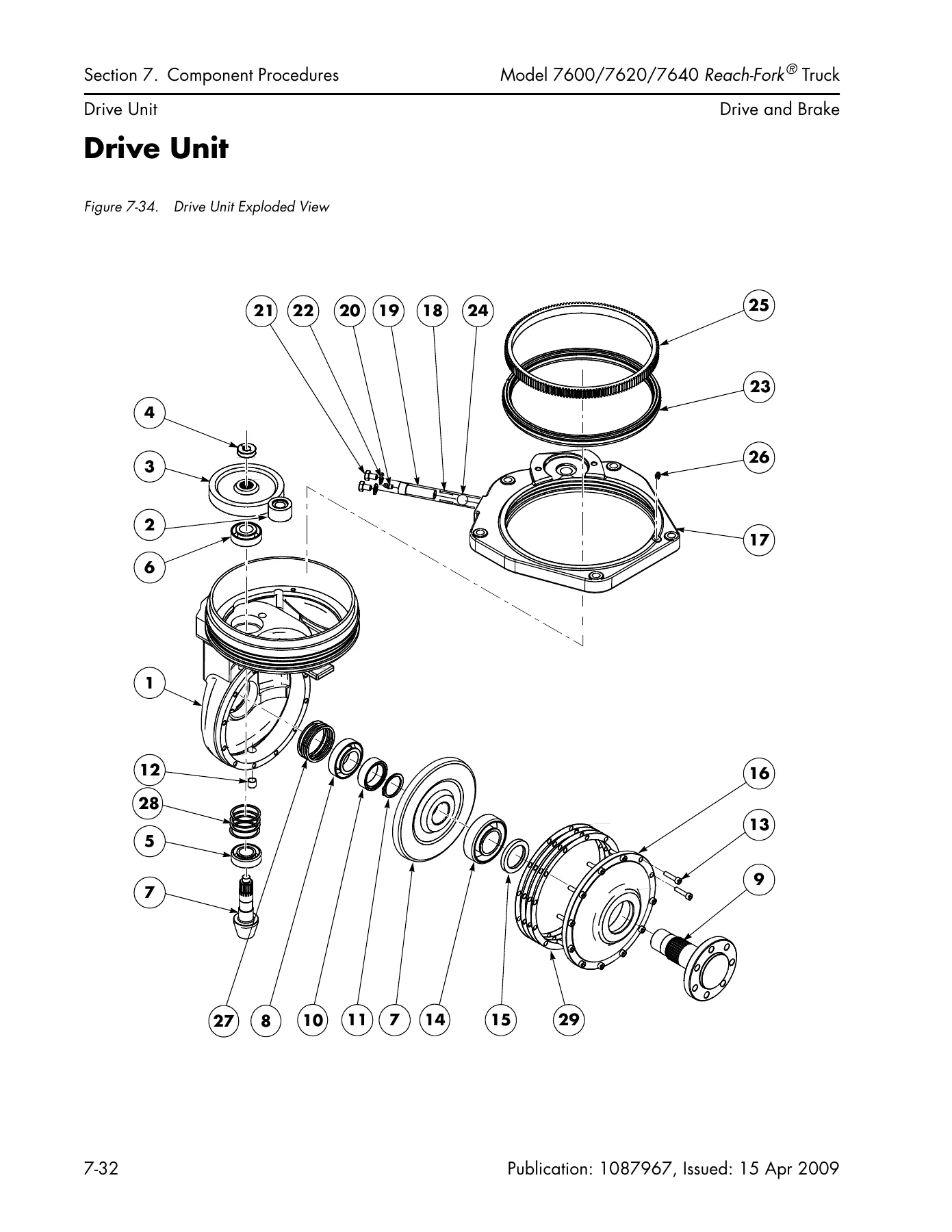

On the mechanical side, the manual supports real jobs: pulling a drive unit and setting the shim formulas and backlash, replacing brake pads and setting the air gap, repacking a free lift or main lift cylinder, dropping a mast and shimming the telescopics, replacing and tensioning lift chains, correcting reach carriage drift, and bleeding the hydraulic system afterwards. Torque values appear both inline in the procedures and in the appendix charts, so a mounting bolt, a hydraulic fitting and a gland all get the correct figure.

Because the manual covers Model 7600, 7620 and 7640 together with the ACR System, one document serves a mixed fleet. Where procedures differ between models, the sections are split by model rather than blended, so you follow the one that matches the truck in front of you.

Why the Correct Procedures Matter

Reach trucks are unforgiving of shortcuts. Mast bearing shimming, chain tension gaps, A-frame spring length, brake air gap and drive unit backlash all have published values in this manual, and getting them wrong shows up as binding, drift, premature wear or an unsafe stop. The scheduled maintenance tables also separate normal, severe and extreme operating conditions, so a truck in a freezer, a foundry or an EE-rated application gets the shorter service interval it actually needs instead of the standard one.

Delivery

IMAGES PREVIEW

The manual is delivered as an instant PDF download. There is no shipping and nothing to wait for. Once downloaded it opens on a laptop, tablet or phone, and any page can be printed for use in the workshop or kept on a diagnostic cart. Search the file, jump to a fault code or a test number, and print only the procedure you need on the floor.
