Renault Trucks Kerax & Premium DCI 11 Engine Workshop Manual 20660 – 2004 PDF

Description

Renault Trucks DCI 11 Engine Workshop Manual – Document 20 660

This is the complete workshop manual for the Renault Trucks DCI 11 engine, covering both the Kerax and Premium vehicle ranges. Published in February 2004 under document number 20 660, this manual provides the full strip-down, overhaul, assembly and diagnostic procedures used by professional technicians working on the 11-litre DCI 11 diesel engine. Whether you are replacing a cylinder head gasket, timing the high-pressure pump, adjusting valve clearances or diagnosing a common rail fault, this manual gives you the procedures, torque figures and tolerances you need.

File Details

• Manual Type: Workshop Manual
• Brand: Renault Trucks
• Models Covered: Kerax, Premium
• Engine: DCI 11
• Document Number: 20 660
• Edition / Date: 02/2004
• Language: English
• Page Count: 257
• File Format: PDF

Chapters Covered

• Generalities
• Technical Data
• Tools / Consumables
• Stripping and Mounting on Stand
• Cylinder Head
• Valve Timing
• Reciprocating Gear
• Lubrication
• Cooling
• Injection
• Diagnostics Aid
• Turbocharger
• Jake Brake

Generalities and Safety

The opening section sets out the safety symbols and conventional symbols used throughout the manual, along with general instructions for working on the DCI 11 engine. You will find practical advice on preparing the engine for work, handling new parts, fitting seals and using locking, sealing and adhesive products correctly. This section is essential reading before starting any major repair.

Technical Data

This chapter contains the engine identification plate details and symbolisation, general features including compression ratio and firing order, cooling system thermostat data, and lubrication oil pressure figures for both the dCi 11 B43 and dCi 11 J+01 power settings. It also includes the complete tightening torques section, covering standard nut and bolt torques, cylinder head, reciprocating gear, timing, lubrication, Jake brake, turbocharger, cooling, air compressor, sensors and fuel-injection torques. Dimensions and tolerances for the cylinder head, valve timing, reciprocating gear and crankshaft are also provided, with detailed diagrams and clearance values.

Tools and Consumables

Lists general-purpose tools, special tools and locally manufactured tools with their Renault Trucks reference numbers and illustrations. The consumables list includes thread locking compounds, greases, sealing compounds and retaining compounds used during assembly.

Stripping and Mounting on Stand

Step-by-step procedures for mounting the DCI 11 engine onto stand 1000, including removal and fitting of the belt tensioner, air conditioning compressor, alternator, fan control, damper, starter and engine brackets. Each operation includes torque figures and notes on ensuring correct sealing.

Cylinder Head

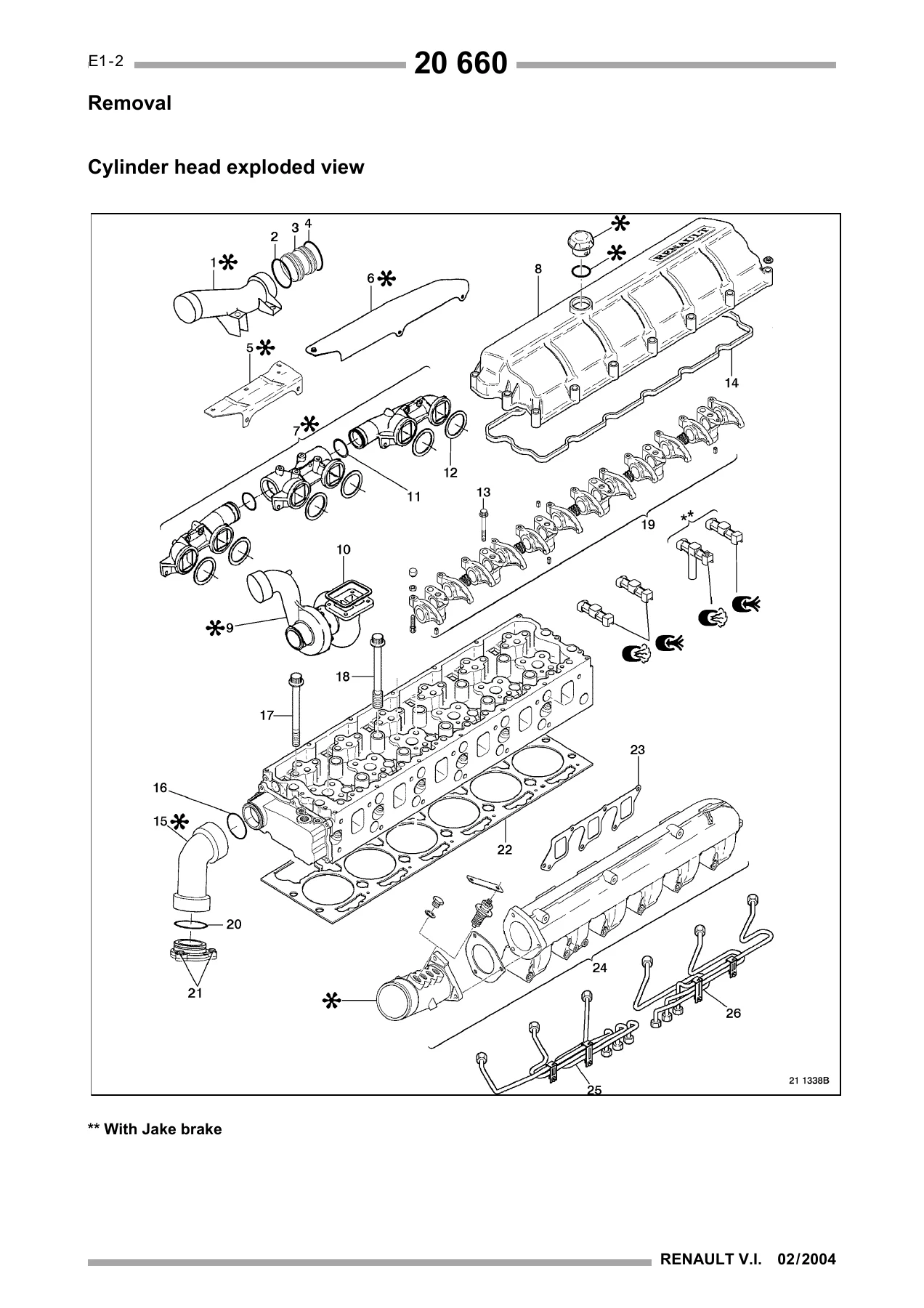

Covers removal of the cylinder head, fitting, and disassembly, inspection and assembly. Includes the cylinder head exploded view, valve guide and valve seat procedures, injector sleeve replacement, rocker assembly inspection, and the tightening sequence for the cylinder head bolts. Valve yoke and rocker arm adjustment procedures are also detailed.

Valve Timing

Complete removal and fitting of the timing case, camshaft, idler gears, crankshaft pinion, oil pump and high-pressure pump. Includes timing marks, backlash checks, side play checks and the procedure for finding top dead centre using tool 1380.

Reciprocating Gear

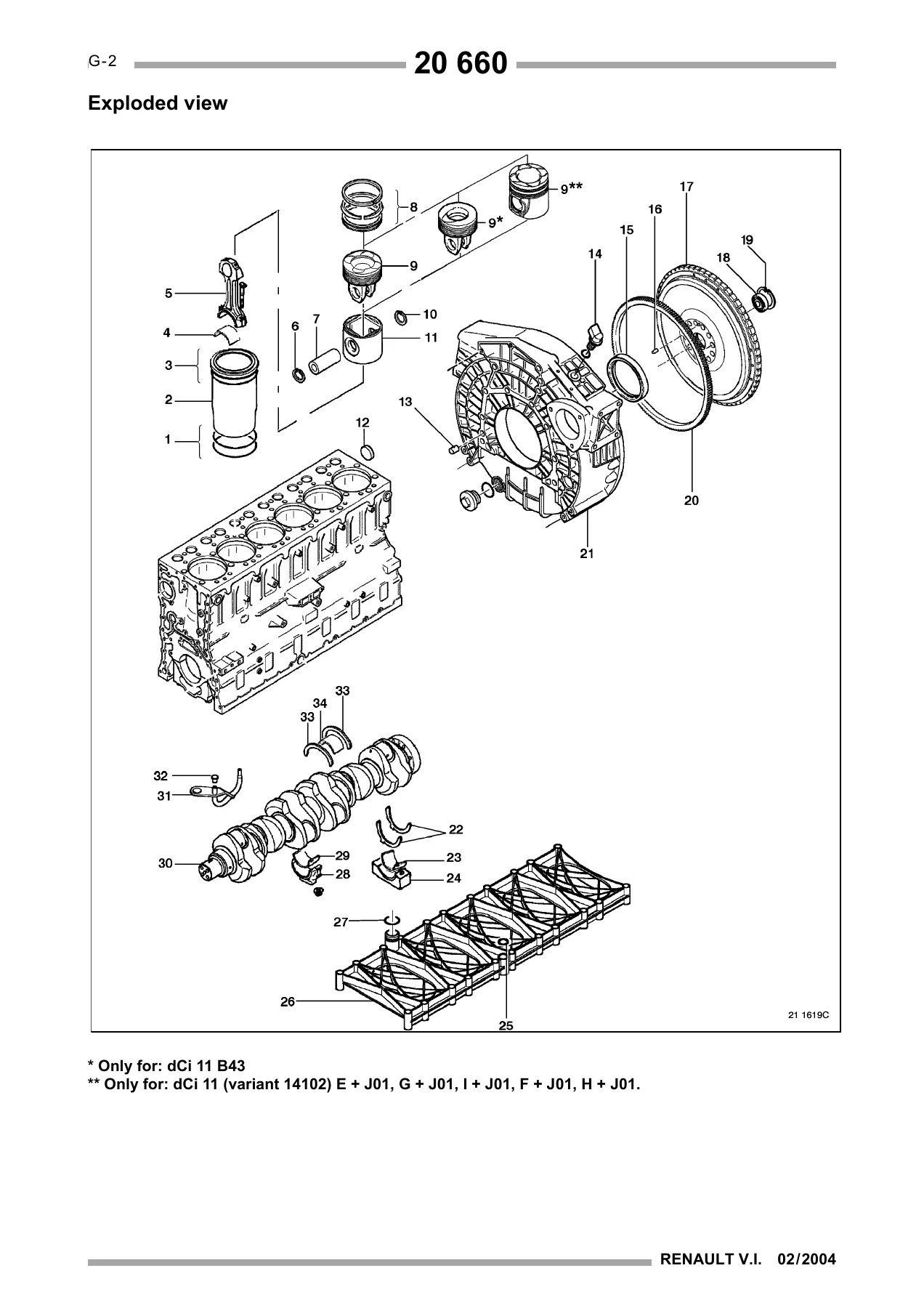

Disassembly and assembly of the flywheel, pistons, connecting rods, liners and crankshaft. Includes piston ring fitting, bearing half-shell selection, crankshaft end play measurement, and the tightening sequences for main bearing caps, connecting rod caps and flywheel bolts. Piston protrusion and liner protrusion checks are also covered.

Lubrication

Oil filter cartridge replacement and centrifugal oil filter disassembly and assembly, including torque figures for the centrifugal filter cover and bracket.

Cooling

Heat exchanger disassembly, cleaning and assembly, ventilation control bearing replacement, and water pump removal, disassembly, inspection and fitting. Includes thermostat testing and seal fitting procedures.

Injection

The largest chapter, covering the COMMON RAIL electronic fuel-injection system. Includes system description, component layout, operation, technical data for the ECU, ECU cooler, fuel hand priming pump and prefilter, booster pump, scavenge valve, fuel metering housing, fuel flow regulation solenoid valves, high-pressure pump, common rail, rail pressure limiter, fuel high-pressure sensor, flow limiters, fuel injectors, accelerator pedal position sensor, cylinder head delivery pipes and speed sensors. Repair procedures cover bleeding the fuel circuit, fuel hand priming pump, injector pipe gallery, rail leak-off return pipe, high-pressure pump, booster pump, high-pressure pump speed sensor, scavenge valve, checking high-pressure pump timing, fuel pipes, common rail, rail pressure limiter, flow limiter, fuel high-pressure sensor, engine speed sensors, and the engine master ECU and wiring harness.

Diagnostics Aid

Three separate diagnostics sections covering setting B43, setting +J01, and setting +J01 variant 14102. Each includes instrument panel indicator light operation, use of the Renault Trucks DIAGNOSTICA diagnostic tool, blink code diagnostics, fault code tables, ECU connector pin assignments, and detailed fault code troubleshooting with test procedures for each sensor, actuator and injector.

Turbocharger

Operating trouble diagnosis, on-vehicle checks, removal and fitting of the turbocharger, and a comprehensive list of incidents and probable causes including lack of power, black smoke, blue smoke, strange noise and excessive oil consumption.

Jake Brake

Exploded view, removal, inspection, fitting, adjustment, disassembly, cleaning and assembly of the Jake brake mechanism, including solenoid valve, control valves, transmitter pistons and receiver pistons.

Why This Renault Trucks DCI 11 Workshop Manual Is Essential

The DCI 11 engine is a sophisticated common rail diesel used across the Kerax and Premium ranges. Working on this engine without the correct procedures and torque figures is risky. The high-pressure fuel system operates at up to 1400 bars, and the cylinder head, valve train and reciprocating gear all have specific tightening sequences and tolerance limits that must be followed. This manual gives you the exact Renault Trucks procedures, so you can complete repairs correctly the first time.

Whether you are a workshop technician, a fleet maintenance engineer or an owner-operator maintaining your own truck, this manual covers the jobs you will face: cylinder head removal and refitting, valve clearance adjustment, timing the high-pressure pump, replacing injectors, diagnosing common rail faults, overhauling the turbocharger and servicing the Jake brake. The diagnostics aid sections are particularly valuable, with fault code tables and step-by-step test procedures for sensors, actuators and injectors.

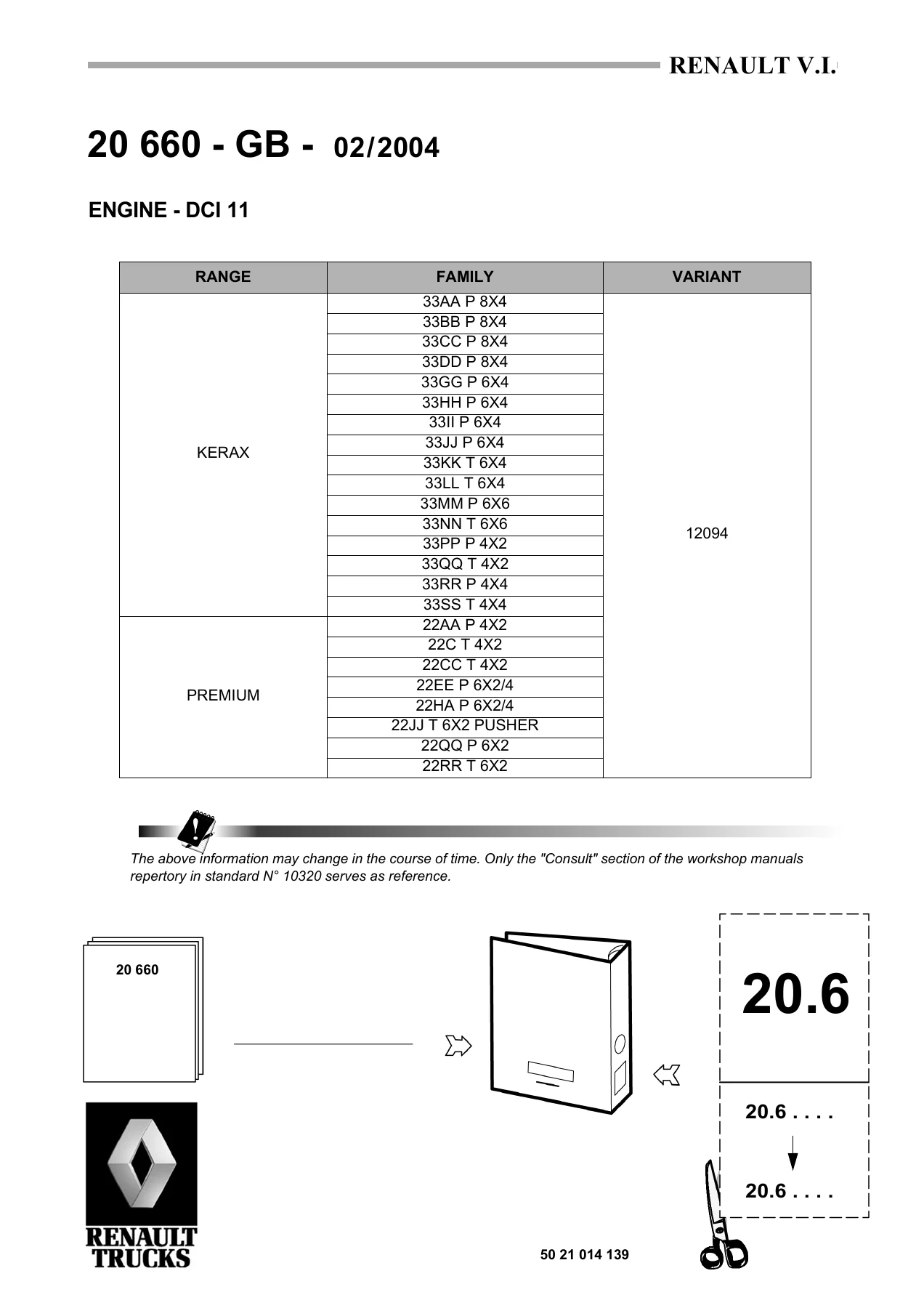

IMAGES PREVIEW

This Renault Trucks Kerax and Premium DCI 11 workshop manual is delivered as an instant PDF download. No shipping, no waiting. You can view it on any device – laptop, tablet or smartphone – and print the pages you need for the workshop. The 257-page manual is fully illustrated with exploded views, diagrams, torque tables and tolerance charts, making it an indispensable reference for anyone working on the DCI 11 engine.
