Siemens MODULARIS Uro Plus Service Instructions Manual – Complete Service Guide

The Siemens MODULARIS Uro Plus Service Instructions Manual is the full technical service document for the LITHOSTAR MODULARIS lithotripsy system, published under document number SPL1-130.840.02.03.02. This is the manual Siemens service engineers worked from — covering error-code diagnosis, water and cooling circuit maintenance, high-voltage circuit components, board D3 replacement, shock wave head service, iso-center alignment with both X-ray and ultrasound, and the service software used to read therapy data, pulse counters and error logs.

This is a 111-page service instructions manual, not a user guide. It is written for qualified personnel performing installation and service procedures, and it carries the safety warnings, protective measures and measurement protocols that go with that work.

File Details

• Manual type: Service Instructions
• Brand: Siemens
• Model: MODULARIS Uro Plus / LITHOSTAR MODULARIS
• Document number: SPL1-130.840.02.03.02
• Revision: Rev. 03
• Date: 04.05
• Language: English
• Page count: 111
• File format: PDF

Chapters Covered

• Safety information and protective measures
• LITHOSTAR MODULARIS Error List
• Service software
• LITHOSTAR MODULARIS
• Iso-center with X-Ray
• Iso-center with ultrasound
• Memoscope Programming
• MUP Menu Ultrasound Device
• Changes to the previous version

Safety Information and Protective Measures

Opens with the safety protocols for working on the system: disconnecting power, protective conductor testing (resistance must not exceed 0.2 ohms), equivalent leakage current measurement per DIN VDE 0751 Part 1 (threshold 1 mA), and radiation protection measures for adjustments performed under X-ray. This chapter also lists the tools and measurement devices required — protective conductor meter, digital multimeter, shock wave pressure test unit, C-head adapter — and the auxiliary documents referenced throughout the manual.

LITHOSTAR MODULARIS Error List

The diagnostic core of the manual. Covers error codes E00 through E99, grouped by system: water system (E10–E15), controls (E20–E29), monitoring (E31–E54), high voltage circuit (E60–E78), internal errors (E80–E89), and ultrasound (E90–E93). Each error entry gives the error text alongside the possible causes and the corrective actions — from checking fuses and connections on board D3 to replacing the charging/energy unit or shock wave head. Also covers the seven-segment displays on board D3 and console messages such as “Chip card invalid” and missing iso-center cross on the ultrasound system.

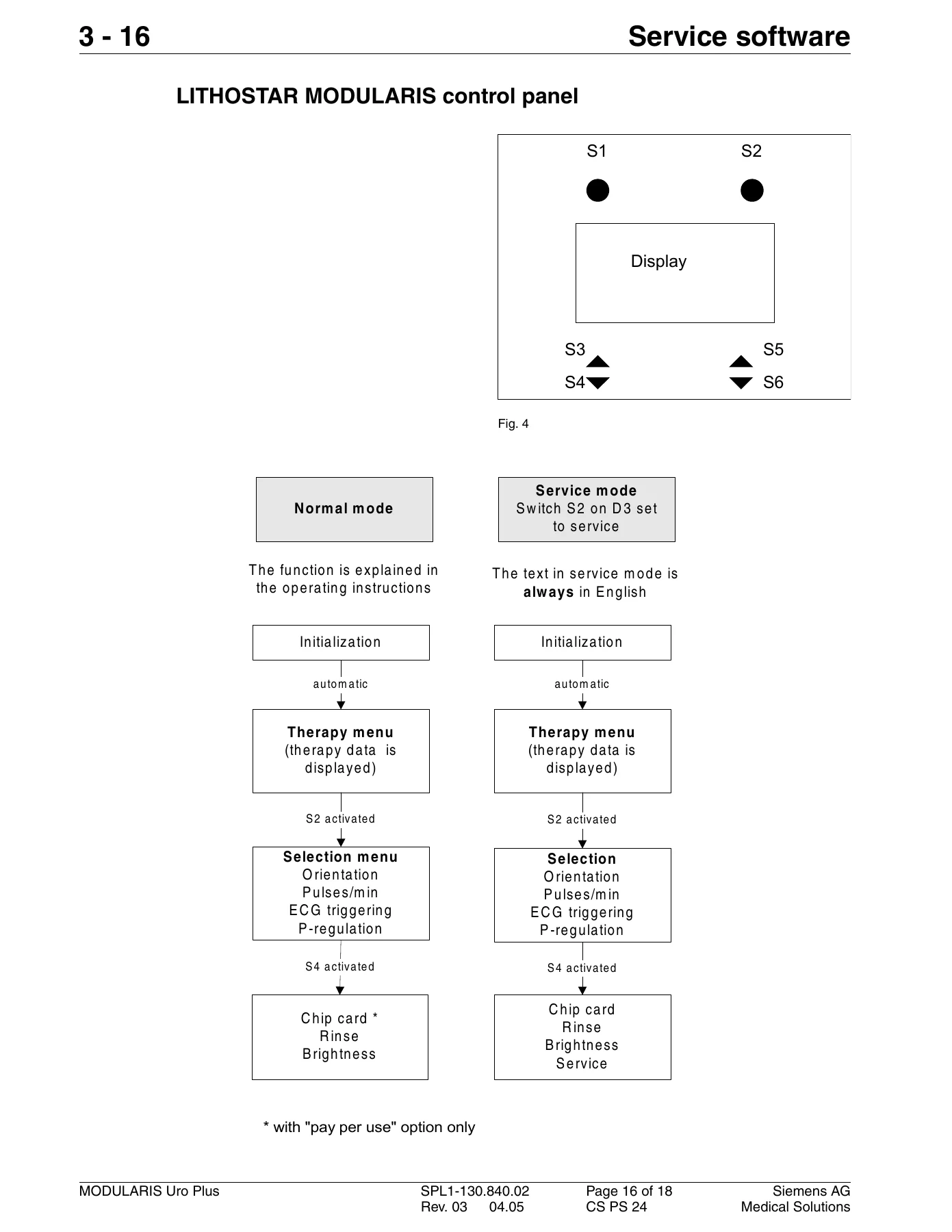

Service Software

Explains how to connect a service PC to the LITHOSTAR MODULARIS via the (Hyper) Terminal program, with step-by-step connection flowcharts for German and English Windows 95/98/NT. Documents each terminal menu option: h (help), p (pulse counters), d (diagnostic data), e (error log), t (therapy data), c (chip card data), a/b (C-arm turn-back adjustment), i (ECG trigger option), u (ultrasound localization adjustment), r (pulse rate), s (software download), and o (table orientation). Includes the software download procedure and what to do after replacing board D3.

LITHOSTAR MODULARIS — Mechanical and Electrical Service

The largest chapter, covering the hands-on service work. Includes the parts overview with item numbers, shock wave head removal and installation (with cover removal, hose routing, temperature sensor seating, and the 48 ± 1 mm hose dimension), cooling unit checking and replacement, filling and emptying the cooling and coupling circuits (valve Y8 operation, degassing valve K), hose pump head service, IWAKI cooling pump removal and installation, charging unit replacement (with the 10-minute wait after switching off), high voltage connector service, cables in the corrugated tubing, air suction hose replacement (split by support arm serial number 0050 vs 0051), board D3 and chip card reader replacement (including Gold card handling rules), pressure measurement, angulation drive and potentiometer service, switch adjustment on the SIREMOBIL Iso-C, balancing spring for the support arm, support arm replacement (with 20 Nm torque), rotary joint lock replacement, and probe replacement for both sector and convex probes.

Iso-Center with X-Ray

Covers the iso-center adjustment procedure for the LITHOSTAR MODULARIS when coupled to a SIREMOBIL Iso-C. Split by support arm serial number: the “to support arm serial number 0050” section covers adjustment on the shock wave head, and the “from support arm serial number 0051” section covers adjustment on the SIREMOBIL Iso-C. Includes the 0° position adjustment, the ±20° position checks (with the ±2 mm tolerance between the two 20° positions), the correction procedures using the shock wave head adjustment screws, and the “LithoShare” execution where one LITHOSTAR MODULARIS couples to multiple SIREMOBIL Iso-C units without re-setting the iso-center.

Iso-Center with Ultrasound

Detailed procedures for checking and adjusting the ultrasound iso-center across three SONOLINE ultrasound units: G20, Adara, and Prima. Covers probe holder preparation, target checking, image tilt verification (with the water bladder filling procedure using 100–120 ml of distilled water), the distance checks for height and side (D1 and D2 values with tolerances), and the image tilt correction entry using half the D2 value. Notes the required probe types and the default values cross-referenced to SPL1-130.038.01.

Memoscope Programming

Covers the standard programming for the SIREMOBIL Iso-C organ program used with the LITHOSTAR MODULARIS. Documents the “Litho” program name and the operating mode settings (DLI, DLDR, SUB, Roadmap) with their dose rate, SIREMATIC normal/push, noise reduction, dose reduction, and disk transfer settings.

MUP Menu Ultrasound Device

Explains the MODULARIS cross selection on the SONOLINE G20, Adara, and Prima, along with the ultrasound localization setup. Covers the required probes (convex array 3.5 MHz, sector probe), the MUP menu settings (baud rate 9600, data length 8, parity, stop bit 1, ACK code 06), the label to affix to the ultrasound unit, and the software version readout procedures for each ultrasound model.

What This Manual Enables You to Do

With the Siemens MODULARIS Uro Plus service instructions on hand, a technician can:

• Read and interpret all E00–E99 error codes from the console or the board D3 display, and follow the manual’s cause/action tables to isolate faults in the water system, controls, monitoring, high-voltage circuit, and ultrasound integration.
• Connect a service PC and use the Terminal program to pull error logs, therapy data, pulse counters and chip card data — and to clear counters after replacing the shock wave head, charging unit, or spark gap.
• Perform the full shock wave head replacement sequence: cover removal, coupling bellows removal, high-voltage connector handling, hose installation (with the red-marked hose placed next to the high-voltage connector and the 48 ± 1 mm cut dimension), temperature sensor seating, air suction hose routing, and counter reset.
• Service the cooling and coupling circuits: fill and empty procedures, valve Y8 and degassing valve K operation, hose pump head and IWAKI pump service, and cooling unit replacement.

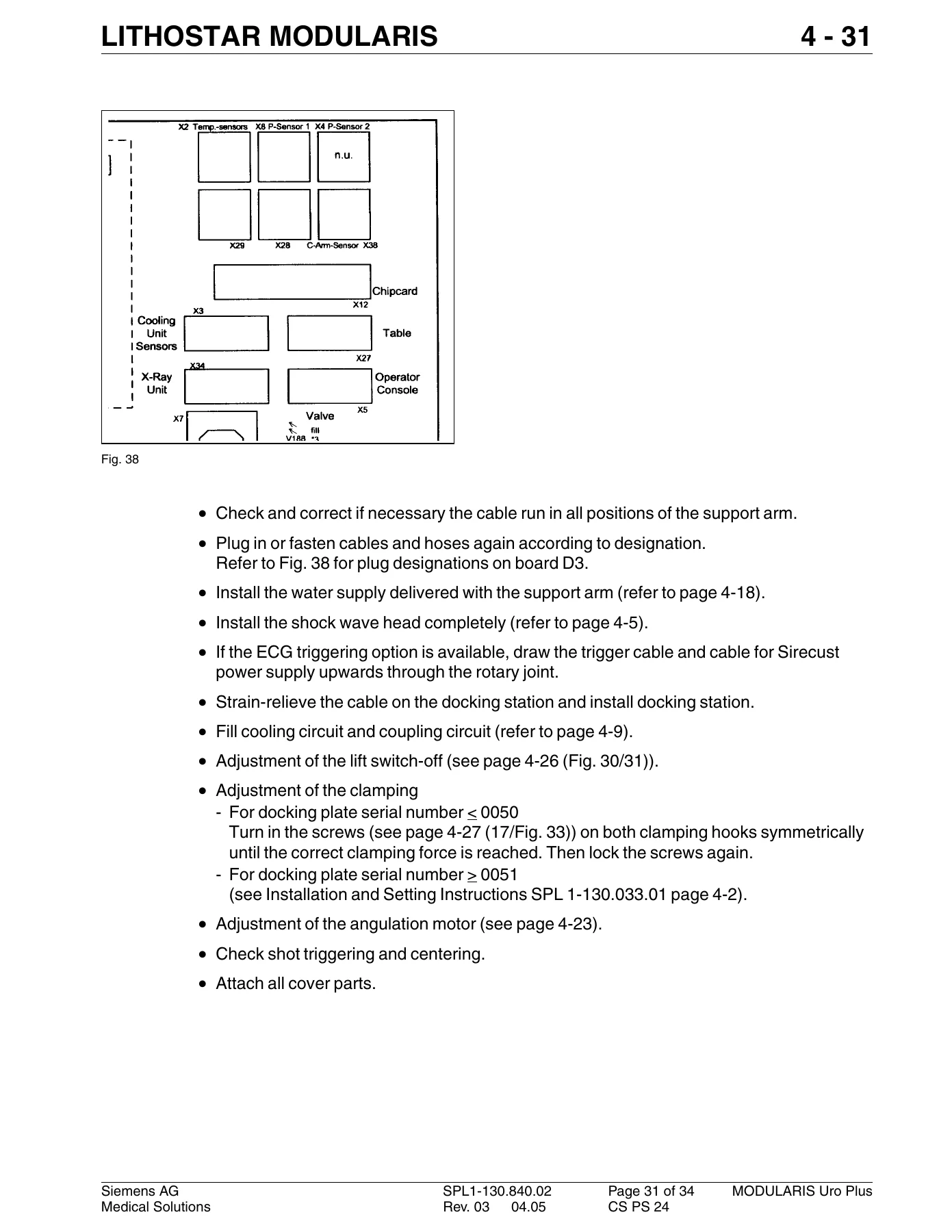

• Replace and configure board D3, including the chip card reader, Gold card handling rules, software download via Hyper Terminal, and post-replacement system settings (time, language, table orientation, pulse rate, ECG triggering).
• Adjust the iso-center with X-ray: 0° position setup, ±20° checks, and the correction procedures for support arm serial number 0050 and 0051 — including the LithoShare multi-SIREMOBIL configuration.
• Check and adjust the ultrasound iso-center on SONOLINE G20, Adara, and Prima, including image tilt correction and the distance checks (D1 and D2 values).
• Replace the angulation drive, potentiometer, support arm, rotary joint lock, and both sector and convex probes.

The value here is in the specifics. This manual gives you the actual values — the 0.2-ohm protective conductor limit, the 1 mA leakage current threshold, the 48 ± 1 mm hose dimension, the 18 Nm and 20 Nm torque figures, the 500 ± 10 ohms potentiometer setting, the ±2 mm tolerance on the 20° positions, the 100–120 ml water bladder fill, the D1 tolerances for each ultrasound probe. Those are the numbers that separate a correct repair from a return visit.

Get the Manual

This Siemens MODULARIS Uro Plus service manual PDF is delivered instantly after payment — no shipping, no waiting. The file works on any device: desktop, laptop, tablet or phone. Print the pages you need for the job, or keep the whole manual on a shop computer for quick error-code lookups. Whether you are diagnosing a persistent E70 charging current fault, replacing a shock wave head, or resetting the iso-center after a board replacement, this is the reference that tells you what to check, what value to expect, and what to do next.
