STILL EXU-H Electric Pallet Truck Spare Parts Catalogue – Multilingual PDF Parts List for the EXU H Supplementary Lift Truck

Description

File Details

• Manual type: Spare Parts Catalogue (Ersatzteilliste)
• Brand: STILL
• Model: EXU H electric pallet truck with supplementary lift
• Document reference: EXU-H (0202)
• Document date shown: 26.03.2014
• Languages: German, English, French, Italian, Spanish
• Page count: 226
• File format: PDF

Chapters Covered

The catalogue is organised under the STILL system headings listed on the contents page. Each heading below groups the sections that appear inside it in this PDF.

• Motor
• Transmission
• Chassis; Bodywork and Fittings
• Undercarriage
• Controls
• Electric / Electronic
• Hydraulic
• Lift System
• Special Equipements

Motor — Drive Motor and Pump Motor

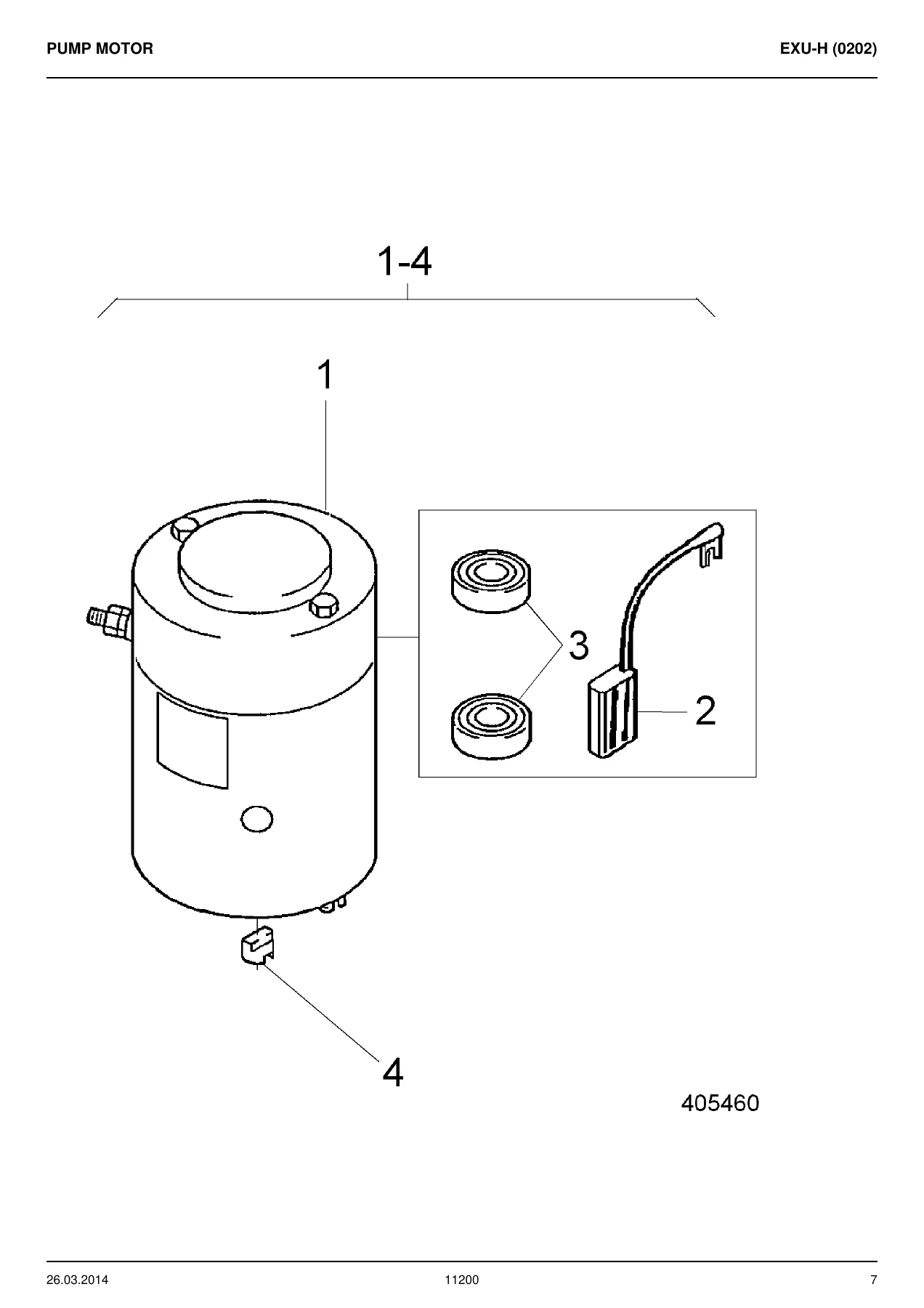

Traction motor assembly with lock rings, grooved ball bearing, spring, brush yoke ring, carbon brushes and wire. Pump motor with carbon brush set, ball bearings and catch. Exploded drawings of both motor units with numbered callouts so the correct part number for each component can be matched visually.

Transmission

The transmission gear assembly breakdown spanning parts 1 through 28 — housing, bevel pinion, shaft retainer, cover without breather, studs, spacers, staying pieces, plain washer, rim bearing, grooved ball bearing, taper roller bearing, retaining rings, seal, plug, outlet valve, cotter, pins and screws. A separate electromagnetic brake section covers the brake assembly, brake disc, brake hub and set. A dedicated exploded view of the whole transmission gear assembly shows how the bevel pinion and cover sit relative to the housing.

Chassis; Bodywork and Fittings — Fork Frame, Cowl and Covering

Chassis assemblies listed for the B5=524, B5=564 and B5=670 fork sizes, including the With Wheel version, plus the ALDI and TROG 112 chassis variants. This chapter also carries battery covers, clamps, locks, the stability wheel, hoods (standard, control unit and fleet manager), bumper rubbers, supports, motor hood, dashboard, cowlings, paneling, cable grommets, foam, ceiling light, bulb, damping plate, trunnions, spacers and hexagon hardware used across the fork frame and bodywork.

Undercarriage — Drive Wheels, Stability Wheel, Single Roller and Tandem Roller

Drive wheel assemblies in Vulkollan 93 Shore, Vulkollan antistatic, Vulkollan corrugated, solid rubber 75 Shore in smooth, antistatic, corrugated and no-marking versions, Greythane 75 Shore, Tractothan 93 Shore, Polyurethane quartz 93 Shore, Tractopur slipping ground 80 Shore and Vulkodyn tropical climate 94 Shore. Load caster assemblies are broken down with levers, bearing bushes (25x28x21,5), roller widths at 80 mm and 60 mm, bolts, spring dowel sleeves, roller supports, spacers, countersunk screws and washers for single and tandem roller configurations.

Controls — Tiller, Handle Head and Key Switch

Tiller arms in L=261 mm, L=302 mm and L=421 mm lengths, each with its matching guard plate and gas spring. Potentiometer assemblies, switches, cutting screws, plain washers, shafts, spring dowel sleeves, rings, stops, pins, plates, bearing bushes and countersunk screws. The key switch is documented in its 3-position form with washer and label. The tiller cable harness is shown as a full wiring diagram with the 18-way upper contact block, the 14-way lower connector, the bushing housing 14-pin and the X10 and X20 connector pinouts.

Electric / Electronic — Equipment, Cables and Harness

Electric equipment in DIN 80A, DIN 160A and SBE 160A specifications. Main cables, contactors, insulating plates, supports, angle plates, fuses (125 A and 150 A), fuse elements, fuse links and fuse blocks, horn, impulse control system DC, relay, zener diode, diode assemblies, harness assemblies, cable trees, plug housings, socket contacts, tabs, cable clips, bulb socket, socket SW, gaskets and bushings. Battery cable (socket) and battery cable (plug) variants are listed for DIN 80A, DIN 160A, SBE 160A and SBE 175A, each with reducing sleeves, handles, hexagon nuts, socket-head screws and DIN125 washers.

Charging Set

Battery charger for lead and for gel batteries with the matching harness, plate assembly, base, fuse elements, button head screws, clamps and label. Charging set wiring harness assemblies are listed for the EC, GB and CH plug standards.

Hydraulic Unit

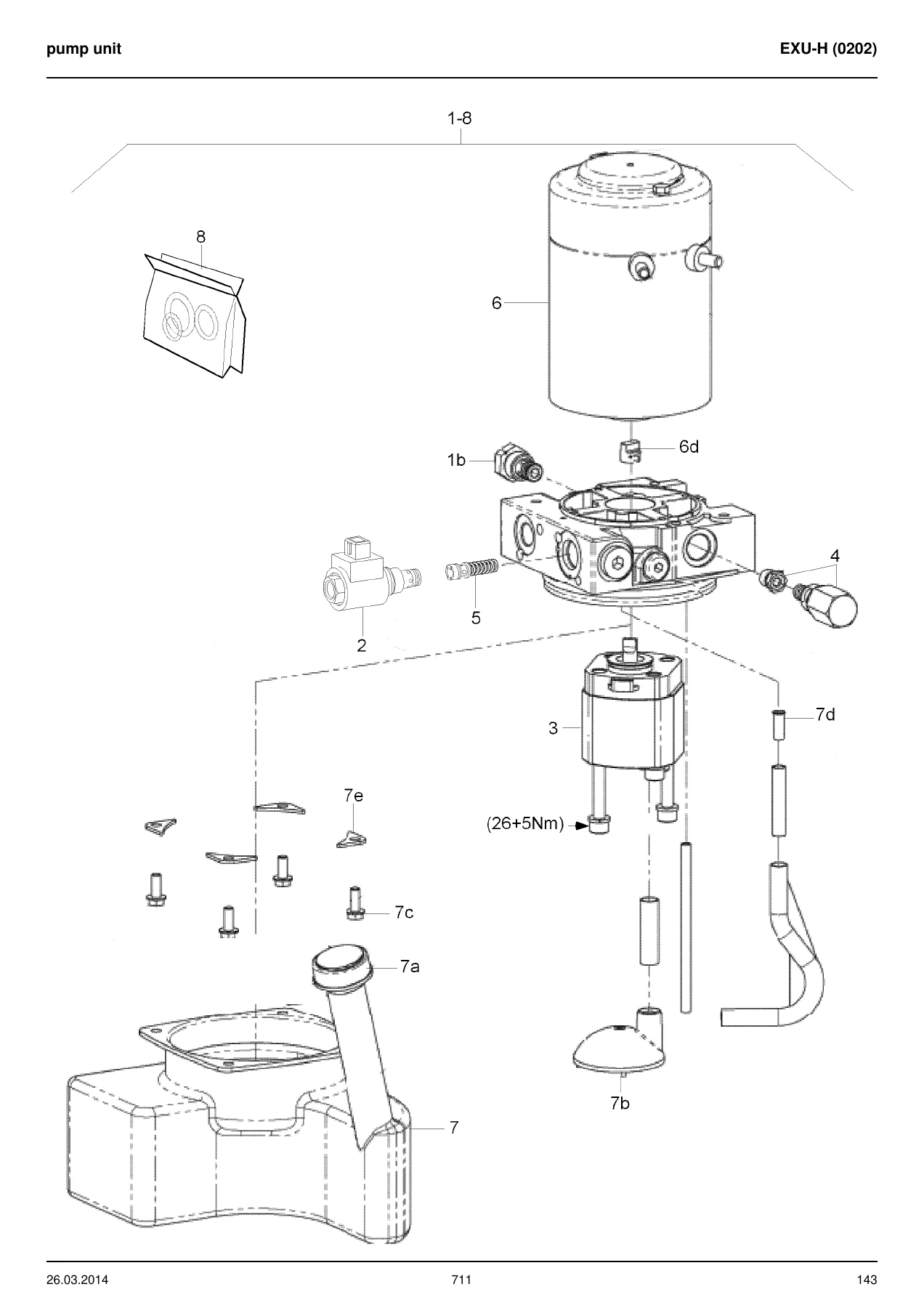

Baseplate, pump unit, lift cylinder for basic lift (both the pre-17.06.2007 and 18.06.2007-onward versions), hoses, hydraulic fitting, unions, connections, threaded pipe, shim rings, pipe STU, socket-head screws, way valve, regulator, plug screw, seal ring CU, ball joint, cone pan, retaining ring, valve block, holder and pipe union. A numbered exploded view of the pump unit shows the check valve, solenoid valve, pump, pressure fuse, valve, pump motor, tank, plug, filter, screws, pipe, staying pieces and seal kit in place.

Lift System — Lift Cylinder and Lift Console

Lift cylinders for basic lift and for the lift console, piston rods, seal kits and flanges. Lifting consoles in L=990, L=1190, L=1150 and L=1290 matched to B5=524, B5=564 and B5=670. Chains, chain locks, rollers (Ø 69.9 mm, Ø 70.2 mm and Ø 70.5 mm), axles, cotter pins, roll pins, chain pulleys, shims of 28.5x38x0.3 mm and 28.5x38x1.0 mm, and switches. Fork carriage assembly and pressure rod assembly listings close out the section.

Special Equipements — Loadguard, Screen Grid, Labels and Medallion

Loadguard assemblies, load backrest assembly and screen grid assemblies at H=1000 mm and H=1200 mm heights, with threaded pins, hexagon nuts, heat shields, countersunk screws, rubber strips and screws. Labels and identification: STILL nameplate, capacity diagram 2000 kg, cold store label, safety label, text labels, note plates, medallion and plate.

Part Number Index

A complete numerical index at the back of the catalogue lists every part number used in the PDF alongside the page on which it appears, so a component can be located directly from its number without hunting through the exploded views.

What This STILL EXU-H Parts List Lets You Do

Because every assembly in this EXU-H electric pallet truck is drawn and numbered, this spare parts catalogue is the tool you reach for when a component needs identifying, cross-checking or replacing. Whether the job is a traction motor brush set, a transmission bevel pinion, a load caster roller, a tiller arm gas spring, a potentiometer, a contactor, a lift cylinder seal kit, a chain or a hydraulic union, the catalogue gives you the part number and the drawing that shows where it sits. Fork sizes B5=524, B5=564 and B5=670 are separated throughout, so you order the correct variant rather than a part that looks right but fits the wrong chassis. The battery cable section alone distinguishes DIN 80A, DIN 160A, SBE 160A and SBE 175A, socket and plug, and lets you match the connector type actually fitted to your truck.

Ordering the wrong part on a warehouse pallet truck costs time, freight and a return. Working from the exploded views with the correct part numbers is what keeps the truck on the floor. The multilingual format — German, English, French, Italian and Spanish on the same document — means the catalogue is readable by the technician, the storeman and the parts desk without needing a translated copy.
