TCM Forklift Parts Catalogue PF-36PC — FG30C6, FG30T6, FG30W6, FD30C6, FD30T6 & FD30W6

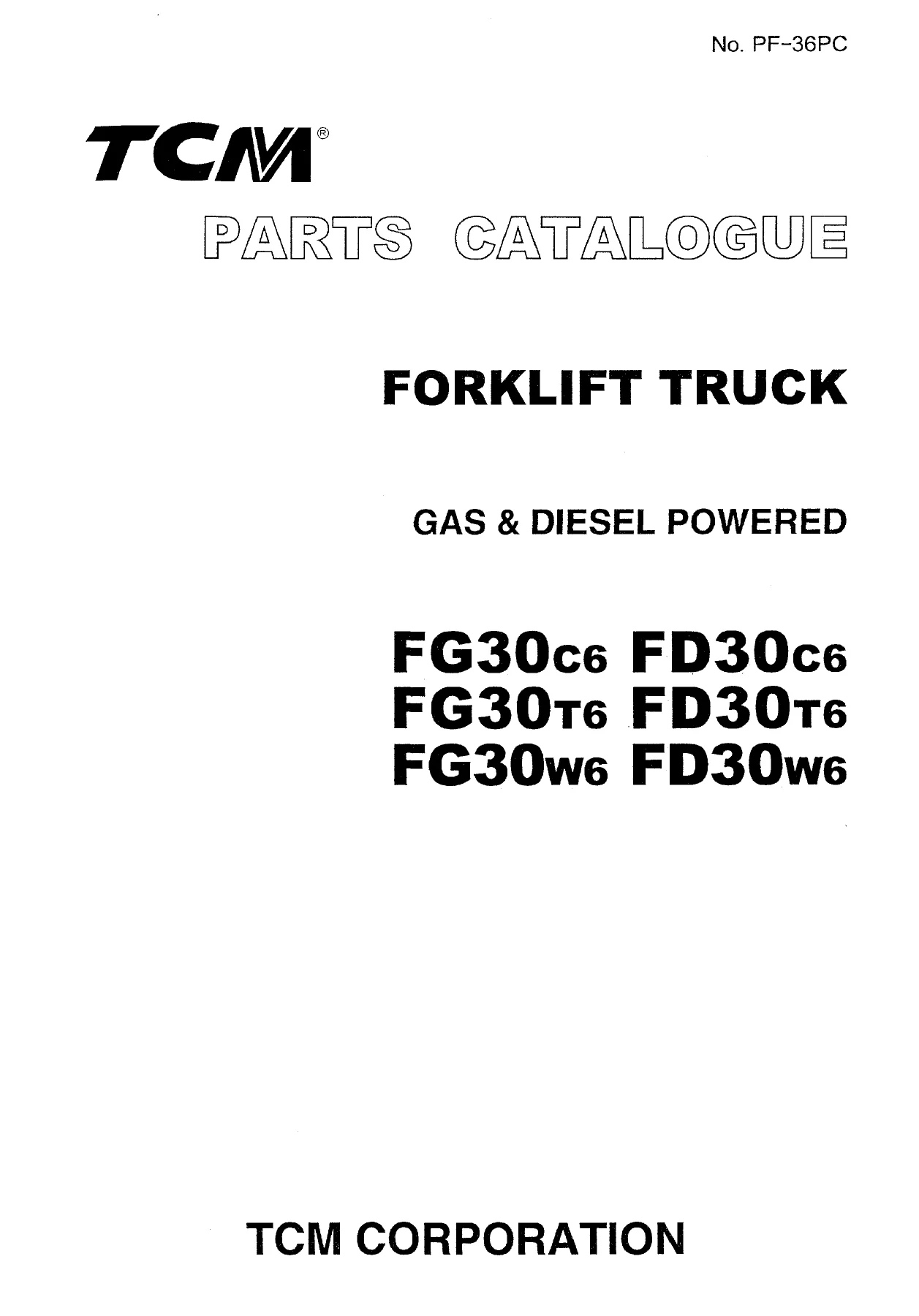

When a machine is down, the part number is the whole job. This is the TCM parts catalogue PF-36PC for the FG30C6, FG30T6, FG30W6, FD30C6, FD30T6 and FD30W6 gas and diesel forklift trucks, issued by TCM Corporation. It is a 594-page illustrated parts breakdown that lists every serviceable component by figure number, item number, part number, description and required quantity, so you order the exact component the first time instead of guessing at a lookalike.

File Details

• Manual type: Illustrated parts catalogue
• Brand: TCM Corporation
• Models covered: FG30C6, FG30T6, FG30W6, FD30C6, FD30T6, FD30W6
• Document number: PF-36PC
• Language: English and Japanese
• Page count: 594 pages
• File format: PDF

Chapters Covered

• Chassis (CHASSIS / シャーシ)
• Mast (MAST / マスト)

Engine, Air Intake and Cooling

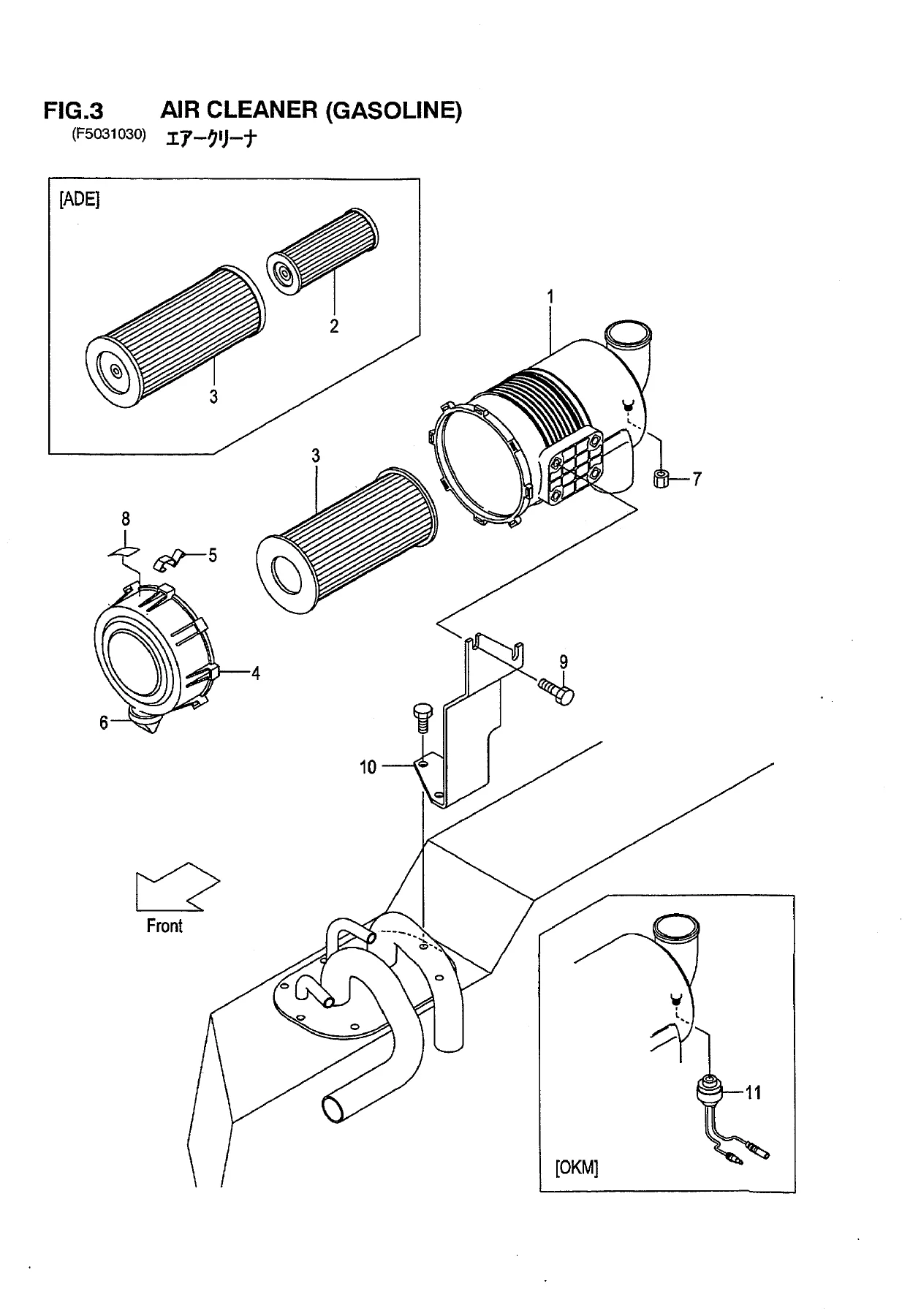

The catalogue opens with the engine assembly and its ancillaries: air cleaner assemblies for both gasoline and diesel variants, pre-cleaner with sleeve, body and cover, air ducting, cooling unit with radiator assembly, reserve tank, fan shroud variants and the dust screens that fit them. Each figure carries its own itemised parts list, so you can trace a hose clamp, radiator cap, fan shroud bolt or complete air cleaner canister down to the required quantity.

Fuel and Exhaust

Fuel top plate assemblies, fuel filters, hoses and clips for the gasoline and diesel layouts are covered, along with the exhaust system, muffler and the DPF muffler kit used on diesel machines — including the inlet, filter and outlet units, V-band clamps, temperature and pressure sensors, solenoid valve, air pump and controller that make up the DPF assembly. Mounting brackets, rubber isolators, washers and bolts are all broken out individually.

Electrical, Instruments and Operator Aids

A large electrical block covers the combination meter for gasoline and diesel machines (including the EECG and EECLP variants), steering shaft covers for clutch, oil clutch and Tor-Con drivelines, front and rear electric parts, fuse boxes, relays, flasher units, starter switches and keys. The wiring section goes further with front guard wire harnesses, engine wire harnesses, licence lights, rear working lights, revolving lights, spot lights, the back buzzer, ammeter, speed meter, speed detector unit, speed alarm systems and the OK monitor. Every harness, lamp unit, bulb and connector is listed with its part number.

Drive Unit, Transmission and Torque Converter

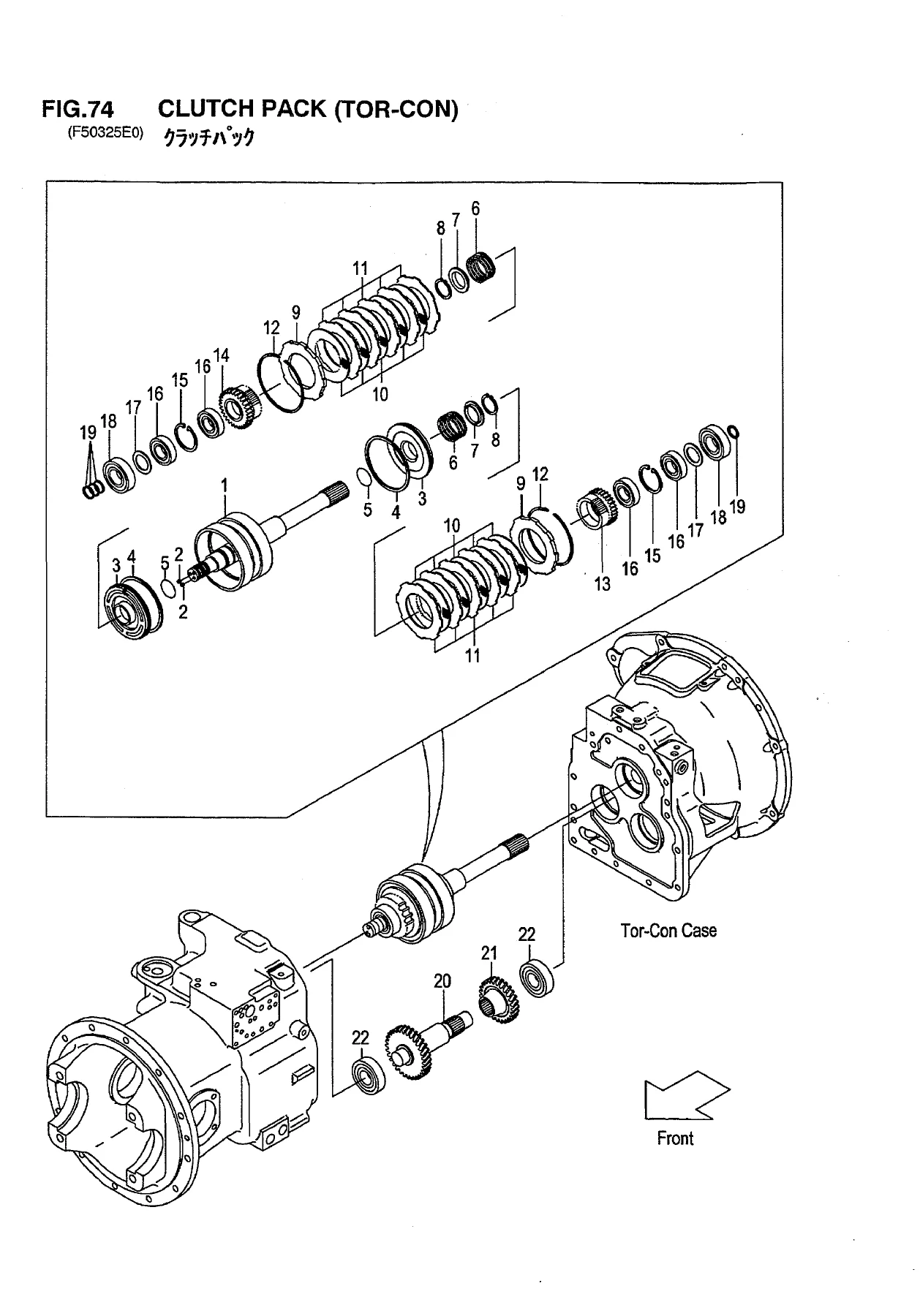

Drive unit mounts for clutch, oil clutch and Tor-Con machines, clutch assemblies, mission cases, mission gears, synchroniser assemblies and shift forks are all covered. Torque converter machines get their own case, charging pump, clutch pack, control valve and reduction sections, broken down to individual plates, pistons, seals, snap rings and bearings. This is the chapter that makes a transmission overhaul orderable part by part.

Differential, Drive Axle, Brakes and Wheels

The differential section lists ring gear, cross case, spider, side gears, pinion gears and thrust washers in graded thicknesses. Drive axle and wheel brake chapters cover the axle housing, drive shafts, hubs, brake drums, wheel cylinders, brake shoes and linings, adjusters, levers, springs and parking brake cables for both RH and LH sides. Front and rear wheel sections appear in multiple variants keyed to the machine code, so you can match the exact wheel and tyre fitment for your truck.

Steering and Front End

Steering wheel units, gear boxes, orbitrol units, drag links, steering axles, axle supports, hub nuts and pitman arms are listed, including the PSS power steering variants. Power cylinders, cylinder boots, overhead guards, front and rear pipes, lamp brackets, head guard parts and the accelerator and foot pedals round out the front-end and operator-area coverage.

Mast and Fork Assembly

The mast chapters cover fork, lift bracket, backrest, mast, tilt gauge, lift cylinders (front and rear), mast piping and hose routing for the VM39F and VFHM39F mast families. These are the figures you need when replacing a lift cylinder seal kit, a carriage roller, a chain anchor or a hydraulic hose on a three-stage mast.

Why This Parts Catalogue Matters

Forklift part numbers change by serial break, by transmission type and by mast variant — and the differences are not visible from the outside. This catalogue ties every part to a figure, a machine code and, where applicable, a serial number break, so you can identify the correct component for a clutch truck versus an oil clutch truck versus a Tor-Con truck before you place the order. The diagrams also double as assembly references during a rebuild: you can see the order of washers, spacers, snap rings and seals as the factory intended, which is exactly what prevents a repeat strip-down.

IMAGES PREVIEW

Instant PDF Delivery

The TCM PF-36PC parts catalogue is delivered as a PDF the moment payment clears — no shipping, no waiting for a disc, no customs delay. Open it on a workshop laptop, a tablet on the machine or a phone at the parts counter, zoom into a figure, print the pages you need and take them to the bench. Whether you are maintaining a single FG30C6 or running a mixed fleet of FD30T6 and FG30W6 trucks, this is the reference that turns a vague description into a part number.
