Toyota 1ZS Engine Repair Manual CE304-1

This is the complete Toyota 1ZS Engine Repair Manual, publication number CE304-1, first printed December 2014. It covers repair procedures for the 1ZS model diesel engine equipped on Toyota Industrial Vehicles. The manual spans 474 pages across nine sections, from general specifications through to a full appendix of service standards and tightening torques. Every procedure is written for the technician working on the 1ZS common rail diesel engine in Toyota forklifts and industrial equipment.

File Details

• Manual type: Engine Repair Manual
• Brand: Toyota
• Model: 1ZS
• Engine: 1ZS diesel, in-line 3-cylinder, common rail, direct injection, DOHC 4-valve, VN turbo
• Language: English
• Page count: 474
• File format: PDF
• Publication number: CE304-1
• Edition/Date: First printing December 2014
• Publisher: TOYOTA Material Handling Company, A Division of TOYOTA INDUSTRIES CORPORATION

Chapters Covered

• GENERAL
• TROUBLESHOOTING
• ENGINE OVERHAUL
• FUEL SYSTEM
• COOLING SYSTEM
• STARTING SYSTEM
• LUBRICATION SYSTEM
• CHARGING SYSTEM
• APPENDIX

GENERAL

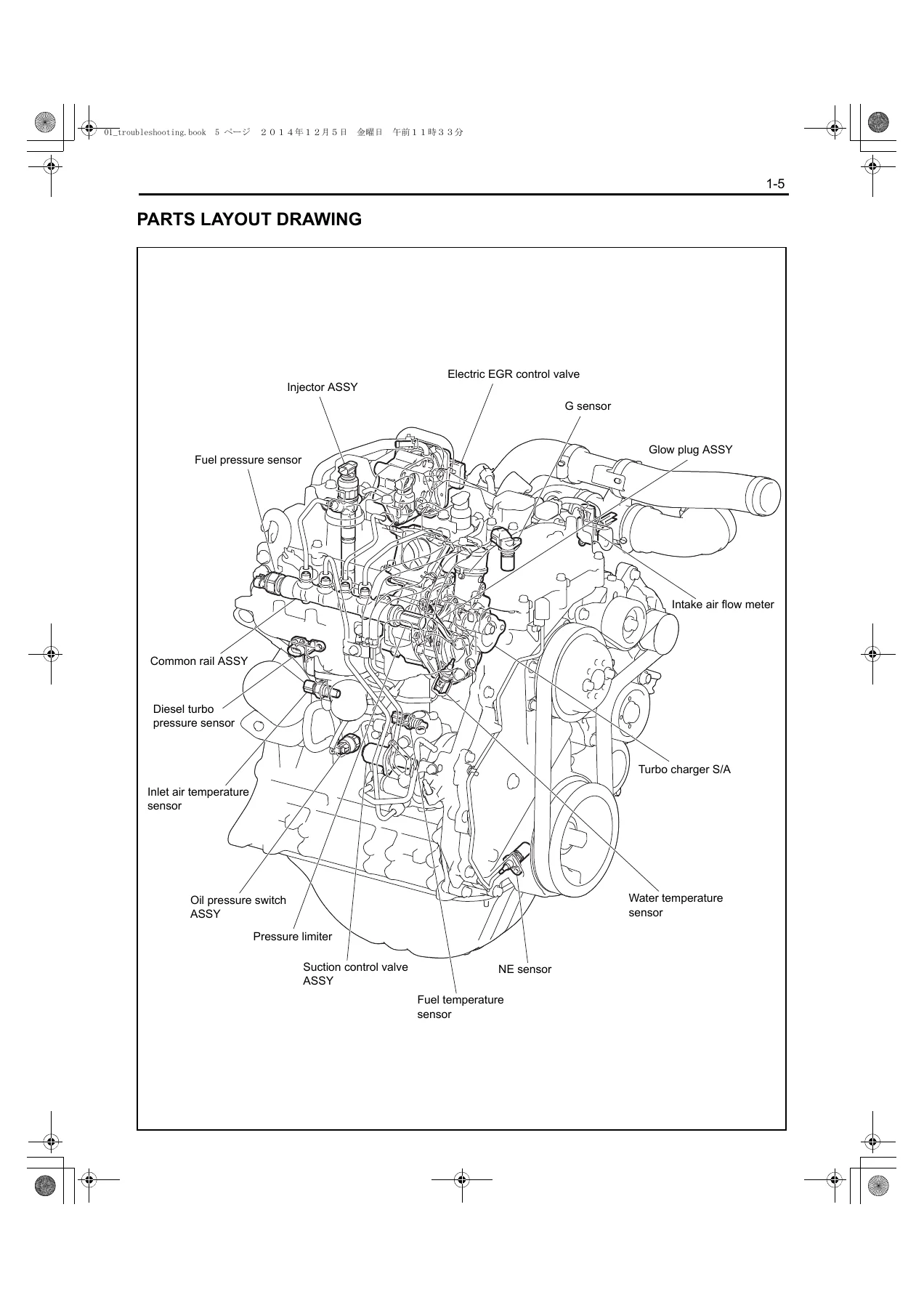

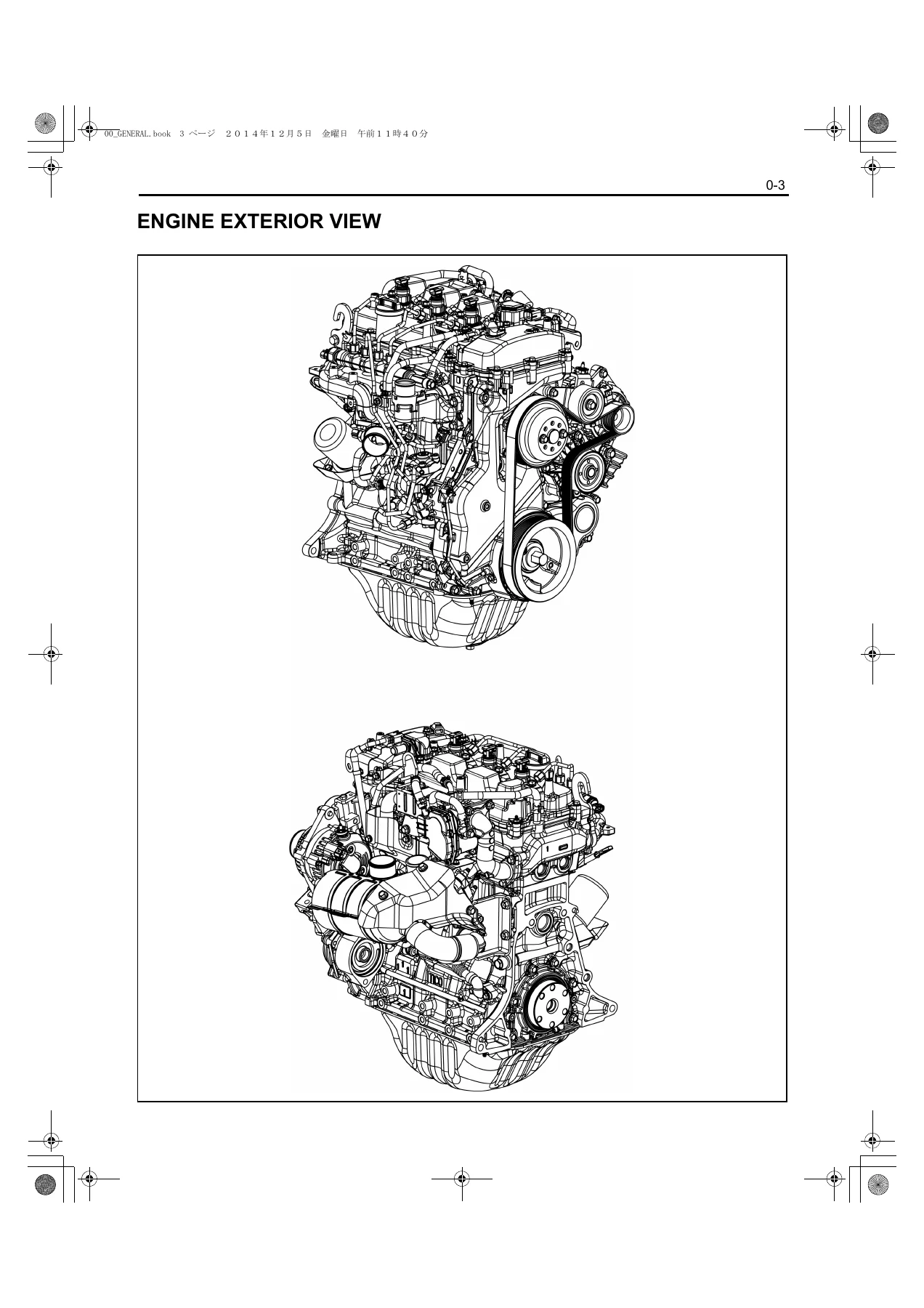

Section 0 establishes the foundation for every job in the manual. It contains the 1ZS engine specifications table — diesel, 4-cycle, in-line 3-cylinder, injection order 1-2-3, pinion shift starting, common rail fuel supply, direct injection combustion chamber, roller rocker arm type DOHC 4-valve chain and gear drive, crossflow intake and exhaust, and electronically-controlled variable nozzle turbo. You get engine exterior and sectional views, the explanation method for reading procedures, terminology, abbreviations, operation precautions, inspection of electric parts, simulation of defect phenomena, standard bolt and nut tightening torque tables, bolt strength class identification, precoated bolt handling, SI units, and FIPG (liquid gasket) handling instructions. The section includes torque tables for standard bolts, hexagon flange bolts, and the formula for using extension tools with a torque wrench.

TROUBLESHOOTING

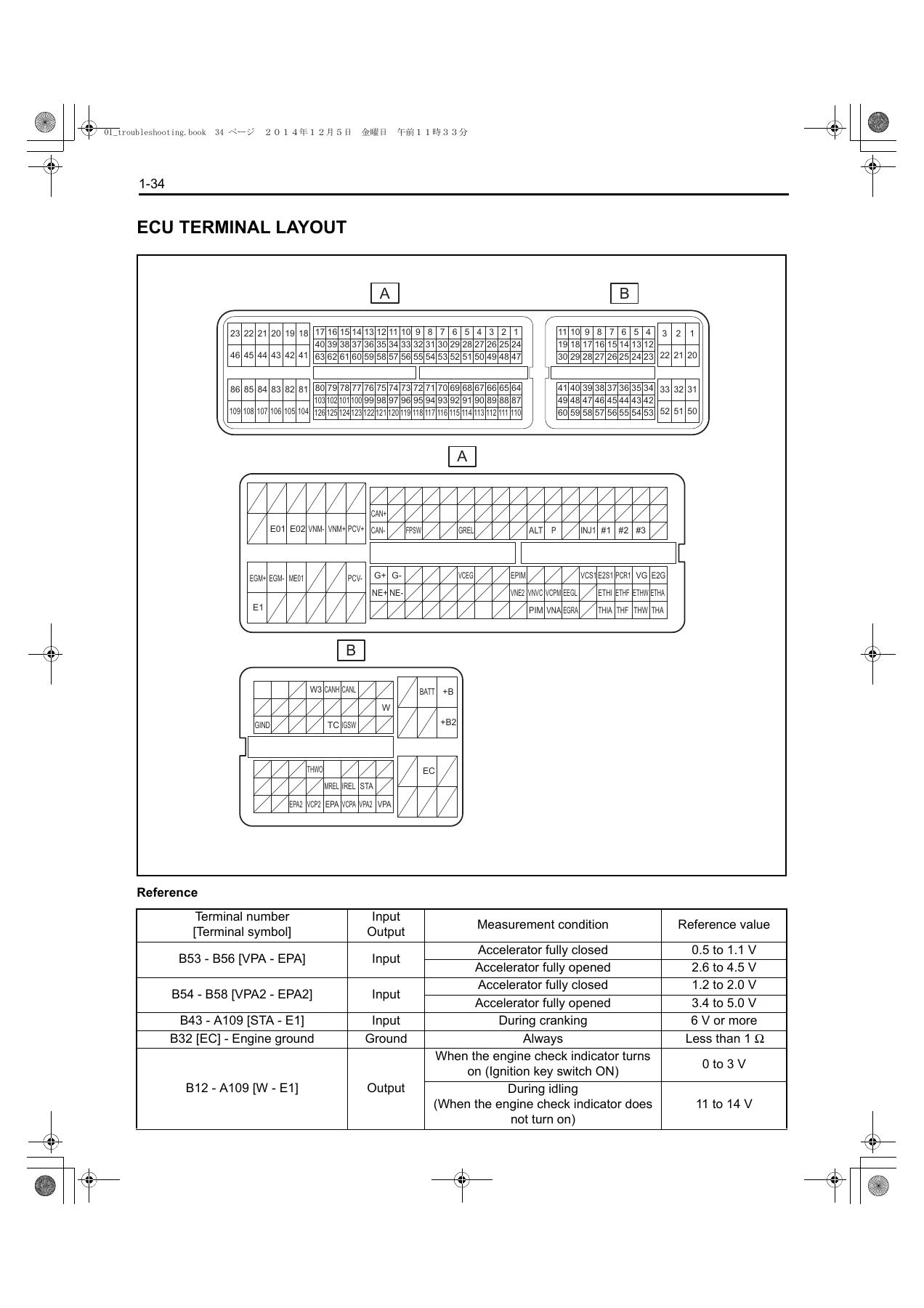

The largest section at over 300 pages, this covers the ECD (Electronic Control Diesel) system in exhaustive detail. It opens with cautions, function inspection, and basic inspection procedures — battery, cranking, engine start, air filter, idle speed, fuel pressure, and fuel property checks. A complete diagnosis code list maps every DTC to its detection condition, related data list items, and page reference. The symptom-based troubleshooting charts help you narrow down complaints like hard starting, white smoke, black smoke, lack of power, rough idle, knocking, and abnormal noise. You get the full procedure for reading and deleting diagnosis codes with the Engine Diagnostic Program, freeze frame data analysis, inspection of irregular problems, work support procedures (including injector compensation code reading/writing, supply pump learned value initialization, and fuel system check), circuit diagrams, ECU terminal layouts with reference voltages and resistance values, ECU data monitor lists, active tests, and the fail safe list. Individual inspection procedures cover every sensor and actuator: inlet air temperature sensor, intake air flow meter, NE sensor, G sensor, fuel pressure sensor, suction control valve, injector, turbo charger, EGR valve, accelerator position sensor, atmospheric pressure sensor, and more.

ENGINE OVERHAUL

Section 2 provides the complete mechanical overhaul procedure for the 1ZS engine. It begins with the SST list — all special service tools with part numbers. Procedures are grouped by component: V-ribbed belt removal and installation with deflection adjustment; timing chain removal, inspection and installation including chain tensioner, slipper, vibration damper, camshaft timing sprocket, and idle sprocket; glow plug removal and installation with carbon removal procedure; intake manifold and exhaust manifold removal, inspection and installation including turbo charger oil pipe, water pipes, and EGR cooler pipe; cylinder head disassembly, inspection and reassembly covering camshafts, valve locker arms, valve lash adjusters, valves, valve springs, valve stem oil seals, and valve guide bushes; timing gear case removal, inspection and installation with backlash and oil clearance checks for idle gears; cylinder block disassembly, inspection and reassembly covering pistons, piston rings, connecting rods, crankshaft, bearings, and thrust washers; and engine inspection and adjustment procedures for V-ribbed belt tension, idle speed, no-load maximum speed, and compression pressure. Throughout the section, tightening torques, service limits, and selection tables for bearings, pistons, and gaskets are given.

FUEL SYSTEM

Section 3 covers the common rail fuel system. It includes notes on field service for the common rail system, emphasizing foreign matter prevention and injection pipe reuse rules. The removal, inspection and installation procedures cover the common rail assembly (with cautions about not removing the rail pressure sensor or pressure limiter), injector assembly (including injection nozzle seat, O-ring, nozzle holder clamp, and the critical ID code registration requirement for each injector), and supply pump (including suction control valve assembly and fuel temperature sensor, with O-ring handling and guide pin installation procedures). Pipe replacement requirements are clearly stated: when replacing the common rail, injector, or supply pump, the associated fuel inlet pipe and injection pipes must also be replaced.

COOLING SYSTEM

Section 4 covers the water pump and thermostat. Water pump procedures include removal, inspection of rotors for cracks and bearing check, and installation with gasket alignment. Thermostat procedures include valve opening temperature inspection (80 to 84 °C), valve lift measurement, fully closed check at low temperature, and installation with jiggle valve positioning.

STARTING SYSTEM

Section 5 covers the starter and preheating system. The starter section includes the block diagram, disassembly procedure (pinion gear, brush holder, yoke, armature, internal gear, clutch), parts inspection (armature coil insulation, commutator ellipticity and undercut, brush length, clutch operation, magnetic switch pull-in and holding coils), assembly, and operation check. The preheating system section covers function inspection — glow indicator lamp lighting time, preheating function, and after-glow — with standard values and graphs. Glow plug individual inspection is also included.

LUBRICATION SYSTEM

Section 6 covers oil pressure inspection, engine oil and oil filter replacement (including oil capacity: total 6.5 L, filter replaced 6.1 L, filter not replaced 5.9 L), oil strainer, oil level gauge guide No. 2, oil regulator removal/inspection/installation, and oil pump disassembly, inspection and reassembly with backlash, body clearance, tip clearance, and rotor clearance checks.

CHARGING SYSTEM

Section 7 covers inspection on vehicle (battery terminal, V-belt, fuse, wiring, abnormal sound, no-load test) and alternator removal, inspection, disassembly and reassembly. Detailed procedures cover pulley removal with SST, brush inspection, rotor resistance and slip ring checks, bearing inspection and replacement, and assembly with specified torques.

APPENDIX

Section 8 collects all service standards and tightening torques into one reference. The service standards tables cover turbo charger, cylinder head, camshafts, valves, timing chain, timing gears, connecting rod, crankshaft, cylinder block, piston, oil seal retainer, engine inspection and adjustment, cooling system, lubrication system, and charging system. The tightening torque table lists every fastening point by component with the torque value in N·m and ft-lbf.

What This Manual Enables You to Do

With the Toyota 1ZS Engine Repair Manual CE304-1, you can diagnose and repair the 1ZS diesel engine from top to bottom. Whether you are chasing a diagnostic trouble code on the ECD system, replacing an injector and writing the compensation code, overhauling the cylinder head, setting timing chain alignment, rebuilding the oil pump, or simply looking up the correct tightening torque for a cylinder head bolt, this manual gives you the procedures, specifications, and values you need. The troubleshooting section alone is a complete diagnostic course for the common rail system, covering everything from basic inspection to advanced work support functions.

Correct procedures and specifications matter because the 1ZS is a precision common rail diesel with tight tolerances. Using the wrong torque, skipping the injector ID code registration, or failing to replace specified pipes during reassembly can lead to rough running, fuel leaks, or component damage. This manual gives you the exact sequences, values, and cautions that Toyota published for technicians working on these engines.

This Toyota 1ZS engine repair manual PDF is delivered instantly after payment. There is no shipping, no waiting, and no physical book to store. You can open it on any device — laptop, tablet, or smartphone — and print the pages you need for the workshop. The file is a complete, 474-page reproduction of publication CE304-1, ready to use for maintenance, repair, and overhaul of the 1ZS diesel engine in Toyota industrial vehicles.
