Vashon Ranger R7 Aircraft Maintenance Manual Revision 2 – 2019 PDF

Description

Vashon Ranger R7 Aircraft Maintenance Manual Revision 2 – 2019 PDF

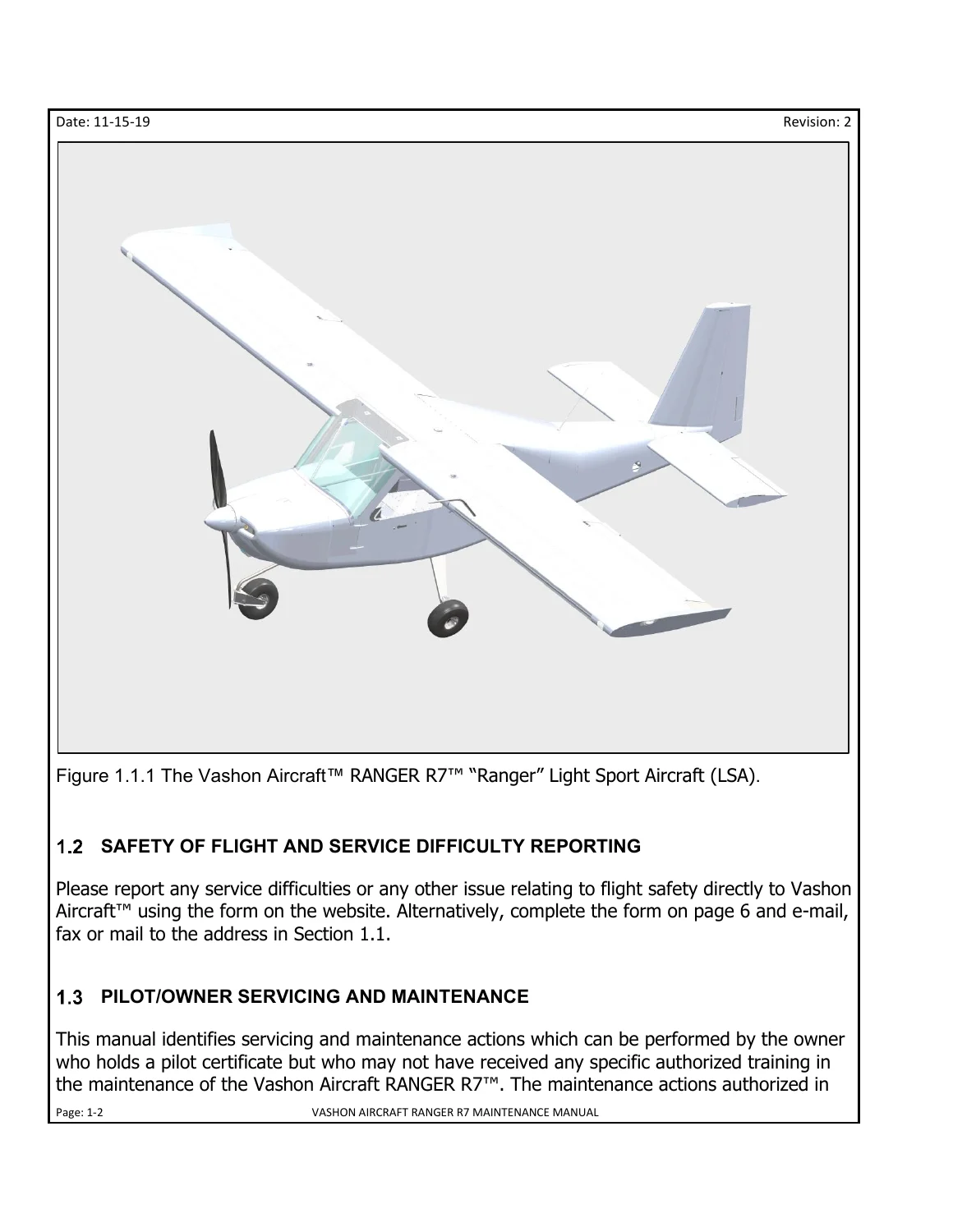

The Vashon Ranger R7 Aircraft Maintenance Manual Revision 2 – 2019 PDF is a detailed maintenance reference for the Vashon Aircraft RANGER R7 Light Sport Aircraft. Revision 2 is dated 11-15-19 and provides servicing and maintenance practices, inspection requirements, maintenance-personnel guidance, troubleshooting information, component removal and installation procedures, aircraft data, torque information, and illustrated system-specific tasks.

This manual reaches well beyond routine servicing. Its maintenance task chapters work through the airframe, flight controls, landing gear, wheel and brake assemblies, Continental O-200-D installation, fuel and induction systems, ignition, propeller, avionics, engine controls, electrical systems, seating, leveling, weighing, parking, storage, and coatings. Numerous procedures are supported by drawings, component views, routing illustrations, troubleshooting charts, inspection criteria, and maintenance data.

Maintenance Scope for the RANGER R7

The Vashon Ranger R7 maintenance manual distinguishes between pilot/owner servicing, preventive maintenance, line maintenance, and heavy maintenance. It includes the preventive-maintenance requirements associated with 100-hour and annual condition inspections and identifies certification requirements for many individual tasks. A maintenance breakdown assigns work such as inspections, flight-control work, wing installation, engine installation tasks, electrical and avionics work, landing gear servicing, and other procedures to the appropriate maintenance authorization levels.

The manual also establishes an important limitation for buyers planning structural or major alteration work. Major repairs and major alterations are not generally authorized by the procedures in this revision. Such work requires Vashon Aircraft involvement or approved engineering data. The repair material included here addresses authorized maintenance and repair activity, including guidance for non-structural sheet-metal and composite repairs. The manual also states that it does not serve as a replacement-parts ordering catalog.

Aircraft Data, Service Specifications and Inspection Information

General aircraft information includes Ranger dimensions, control-surface deflections, equipment references, fluid and lubricant information, tire pressures, fastener torque practices, specific torque requirements, replacement intervals, and safety procedures. The engine data identifies the O-200-D four-cylinder engine, while servicing material includes approved oil information and oil-system procedures. Fuel servicing information covers Aviation Grade 100/100LL fuel, the main and header tanks, drains, filters, venting, fuel-level indication, and fuel-system troubleshooting.

The inspection chapters explain visual, operational, and functional inspection criteria. Condition inspection requirements are tied to the annual inspection interval, while commercially operated aircraft are addressed through 100-hour inspection requirements. Appendix A provides the inspection forms referenced by these sections. Replacement-interval information addresses items including the engine, alternator, starter, induction air box, flexible fuel and oil lines, ELT batteries, and engine-mount bushings.

Illustrated Removal, Inspection and Installation Procedures

A major portion of the Vashon Ranger R7 Aircraft Maintenance Manual Revision 2 – 2019 PDF is devoted to practical aircraft maintenance tasks. Procedures show how the aircraft may be raised at different points, followed by detailed work on the windscreen, fuselage access areas, wings, empennage, control surfaces, landing gear, wheels and brakes, cowl, engine-related installations and multiple aircraft systems.

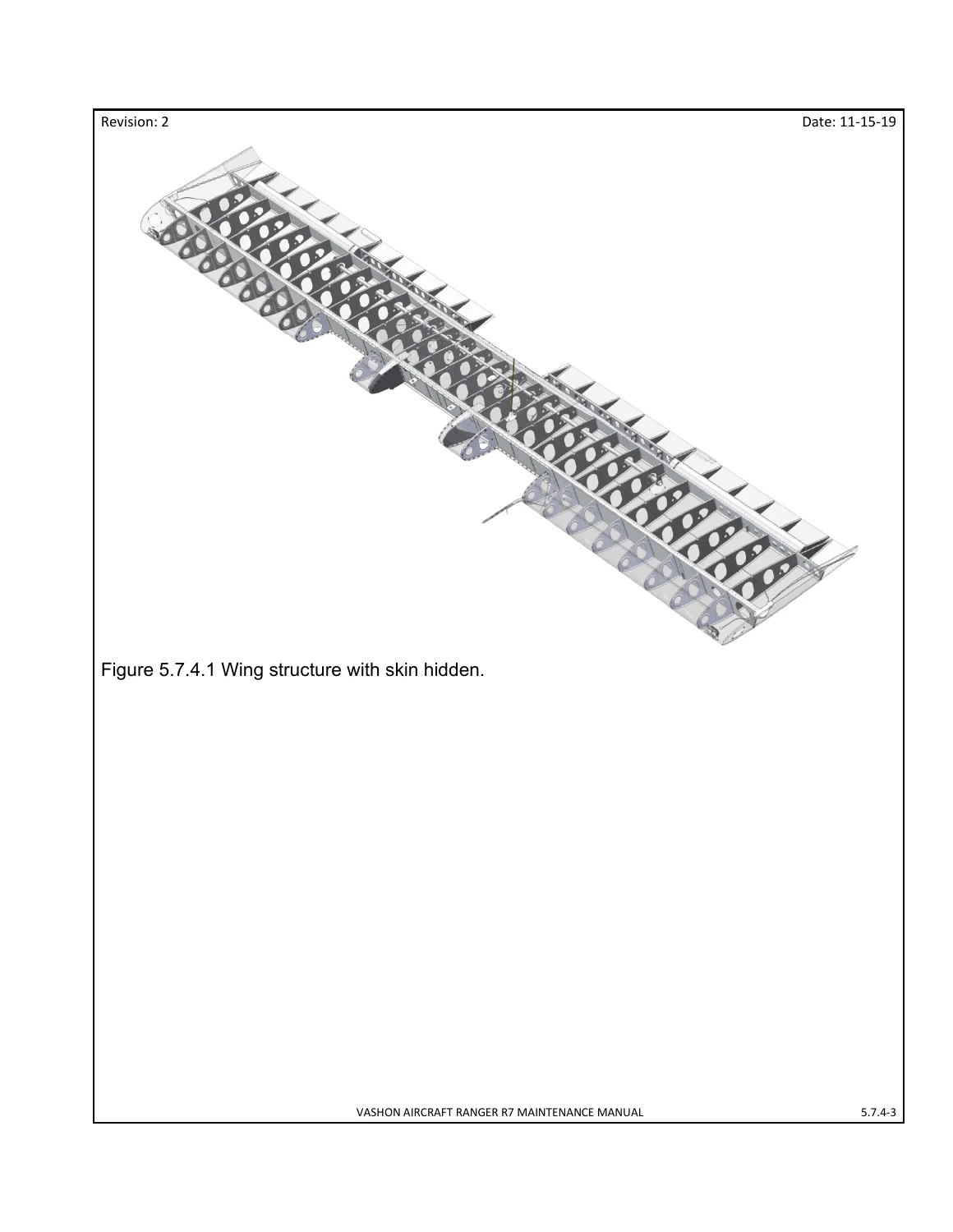

Flight-control coverage includes ailerons, flaps, rudder, elevators, rudder pedals and linkage, along with troubleshooting and rigging guidance. The wing section illustrates structural arrangement and removal steps involving the windscreen, flight controls, fuel and vent lines, electrical connections, antenna cable, spar fasteners, and wing attachment hardware. Empennage procedures cover inspection plus vertical and horizontal stabilizer removal and installation.

Landing gear and brake chapters address the fixed tricycle landing gear, main gear, axle subassemblies, nose gear and nose fork, wheel assemblies, hydraulic disc brakes, calipers and master cylinders. Troubleshooting tables address conditions such as landing-gear vibration, nose-wheel turning behavior, brake drag, inoperative brakes, excessive pedal travel, rapid wear and insufficient braking. Inspection information includes wheel, tire, tube, bearing, disc, lining, caliper and master-cylinder checks.

Engine, Fuel, Ignition and Propeller Coverage

The Ranger R7 is identified in the manual with a Continental Motors O-200-D, described as an air-cooled, direct-drive four-cylinder powerplant rated up to 100 HP at 2750 RPM. Aircraft-level troubleshooting addresses starting problems, irregular idling, rough running, poor acceleration, low power, low oil pressure and high oil temperature. Oil-system servicing includes an illustrated engine oil and filter change procedure and oil-cooler removal and installation information.

The engine chapter is not intended to replace the Continental engine overhaul documentation for internal engine repair or overhaul. Instead, it supports diagnosis and aircraft-level servicing while directing specialized engine work to the applicable Continental publications.

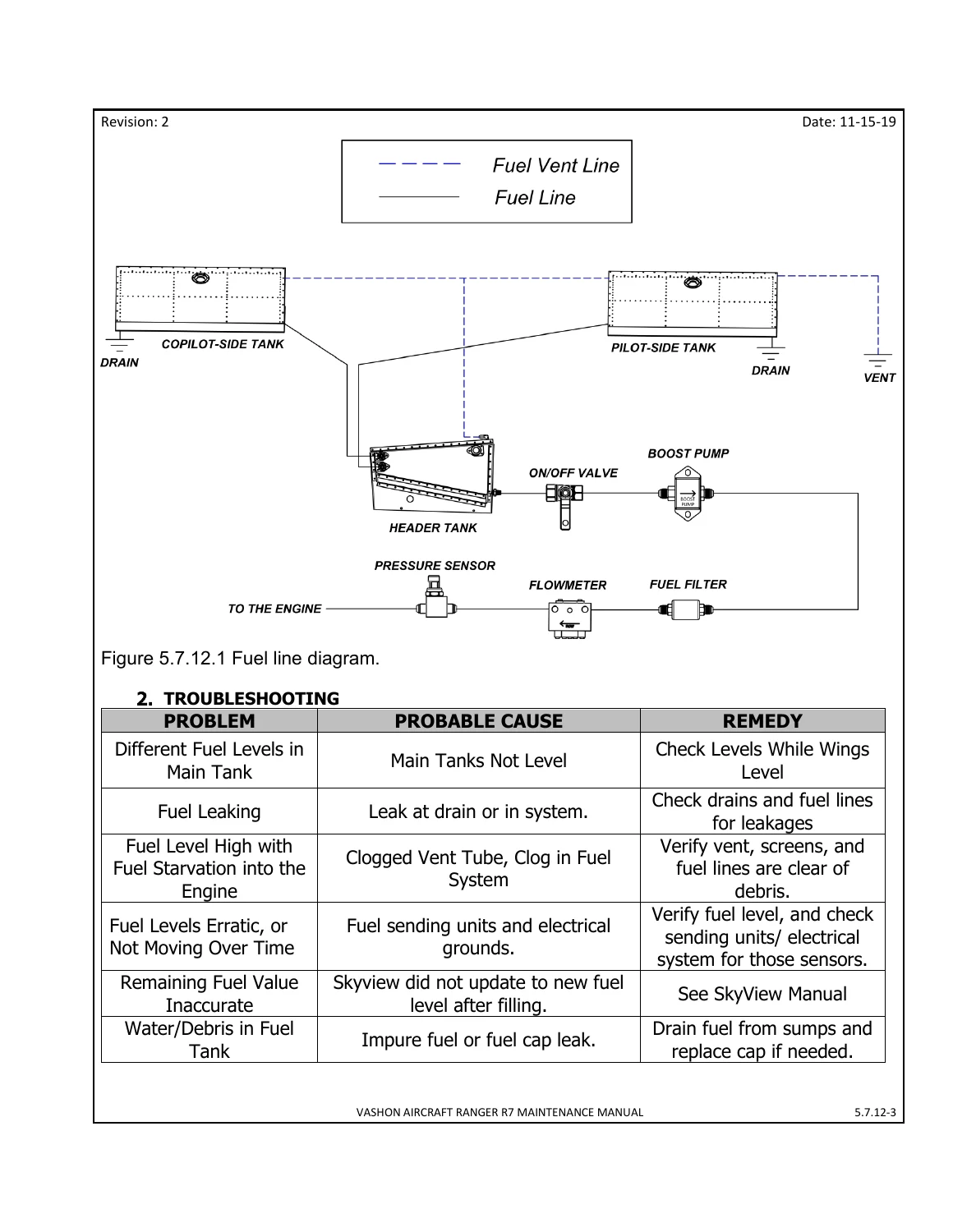

Fuel-system material describes the wing tanks, header tank, drains, vent arrangement, boost pump, filter, fuel-flow transducer path and carburetor supply. Procedures include draining fuel, replacing wing-tank sumps and tanks, and servicing fuel filters and the carburetor inlet screen. Separate chapters cover induction-air filter servicing, carburetor heat controls and routing, stainless-steel exhaust components and heat exchangers, spark plugs, magnetos, throttle and mixture controls.

The propeller chapter covers the CATTO two-bladed fixed-pitch 70 x 48 in propeller installation. It provides troubleshooting for roughness or vibration, removal, inspection and installation guidance, bolt-torque and alignment procedures, blade and hub inspection criteria, safety wiring, and recurring propeller bolt-torque checks. Detailed illustrations show the propeller, spinner, bulkheads, extension and mounting arrangement.

Avionics and Electrical Systems

The instruments and avionics chapter documents the Dynon SkyView installation used on the Ranger. Coverage includes the SV-D1000 EFIS, SV-ADAHRS-200/201, SV-EMS-220 engine monitoring module, SV-BAT-320 backup battery, SV-COM-C25 communications equipment, SV-INTERCOM-2S, SV-XPNDR-261 Mode S transponder, SV-GPS-2020, SV-ADSB-470, SV-42 autopilot servos, SV-AP-PANEL, antenna locations and avionics removal. The manual describes the SkyView system as providing primary flight display information, engine monitoring, GPS moving-map functions, two-axis autopilot capability, transponder and ADS-B functions, and COM radio integration.

Electrical power coverage includes the Sky-Tec starter, Plane-Power alternator and 12 Volt Lithium Iron Phosphate EarthX battery. The electrical-system chapter continues with the aircraft wiring structure, landing lights, navigation and anti-collision lights, cabin lighting and the ELT emergency system. Wiring schematics included in the manual are identified as general-information drawings; aircraft fitted with optional equipment may have additional specific drawings in their aircraft documentation.

File Details

• Manual type: Aircraft Maintenance Manual
• Brand: Vashon Aircraft
• Model: RANGER R7
• Revision: 2
• Date: 11-15-19
• Language: English
• Pages: 392
• File format: PDF

Chapters Covered

• Scope
  • General; Safety of Flight and Service Difficulty Reporting; Pilot/Owner Servicing and Maintenance; Preventive Maintenance; Corrective Maintenance and Alterations
• Reference Documents
• Terminology
  • Definitions; Acronyms
• Significance and Use
• Aircraft Maintenance Manual
  • Format & Guidance for the Use of This Manual
  • General Specifications, Torques, Data, and Forms
  • Periodic and Condition Inspection Requirements
  • Maintenance Overview, Servicing of Fluids, and Personnel Authorization
  • Repair Overview
  • Alterations Overview

  IMAGES PREVIEW







• Maintenance, Repairs, and Alteration Tasks
  • Raising the Aircraft; Windscreen; Fuselage; Wings; Empennage; Flight Controls
  • Landing Gear; Wheel and Brake Assemblies; Engine Cowl; Engine; Engine Mount
  • Fuel System; Induction System; Exhaust System; Powerplant – Ignition; Propeller
  • Utility Systems; Instruments and Avionics Systems; Engine Controls
  • Electrical Power Systems; Electrical Systems; Seats; Hoses and Lines
  • Leveling; Weighing; Parking & Mooring; Painting and Coatings
• Major Repairs and Alterations
  • Alterations General; Evaluation to ASTM Standard with Production Acceptance Specifications; Alteration Affidavit; Written Instructions and Diagrams for Certification; Owner Information on Alteration Documentation for Aircraft Records
• Overhaul
  • Authorization to Perform Overhauls
• Appendix A
• Task Specific Training
  • Vashon Aircraft Ranger Specific Training – General; Type Specific Training Required by Vashon Aircraft
• Safety Directives Compliance
  • Safety Directives for Continued Airworthiness; Types of Safety Directives; Mandatory Safety Directives; Obtaining Latest Safety of Flight Information

Taken together, these chapters give the technician a structured reference for maintaining the RANGER R7 from routine inspections and servicing through substantial component removal and installation work. The document combines aircraft-specific procedures with the specifications, inspection criteria, troubleshooting paths, diagrams, maintenance-authority information, safety instructions and external component-manual references needed to approach work in the correct context.

Maintain and Troubleshoot the Ranger R7 with the Correct Reference

The Vashon Ranger R7 Aircraft Maintenance Manual Revision 2 – 2019 PDF supports a wide range of practical work: annual and 100-hour inspection preparation, fluid and lubrication servicing, troubleshooting, flight-control and landing-gear work, brake servicing, fuel-system maintenance, oil and filter servicing, propeller procedures, avionics access, electrical-system work, leveling, weighing and numerous component removal and installation tasks. Having the aircraft-specific procedures, limits, torque references, inspection criteria and system illustrations together helps maintenance work follow the information specified for the Ranger rather than relying on generic procedures alone.

Delivered as an instant PDF after payment with no physical shipping required. The manual can be opened on compatible computers, tablets and phones and printed for workshop reference when needed.
