Volvo Ingersoll Rand DD90 DD90HF Vibratory Compactor Spare Parts Catalog – S/N 197375 & Up (USA)

Description

Volvo Ingersoll Rand DD90 DD90HF Vibratory Compactor Spare Parts Catalog – S/N 197375 and Up (USA)

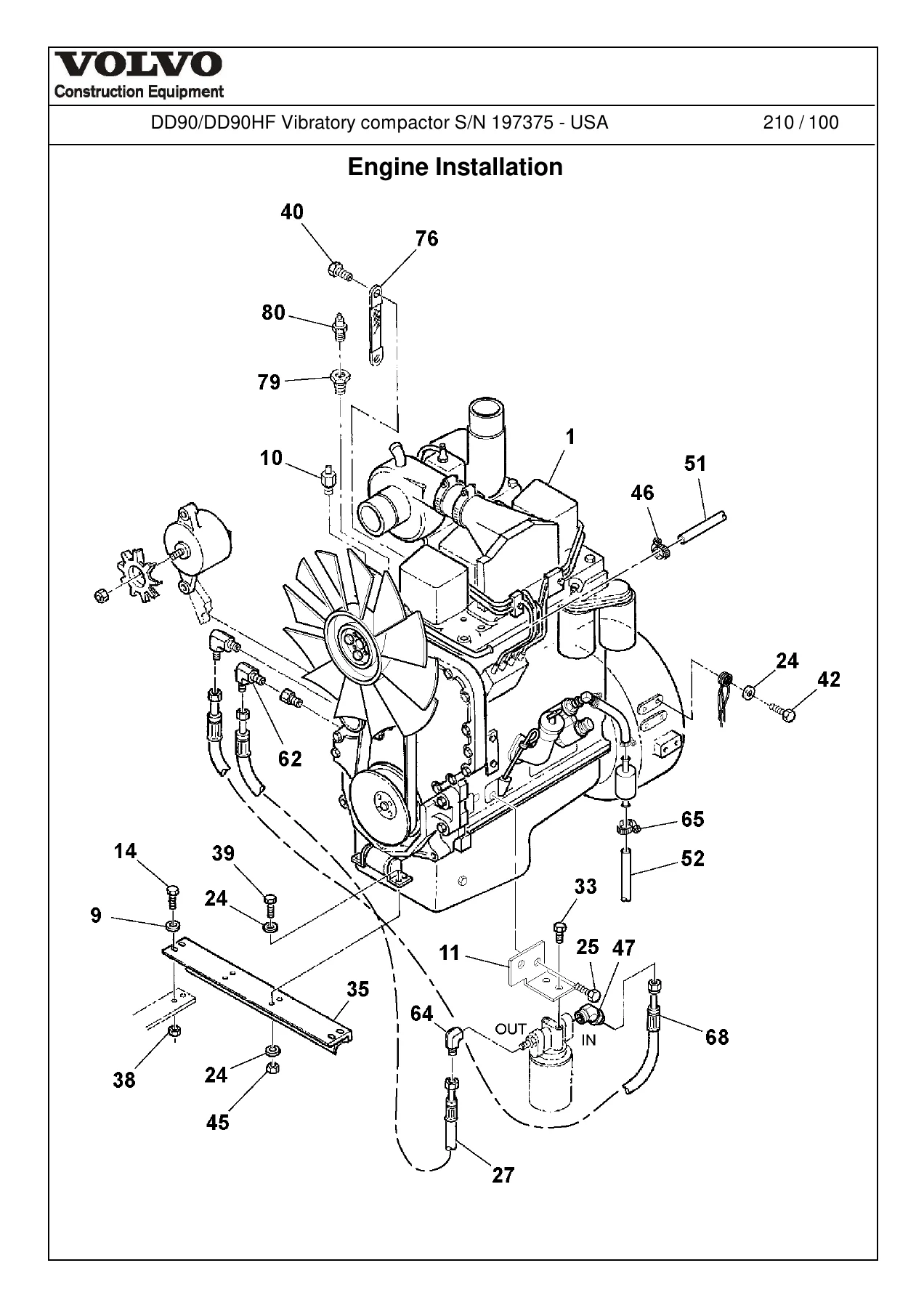

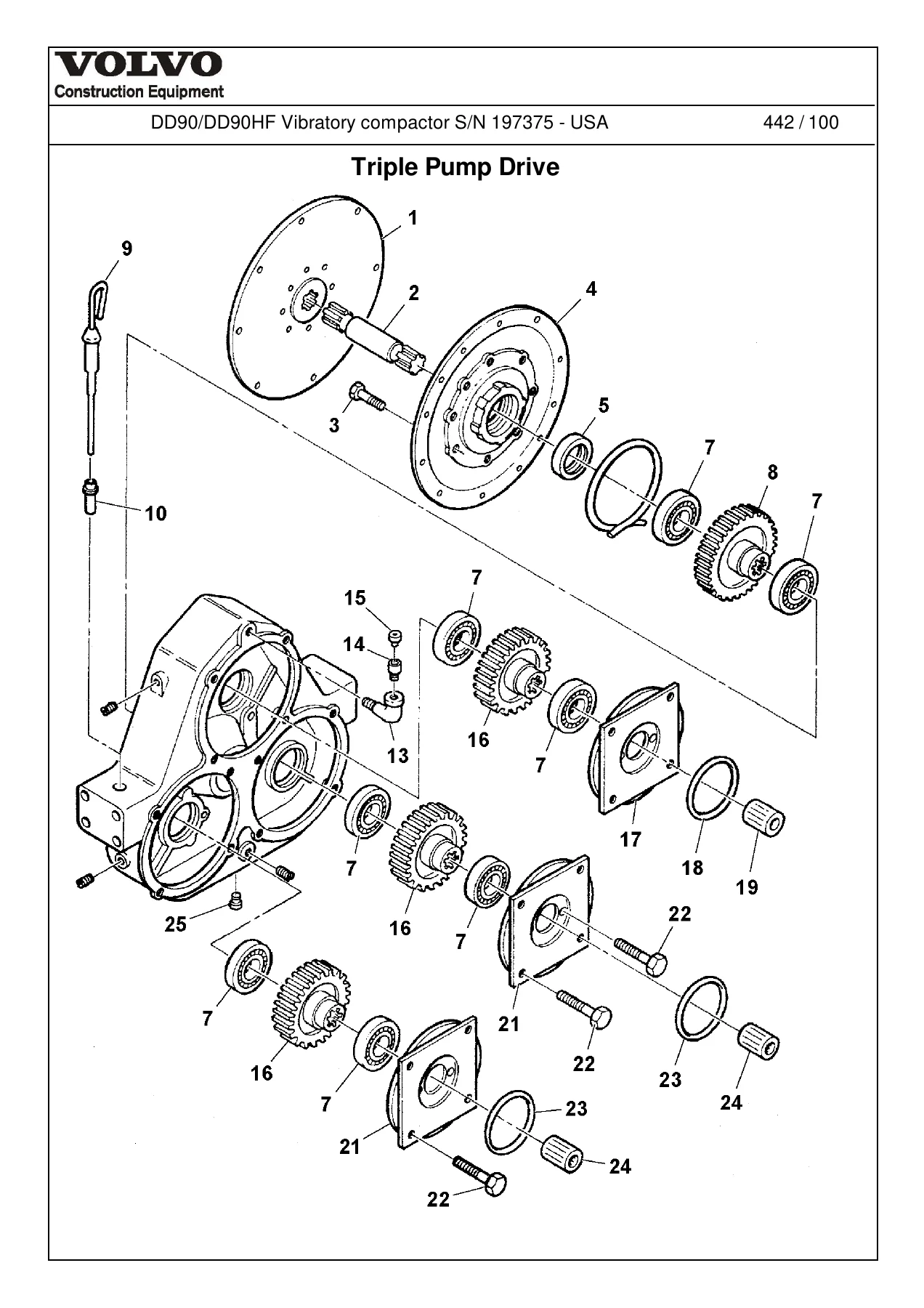

This is the complete spare parts catalog for the Volvo Ingersoll Rand DD90 and DD90HF vibratory compactors, covering machines from serial number 197375 onward in the USA market. The catalog runs 332 pages and breaks the machine down into every major assembly and subassembly, from the engine installation and cooling system through the drum, vibration, propulsion, steering, water spray, and operator station systems. Each section provides exploded-view illustrations with numbered callouts keyed to part numbers, quantities, and descriptive part names, so you can identify exactly what you need before you order.

File Details

• Manual type: Spare Parts Catalog
• Brand: Volvo Construction Equipment / Ingersoll Rand
• Models covered: DD90, DD90HF
• Serial number range: S/N 197375 – (USA)
• Language: English
• Page count: 332 pages
• File format: PDF

Chapters and Systems Covered

The catalog is organized by group code and name group, following the machine’s assembly structure. Major sections include:

• Engine Installation (210/100, 210/150)
• Air Cleaner Installation (256/100, 256/150)
• Air Pre-Cleaner Installation (256/200)
• Radiator and Oil Cooler Assembly (261/100, 261/150)
• Fan Assembly (263/150)
• Sound Kit Installation (263/100)
• Throttle Cable Installation (271/100)
• Work Light Installation (356/100, 356/150, 356/200)
• Hazard Flasher / Turn Signal Installation (356/250)
• HD / Work Light Installation (356/300 through 356/850)
• HD Spotlight Installation (356/900 through 356/1150)
• HD Guard Installation (356/1200)
• Rotating Beacon Installation (362/100, 362/150)
• Back-up Alarm Installation (362/200)
• Console Assembly (364/100, 364/150)
• Cable Harness Installation (371/100 through 371/300)
• Battery Installation (371/350)
• Vibration Indicator Light Installation (371/400)
• Instrument Panel Assembly (380/100)
• Speedometer / VPM Meter Installation (383/100 through 383/400)
• Material Temperature Sensor Installation (386/100, 386/150, 386/200)
• Material Temperature Kit (386/250, 386/300, 386/350)
• F-stop-r Control Assembly (424/100, 424/150)
• F-stop-r Control (424/200)
• Drum Drive Assembly (441/100, 441/150)
• Drive Motor (441/200)
• Triple Pump Drive (442/100, 442/150)
• Propulsion Pump Assembly (442/200)
• Propulsion Pump (442/250, 442/300, 442/350)
• Loop Flushing Valve (442/400)
• Steering Knob Installation (641/100)
• Steering Pump Kit (645/100)
• Steering Hoses Installation (645/150, 645/200)
• Frame and Swivel Installation (711/100)
• Console Bearing Pack Assembly (740/100)
• Drum Installation (777/100, 777/150)
• Front/Rear Drum Assembly (777/200 through 777/450)
• Eccentric Shaft Assembly (777/500, 777/550)
• Carrier and Spindle Assembly (777/600)
• Carrier Assembly (777/650)
• Vibration Motor Assembly (777/700 through 777/800)
• Vibration Motor (777/850 through 777/1000, 913/400 through 913/500)
• Handwheel Assembly (777/1050)
• Inside Wiper Installation (777/1100)
• Cocoa Mat Installation (777/1150)
• Deck Installation (810/100)
• Flex Tread Installation (810/150)
• Engine Cowling Installation (821/100 through 821/250)
• Engine Cowling and Hydraulic Tank Installation (821/300 through 821/400)
• Spray Shield Installation (827/100)
• Railing Installation (827/150)
• Console Installation (837/100)
• Suspension Seat (852/100, 852/150)
• ROPS and Seat Belt Installation (867/100)
• Umbrella Installation (867/150)
• Vci Pre-cab Modification (867/200 through 867/300)
• Cab Heater Installation (873/100 through 873/200)
• Safety Manual Pouch Installation (882/100)
• Decal Installation (897/100, 897/150)
• Hydraulic Tank Installation (911/100)
• Hydraulic Tank Assembly (911/150, 911/200)
• Vibration Hoses Installation (911/250 through 911/350)
• Traction Hoses Installation (911/400, 911/450)
• Brake Valve Assembly (912/100)
• Vibration Pump Assembly (913/100)
• Vibration Pump (913/150 through 913/300)
• Steering Pump Assembly (913/350)
• Hydraulic Oil Temperature Gauge Installation Optional (913/550)
• Speed Limiter Installation (915/100)
• Water System Installation (985/100)
• Water Tank Installation (985/150)
• Spray Bar Assembly (985/200)
• Water Hose Installation (985/250)
• Water Pump Installation (985/300)
• Water Pump Assembly (985/350)
• Water Pump (985/400)
• Edge Compactor/Cutter Installation (989/100, 989/150)

Each section combines an illustrated exploded view with a corresponding parts list showing position numbers, part numbers, quantities, part names, and serial number applicability notes. Where a part differs by serial number break, the catalog flags it. Where a system has multiple configurations, the catalog separates them by group code so you land on the right diagram the first time.

What This Catalog Enables You to Do

With this parts catalog in hand, you can identify and order the correct components for nearly every system on the DD90 and DD90HF. That includes routine replacement items like filters, belts, hoses, and seals, as well as major assembly components for the drum drive, eccentric shaft, vibration motor, propulsion pump, steering system, water spray system, and operator station. The exploded views make it practical to trace how a subsystem is assembled, which parts sit between others, and what fasteners, O-rings, gaskets, and adapters are used at each joint. For anyone maintaining or rebuilding these compactors, that level of parts visibility shortens diagnostic time and reduces the risk of ordering the wrong component.

The catalog also documents serial-number-dependent variations. Several assemblies, including the drum drive, vibration motor, hydraulic tank, and engine cowling, list different part numbers depending on the machine’s serial number. Having those break points in one place helps you match the exact configuration of your machine rather than guessing based on the model name alone.

Why a Proper Parts Catalog Matters

Heavy compaction equipment is built around hydraulic and mechanical systems where a single incorrect seal, bearing, or adapter can lead to a leak, a vibration fault, or premature wear. Without a catalog that keys part numbers directly to exploded views and serial ranges, you are left with guesswork, generic parts, or multiple order-and-return cycles. This catalog removes that uncertainty. It tells you what goes where, which variant fits your serial number, and what the part is called, so you can source it confidently from your preferred supplier.
