Volvo L330C Wheel Loader Service Information Manual

The Volvo L330C Wheel Loader Service Information Manual is a technician-focused PDF covering the L330C four-wheel drive articulated loader. It gathers the workshop data, system descriptions, removal and fitting procedures, tightening torques, time guide and specification tables needed to service, diagnose and repair the machine. Written in English for Volvo Construction Equipment, dated 20.05.2013, this L330C service information manual is delivered as an instant-download PDF.

File Details

• Manual type: Service Information Manual
• Brand: Volvo Construction Equipment
• Model: L330C Wheel Loader
• Language: English
• File format: PDF
• Date: 20.05.2013
• Content: Description, specifications, service procedures, tightening torques, time guide and electrical connector code keys

Chapters Covered

• 000 Description – loader overview and product identification plates
• 030 Brakes – service brakes, accumulators, parking brake
• 030 Engine – general specifications, air cleaner, lubrication, fuel system, injectors, cold starting, turbocharger, charge-air cooler, cooling system
• 030 Hydraulic system – pumps, control valves, servo valve, lifting and tilting cylinders, boom suspension, attachment locking
• 030 Power transmission – transmission, torque converter, oil pressures, speed ranges, drive axles
• 030 Steering system – load-sensing hydrostatic steering, steering valve, flow amplifier, steering cylinder
• 030 Tightening torques – engine, transmission, axles, brakes, frame, cab, hydraulic system
• 070 Time Guide – lubricants, general service, engine, fuel, cooling, electrical, transmission, axles, brakes, steering, hydraulics, load handling
• 100 Towing/recovering – towing measures, towbar connection, warnings
• 170 Electric welding – precautions before welding on the machine
• 191 Safety – battery charging, polymer materials, fire prevention, refrigerant, general safety
• 210 Engine – description, checking function, fitting, removing, specifications
• 211 Cylinder head
• 212 Cylinder block – liners and sealing joints
• 214 Valve mechanism
• 215 Camshaft and timing gears
• 216 Crankshaft – oscillation damper, connecting rods
• 217 Oil sump gasket, changing
• 230 Fuel system – description, bleeding
• 234 Fuel tank – removing and fitting
• 236 Injection pump / idling speed / injection angle / stall speed / stop solenoid / injectors
• 250 Turbocharger
• 255 Turbocharger specifications
• 256 Air cleaner and cold-starting device
• 260 Cooling system – principle diagrams, cold/warm engine flow
• 261 Radiator – removing and fitting
• 262 Thermostat and coolant pump specifications
• 263 Cooling fan – hydraulic pressure checking and adjusting, electronic stop control
• 300 Electrical system – distribution box, general description
• 311 Charging batteries
• 320 Alternator specifications
• 370 Code key for connectors – circuit board connectors and other connectors
• 42 Transmission – general service operations
• 45 Propeller shaft – bearings and mounting
• 46 Drive axles – front and rear axle service operations
• 51 Wheel brake – brake linings and discs
• 52 Hydraulic brake system – pressure checks and accumulator service
• 55 Parking brake – adjusting
• 64 Steering – steering cylinder and valve service
• 74 Frame joint – clearance check and bearing replacement
• 75 Axle suspension – bridge, clearance and bushes
• 77 Wheel, tyre, hub
• 86 Protective equipment – ROPS roll-over bar
• 91 Working hydraulic and servo system – oil cooler, tank, shock valves, pumps, servo valve, accumulators, boom suspension
• 94 Unit for load handling – lift frame, lift and tilt cylinders
• Drawings of tools (E-tools) – workshop-made tool drawings

In practical terms, the manual reads like a full station-by-station reference: system descriptions explain how the L330C is put together (engine TD164KAE, Clark-Hurth C8421-H transmission, Clark-Hurth 21D5568 axles, liquid-cooled Clark-Hurth 26100LCB brake housings, load-sensing hydraulic and steering circuits), specification pages give the numbers a technician needs before touching a component, and the Time Guide lists the flat-rate operations for servicing and overhaul jobs. The tightening torques section and the Volvo BM standard tightening torque tables provide the fastening values that are otherwise easily missed.

What This Volvo L330C Service Information Manual Covers in Practice

For the engine, the L330C service information manual documents the TD164KAE straight six diesel with turbocharger and charge-air cooler, including cylinder head, cylinder block, pistons, valve mechanism, camshaft, crankshaft, oil sump gasket, fuel system, injection pump, injectors, turbocharger, air cleaner and cooling circuit. Engine fitting and removing procedures are covered step by step, together with the specification tables for output, torque, cylinder bore, stroke, displacement, compression, injection order, idling speeds, valve clearances and stall speed.

The transmission and driveline side of the manual covers the Clark-Hurth hydro-mechanical transmission, the single-stage torque converter, the drive axles with planetary hub reduction, the propeller shafts and the four forward / three rearward speed ranges. Transmission oil pressure, lubricating oil pressure and torque converter pressure ranges are provided, along with the front and rear axle differential gear ratios.

Brake coverage includes the dual-circuit all-hydraulic multi-disc service brakes with piston-type accumulators, minimum brake disc thickness, accumulator precharge and working pressures, and the hydraulically released parking brake with its own accumulator data.

The hydraulic and steering sections explain the load-sensing working hydraulics with dual axial piston pumps and the load-sensing hydrostatic steering with priority valve and flow amplifier. Pump designations, control valve shock pressures, cylinder bore and stroke values, servo pressures and boom suspension accumulator precharge pressures are all listed so a technician can test and adjust the system correctly.

Electrical coverage includes the in-cab electrical distribution box, the 24 V system general description, battery charging, alternator specifications and the extensive code key for connectors that maps circuit numbers, lead markings, colour codes and functions across the machine. The safety section covers battery charging, refrigerant handling, polymer materials and fire prevention procedures.

Who This PDF Is For

This Volvo L330C service information manual is intended for mechanics, fleet maintenance staff and technically competent owners who need the factory-described service procedures and specification values for the L330C wheel loader rather than a generic repair guide. The combination of description pages, specification tables, removal and fitting procedures, torque values and the time guide makes it useful both for planned service work and for fault tracing when a system is not behaving as expected.

Why It Matters

Correct service information matters on a machine of this size. Using the wrong precharge pressure on a brake accumulator, the wrong shock valve setting, or an incorrect valve clearance can lead to poor performance or damage. This manual gives the numbers, procedures and warnings that keep the L330C running to specification.

Delivery

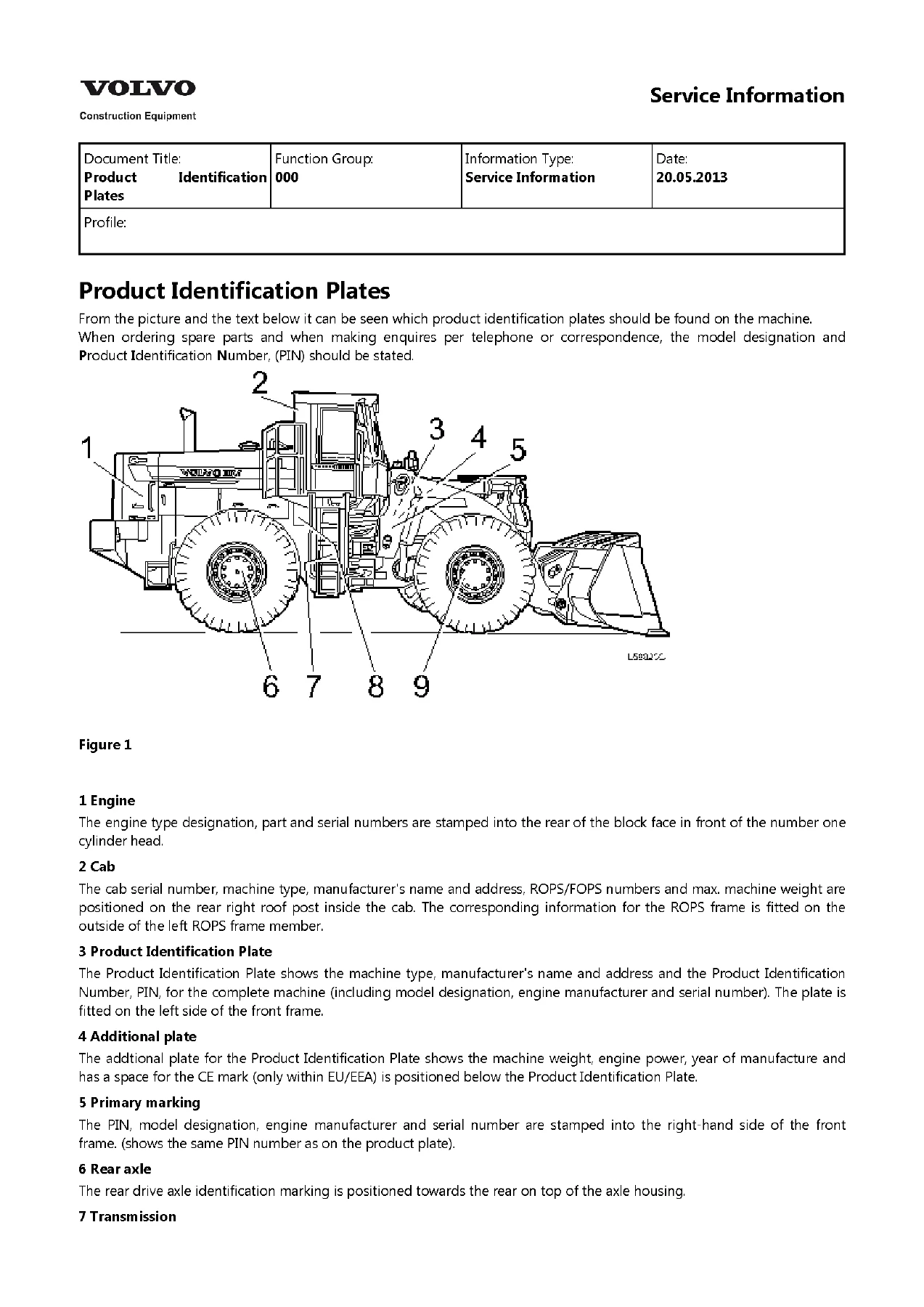

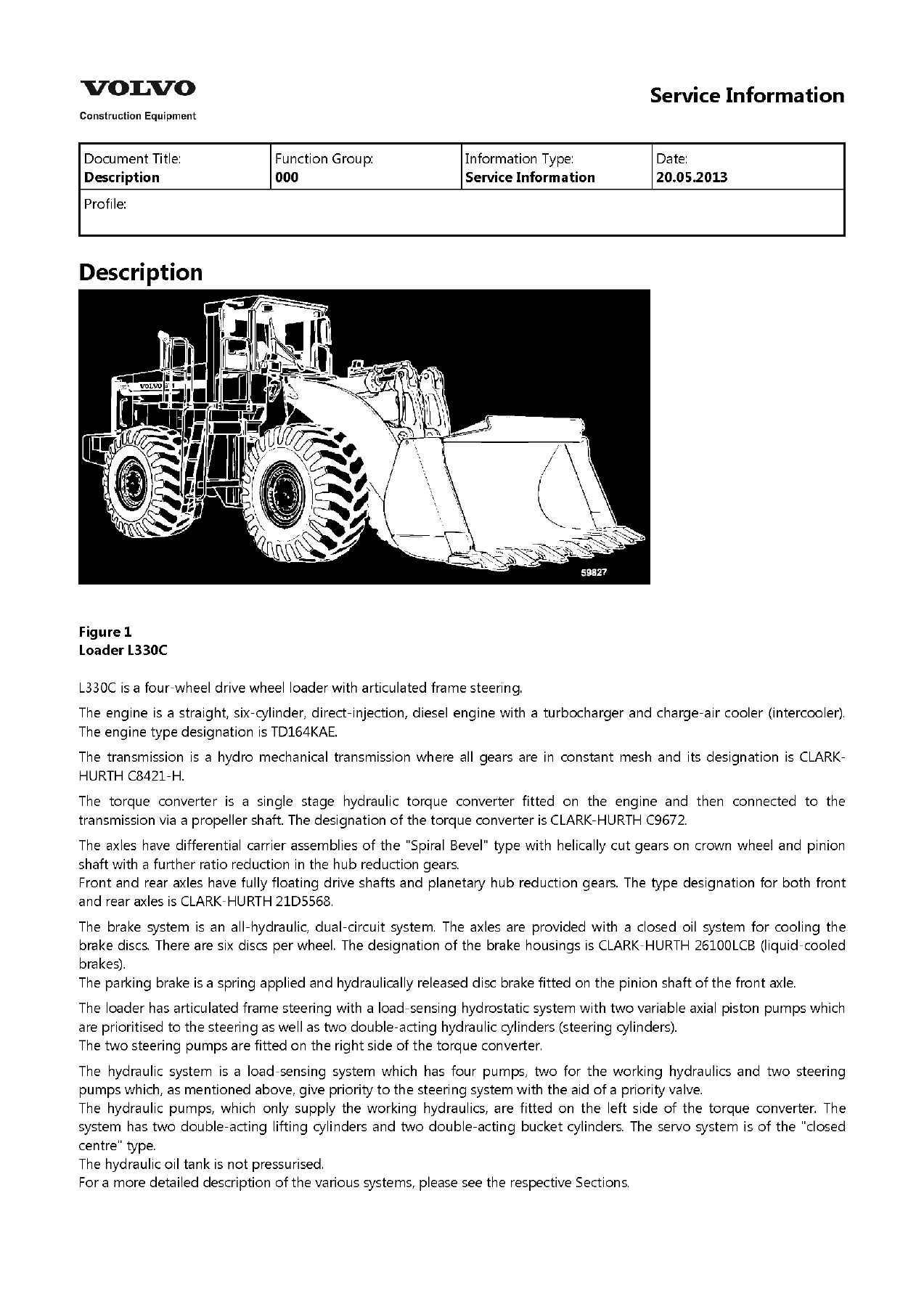

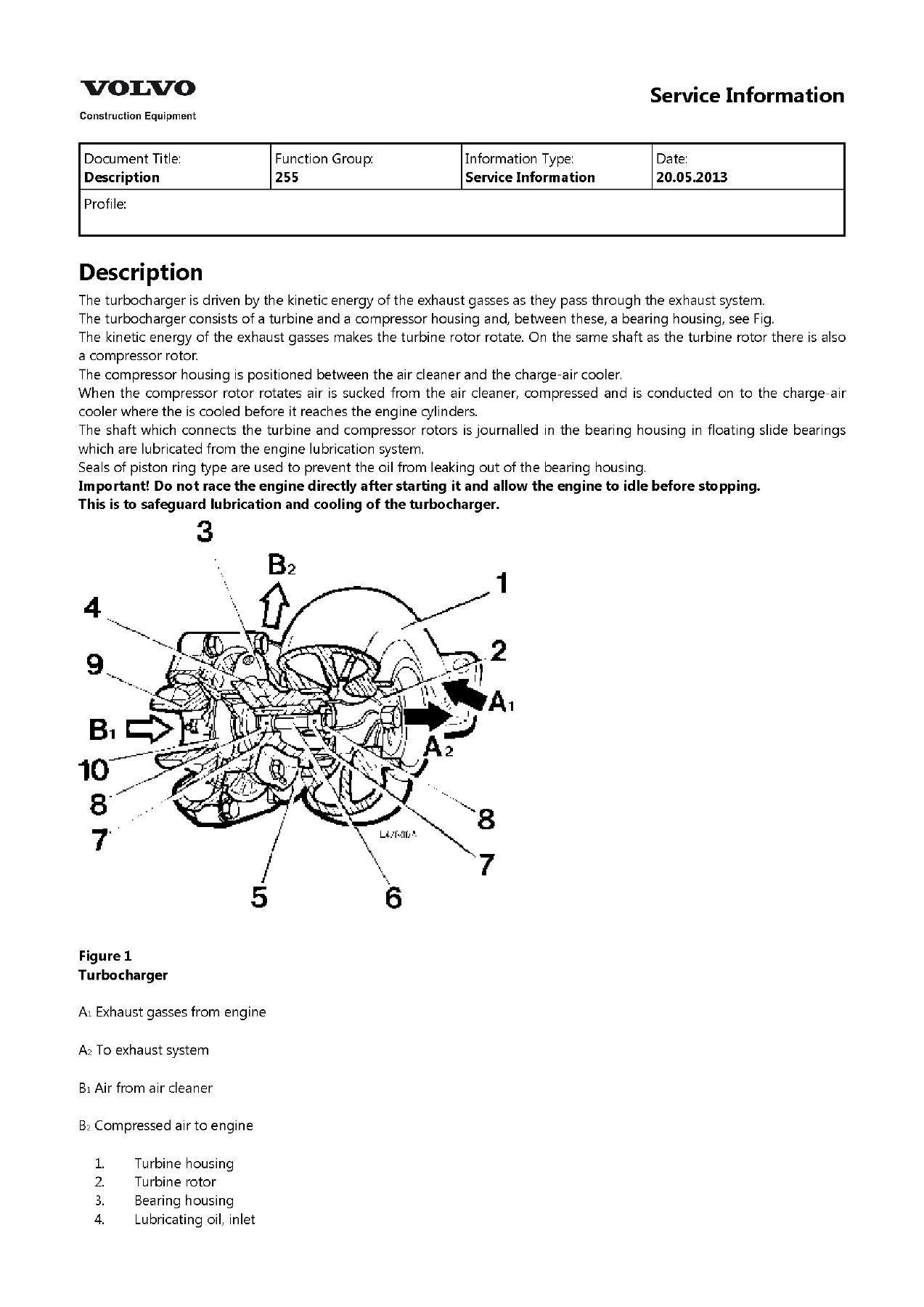

IMAGES PREVIEW
