Volvo Penta D11 Workshop Manual Group 20-26 – Engine Service & Repair PDF

Description

Volvo Penta D11 Workshop Manual Group 20-26 – Engine Service & Repair PDF

The Volvo Penta D11 Workshop Manual Group 20-26 – Engine Service & Repair PDF is a detailed workshop reference for the D11 engine family, combining technical specifications with troubleshooting, test procedures, adjustment data and illustrated repair instructions. Coverage includes D11A-A, D11A-B, D11A-C, D11A-D, D11A-E, D11B1-A and D11B2-A variants. The manual progresses from core engine data and workshop safety through complete engine disassembly, internal component repair, fuel and lubrication work, turbocharger procedures, cooling-system service and related electrical specifications.

File Details

• Manual type: Workshop Manual
• Brand: Volvo Penta
• Model: D11
• Groups: 20-26
• Document number: 47701622
• Date: 06-2015
• Language: English
• Page count: 298 pages
• File format: PDF

D11 Engine Variants Covered

The manual identifies D11A-A/B/C/D/E engines with the D11-670 designation, D11B1-A with D11-510, D11-625 and D11-670 designations, and D11B2-A with D11-510, D11-625 and D11-725 designations. This makes the Volvo Penta D11 workshop manual useful when the exact engine designation needs to be matched to specifications and procedures rather than relying on general D11 information alone.

The specifications section provides detailed engine data including six cylinders, a 123 mm cylinder bore, 152 mm stroke, 10.84 liter total cylinder volume, four valves per cylinder, 16,5:1 compression ratio and a 1-5-3-6-2-4 firing order. It also contains dimensional limits, clearances, wear tolerances and tightening information for cylinder-head components, liners, pistons, piston rings, timing gears, camshaft, valves, crankshaft, bearings and connecting rods.

Repair and Overhaul Coverage

Complete Engine and Internal Components

A substantial part of this D11 engine service and repair manual is devoted to mechanical overhaul. The complete-engine section walks through disassembly and reassembly with illustrated component locations, special-tool references and procedural cautions. It covers removal and installation work involving the cylinder head, camshaft, rocker bridge, unit injectors, timing gears, oil sump, bracing frame, pistons, connecting rods, cylinder liners, crankshaft-related components, flywheel and associated housings.

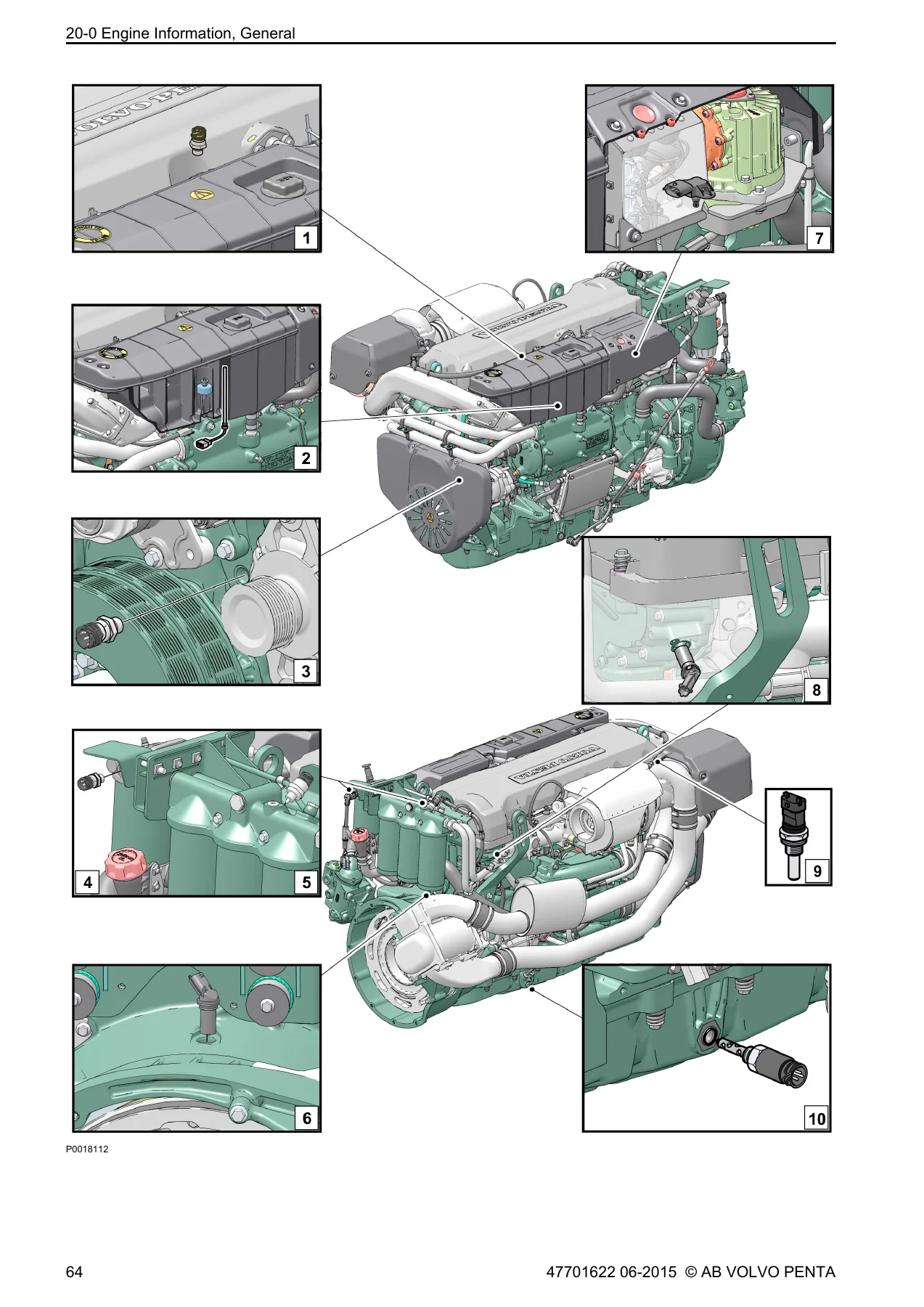

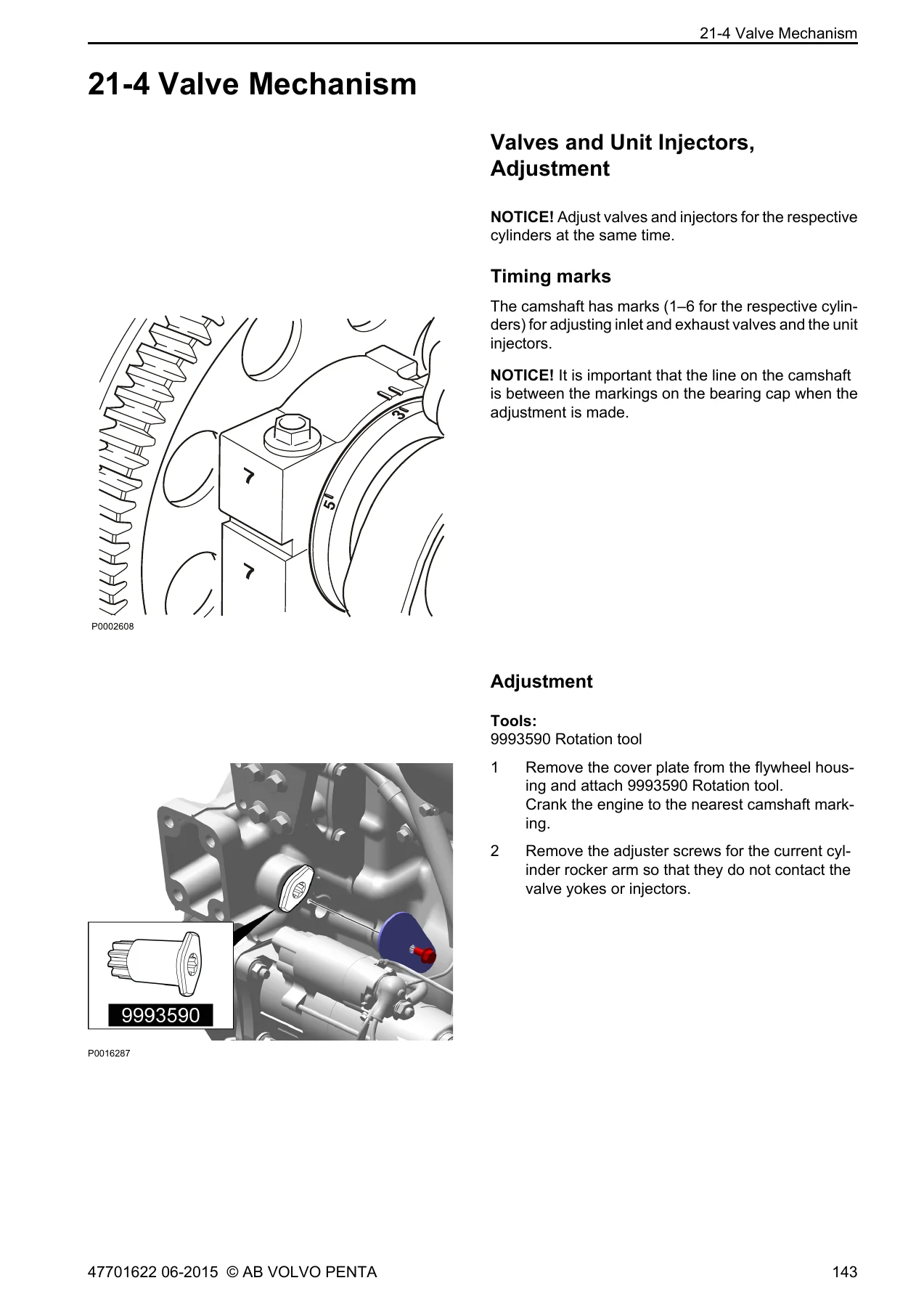

Cylinder-head procedures include removal and installation, camshaft installation, timing and gear-lash adjustment, injector installation and valve adjustment. Separate sections address cylinder-liner and piston inspection and replacement, including liner-height measurement, seal-ring installation, piston and connecting-rod assembly, piston-ring positioning and piston-cooling nozzle checks. The valve-mechanism material includes valve and unit-injector adjustment, valve-guide inspection and replacement, valve removal and installation, valve-stem sealing replacement, valve-seat replacement and grinding, and valve inspection.

Timing, Crankshaft and Bearing Work

The timing and shaft section covers camshaft wear checks, camshaft bearing housings, sensor adjustment, camshaft-sensor distance checks and timing-gear replacement. Procedures show how timing gears are installed and aligned, how gear lash is measured, and where specified sealants and tightening sequences are required. Crank-mechanism coverage includes front and rear crankshaft seals, crankshaft inspection, connecting-rod checks and big-end bearing replacement. Main-bearing procedures explain replacement with the crankshaft in place and include checks for bearing dimensions, crankshaft end float and thrust washers.

Lubrication, Fuel and Engine Control

The lubrication section provides oil-grade and oil-change information, oil-system capacities, operating pressure data, oil-temperature information, oil-filter configuration and valve specifications. The manual states a total oil-system volume of 38 liter with no engine incline and 30 liter at a 7 degree engine incline. Workshop procedures extend to oil-system control valves, piston-cooling oil-pressure checks, oil-filter bracket service and oil-cooler thermostat replacement.

Fuel-system chapters cover draining and bleeding, fuel-filter replacement, fuel-feed pump work and unit injectors. Unit-injector procedures include removal, installation, copper-sleeve related tightening requirements, valve and injector adjustment, and programming the injector trim code into the engine control unit after injector replacement. The control-system section addresses engine control unit replacement, connector precautions, configuration requirements and engine-control-unit identification.

Turbocharger, Air and Exhaust Systems

The Volvo Penta D11 repair manual includes checks for inlet and charge-air pipes, exhaust restriction and turbocharger condition. Turbocharger inspection covers compressor and turbine damage, rotor movement, axial and radial play and the need to determine the cause of a turbo failure before replacement. Turbo removal and installation procedures are provided for the listed D11 variants, together with related oil, coolant, charge-air and exhaust connections. Further chapters deal with inlet and exhaust manifolds, the mechanical compressor and crankcase ventilation.

Cooling and Electrical Data

Cooling-system specifications identify an overpressure sealed system, an approximate 39 liter coolant volume including the heat exchanger, thermostat opening data and coolant-pump pressure information. The manual contains cooling-system troubleshooting and pressure testing as well as service procedures for the heat exchanger, coolant pump, thermostat, fan and fan shroud, charge-air cooler, sea-water system and sea-water pump. Electrical specifications include a 24 V system, two series-connected 12 V batteries up to 152 Ah, a 28 V / 80 A alternator and a 24 V / 5.5 kW starter motor.

Diagnostics, Checks and Workshop Procedures

Troubleshooting material addresses practical symptoms such as an engine that does not start, starter-motor engagement problems, an engine that starts and stops, loss of power, black exhaust smoke, blue or white smoke, vibration, overheating, low operating temperature, coolant loss, low oil pressure and excessive oil consumption. Diagnostic guidance points the technician toward relevant fuel, intake, cooling, lubrication, turbocharger, sensor and mechanical checks.

Test and adjustment procedures include starter-motor operation for testing, cylinder compression testing, fuel-feed pressure checks, charge-air pipe inspection, turbocharger checks, charge-air pressure measurement, exhaust back-pressure measurement, cooling-system pressure testing and cylinder-head pressure testing. The manual also identifies the special service tools used for many operations and illustrates their applications, which is especially useful during more involved disassembly, measurement and installation work.

Chapters Covered

• General Information
  • 00-0 General
• Specifications
  • 03-2 Specifications, Engine
  • 03-21 Engine
  • 03-22 Lubrication System
  • 03-23 Fuel System
  • 03-25 Inlet and Exhaust System
  • 03-26 Cooling System
  • 03-3 Specifications, Electrical
  • Electrical System
• Safety and Other Instructions
  • 05-1 Safety Instructions
• Special Tools
  • 08-2 Special Service Tools
• Chemical Products
  • 18-0 General
• General
  • 20-0 Engine Information, General
  • Design and Function
  • Troubleshooting
  • Test and Adjustments
  • 20-9 Miscellaneous
• Engine
  • 21-0 Engine Complete, General
  • Engine Disassembly
  • Engine Assembly
  • 21-1 Cylinder Head
  • 21-3 Cylinder Liner, Pistons
  • 21-4 Valve Mechanism
  • 21-5 Timing Gears and Shaft
  • 21-6 Crank Mechanism
• Lubricating and Oil System
  • 22-0 Lubricating and Oil System, General
  • 22-2 Oil filter
  • 22-3 Oil cooler
• Fuel System
  • 23-0 Fuel System, General
  • 23-3 Fuel Feed Pump and Filter
  • 23-7 Injectors and Delivery Pipes
  • 23-8 Control System, ECM, Data Sets
• Inlet and Exhaust System
  • 25-0 Inlet and Exhaust System, General
  • 25-1 Inlet and Exhaust Manifolds
  • 25-5 Turbo and supercharger
  • Mechanical Compressor
  • 25-7 Crankcase Ventilation
• Cooling System
  • 26-0 Cooling System, General
  • 26-1 Radiator, Heat Exchanger
  • 26-2 Coolant Pump, Thermostat
  • 26-3 Fan, Fan Shroud
  • 26-5 Charge Air Cooler with Connections
  • 26-6 Sea Water System, Sea Water Pump
• Alternator, Charge Regulator
  • 32-1 Alternator
• Reference Sections
  • Alphabetical index
  • References to Service Bulletins

Taken together, these sections provide a broad workshop reference for diagnosing the D11, checking service data, dismantling major assemblies, measuring wear, carrying out adjustments and rebuilding engine systems with the specified procedures, tools, clearances and tightening information close at hand.

Service Your Volvo Penta D11 with the Correct Workshop Information

The Volvo Penta D11 Workshop Manual Group 20-26 – Engine Service & Repair PDF supports work ranging from troubleshooting and pressure checks to cylinder-head repair, piston and liner replacement, valve and injector adjustment, timing work, bearing service, turbocharger replacement, fuel-system repair and cooling-system maintenance. Having the specified procedures, measurements, tightening sequences and workshop illustrations available while working helps reduce guesswork during complex service operations. Your manual is delivered as an instant PDF after payment, with no physical shipping required. View it on a phone, tablet, computer or other PDF-capable device, keep it available in the workshop, and print the pages needed for a particular repair or inspection.
