Wacker Neuson ET35 EZ36 Track Excavator Service Manual (E16-01, E16-02) – Tier III & Tier IV PDF

Description

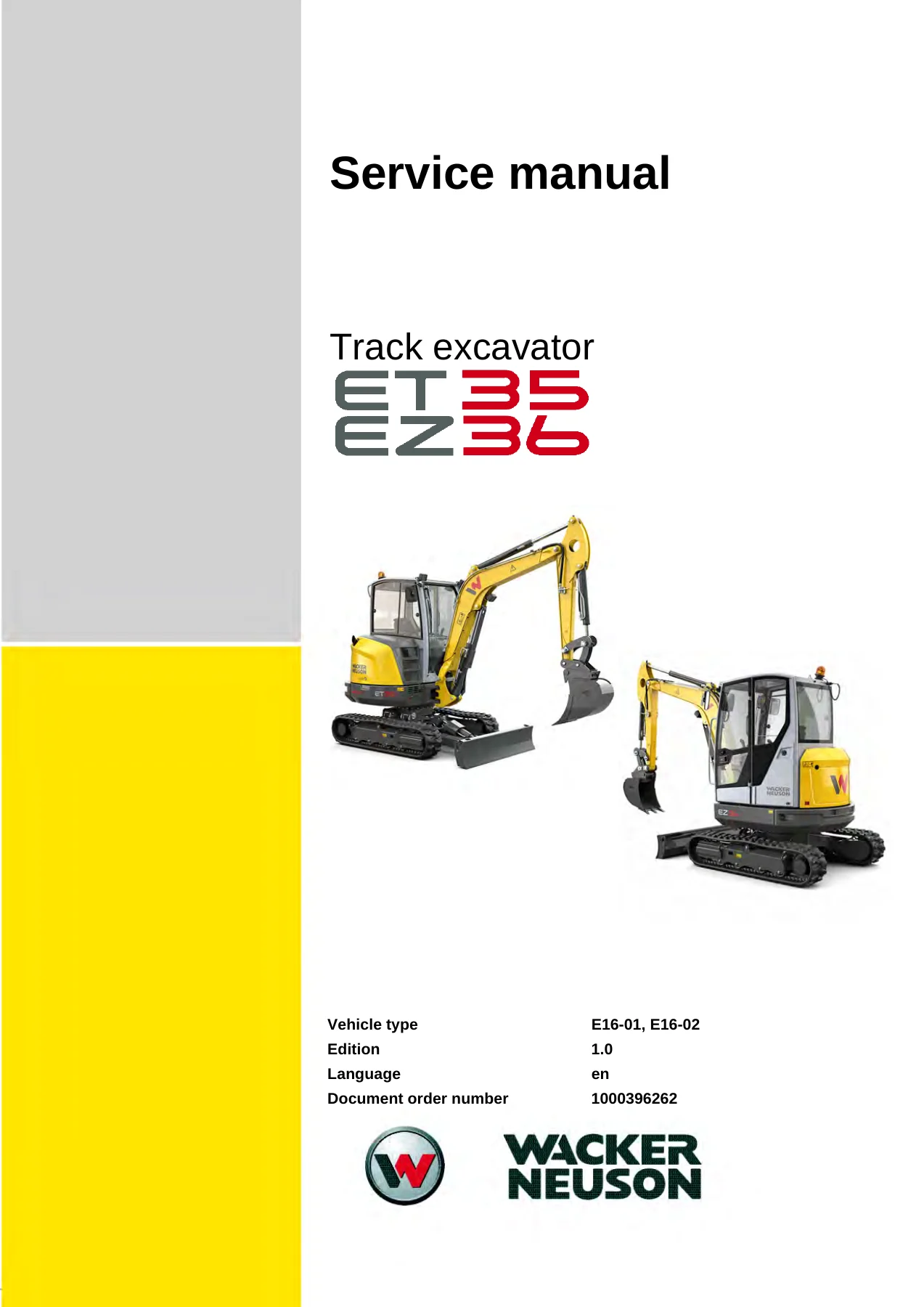

Wacker Neuson ET35 & EZ36 Track Excavator Service Manual – E16-01 / E16-02

This is the full workshop service manual for the Wacker Neuson ET35 and EZ36 track excavators, issued for vehicle types E16-01 (ET35) and E16-02 (EZ36). The document covers both Tier III and Tier IV machine variants in a single volume, so hydraulic, electrical, engine and maintenance procedures for either exhaust-gas standard are available without switching between books. It is written for the technician working on the machine rather than for the operator, and it is the reference used to set pressures, torque fasteners, diagnose faults and carry out scheduled servicing.

File Details

• Manual type: Service manual (workshop repair and maintenance manual)
• Brand: Wacker Neuson
• Models covered: ET35 (vehicle type E16-01), EZ36 (vehicle type E16-02)
• Engine variants: Yanmar 3TNV88-BPWN (Tier III), Yanmar 3TNV88F-EPWN (Tier IV)
• Language: English
• Document order number: 1000396262
• Edition: 1.0
• Date: 03/2018
• File format: PDF
• Page count: 404 pages
• Publisher: Wacker Neuson Linz GmbH

Chapters Covered

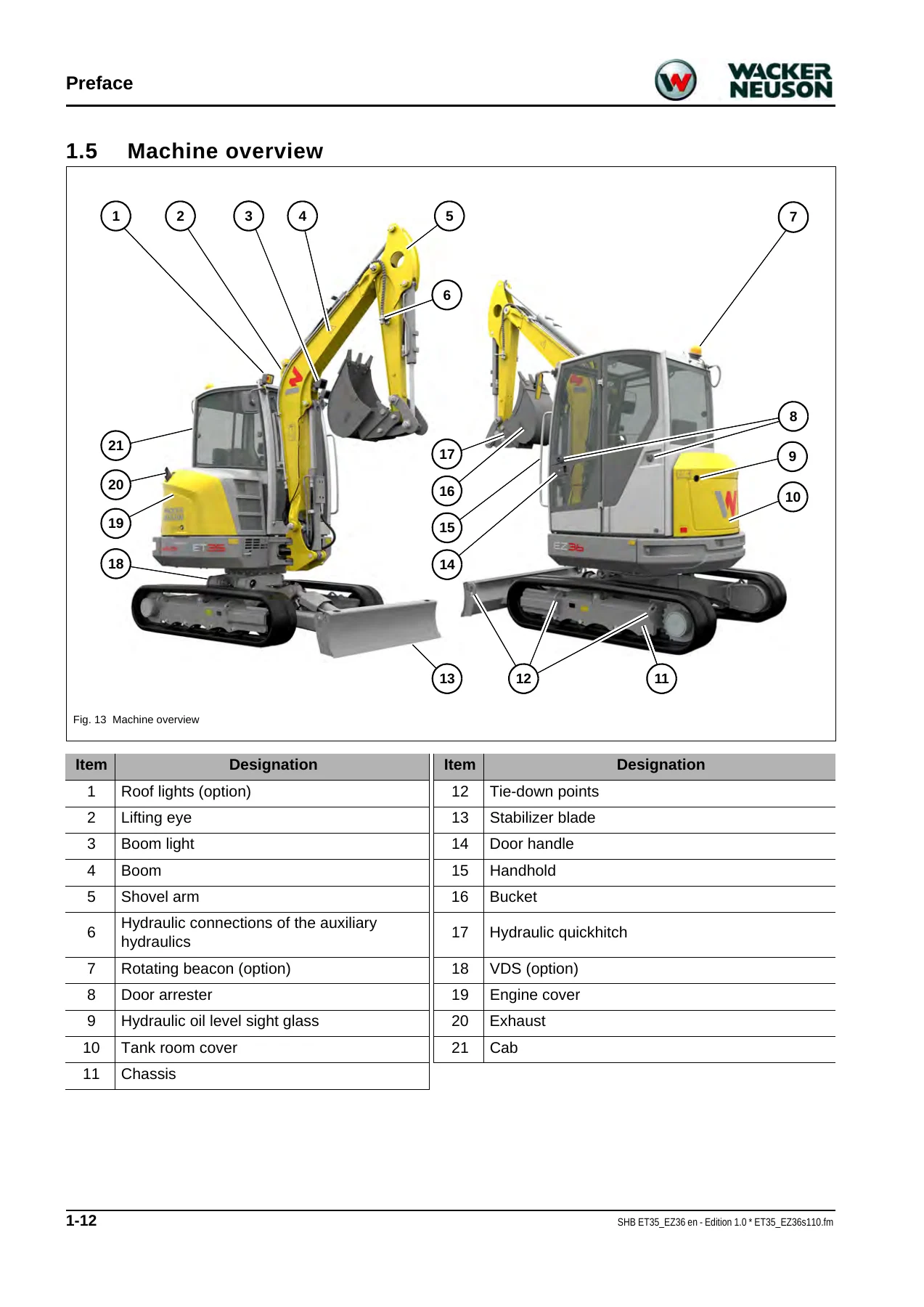

• 1 General – service manual scope, warranty and liability, warning notices, labels, machine overview, engine compartment overview Tier III, engine compartment overview Tier IV, valve compartment overview, tank room overview, battery master switch, towing, crane-lifting, towing the vehicle, loading the vehicle, transporting the vehicle
• 2 Technical data – engine Yanmar, traveling drive, tracks, work hydraulics, maximum speed, traction force, cylinder speeds, electrical system, Powertilt option, auxiliary hydraulics performance measurement, payload/stability, tightening torques, hose identification code, coolant, weights, excavator forces, dimensions, kinematics, wear limits, overload setting (Tier IV)
• 3 Maintenance – information on maintenance, special tools, fluids and lubricants, operation with biodegradable hydraulic oil, maintenance plan, parking the machine, maintenance accesses, cabin, general engine information, fuel system, engine lubrication system, cooling system, air filter, washer system, V-belt, exhaust gas cleaning system, hydraulic system, checking the hydraulic system pressure, test report, traveling drive, tracks, measuring live ring tolerance, maintenance of attachments, lubrication work, electrical system, cleaning and maintenance, resetting the maintenance meter
• 4 Engine – Yanmar 3TNV88-BPWN (Tier III), Yanmar 3TNV88F-EPWN (Tier IV), fuel system, engine malfunction tables
• 5 Hydraulic system – overview of components, hydraulic oil tank L042, work pump T003 and control oil unit C006, main control block C001, drive counterbalancing system, drive T011/T012, 8-channel swivel joint L017, 10-channel swivel joint for VDS option, swivel unit T015, pilot valves, hose burst valve 1 L062 and load-retaining valve 1 L001, hose burst valve 2 L063, tank return for hammer operation L056, reverse travel manifold block L046, distributor unit 1 L048, SAE/ISO changeover valve L039, VDS changeover valve C032, HSWS valve C017, floating position valve C045, auxiliary hydraulics performance measurement, test specifications for measuring cylinder speeds
• 6 Electrical system – Ohm’s law, measuring equipment and measuring methods, cable color coding, relays, electrical system, control equipment, sensors, CAN-Bus
• 7 Local position of the wiring harnesses – main wiring harness Tier III, main wiring harness Tier IV, cab switch harness, cab headlight harness, cabin roof harness, canopy switch harness, canopy headlight harness, additional VDS-HSWS harness, battery cables, quickhitch foot switch cable, safe load indicator cable, overload pressure sensor cable, proportional controls harness, dozer blade lever cable, joystick intermediate cable, display cable, boom headlight cable, external start terminal cable
• 8 Wiring harnesses – legends, connection lists and harness layouts for cab switch, cab headlight, cabin roof, canopy switch, canopy headlight, VDS-HSWS, HSWS foot button, safe load indicator, overload pressure sensor, proportional controls, dozer blade lever, display, boom headlight, joystick intermediate cable, and the main wiring harnesses for Tier III and Tier IV
• 9 Diagrams – hydraulics diagram legend ET35/EZ36, hydraulics diagram ET35/EZ36, hydraulics diagram options ET35/EZ36, circuit diagrams ET35/EZ36
• 10 Air conditioning – specific safety instructions, overview, air conditioning components, filling up the air conditioning system, malfunctions
• 11 Telematic – connections, functional check/LED
• 12 Diagnosis code list – diagnosis code list (SPN)

What the ET35 and EZ36 Service Manual Gives You

Because the ET35 and EZ36 share a platform but differ in travel gear, tail swing and a number of dimensions, this service manual handles both machines side by side. Technical data tables list values for the ET35 and EZ36 separately, so digging depth, transport length, tail end swiveling radius, track width and operating weight are read off the correct column rather than assumed. The same applies to ground pressure and the VDS travel gear variants, which carry their own dimension rows.

The maintenance chapter forms the practical backbone of the book. It sets out a maintenance plan that runs from daily checks through 50-hour, 500-hour, 1000-hour, 1500-hour, 2000-hour and 3000-hour intervals, with each task marked as operator or Wacker Neuson service center work. Fluids and lubricants are specified by application with capacities, including engine oil, coolant, hydraulic oil, gearbox oil, grease and washer fluid, plus ambient temperature ranges and viscosity classes. The procedure pages that follow show how to park the machine, open the engine cover, remove the tank room cover, reach the main and cabin fuse boxes, raise and lower the cab, and carry out lubrication on the boom, dozer blade, live ring teeth and bearings, cab hinges and control lever base.

Engine coverage splits cleanly between the two exhaust-gas standards. The Tier III machine runs the Yanmar 3TNV88-BPWN with mechanical engine management, while the Tier IV machine uses the 3TNV88F-EPWN with electronic control, EGR and a different fuel system layout. The service manual gives each its own compartment overview illustration so the fuel filter, prefilter with water separator, engine oil filter, dipstick, filler inlets, EGR valve and engine control unit can be located without guesswork.

Hydraulics, Electrical and Diagnostics

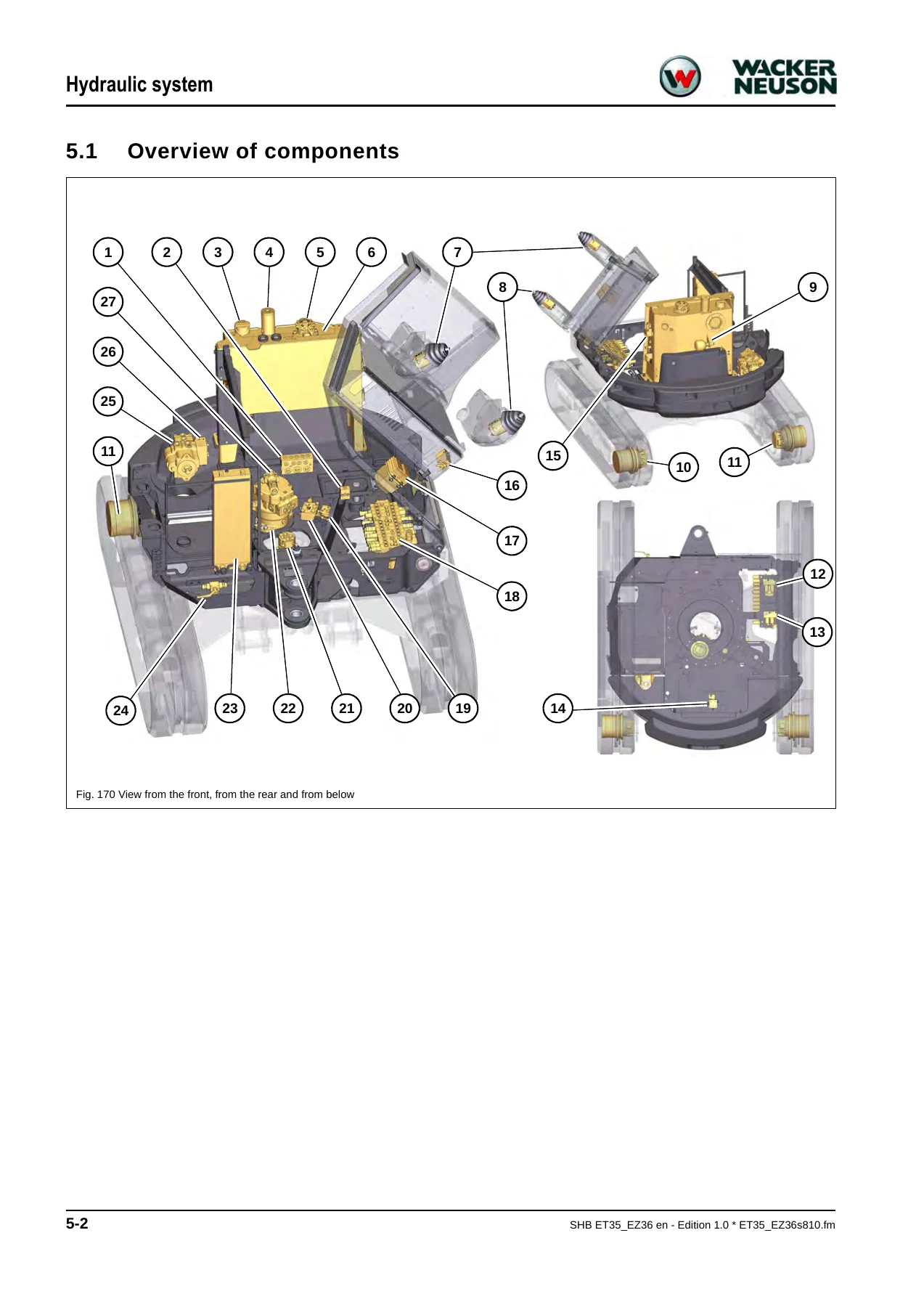

The hydraulic section identifies every major component by its equipment identifier – C001 main control block, T003 work pump, C006 control oil unit, T015 swivel unit, L042 hydraulic oil tank, L017 swivel joint, C017 quickhitch valve, C045 floating position valve and so on – and then explains what each does. Pump connections P1 through P4, service pressures, pilot control pressure, secondary pressure limiting valves and the drive counterbalancing system are all described, and the auxiliary hydraulics performance measurement section provides flow-versus-pressure tables so the pump output can be tested against real figures rather than judged by feel.

The electrical chapters are unusually detailed for a machine of this size. Sensors, controllers, relays and the CAN bus are introduced with resistance values for the terminal resistors, and the wiring harness section then breaks each harness down by strand number, cross-section, color code and signal name. The hydraulic diagrams, option diagrams and full circuit diagrams in chapter 9 close the loop by tying the components back to their connections.

Chapter 12 lists the SPN diagnosis codes together with the BMK designations for sensors, switches, solenoids, relays, controllers and indicating instruments, so a fault shown on the display can be traced to the component that produced it.

Who This Manual Suits

This service manual is aimed at the technician or workshop carrying out scheduled maintenance, hydraulic pressure setting, electrical fault finding, engine servicing or major component replacement on an ET35 or EZ36. Owners who do their own maintenance will also find the fluid specifications, capacities, tightening torques, track tension values, wear limits and maintenance intervals directly usable. The wear limit tables cover pins and bushings for every cylinder, the swiveling console, boom, shovel arm, bucket and stabilizer blade, together with lifting eye and tie-down point tolerances.
