Zlin Z 242 L Airplane Flight Manual – EASA Approved AFM PDF Download

Description

Zlin Z 242 L Airplane Flight Manual – Complete EASA-Approved AFM

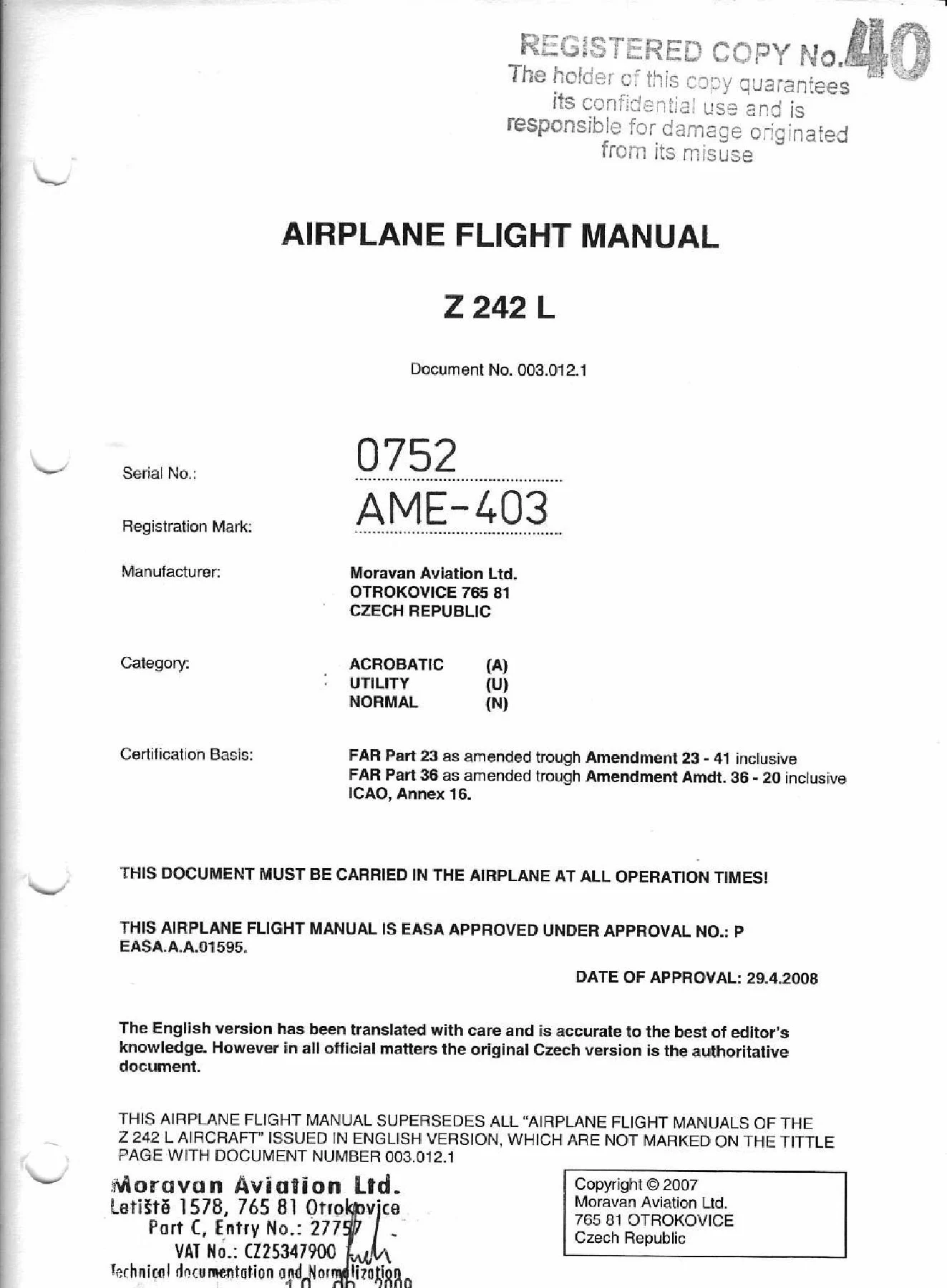

This Zlin Z 242 L Airplane Flight Manual is the complete 235-page Document No. 003.012.1 published by Moravan Aviation Ltd. of Otrokovice, Czech Republic, covering the Z 242 L in its Acrobatic (A), Utility (U) and Normal (N) certification categories. This Z 242 L AFM is EASA approved under Approval No. P.EASA.A.A.01595 and carries a document revision date of 1 August 2007, giving pilots, owners and instructors of the Z 242 L the same reference used to operate the type in day, night, VFR and IFR conditions (flight into known icing remains prohibited). The English text was carefully translated from the authoritative Czech original, and this Zlin Z 242 L Flight Manual reproduces every numbered section exactly as issued.

File Details

• Manual Type: Airplane Flight Manual (AFM) / Pilot’s Operating Handbook
• Aircraft: Zlin (Moravan Aviation) Z 242 L
• Document Number: 003.012.1
• Revision / Approval: Revised 1.8.2007; EASA Approval No. P.EASA.A.A.01595 dated 29.4.2008
• Language: English (translated from the authoritative Czech original)
• Page Count: 235 pages
• File Format: Digital PDF download

Chapters Covered

• Section 0 – General: basic provisions, warnings/cautions/notes, list of effective pages, revision log

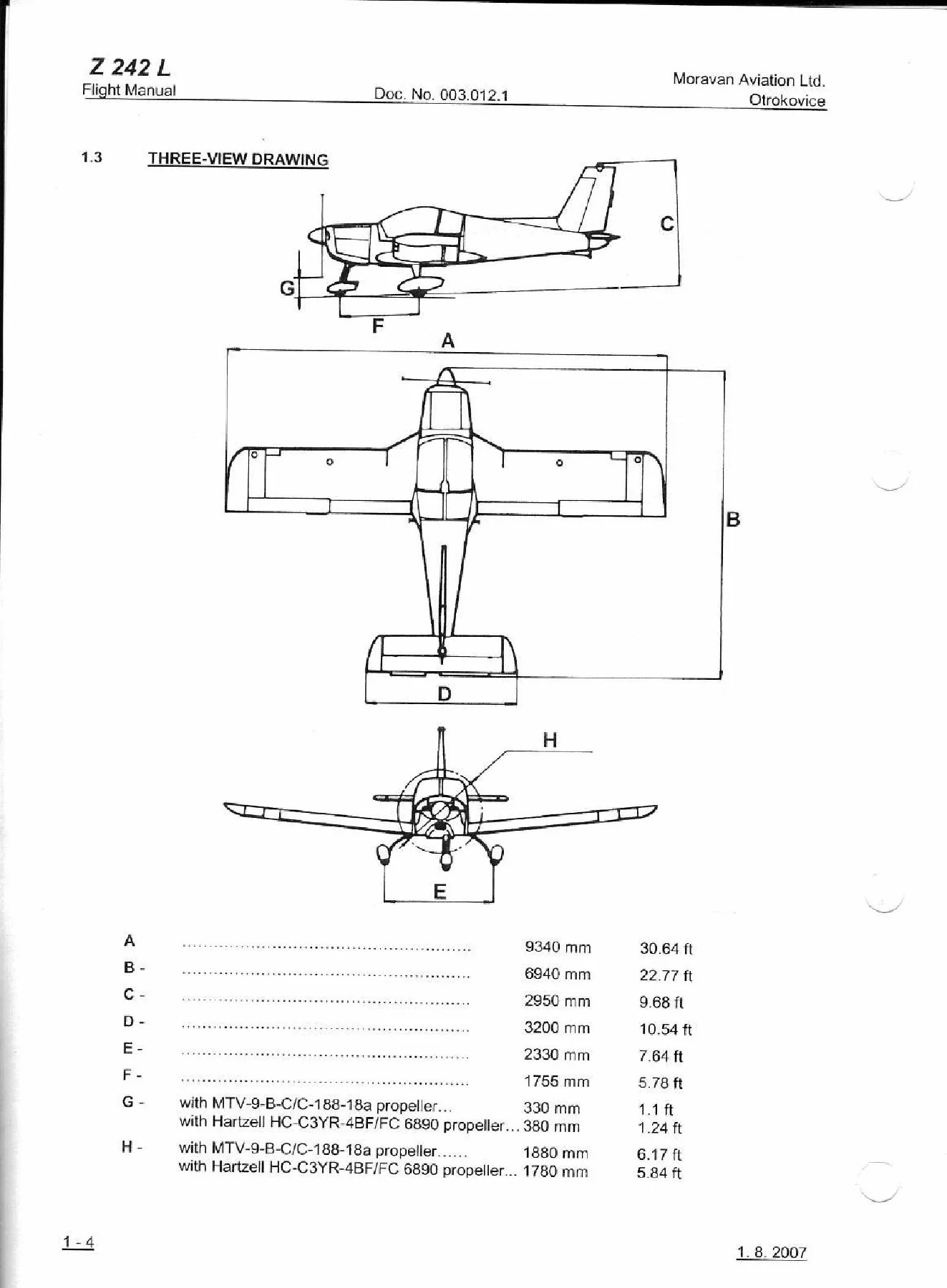

• Section 1 – General: aircraft classification, manufacturer data, three-view drawing, basic technical data (dimensions, wing, tail, landing gear, specific loadings), powerplant and propeller data, fuel and oil specifications, abbreviations and definitions, conversion of units
• Section 2 – Operating Limitations: validity of limitations, kinds of operation and KOEL, airspeed indicator markings, airspeed limitations (VNE, VNO, VA, VFE by category), engine speed and manifold pressure limits, propeller limitations, weight limitations, maximum permissible variable load, basic empty weight, centre of gravity position, approved flight maneuvers for Acrobatic and Utility categories with recommended entry speeds, load factor limits, instrument markings
• Section 3 – Emergency Procedures: engine failure in flight, engine restarting with and without the electric starter, emergency landing guidance
• Section 4 – Normal Procedures: pre-flight and ground checks, engine starting, engine ground check and magneto check, spin entry and recovery technique
• Section 5 – Performance: diagram of stall speeds, take-off run distances by category, maximum gliding ratio, aerodynamic airspeed correction graphs
• Section 6 – Weight and Centre of Gravity Position: definitions/symbols/units, weighing procedure with levelling points, static moment of variable load (pilots, fuel, oil, baggage), basic empty weight and equipment list

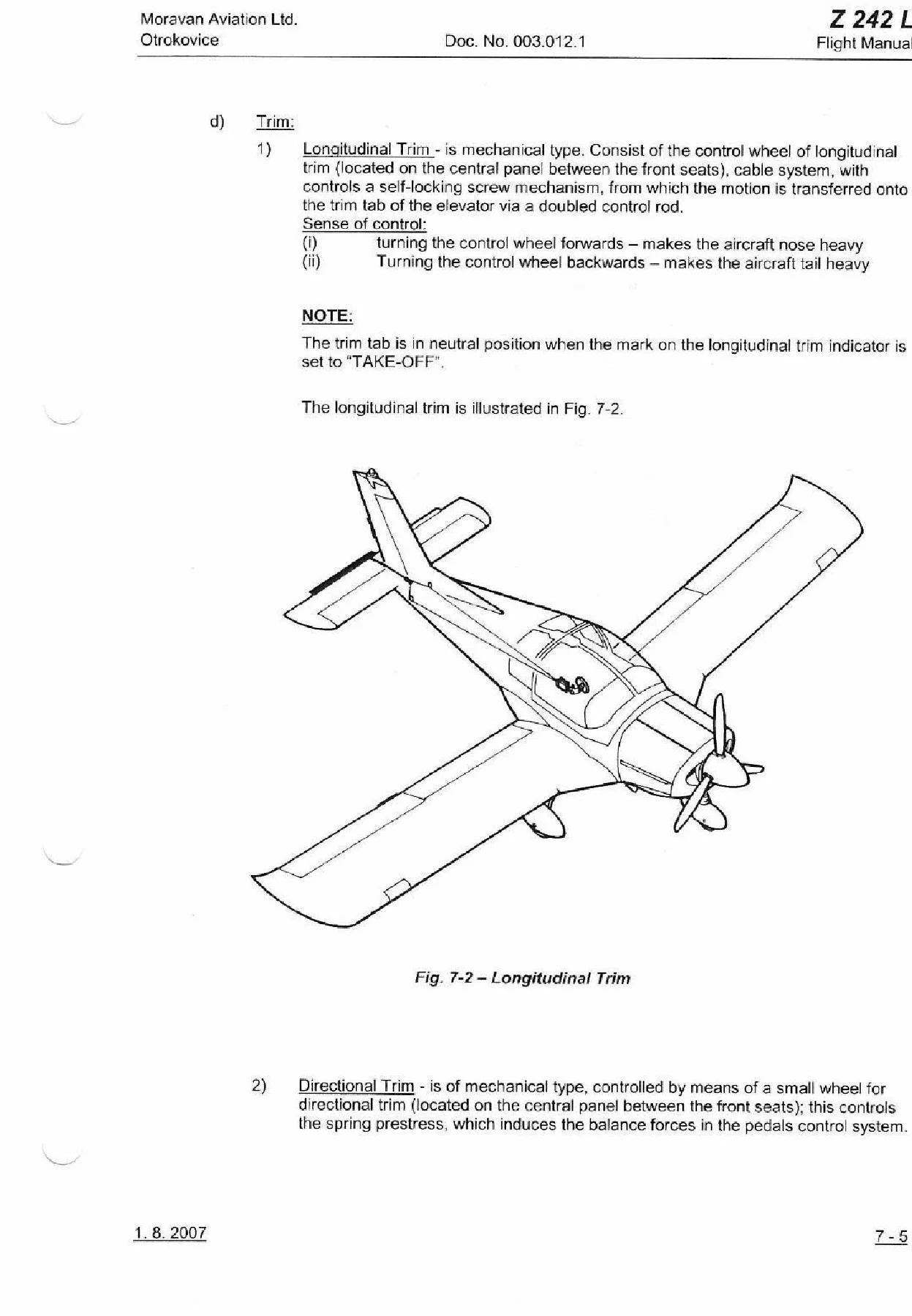

• Section 7 – Description of the Aircraft and Its Systems: fuselage, wing and empennage construction, cockpit controls list, trim systems (longitudinal and directional), informative placards, engine and propeller controls, engine instruments and engine oil system, 28V electrical system, fuel system
• Section 8 – Airplane Handling, Servicing and Maintenance: scheduled airframe/engine/propeller inspection intervals, fuel draining and water check, battery installation, cold weather accessories

Together these sections give a Z 242 L pilot or maintainer a single reference for every phase of operation, from cockpit familiarization through aerobatic flight planning to routine servicing between scheduled inspections.

Key Technical Specifications

• Engine: Textron Lycoming AEIO-360-A1B6, 200 HP (149 kW) at 2700 RPM
• Propeller options: MTV-9-B-C/C-188-18a or Hartzell HC-C3YR-4BF/FC 6890 (3-blade)
• Wing span 9.34 m (30.64 ft), length 6.94 m (22.77 ft), height 2.95 m (9.68 ft)
• Never Exceed Speed (VNE): 172 KIAS (319 km/h) across all categories
• Maximum take-off weight: 970 kg Acrobatic / 1020 kg Utility / 1090 kg Normal
• Maximum gliding ratio: 8:1 (flaps retracted)
• Electrical system: single-wire 28V DC, 60A alternator with auxiliary battery and emergency power supply

Acrobatic Category Coverage

Because the Z 242 L is certificated Acrobatic, this Zlin Z 242 L Flight Manual publishes the full list of 17 approved maneuvers with recommended entry speeds – steep turns, climbing turns, lazy eights, loops, half loop and half roll (Immelmann turn), half roll and dive out, stalled turns, slow rolls, snap rolls, whip stalls, spins, inverted flight and inverted turns, inverted loops from both normal and inverted flight, inverted spins, and stalls – along with the weight, centre of gravity, power plant and airspeed limitations that apply whenever those maneuvers are flown.

IMAGES PREVIEW

Why Pilots and Owners Rely on This Zlin Z 242 L Flight Manual

This Z 242 L AFM lets an owner, renter or instructor brief every normal, emergency and aerobatic procedure exactly as EASA approved it, confirm the correct airspeed, weight and CG limits before a sortie, and cross-check engine, electrical and fuel system behaviour against the manufacturer’s own description rather than second-hand notes. Following the published procedures and limits protects the airframe, the engine and the occupants, and keeps the aircraft operated within its certificated envelope. Delivered as an instant PDF download after checkout, this Zlin Z 242 L Airplane Flight Manual opens on a phone, tablet, laptop or in the cockpit kneeboard folder, with no shipping wait, and prints on demand for anyone who prefers a paper copy alongside the digital file.
