Lancair Evolution Kit Aircraft Assembly Manual – Rev 10 – PN 032-0004

Description

Lancair Evolution Kit Aircraft Assembly Manual – Rev 10 – PN 032-0004

This is the complete Lancair Evolution Kit Assembly Manual, Revision 10 dated 08/18/2014, Part Number 032-0004, published by Lancair International Inc. (represented by Neico Aviation Inc.). Running 910 pages, this Evolution Kit Assembly Manual is the full builder’s reference for constructing the Evolution kit aircraft from the airframe up, and it is delivered as an instantly downloadable PDF.

File Details

• Manual type: Aircraft kit assembly/build manual
• Brand/Model: Lancair Evolution Kit aircraft
• Document Part Number: 032-0004
• Revision: 10, dated 08/18/2014
• Language: English
• Page count: 910 pages
• File format: PDF

Chapters Covered

This Evolution Kit Assembly Manual is organized into 30 build chapters plus appendices, walking the builder through the aircraft in the order it comes together:

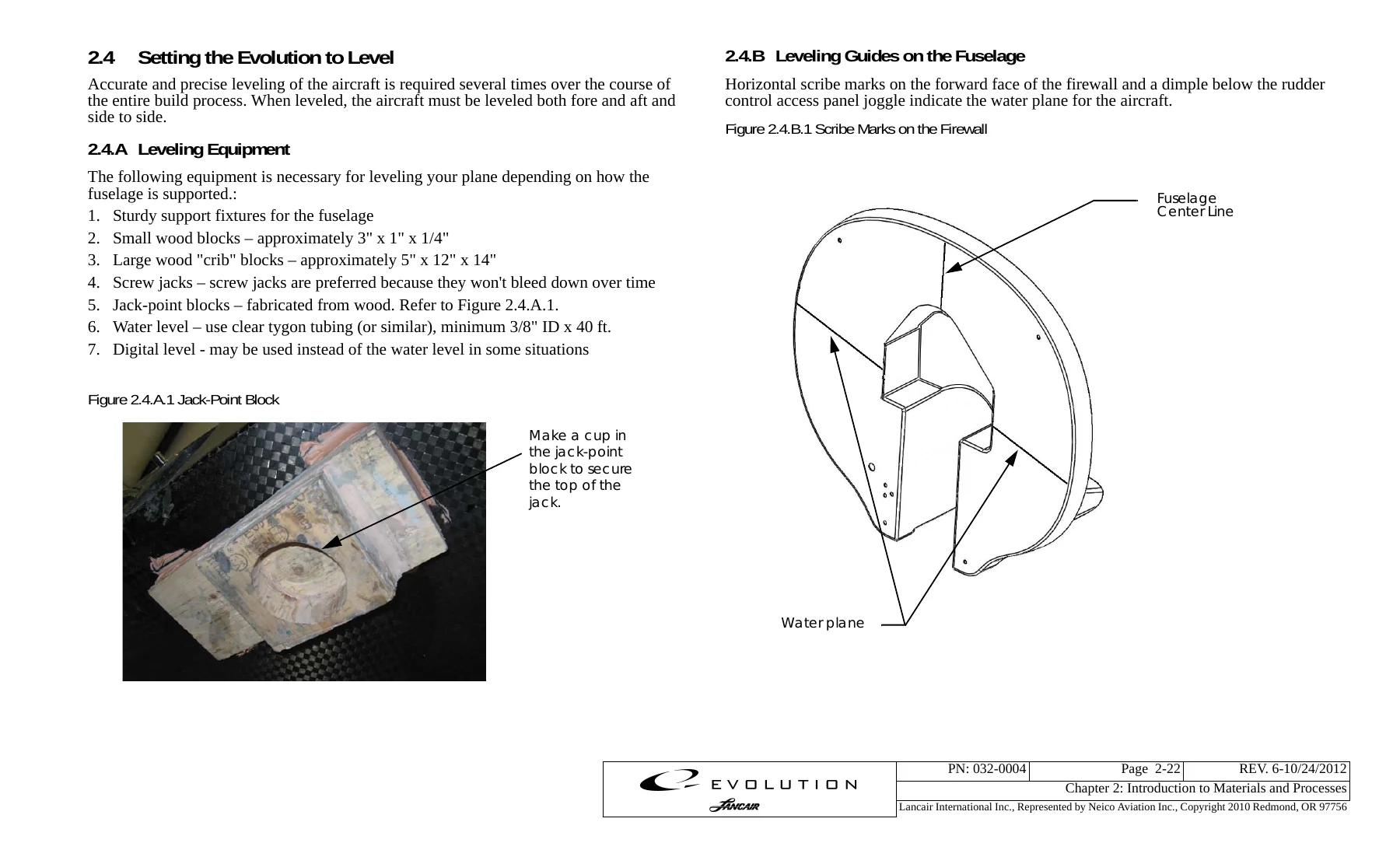

IMAGES PREVIEW

• Chapter 1: Introduction to the Lancair Evolution Kit – manual layout, shop setup, tools and supplies
• Chapter 2: Introduction to Materials and Processes – composites, epoxy/adhesive, drilling and bolt-hole tolerances, hardpoints, plastic layup, aircraft leveling
• Chapter 3: Horizontal Stabilizer and Elevators
• Chapter 4: Completing the Rudder – pulleys, capstans, rudder hardware, balancing, rigging
• Chapter 5: Wings – fuel and hydraulic system protection, flap/aileron hinges, fuel pickup, wing-to-fuselage mating, pitot tube, static wicks
• Chapter 6: Flaps – flap hardware, actuator assembly, flaps control system, position sensor
• Chapter 7: Ailerons – trim tab, trim servo, balancing, rigging, control stick forces
• Chapter 8: Main Landing Gear – assembly, wheels and tires, trailing link, shocks, actuator, gross weight increase and rough service options
• Chapter 9: Installing the Main Gear Doors
• Chapter 10: Fuselage – reinforcement plates, floorboards, engine mount gussets, battery trays, antennas, hydraulic pump mount
• Chapter 11: Hydraulic System – manifolds, reservoir and pump unit, accumulator, thermo relief valve, filter, emergency by-pass valve, system flush and startup
• Chapter 12: Fuel Systems – fuel lines, fuel selector, gascolator/fuel filter, electric fuel pump, fuel level sensors
• Chapter 13: Brake Systems – reservoir, parking brake, brake lines, brake assemblies
• Chapter 14: Seats and Seat Belts
• Chapter 15: Main Door – hinges, gas strut, latch anchors, door seal, main door lock
• Chapter 16: Heating, Ventilation, and Air Conditioning – condenser, evaporator box, dryer, HVAC plumbing and ducting
• Chapter 17: Baggage Door
• Chapter 18: Pitot Static System
• Chapter 19: Electrical and Avionics – AHRS, magnetometer, TAS, DC-DC converter, ELT, control stick grip
• Chapter 20: Autopilot – Garmin and TruTrak installations
• Chapter 21: Nose Gear – standard and gross weight increase installations by aircraft serial number
• Chapter 22: Cowling – attachment, fitting, trimming, air intakes, bodyworking
• Chapter 23: Firewall Forward – PT6 engine build-up, engine mount installation, firewall penetrations and blanket
• Chapter 24: Instrument Panel
• Chapter 25: Finishing the Interior
• Chapter 26: Pressurization – pressure bucket, relief valves, outflow valves, cabin air mixing valve, bleed air cooler
• Chapter 27: Finishing the Body Work – paint preparation and colors
• Chapter 28: Placards
• Chapter 29: Installing a Step
• Chapter 30: Weight and Balance – weighing procedure, moment weights
• Appendix A: Tools
• Appendix B: Torque Chart
• Appendix C: Glossary
• Index by Part Number and Index by Topic

Taken together, this Lancair Evolution Kit Assembly Manual gives the builder a single continuous reference that starts with shop setup and composite technique and ends with paint, placards, and weight and balance – the full build sequence for the Evolution kit aircraft in one document.

Notes on Coverage

Several sections in this Evolution Kit Assembly Manual, including the nose landing gear and main gear wheel procedures, are broken out by aircraft serial number range (Aircraft SN EVO-0001 through EVO-0058, and EVO-0059 and on), reflecting standard versus gross-weight-increase hardware configurations introduced partway through production.

Why Builders Need This Manual

This Lancair Evolution Kit Assembly Manual is the reference a homebuilder or A&P working on an Evolution kit needs on the bench: it walks through composite layup, hardpoint drilling, hydraulic and fuel line fabrication, brake system bleeding, PT6 engine mount installation, pressurization system testing, and full electrical/avionics wiring, all tied to the torque values in Appendix B and the terminology defined in Appendix C. Working from the actual Rev 10 assembly manual – rather than guessing at hardware selection, rigging tolerances, or wiring routing – keeps the build consistent with how the Evolution kit was engineered to go together. This is an instant PDF download – no shipping, no waiting. Open the Lancair Evolution Kit Assembly Manual on a laptop, tablet, or phone in the shop, or print any chapter you need at the bench.
