Linde T20 T25 AP SP SPB ion Forklift Spare Parts Catalogue 131-02 – Illustrated Parts List PDF

Description

Published as catalogue 131-02 under order number 131 801 00 00, this Linde T20 T25 AP/SP/SPB/ion spare parts catalogue is the illustrated parts list for the T20 and T25 series trucks in AP, SP, SPB and ion specification. Every assembly is drawn as an exploded view with numbered callouts, and every callout leads to a parts table giving the order number, quantity and description. This is the reference you reach for when a part has to be identified correctly the first time – electric traction motor, reduction gear, wheel drive, chassis and instrument panel, battery hood and battery retaining hardware, steering column and tiller, electromagnetic brake, drive wheel, load suspension rollers and bogies, electrical harnesses and connectors, hydraulic pump and valve blocks, lift mast and lateral battery change mechanism, plus the LED work light and the full decal set.

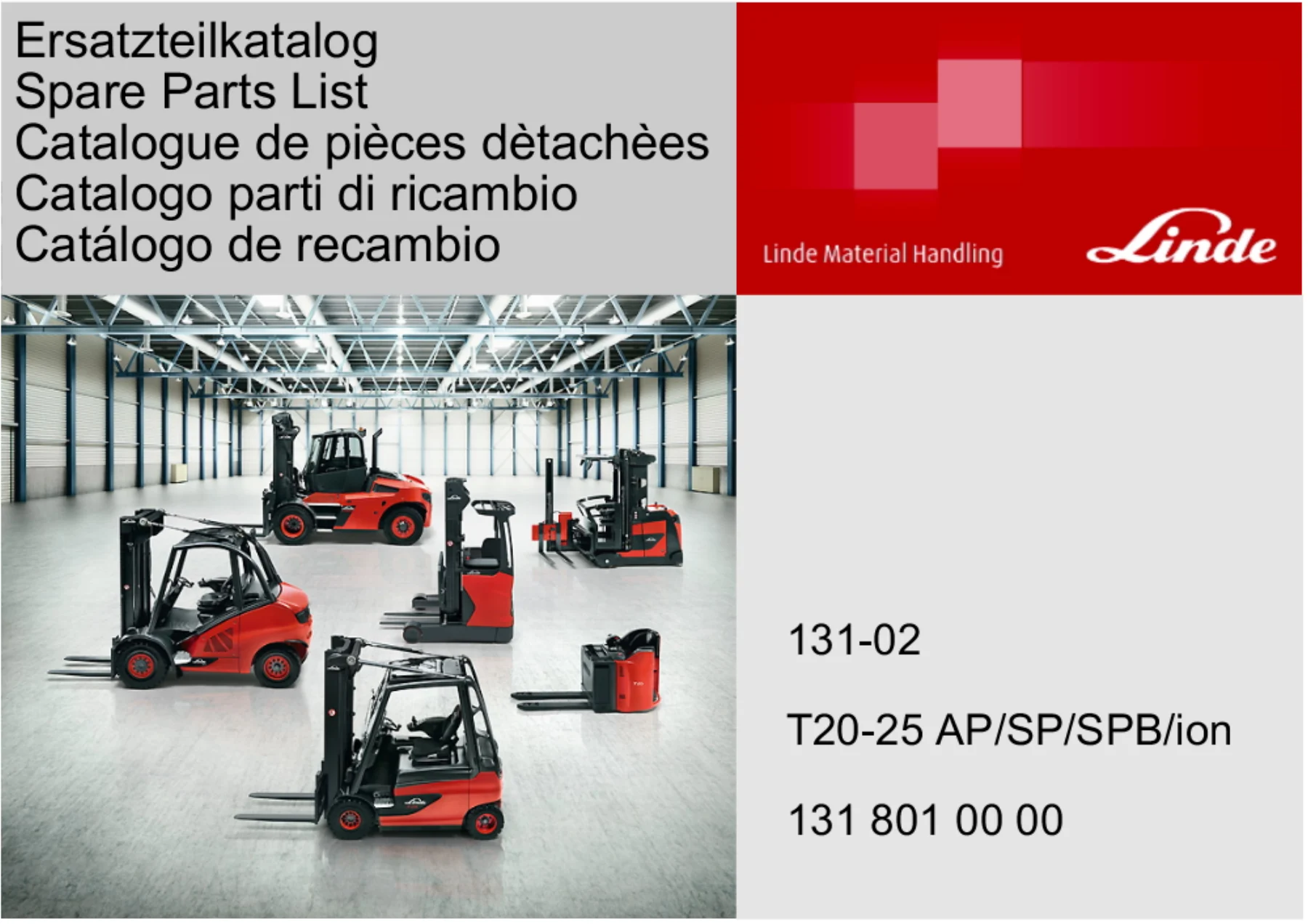

The catalogue is printed in Spanish; the cover title is also carried in German, English, French and Italian as Ersatzteilkatalog, Spare Parts List, Catalogue de pièces détachées and Catalogo parti di ricambio, so the same document circulates across Linde’s European parts network as Catálogo de recambio.

File Details

• Manual type: Spare parts catalogue / illustrated parts list
• Brand and model: Linde T20-25 AP/SP/SPB/ion
• Catalogue number: 131-02 (order number 131 801 00 00)
• Language: Spanish (cover title additionally in German, English, French and Italian)
• Extent: 280 pages
• Format: PDF
• Date shown in the catalogue: 02.05.2016

Chapters Covered

• MOTOR
• TRANSMISION
• CARROCERÍA
• SISTEMA DE DIRECCION, FRENADO Y RUEDAS
• EQUIPO ELECTRICO
• EQUIPO HIDRAULICO
• MONTANTE
• EQUIPO ESPECIAL VEHICULO
• SERIGRAFÍAS DE INDICACIONES

Motor de tracción and transmission

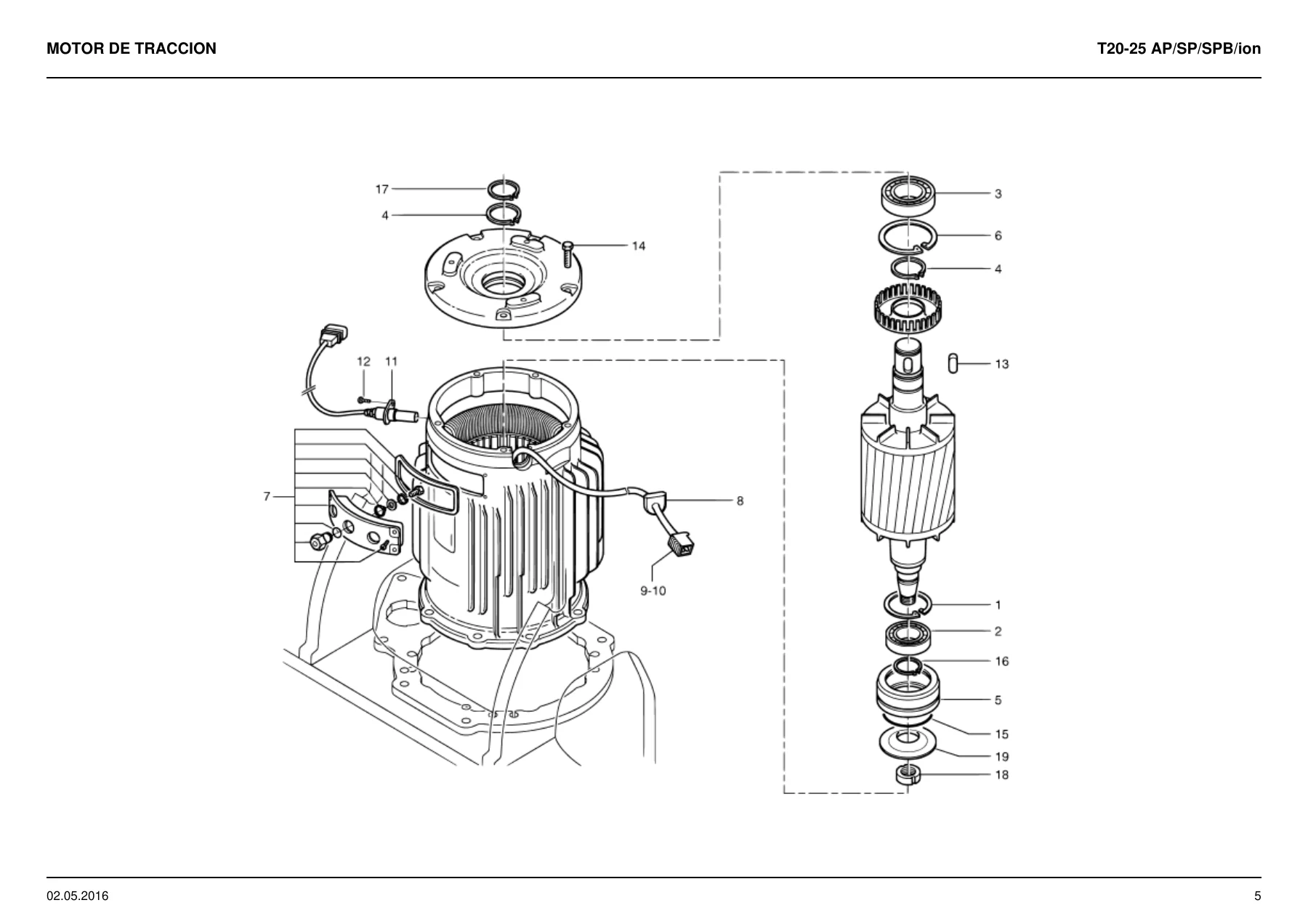

The motor section strips the traction motor down to its housing, 3 kW motor unit, grooved ball bearings, seal rings, connection plate, plug housing, speed sensor, studs and castellated nut. The transmission chapters follow the same pattern for the gearbox, the second reduction stage, the electromagnetic brake mounting, the wheel drive assembly and its housing, cover, gear wheel, pinion gear, wheel bolt and tapered roller bearings, so a complete reduction unit can be rebuilt or replaced item by item.

Carrocería, battery hood and driver’s area

Frame assemblies, floor plates, front plates, protection panels, instrument panels, cover plates, mats, guide pieces, dampers and the complete battery hood are broken out here, including the battery hood assemblies for 2PzS, 3PzS, 4PzS and 5PzS battery sizes. Battery retainers, clamps, levers, spring elements, bolts and the seat cushion padding are all itemised with their order numbers.

Steering, braking and wheels

The steering group covers the steering unit ES30-24/0, steering wheel and tiller assemblies, tiller articulation, the guide and steering head parts, the potentiometer, microswitch and the printed circuit board assembly. Braking is documented through the electromagnetic brake for T20/24 AP/SP, N20, N20/N24 HP and L16AS variants, with brake discs, flange, hub and aluminium plate. Wheels appear as solid rubber 254×102 and polyurethane versions, together with load suspension rollers, boggies, four-point support stabilisers and the load wheel bearings that keep a hard-working truck tracking straight.

Equipo eléctrico

The main wiring harness is listed with its plug housings, contacts, seals and connectors, alongside the 24 V relay, 250 A and 40 A fuses, fuse links, contactors, emergency stop switch, key switch, horn, transmitter, ventilation fan, battery discharge indicator, display unit, and the power/output modules for the LAC-03 controllers. Battery-side content includes the Li-Ion battery assemblies in 24 V 2PzS 205 Ah and 410 Ah, in both LIN and FEN versions, with the associated distribution boxes, safety device, cables and charger.

Equipo hidráulico

Hydraulic coverage runs from the pump unit, pump motor and carbon brush set through the non-return valve, pressure limiting valve, check valve, valve block, oil reservoir, hollow screws and O-rings, hoses, suction and return lines, to the lift cylinders and seals. The lateral battery change hydraulics are covered in the same section, including the distribution valve blocks for the different truck configurations.

Montante, lift system and lateral battery change

Fork carriage assemblies and fork frames are listed in widths of 520, 540, 560 and 680 mm for 2PzS to 5PzS batteries, with reinforced versions for trucks above 2 t. Lift shafts, bearing bushes, push rods and connecting rods are given in a wide range of lengths, from 325 mm up to 1400 mm, so the correct rod can be matched to the mast height, along with lift cylinders, oscillation arms, anti-friction protection and grease nipples.

Equipo especial vehículo and identification decals

Vehicle special equipment includes the battery trolley with its castors, rollers, drawbar and spring element, the battery support assemblies for 2PzS and 3PzS packs, the load backrest, the support wheel unit and the LED work light with its bracket and wiring harness. The decal section lists the T20 and T25 identification labels, the ION labels, warning and lifting-point decals, the Made in France label, the identification plate and the cold-store plate.

Part number supersession index

The last part of the catalogue is a full supersession index: old order numbers listed with the replacement numbers that took over from them, cross-referenced to the page where the current part appears. If a number on a machine’s parts list has been dropped and replaced over the years, this is where the lineage is traced – one of the most practical pages in the book when a truck has been through several parts revisions.

Why this parts catalogue earns its place in the workshop

Guessing at a part number on a Linde truck is expensive. A wrong bearing, the wrong seal ring or a rod of the wrong length means the machine sits in the aisle while the order goes back and a second one is placed. Because every view here is exploded and every callout is numbered against a quantity and description, a fitter can confirm a part visually and by number before anything is ordered. The catalogue also distinguishes the AP, SP, SPB and ion variants where the hardware differs, and the validity markers printed beside the items show which machine series each part applies to, so a T20 and a T25, or a 2PzS and a 5PzS truck, do not get mixed up.

IMAGES PREVIEW

Instant download

Delivery is immediate: the Linde T20 T25 AP/SP/SPB/ion spare parts catalogue arrives as a PDF the moment payment is complete, with no shipping and no waiting on a courier. Keep it on the workshop laptop, the tablet on the service cart or the phone in your pocket, search it on screen and print the exploded view and parts table you need for the job. One purchase, the whole truck’s parts structure.
