Philips Gyroscan NT Intera Achieva F2000 MRI Magnet Cold Head Rebuild & Adsorber Replacement Service Procedure PDF Download

Description

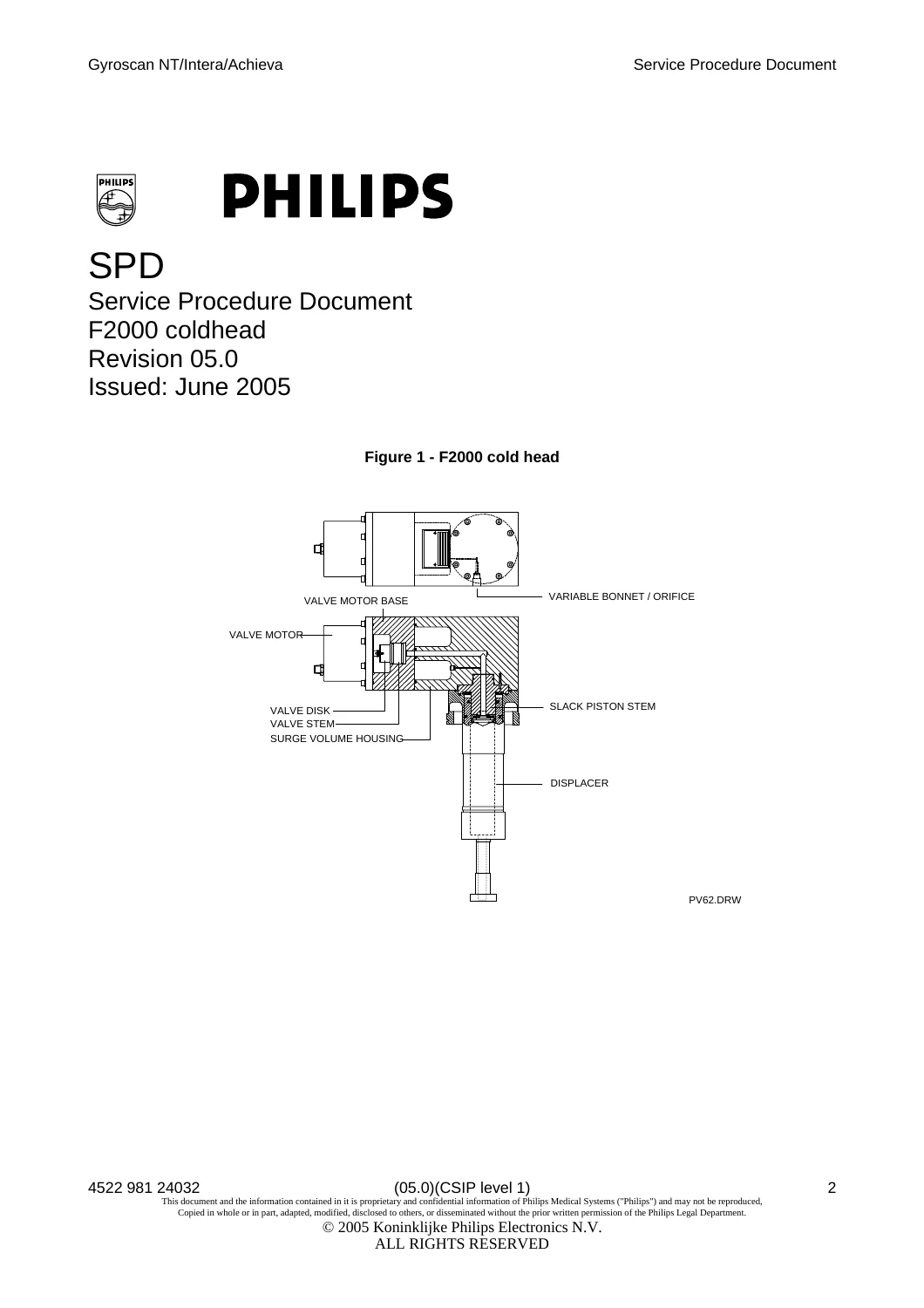

Philips F2000 MRI Cold Head Rebuild Service Procedure Document

This is Philips Service Procedure Document 4522 981 24032, Revision 05.0 (issued June 2005), covering the complete rebuild and replacement procedure for the F2000 cold head — the cryogenic refrigerator assembly that maintains superconducting magnet temperatures in Philips MRI systems. The F2000 cold head must be replaced every two years per this document, making this SPD a mandatory recurring service reference for any site operating these systems. The document is classified CSIP Level 1 and covers the entire cold head disassembly, component service, reassembly, helium charging, leak checking, and return-to-service sequence.

Systems This Manual Applies To

• Gyroscan NT MRI system
• Intera MRI system
• Achieva MRI system
• F2000 magnet refrigerator cold head (APD/IGC design)

Main Sections and Subjects Covered

• Section 4.1 — Cold Head Replacement
  • 4.1.1 Introduction — mandatory 2-year replacement interval; cryogenic hazard warnings for ice formation and moisture damage
  • 4.1.2 Preparation — complete tool and equipment list with 12NC part numbers for the Refrigerator Tool Kit (4522 150 21651 / IGC P/N 43038-51) and Cold Head Rebuild Kit (4522 150 22731 / APD P/N 264214A); full parts tables with quantities and APD/Philips part numbers for all cold-end and warm-end replacement components
  • 4.1.3 Cold Head Rebuild Instructions — 14 detailed procedural subsections covering:
    • Preliminary setup: cold head heater controller (CHHC) connection and B0 heater activation via Gyroscan software (login sequence specified)
    • Gas line disconnection with dual-wrench technique to protect cold head coupling
    • Service tool assembly installation on magnet turret
    • Valve motor base separation from surge volume housing (SVH)
    • SVH removal and disassembly — equalisation capillary (item 10) replacement, variable bonnet/orifice assembly service, slack piston stem (SPS) replacement
    • Valve motor base service — valve stem, valve disc, and O-ring replacement; valve stem alignment tool procedure
    • Displacer assembly removal and installation — critical 10-minute atmospheric exposure limit for new displacer; 1st and 2nd stage ring seating tool procedures
    • SVH reassembly to magnet with dowel pin orientation
    • Helium pressurisation (100 ±5 psi / 6.9 ±0.34 Bar) and 10-cycle purge sequence; final charge to 280 ±5 psi (19.3 ±0.34 Bar)
    • Leak checking with liquid leak detector
    • Gas line reconnection and face seal inspection
    • Return-to-service: helium level check (>30%), compressor gas pressure check (310–350 psi)
• Section 4.2 — Adsorber Replacement — Compressor adsorber (12NC 4522 130 74033 / APD P/N F257428A) replacement every 2 years; removal and installation without venting; used adsorber venting and disposal as chemical waste; compressor datasheet recording requirements

Parts Coverage

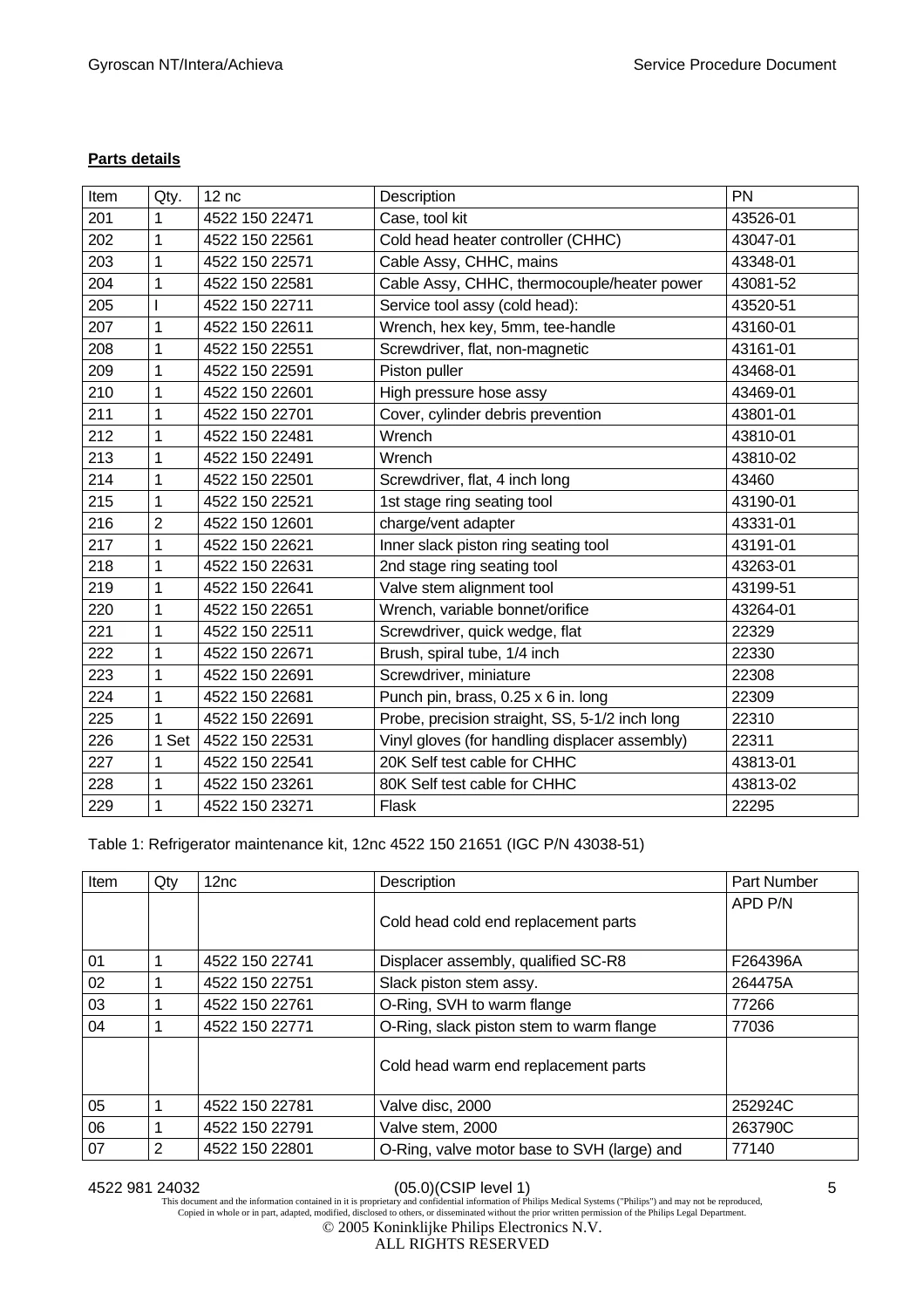

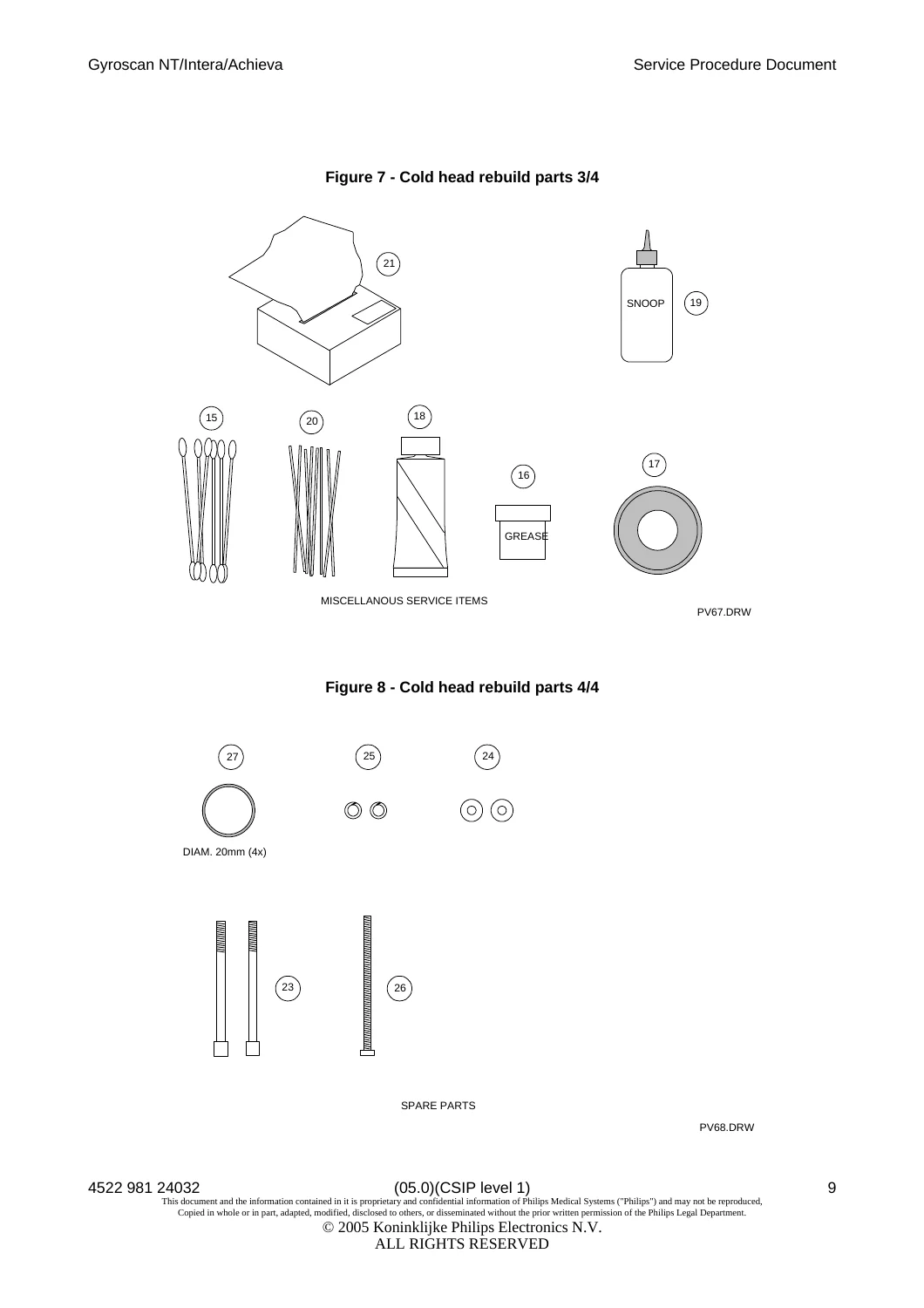

The document provides complete illustrated parts tables for the Refrigerator Tool Kit (29 items with 12NC numbers), Cold Head Rebuild Kit (27 items including displacer assembly F264396A, slack piston stem 264475A, equalisation capillary 257119B, and all O-rings), and Compressor Adsorber (F257428A). Four pages of exploded-view illustrations show all cold-end, warm-end, miscellaneous, and spare parts with dimensions.

Why This Manual Is Critical

The F2000 cold head is the sole active cooling element keeping the MRI superconducting magnet below 4 Kelvin. Failure to perform the biennial rebuild correctly risks cryostat ice formation, which can be irreversible, or magnet quench. This SPD provides the only complete procedure for rebuilding the cold head in-house, including helium gas quality requirements (99.995% / 4.5 grade, minimum 1000 psi supply at 50 litres), the critical atmospheric exposure time limit for the displacer assembly, and the exact purge and charge sequence. Sites with a service contract or in-house MR engineer capability will refer to this document every two years without exception.

Instant PDF Download

Delivered instantly as a PDF upon purchase — available on any device, ready to print for field use or reference on a tablet during service.
