Varian Low Energy Clinac C-Series Preventive Maintenance PMI Procedure Guide PDF Download

Description

Varian Low Energy Clinac C-Series PMI Procedure Guide

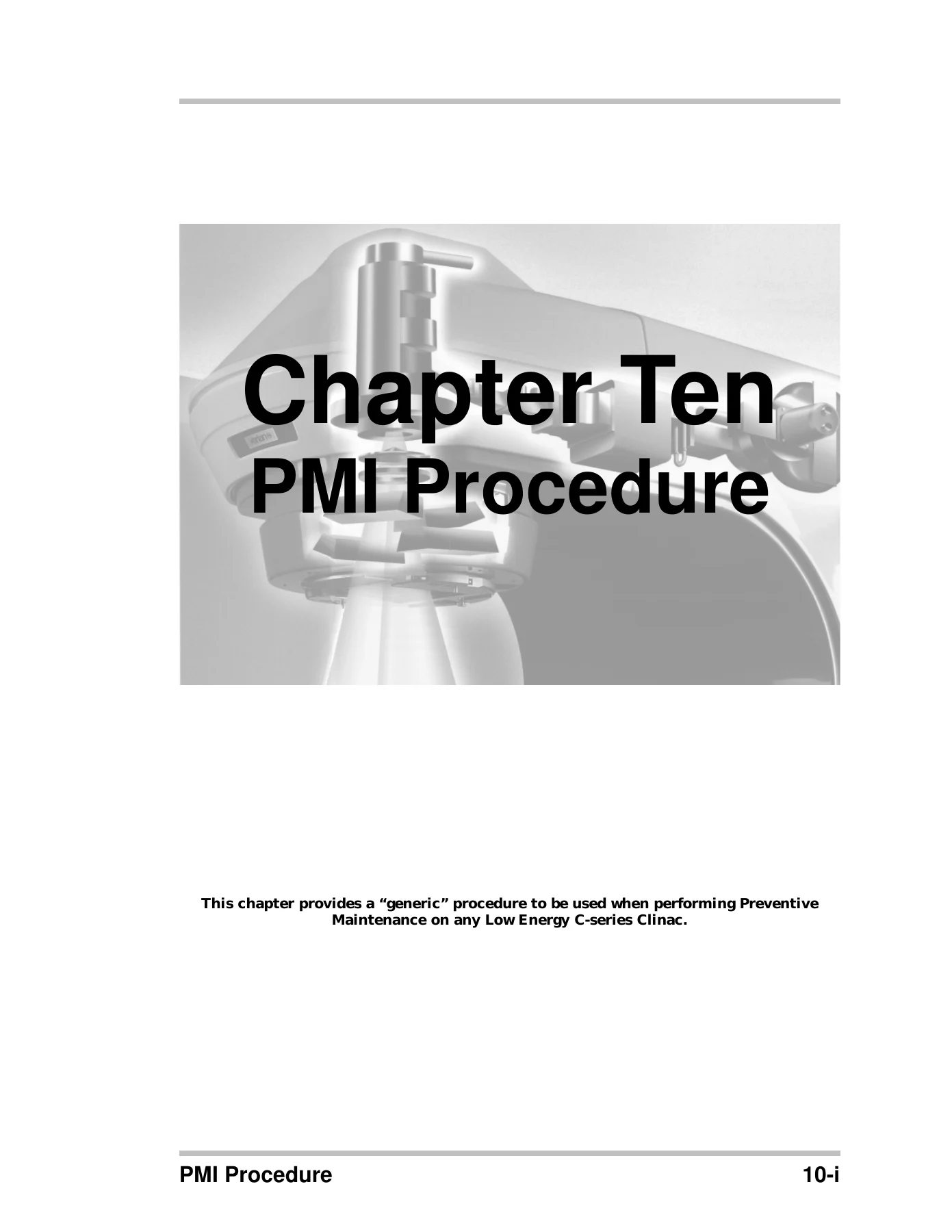

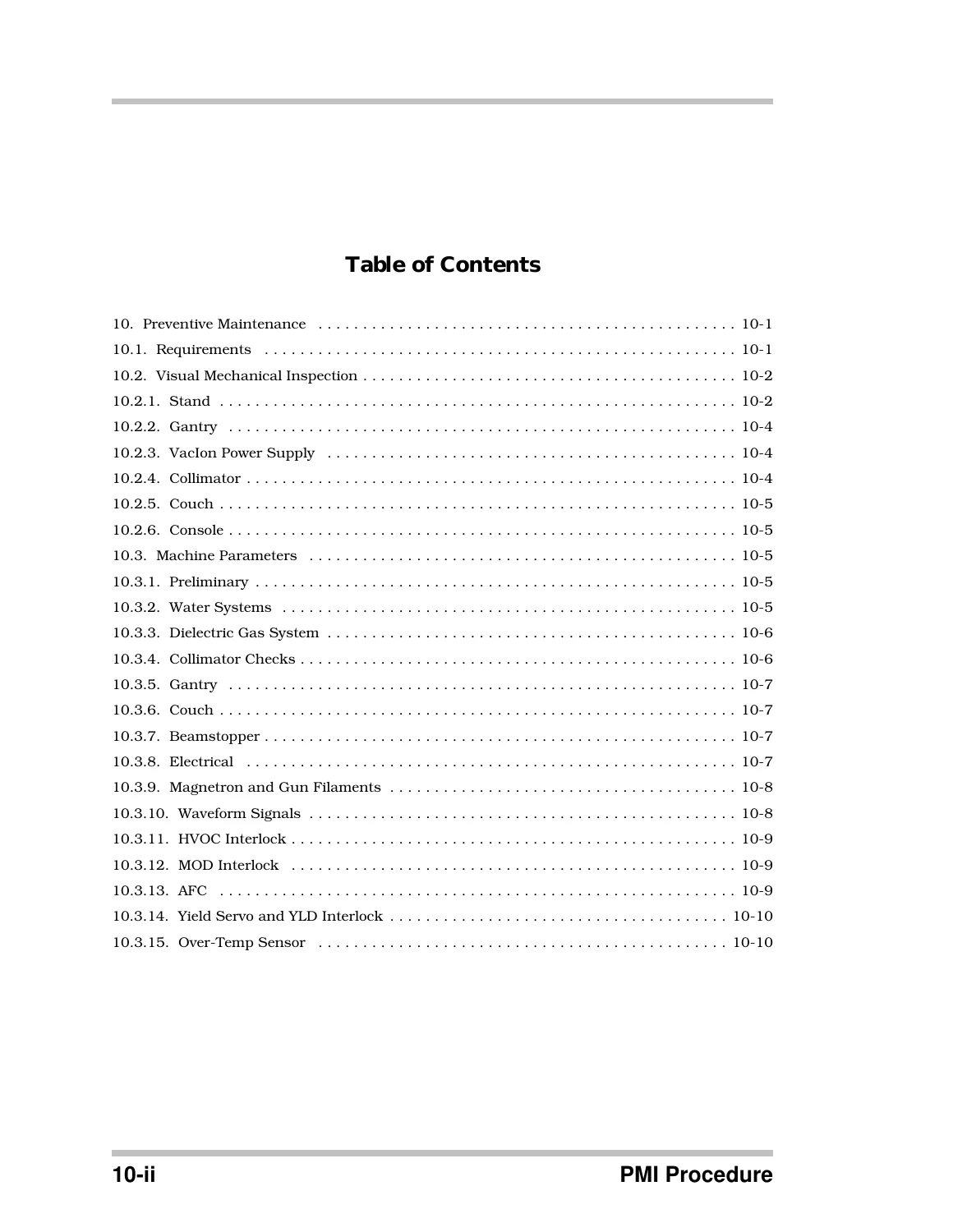

This document provides the Chapter Ten Preventive Maintenance procedure for Varian Low Energy C-series Clinac linear accelerators. It defines the structured three-level PMI schedule — Quarterly, Semi-Annual, and Annual — and gives complete procedural checklists for visual mechanical inspection, machine parameter verification, and functional testing. This is a practical field-use maintenance reference for service engineers and biomedical technicians responsible for scheduled upkeep of Clinac radiotherapy systems.

Equipment Coverage

Described as a generic procedure for any Low Energy C-series Clinac. References throughout to C2 and C3 platform variants. Beam current benchmarks stated: 4MV machines at 180 ±5 mA, 6MV machines at 120 ±5 mA.

PMI Levels and Task Structure

• Quarterly: Filter cleaning, desiccant replacement, lamp replacement, general machine checkout
• Semi-Annual: Electronic circuit calibration, power supply voltage measurements, interlock checks
• Annual: Klystron filament voltages, beam steering verification, full parameter sheet recording

Systems Covered

• Stand — modulator, motor control/aux electronics, power distribution, plate transformer, water system
• Gantry — magnetron magnet gauss (1550 ±25 gauss specification), counterweight and beamstopper inspection
• Collimator — jaw lubrication, mirror cleaning, Mylar cross-hair maintenance, 100 in-lb torque specification for retaining screws
• Couch — motor functions, float table, pendant and side panel diagnostics, limit switches
• Console — key switches, PCB seating, CRT monitor, fans

Machine Parameter and Waveform Coverage

• Water system flow circuit pressure switch and flow sensor trip points
• Dielectric gas system — waveguide pressure and GAS interlock trip verification with stated settings for 3-port and 4-port circulators
• Collimator rotation, jaw limits, wedge codes, PRO readout calibration
• Thyratron filament voltages (true-RMS), keep-alive grid voltage, VacIon HV, LVPS voltages
• Magnetron and gun filament voltages, programming steps 1 and 2
• Waveform signal measurements: HVPS I (3.8V peak), DeQing % (50–60%), PFN V (22KV peak), MAG I (110A peak)
• AFC balance and Yield Servo functional verification

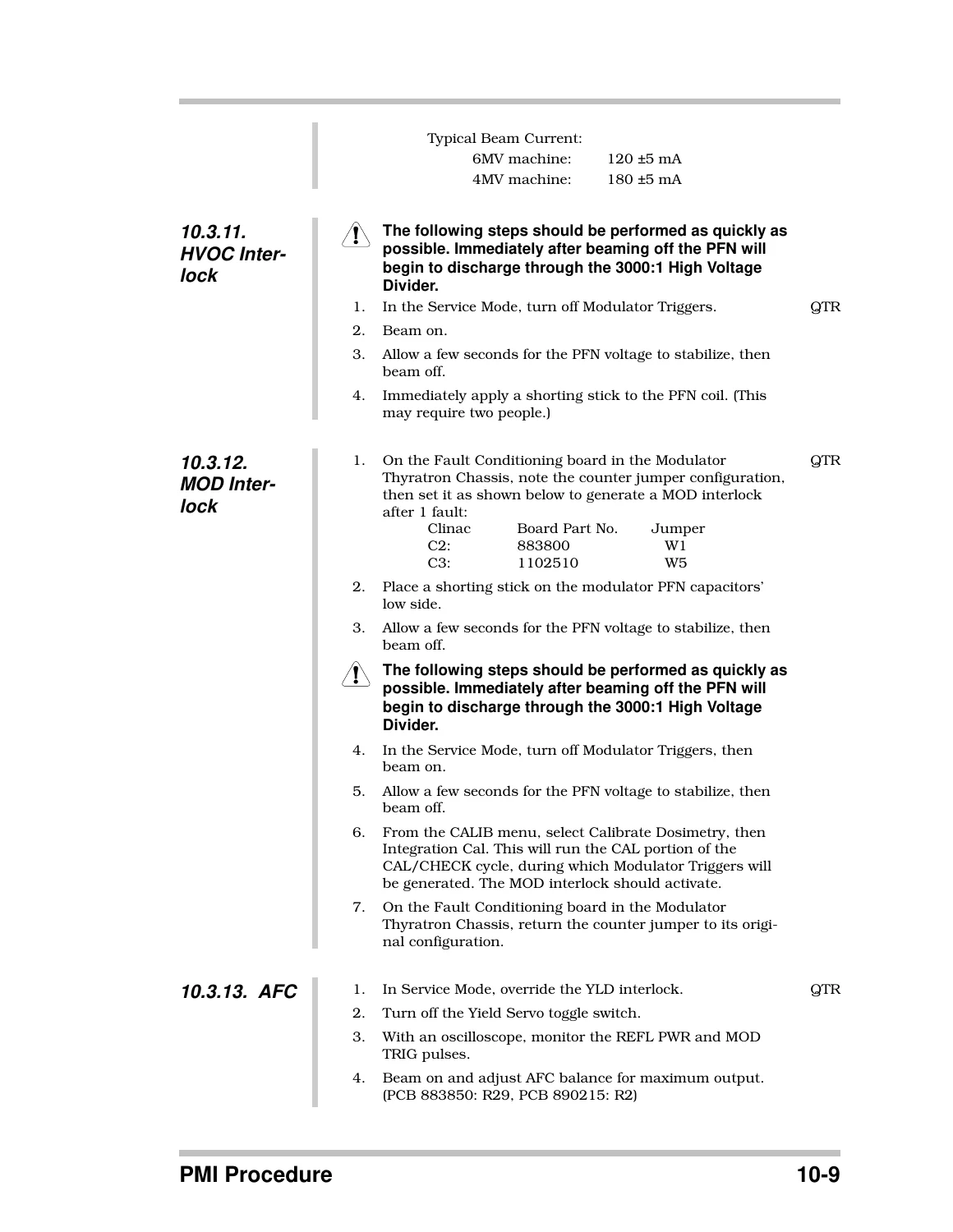

• HVOC and MOD interlock testing
• Over-temperature sensor trip point verification (48 ±3°C)

Lubrication Application Chart

A detailed lubricant application chart is included specifying Varian-sourced lubricants with part numbers and application frequencies for all major lubrication points including gantry Kaydon bearings, MLC leaf and carriage lead screws, MLC leaf guide plates, couch ways and bearings, and beamstopper harmonic drives.

Why This Manual Is Useful

Maintaining a Low Energy Clinac in compliance with scheduled PMI requirements demands a structured, documented procedure set. This guide provides the quantitative pass/fail values for every measurable parameter — not just inspection descriptions — enabling biomedical engineers to execute and sign off on complete PMIs with confidence. The lubricant specification chart with Varian part numbers is of immediate practical value during annual servicing intervals.
