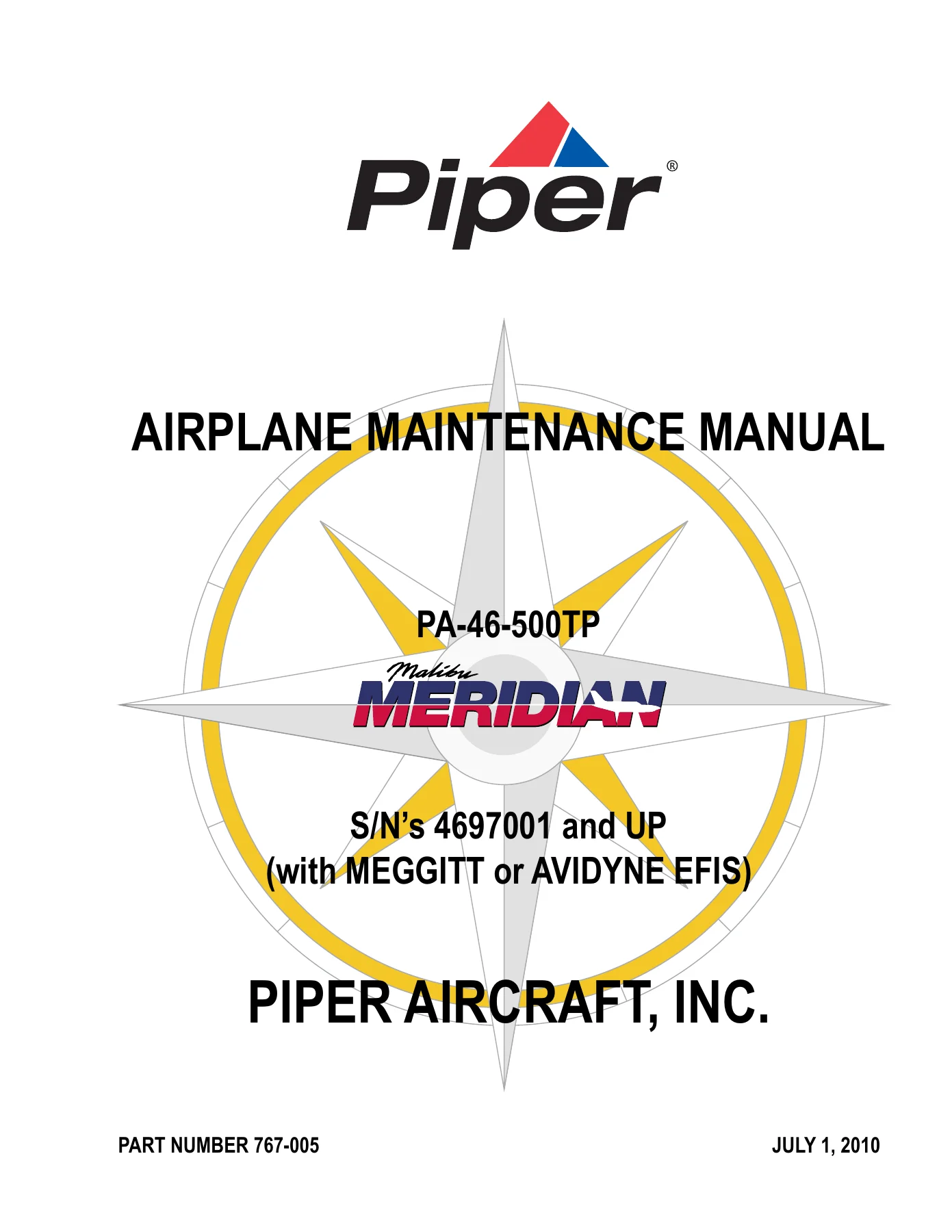

Piper PA-46-500TP Malibu Meridian Airplane Maintenance Manual – P/N 767-005

This is the complete Piper PA-46-500TP Malibu Meridian Airplane Maintenance Manual, Piper publication number 767-005, effective for aircraft serial numbers 4697001 and up equipped with the Meggitt or Avidyne EFIS. It is the full maintenance reference used for servicing, inspecting, troubleshooting, repairing, and overhauling the PA-46-500TP airframe, its Pratt & Whitney Canada PT6A-42A engine installation, and its onboard systems.

The manual follows the GAMA Specification No. 2 chapter/section/subject numbering format, so every task, component, and specification is filed under a standard ATA-style reference. That structure is what makes the Piper PA-46-500TP Malibu Meridian maintenance manual practical on the hangar floor: you find the system chapter, drop to the section, and work from the procedure.

File Details

• Manual type: Airplane Maintenance Manual (Instructions for Continued Airworthiness)
• Brand / Manufacturer: Piper Aircraft, Inc.
• Model: PA-46-500TP Malibu Meridian
• Document number: 767-005
• Original issue date: July 1, 2000
• Revision cycle shown: Revisions through July 1, 2010 (ORG000701, CR061130, CR070415, CR080718, CR090701, PR100701)
• Language: English
• File format: PDF
• EFIS coverage: Meggitt or Avidyne EFIS installations
• Serial number effectivity: 4697001 and up
• Publisher location: Vero Beach, Florida, U.S.A.

Chapters Covered

The Piper PA-46-500TP Malibu Meridian airplane maintenance manual is organised into the standard GAMA chapter groups listed below, with the main sub-sections shown for each.

• Chapter 4 – Airworthiness Limitations: Approved Mandatory Replacement Times, Structural Inspection Intervals, Life Limited Parts Marking and Disposition
• Chapter 5 – Time Limits / Maintenance Checks: General, Time Limits, Scheduled Maintenance Checks, Special Inspections, Unscheduled Maintenance Checks

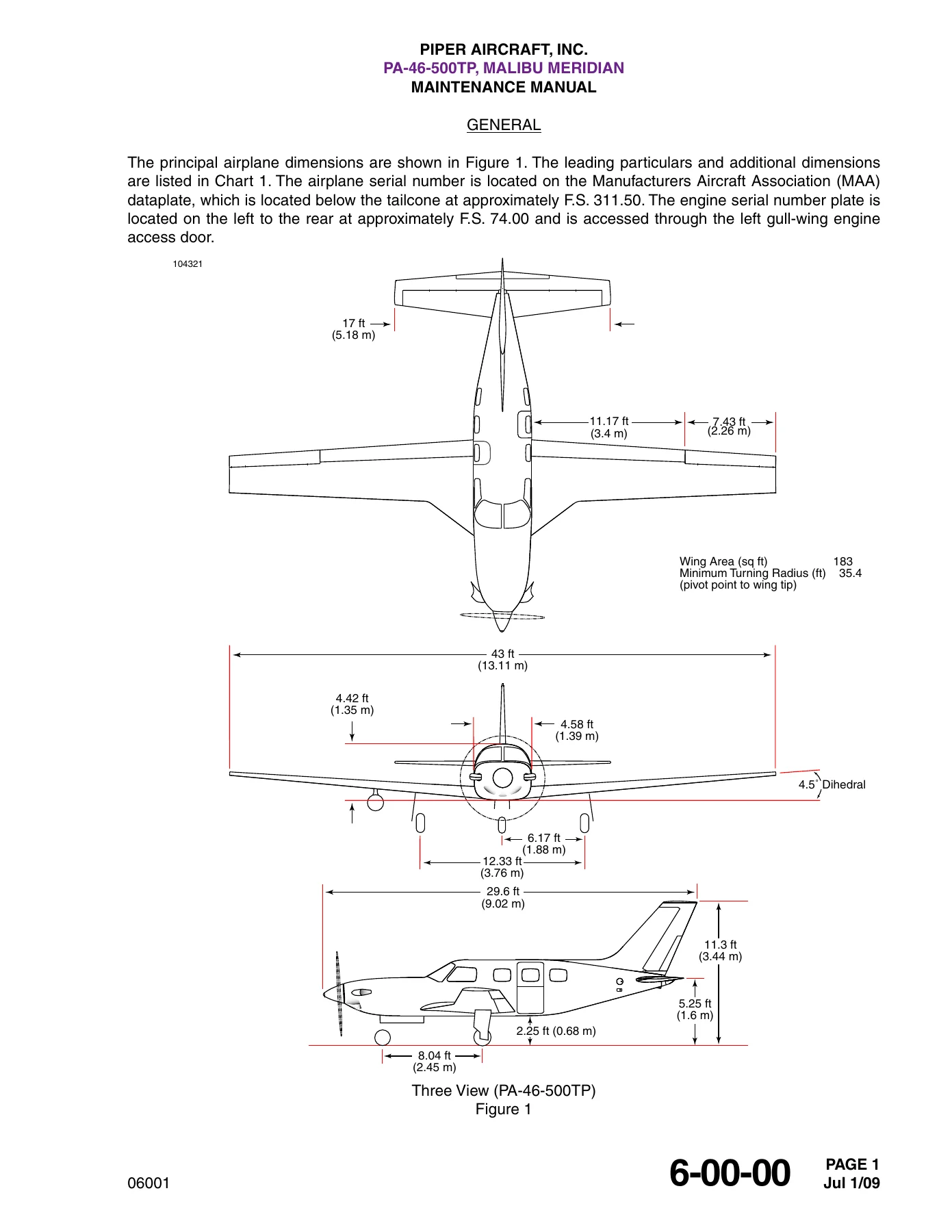

• Chapter 6 – Dimensions and Areas: Leading particulars, principal dimensions, station references, access and inspection provisions
• Chapter 7 – Lifting and Shoring: Jacking
• Chapter 8 – Leveling and Weighing: Weighing, Leveling, Ballast
• Chapter 9 – Towing and Taxiing: Towing, Taxiing
• Chapter 10 – Parking and Mooring: Parking, Locking Airplane, Mooring
• Chapter 11 – Placards and Markings: Exterior and Interior placards and markings
• Chapter 12 – Servicing: General, Replenishing, Scheduled Servicing, Lubrication Charts
• Chapter 20 – Standard Practices – Airframe: Torque wrenches, rod end bearings, fluid lines, flexible hoses, flareless and flared tube assemblies, dye penetrant, threaded fasteners, painting
• Chapter 21 – Environmental Systems: Distribution, Pressurization Control, Heating, Cooling, Temperature Control
• Chapter 22 – Autoflight: Autopilot (S-TEC System 550 and Meggitt/S-TEC MAGIC 1500), ground checks, flight adjustments, servos, trim monitor, flap compensator
• Chapter 23 – Communications: Speech Communications, Audio Integrating (GMA-340), Static Discharging

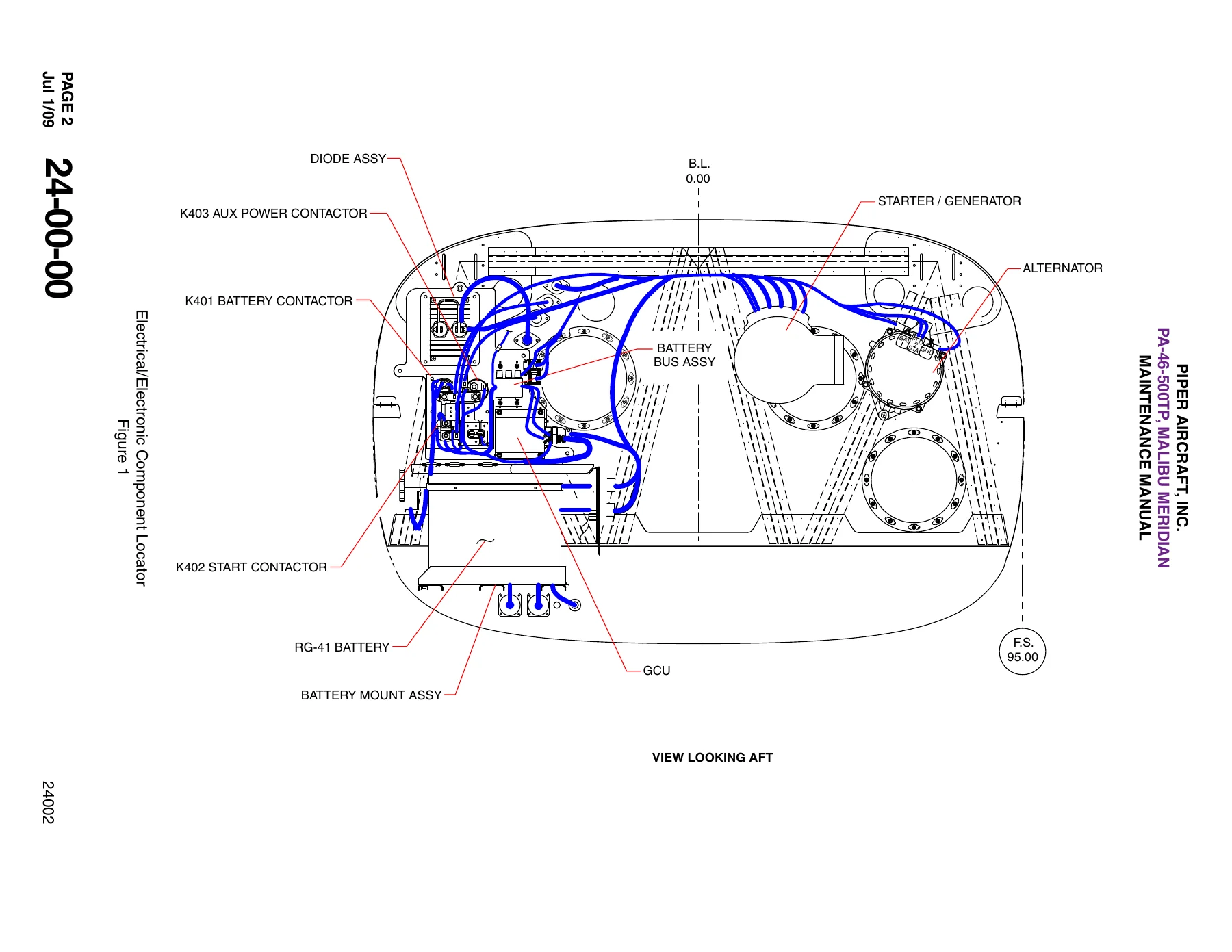

• Chapter 24 – Electrical Power: DC Generation, External Power, Electrical Load Distribution, battery servicing and capacity testing
• Chapter 25 – Equipment / Furnishings: Flight Compartment, Passenger Compartment, Cargo Compartments, Emergency equipment and ELT
• Chapter 26 – Fire Protection: Detecting, Extinguishing
• Chapter 27 – Flight Controls: Aileron and Tab, Rudder and Tab, Elevator and Tab, Flaps, Stall Warning System
• Chapter 28 – Fuel: Storage, Distribution, Indicating, Fuel Quantity Indication Calibration
• Chapter 29 – Hydraulic Power: General, Main system, hydraulic pump/reservoir servicing and testing
• Chapter 30 – Ice and Rain Protection: Airfoil (pneumatic deice), Pitot and Static, Windows and Windshields, Propellers (prop heat)
• Chapter 31 – Indicating / Recording Systems: Central Warning Systems, annunciators, aural warnings
• Chapter 32 – Landing Gear: Main Gear and Doors, Nose Gear and Doors, Extension and Retraction, Wheels and Brakes, Steering, Position and Warning
• Chapter 33 – Lights: Flight Compartment, Passenger Compartment, Cargo and Service Compartments, Exterior
• Chapter 34 – Navigation: Flight Environment Data, Attitude & Direction, Independent Position Determining, Dependent Position Determining, EFIS (Meggitt and Avidyne Entegra)
• Chapter 35 – Oxygen: Crew, Passenger
• Chapter 37 – Vacuum: General, Distribution, Indicating
• Chapter 39 – Electrical / Electronic Panels: Instrument and Control Panels, Electrical & Electronic Equipment Racks
• Chapter 51 – Structures: General, Investigation and Aerodynamic Smoothness, Repairs, Electrical Bonding
• Chapter 52 – Doors: Passenger/Crew, Emergency Exit, Door Warning
• Chapter 55 – Stabilizers: Horizontal Stabilizer, Elevator, Vertical Stabilizer, Rudder
• Chapter 56 – Windows: Flight Compartment, Cabin, Door
• Chapter 57 – Wings: Attach Fittings, Flight Surfaces, Vortex Generators
• Chapter 61 – Propeller: Propeller Assembly, Spinner, blade track, Propeller Governor, Overspeed Governor
• Chapter 70 – Standard Practices – Engine: Basic Procedures, additional information referencing P&WC P/N 3021442
• Chapter 71 – Power Plant: Engine removal and installation, Cowling, Mounts, Fire Seals, Air Intakes, Drains, Fuel Purge System
• Chapter 72 – Engine: Preservation, Accessory Drives
• Chapter 73 – Engine Fuel and Control: Fuel Control Unit, Manual Override input lever setup
• Chapter 74 – Ignition: Electrical Power Supply, Distribution, igniter plugs, ignition cables
• Chapter 75 – Air: Compressor Bleed Valves
• Chapter 76 – Engine Controls: Power Control, Power Lever Cable, Condition Lever Cable, Manual Override Lever Cable, Engine Performance Check
• Chapter 77 – Engine Indicating: Power (torque), Temperature, Integrated Engine Instrument Systems, ECTM
• Chapter 79 – Oil: Distribution, Indicating
• Chapter 91 – Charts & Wiring Diagrams: Torque requirements, conversion tables, hose specifications, consumable materials, electrical wire coding, electrical symbols, and a full set of wiring schematics organised by ATA section
• Appendix 1: Ground Test Procedure – Meggitt MAGIC ADAHRS and Pitot-Static System
• Appendix 2: Meggitt ADAHRS & Heading System Fault Finding Guide

Put together, this Piper PA-46-500TP Malibu Meridian airplane maintenance manual gives a technician the working structure for the entire aircraft. It does not stop at describing systems – it walks through the removal, installation, adjustment, rigging, calibration, functional test, and troubleshooting steps for the components that make up each chapter, and points outward to the relevant vendor publications (Pratt & Whitney Canada P/N 3021442 for the engine, Hartzell manuals for the propeller, S-TEC documentation for the autopilot, Avidyne documents for the Entegra EFIS, and so on) where a task leaves the scope of the airframe manual.

What This Piper PA-46-500TP Malibu Meridian Manual Enables

Because the coverage is anchored to a single airframe – the PA-46-500TP Malibu Meridian from serial 4697001 onward – the procedures in this manual are written for the exact systems installed on that aircraft: the PT6A-42A flat-rated turboprop, the Hartzell four-blade reversible propeller, the hydraulic landing gear, the pressurised cabin, the Meggitt MAGIC or Avidyne FlightMax Entegra avionics suite, and the supporting electrical, fuel, oxygen, and environmental systems. That is what separates a working Piper PA-46-500TP maintenance manual from a generic turbine handbook.

Typical jobs the manual supports include:

• Performing the 100-hour Progressive Inspection Events and the Annual / 100 Hour Inspection
• Rigging ailerons, rudder, elevator, flaps, and trim systems to the published travel limits
• Servicing and bleeding the hydraulic landing gear system
• Servicing oleo struts, brakes, and wheel bearings
• Adjusting pitot heat, stall warning heat, and propeller deice systems
• Calibrating fuel quantity, engine torque, and ADAHRS / magnetometer heading systems
• Troubleshooting the Meggitt MAGIC EADI/EHSI or the Avidyne Entegra PFD/MFD
• Replacing engine accessories, alternator, starter-generator, and A/C compressor
• Performing firewall inspections, engine mount inspections, and fire seal work
• Repairing fiberglass and thermoplastic structures
• Reading and using the wiring schematics in Chapter 91 for fault tracing

Why It Matters

The PA-46-500TP is a pressurised single-engine turboprop with systems that punish shortcuts. Torque values, rigging limits, control cable tensions, ADAHRS calibration steps, and pressurisation test limits are not optional – they are the difference between a serviceable aircraft and an unairworthy one. This manual is the document that tells you what those values are and how the manufacturer intended each task to be performed, so you are not guessing at specifications or relying on second-hand notes.
