Pipistrel Virus SW 121 Aircraft Maintenance Manual – 2021 Edition PDF

Description

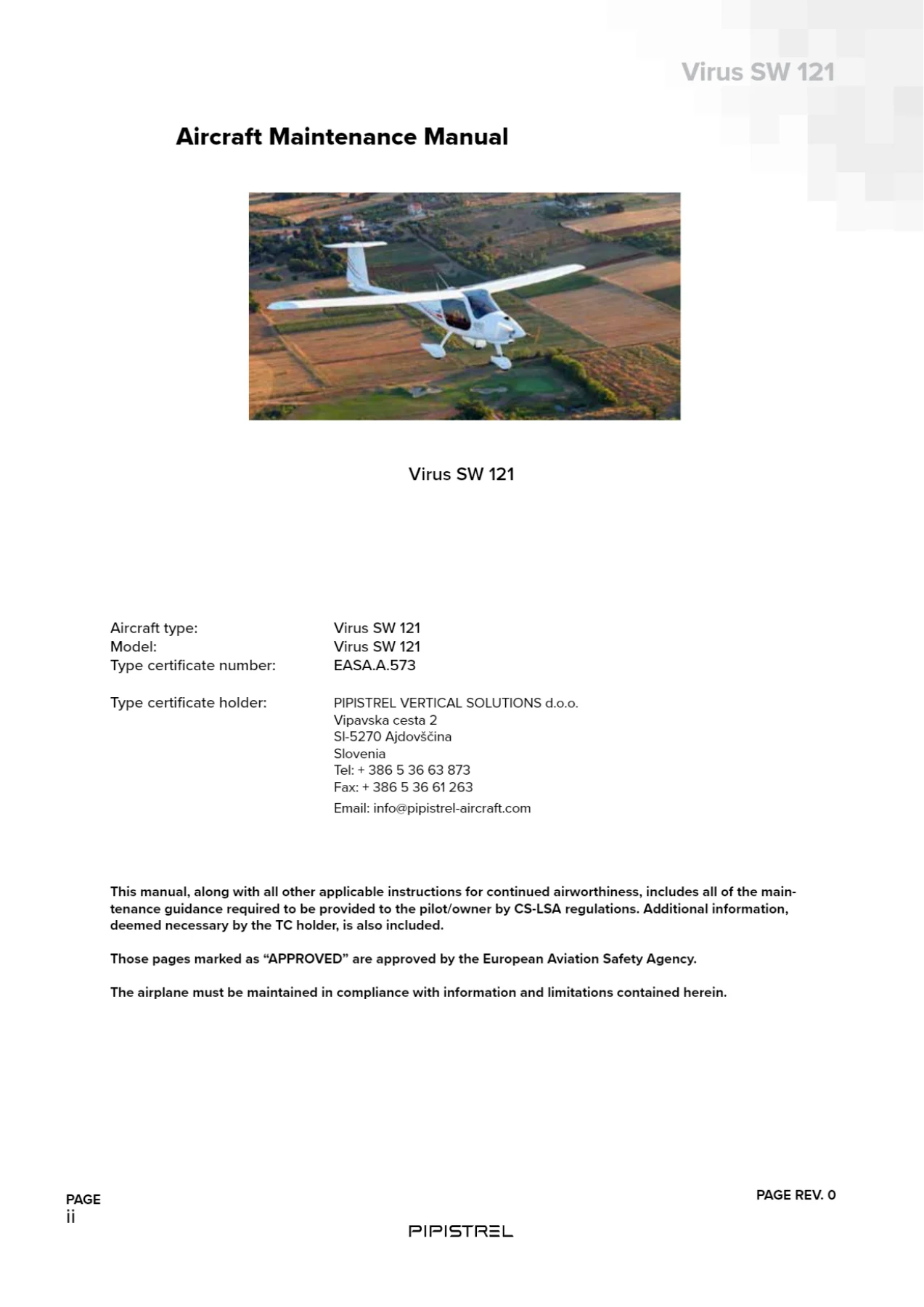

Pipistrel Virus SW 121 Aircraft Maintenance Manual – 2021 Edition

The Pipistrel Virus SW 121 Aircraft Maintenance Manual is the manufacturer-issued service reference for the SW 121 light sport aircraft, prepared by Pipistrel Vertical Solutions d.o.o. for trained aviation mechanics. It documents the procedures, limits, and inspection criteria required to keep the aircraft in airworthy condition, and is structured around the ATA 100 chapter numbering system so tasks map cleanly to the aircraft’s systems. Whether you are performing a scheduled 100-hour / Annual inspection, servicing the Rotax 912 S3 engine, adjusting flight control deflections, or removing and installing autopilot servos, this Pipistrel Virus SW 121 maintenance manual gives you the step-by-step content and reference data the job requires.

File Details

• Manual type: Aircraft Maintenance Manual (AMM)
• Manufacturer / TC holder: Pipistrel Vertical Solutions d.o.o.
• Aircraft model: Virus SW 121
• Type certificate number: EASA.A.573
• Language: English
• File format: PDF
• Page count: ~498 pages
• Revision: B01
• Date issued: February 16, 2021
• Chapter structure: ATA 100 standard numbering, aligned with ASTM F2483-12

Chapters Covered

• Chapter 04 – Airworthiness Limitations: Maintenance Limitations, Structural Limitations
• Chapter 05 – Time Limits and Maintenance Checks: Time Limits, Scheduled Maintenance, Airplane Operational and Functional Check, Unscheduled Maintenance (wing strike, hard landing, exceeded speed, turbulence, lightning strike, ground gusts, flutter, propeller strike, unimproved runways, humid areas)

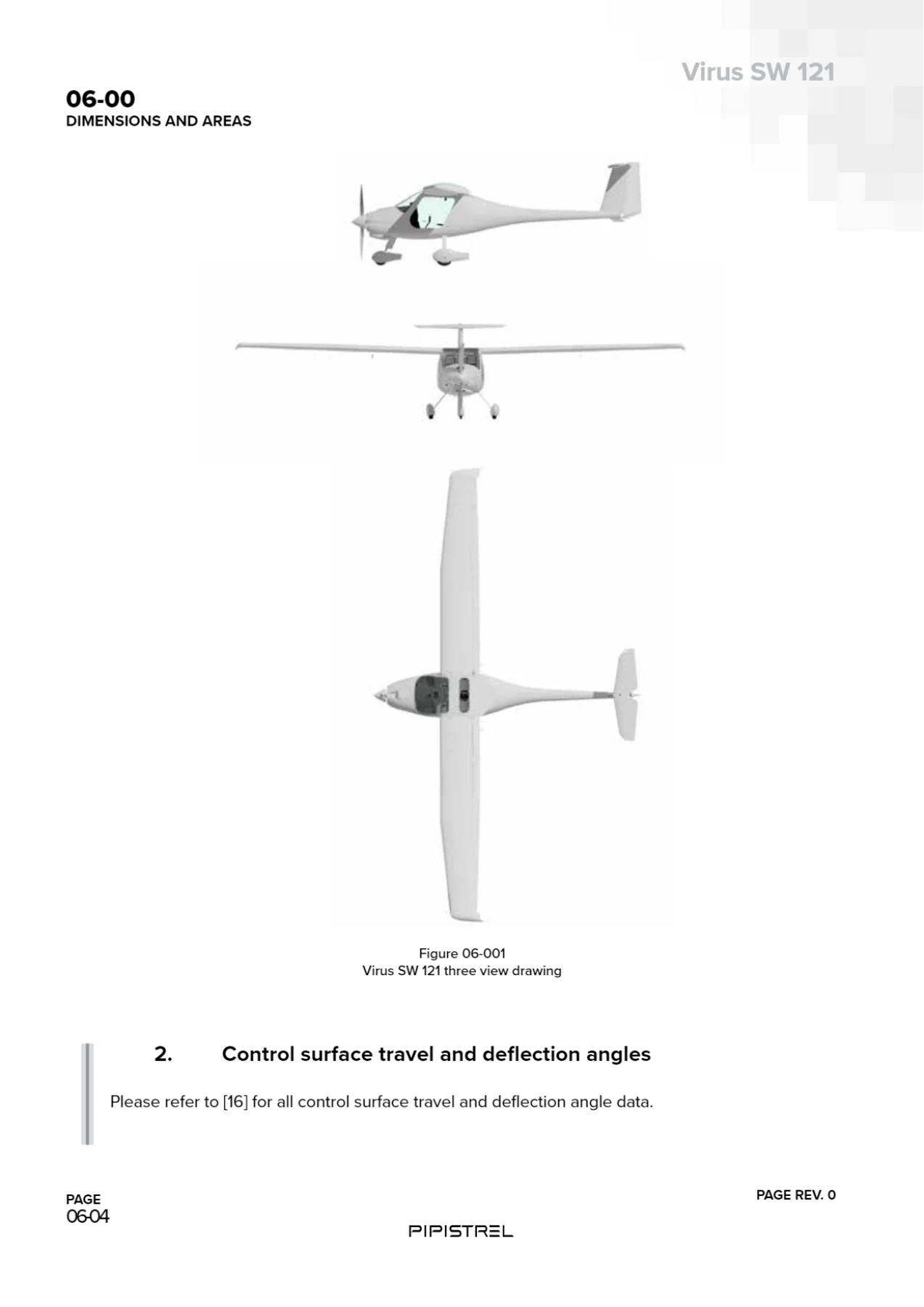

• Chapter 06 – Dimensions and Areas: Airplane dimensions, control surface travel and deflection angles
• Chapter 07 – Lifting and Shoring: Jacking, Shoring, Hoisting the fuselage
• Chapter 08 – Leveling and Weighing: Leveling, Weighing, Weight and Balance measurements
• Chapter 09 – Towing and Taxiing: Backwards, Forwards, Turning, Taxiing
• Chapter 10 – Parking, Mooring and Storage: Parking, Mooring, Temporary and Long Term Storage
• Chapter 11 – Required Placards: Exterior Placards, Interior Placards
• Chapter 12 – Servicing: Replenishing (fuel, oil, coolant, tires, brake fluid, battery), Scheduled Servicing (defueling, oil level, cooling drain, lubrication, cleaning), Disposable Replacement Parts
• Chapter 20 – Standard Practices – Airframe: Sealants and Lubricants, Thread-Locking Fluids, Fastener Information and Torque Values, Torque Marking, Locknuts, Tapered Thread Fittings, Adhesives
• Chapter 21 – Environmental Systems: Ventilation Systems (fresh air hose, cabin air hose, cold-hot air mixer valve, shut-off valve, ventilation fan, cabin air manifold), Heating Systems (heat muff, hot air hose, windshield defrost)
• Chapter 22 – Autopilot System: Garmin G3X Autopilot System, Roll and Pitch Servo removal/installation, Autopilot Servo Brace
• Chapter 23 – Communications: Speech Communications (GTR 225 / GNC 255 COM, GTX 328 Transponder), Audio Integrating (headset, microphone, PTT, headphone hanger)
• Chapter 24 – Electrical Power: DC Generation (battery, battery caution LED), External Power, DC Electrical Load Distribution
• Chapter 25 – Equipment and Furnishing: Flight Compartment (crew seats, safety harnesses, control stick boots), Baggage Compartment, Emergency (ELT)

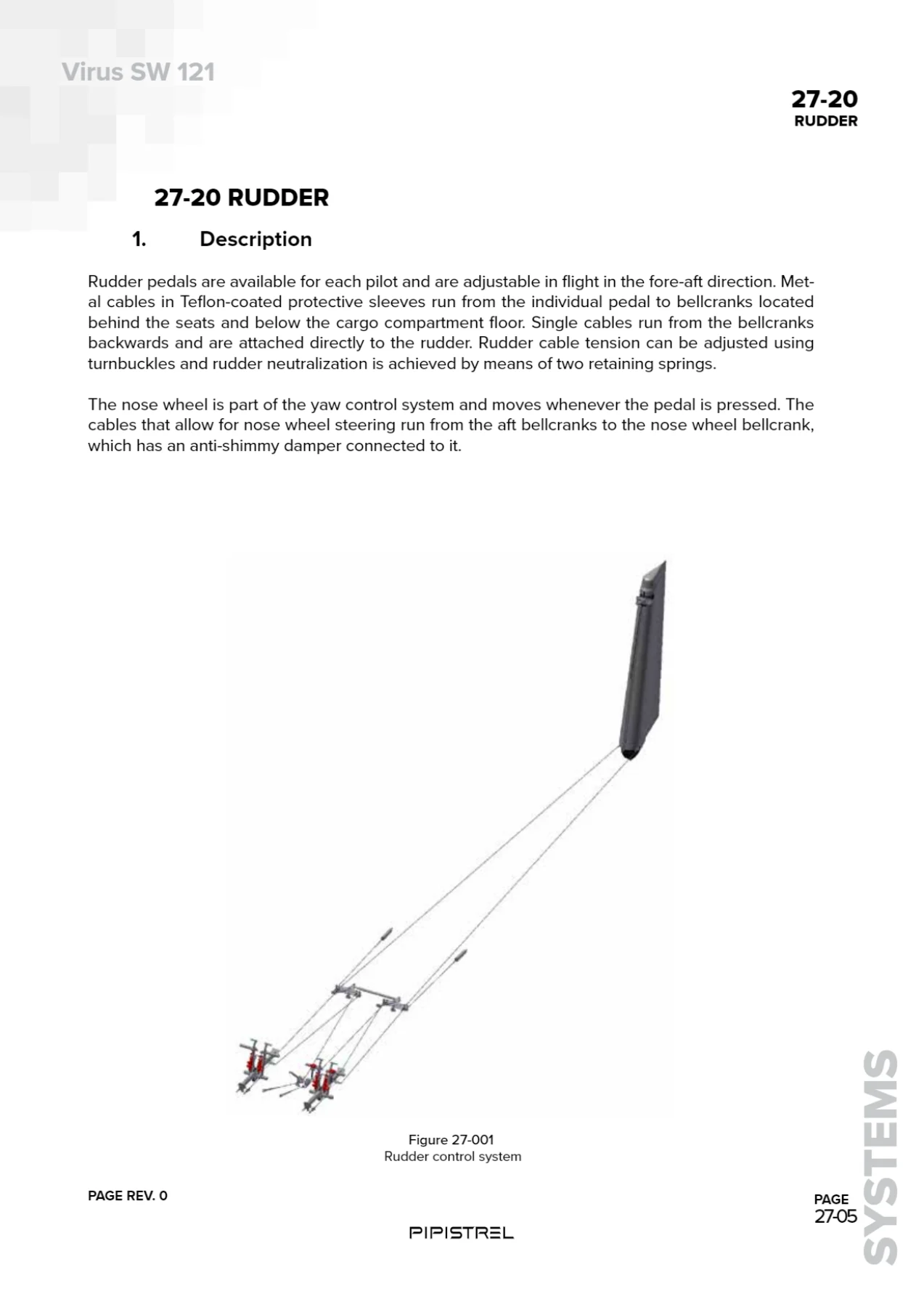

• Chapter 27 – Flight Controls: Rudder (cables, pedals, return springs, bellcranks, deflection angle), Elevator (pushrod, trim assembly, control sticks, control stick drive), Flaperons (pushrods, bellcranks, handle assembly), Air Brake Lever

What the Pipistrel Virus SW 121 AMM Covers in Practice

This is a working document, not a brochure. Each chapter is broken into a Description section followed by Maintenance Practices presented as numbered step tables with the required parts, materials, tools and cross-references. Visual and operational inspection criteria are defined up front in Chapter 05 so a mechanic can apply them consistently across the whole airframe. Time limits in Chapter 05-10 tabulate which components are overhauled or replaced on hours, years, or on condition – from the ELT battery and propeller governor to flexible fuel, oil and coolant lines, GRS ballistic parachute rescue system, brake rubber seals, and tires. The scheduled maintenance tables then lay out what gets checked at 50 hours, Annual/100 hours, 200 hours, 500 hours, 1000 hours and 10000 hours, including major inspections reserved for the 2000-hour and 3000-hour marks.

The unscheduled maintenance chapter is particularly useful on a composite LSA: it prescribes the exact airframe, stabilizer, wing, landing gear, propeller and flight control checks required after a hard or overweight landing, an exceeded speed or RPM limit, severe turbulence, a lightning strike, ground gusts over 40 knots, a propeller strike, or a high-drag / side-load event. Because these events are often the reason an owner reaches for the manual in the first place, having the correct sequence on hand matters.

Systems, Adjustments and Set-Up Data

Beyond inspection, the manual documents the adjustments that determine how the SW 121 flies and how long it lasts. Rudder and elevator deflection angles are checked with the manufacturer’s templates; maximum permissible axial and radial free play is given for the rudder, elevator and flaperons (0.5 mm and 0.1 mm limits for rudder radial and axial respectively). Elevator trim, control stick free play, flaperon bellcrank assembly and the air brake step control all have dedicated inspection and adjustment procedures. Torque values for M4 through M14 fasteners are tabulated in Chapter 20, along with the approved sealants, lubricants, thread-locking fluids and adhesives, and the lubrication schedule in Chapter 12-20 identifies which joints to grease, at what interval, and with which product.

The book also covers the Garmin G3X autopilot system in detail – roll and pitch servo removal and installation, wiring, hole positions on the servo arms that must be respected, and the torque marking and Loctite application that keeps those joints secure. Electrical content includes the 14 VDC single-generator, single-battery architecture, the EarthX and Aliant battery installations, the battery caution LED wiring, and the load breakdown across avionics, lighting, trim and the G3X display suite. Environmental systems, communications, placards, equipment and furnishing, towing, jacking, leveling and weighing are all covered as well.

Who This Manual Is For

The Pipistrel Virus SW 121 maintenance manual is written for qualified aviation mechanics and maintenance organizations holding the appropriate rating. It assumes access to the referenced OEM documentation – the Rotax 912 series MM, MT propeller and governor manuals, Garmin G3X installation material, Kannad ELT manuals, the illustrated parts catalogue, and the aircraft’s own Weight and Balance Report. Used alongside those documents, this AMM is the primary source for the scheduled and unscheduled maintenance tasks the airframe requires.

Take the Guesswork Out of Virus SW 121 Maintenance

With the Pipistrel Virus SW 121 Aircraft Maintenance Manual on hand you can plan an Annual or 100-hour inspection from the manufacturer’s own checklist, look up the correct torque for a specific bolt instead of estimating, follow the right sequence for a rudder centering or flaperon free-play check, and know exactly what to inspect after a hard landing or an over-speed event. Getting these procedures and values right is what keeps a light sport aircraft airworthy and its occupants safe – and it is also what keeps maintenance records clean and defensible.

IMAGES PREVIEW

The document is delivered as an instant PDF download after payment – no shipping, no waiting. Read it on a laptop, tablet or phone in the hangar, or print the pages you need and take them to the aircraft. Search the file for the chapter or task you are working on and get straight to the procedure.
