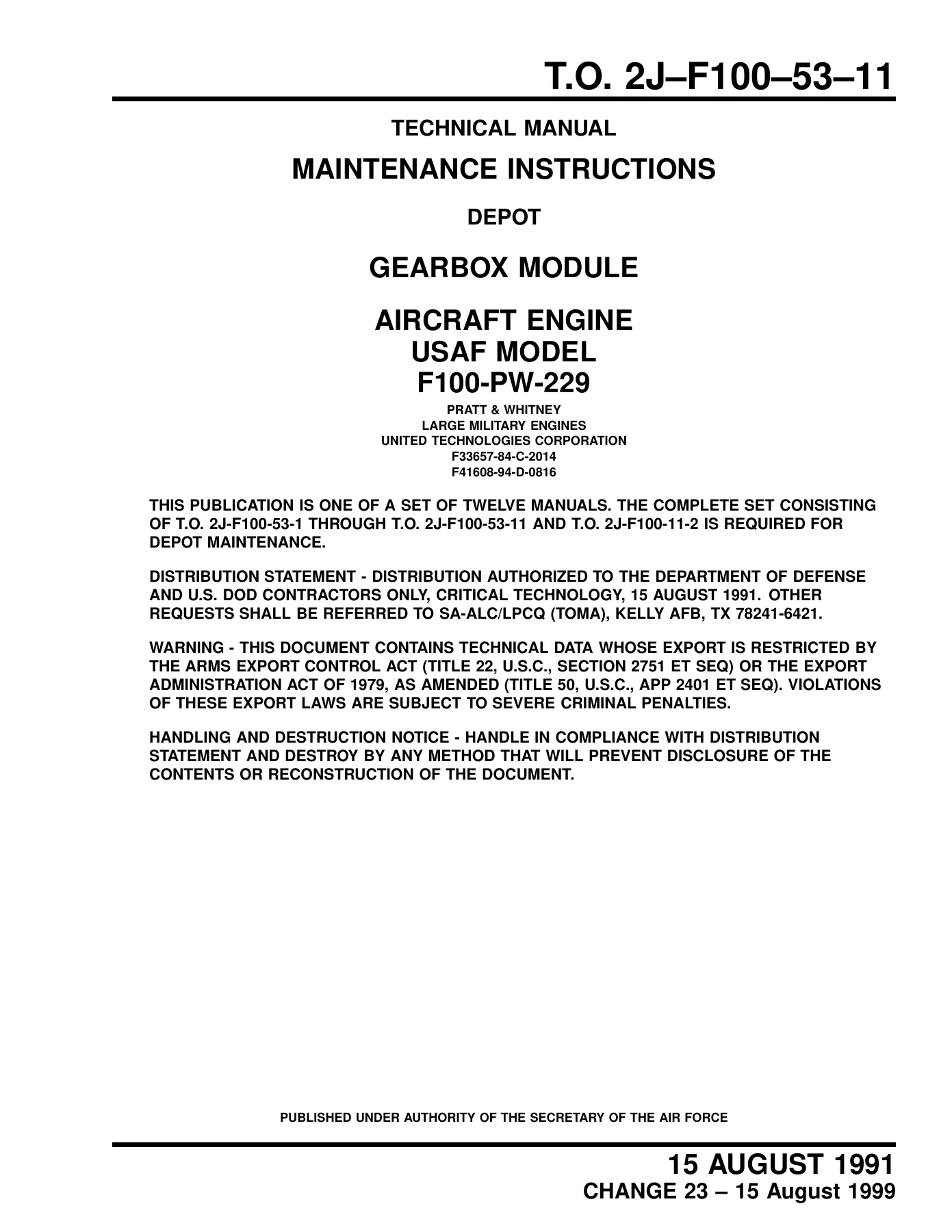

Pratt & Whitney F100-PW-229 Engine Gearbox Module Depot Maintenance Manual TO 2J-F100-53-11

Description

Pratt & Whitney F100-PW-229 Engine Gearbox Module Depot Maintenance Manual TO 2J-F100-53-11 Overview

The Pratt & Whitney F100-PW-229 Engine Gearbox Module Depot Maintenance Manual TO 2J-F100-53-11 provides comprehensive, depot-level technical procedures for servicing, inspecting, overhauling, and repairing the accessory drive gearbox module of the USAF Model F100-PW-229 turbofan aircraft engine. Designed for propulsion specialists, depot technicians, and aviation maintenance facilities supporting frontline F-15 and F-16 aircraft, this technical manual establishes exact engineering baselines for teardown, cleaning, dimensional verification, structural welding, machining, and precision reassembly. Every procedure documented within the Pratt & Whitney F100-PW-229 Engine Gearbox Module Depot Maintenance Manual TO 2J-F100-53-11 adheres to stringent United States Air Force and United Technologies Corporation engineering requirements, ensuring the flight readiness, reliability, and mechanical integrity of the engine accessory drive system under extreme operating regimes.

File Details

• Manual Type: USAF Technical Manual / Depot Maintenance Instructions
• Brand: Pratt & Whitney (Large Military Engines / United Technologies Corporation)
• Model: USAF Model F100-PW-229 Engine Gearbox Module
• Aircraft Applicability: F-15 and F-16 Aircraft
• Document Identification: T.O. 2J-F100-53-11
• Contract Numbers: F33657-84-C-2014 / F41608-94-D-0816
• Publication Date: 15 August 1991 (Incorporating Change 23 dated 15 August 1999)
• Language: English
• Page Count: 882 pages
• File Format: Adobe PDF (Instant Digital Download)

Gearbox Module Specifications and Leading Particulars

The gearbox module acts as the core mechanical power distribution hub for the F100-PW-229 aircraft engine, driving essential engine-mounted accessories including the main engine oil pump, scavenge pump assemblies, fuel pump drive units, and the deaerator impeller. As detailed in the leading particulars section of the Pratt & Whitney F100-PW-229 Engine Gearbox Module Depot Maintenance Manual TO 2J-F100-53-11, the main module assembly features the following physical dimensions and operational parameters:

• Length: 27 inches
• Width: 21 inches
• Height: 9 inches
• Weight: 96 pounds (nominal dry weight)
• Primary Materials: AMS 4215 Cast Aluminum Alloy (Gearbox Front and Rear Housings, Upper Cover, Reduction Gearbox Housing), AMS 6265 Wrought Low Alloy Steel (Spur Gears, Bevel Gearshafts, Deaerator Impeller Shaft), AMS 5646 Stainless Steel (Oil Tank Scavenge Connectors, Reduction Bearing Nozzles), AMS 4025 / AMS 4080 Aluminum Alloy (Scavenge Tubes, Baffles), AMS 5344 (Sealing Sleeve), AMS 5732 (Bearing Housing), AMS 5350 (Deaerator Impeller), and AMS 4928/Grade Titanium Alloy (Main Oil Pump Scavenge and Packing Transfer Tubing).
• Lubricant Specification: MIL-L-7808 synthetic aircraft turbine engine lubricating oil.

Chapters Covered

• WP 001 00: Alphabetical Index — Complete Master Subject and Work Package Cross-Reference

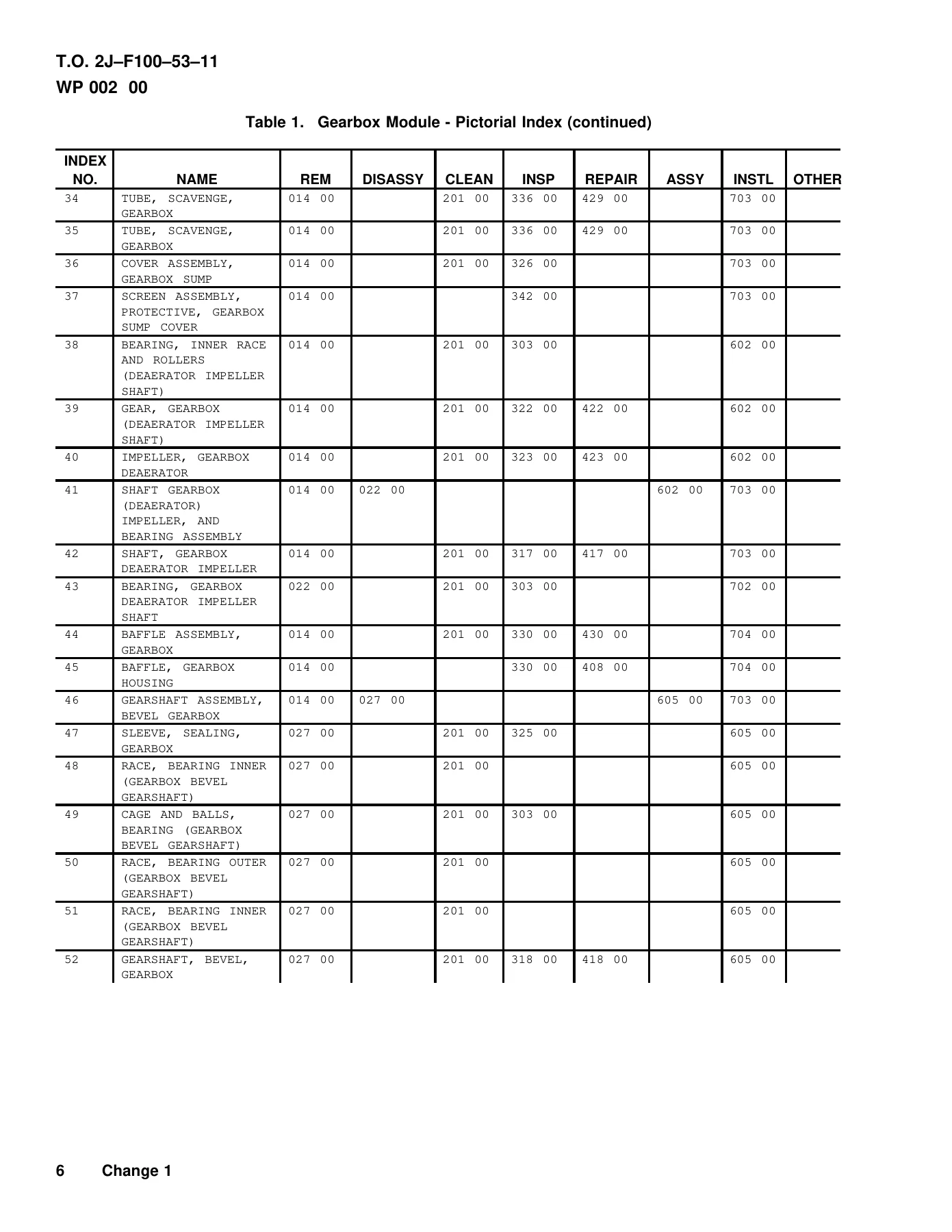

• WP 002 00: Introduction — Work Package Arrangement, Numbering System, Leading Particulars, and Master Pictorial Index
• WP 003 00 through 009 00: Shipping Container Handling and Preservation Group
  • WP 004 00: Gearbox Module Removal from Shipping Container (P4070543 and P4078971 Containers)

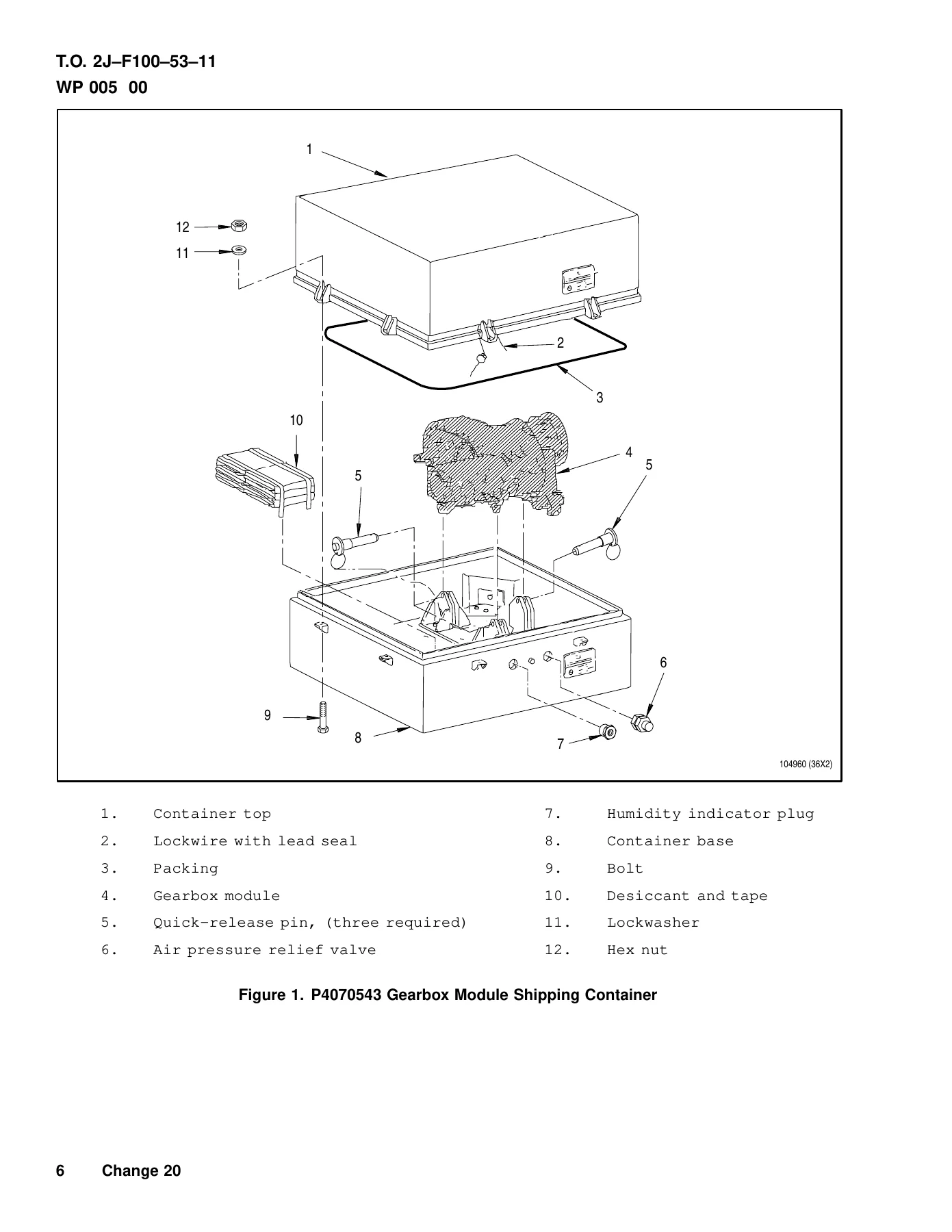

  • WP 005 00: Gearbox Module Installation in Metal Shipping Container and Desiccant Packaging
  • WP 006 00: Gearbox Module Preservation, Internal Oil Flushing, and Protective Closure Installation
• WP 010 00 through 019 00: Gearbox Module Disassembly Group
  • WP 011 00: Removal of Externally Accessible Accessories and Parts (Oil Filter, Breather Pressurizing Valve, Remote Coupling, Scavenge and Main Oil Pumps, Face Seals, Retainers, External Plugs)
  • WP 012 00: Separation of Front and Rear Gearbox Housings
  • WP 013 00: Disassembly of Gearbox Front Housing Assembly
  • WP 014 00: Disassembly of Gearbox Rear Housing (Incorporating PTO Duplex Bearing with Split Inner Race)
  • SWP 014 01: Disassembly of Gearbox Rear Housing (Incorporating PTO Duplex Bearing with One-Piece Inner Race per T.O. 2J-F100229(V)-504 / ECP 92QA151)
• WP 020 00 through 199 00: Disassembly of Subassemblies Group
  • WP 021 00: Face Seal Assemblies Removal from Seal Retainers
  • WP 022 00: Gearbox Deaerator Impeller Shaft and Bearing Assembly Disassembly
  • WP 023 00: Gearshaft Assembly, Bevel, Spur, Gearbox Drive Disassembly
  • WP 024 00: Bearing Assembly (Spur Bevel Gearshaft) Disassembly
  • WP 025 00: Gearshaft, Spur, Gearbox (Oil Pump Drive Idler) Disassembly
  • WP 026 00: Gearbox Spur Gear and Gearbox Idler Stub Gearshaft Assembly Disassembly
  • WP 027 00: Gearbox Bevel Gearshaft Assembly (Towershaft Drive) Disassembly
  • WP 028 00: Reduction Gearbox Assembly Disassembly
  • WP 029 00: Face Seal Assembly (Deaerator Impeller Shaft) Disassembly
  • WP 030 00: Face Seal Assembly (Spur Bevel Gearshaft) Disassembly

  IMAGES PREVIEW







• WP 200 00 through 299 00: Gearbox Module Parts Cleaning Group
  • WP 201 00: Cleaning Instructions and SPOP Standard Practice Options for Module Details (Chemical, Degreasing, Mechanical, and Thermal Treatments)
• WP 300 00 through 399 00: Gearbox Module Parts Inspection Group
  • WP 301 00: Gearbox External Tubes, Conical Seats, and Manifolds Inspection
  • WP 302 00: Oil Sump Metal Chip Detector Magnetic Inspection
  • WP 303 00: Gearbox and Reduction Gearbox Roller and Ball Bearings Non-Destructive and Surface Inspection
  • WP 304 00 through WP 306 00: Oil Seal Retainers, Packing Covers, and Carbon Face Seal Assemblies Inspection
  • WP 309 00 through WP 312 00: Reduction Gearbox Bearing Seal Seats, Rear Housing, Reduction Housing, and Front Housing Non-Destructive and Visual Inspection
  • WP 313 00 through WP 320 00: Gearshafts, Fuel Pump Drive Gears, Idler Shafts, Deaerator Shafts, Bevel Towershafts, and Spur Gears Inspection
  • WP 321 00 through WP 342 00: Bearing Spacers, Impellers, Covers, Sealing Sleeves, Retaining Plates, Transfer Tubes, Baffles, Valves, Driveshaft Couplings, Nozzles, and Sump Screens Inspection
• WP 400 00 through 599 00: Gearbox Module Parts Repair Group
  • WP 401 00: External Tubing Blend Repair, Conical Seat Resurfacing, Lapping, and Radiographic Weld Certification
  • WP 402 00: Gearbox Rear Housing Repair (Structural Crack Gas Tungsten Arc Welding, Bushing Replacement, Main Oil Pump Cavity Hardcoat Stripping and Nickel Plating, Insert Overhauls)
  • WP 403 00 through WP 432 00: Packing Covers, Face Seals Lapping, Retaining Plates, Baffles, Bearing Seal Seats, Front Housing Machining, Gearshafts Journals Reconditioning, Towershaft Repairs, and Driveshaft Coupling Overhaul
• WP 600 00 through 699 00: Assembly of Subassemblies Group (Bearings, Gears, Retainers, and Internal Drive Subassemblies)
• WP 700 00 through 799 00: Final Assembly Group (Front and Rear Housing Mating, Gear Backlash, Preformed Packings, Oil Pump Rigging, and External Pressure Checks)
• WP 800 00 through 801 00: Table of Limits and Clearance Charts Group (Manufacturing Tolerances, Wear Limits, Operating Fits, and Tightening Torques)

As a whole, this comprehensive technical publication provides propulsion mechanics, shop inspectors, and maintenance engineers with complete procedural autonomy. It equips maintenance personnel with the exact mechanical steps, assembly tolerances, non-destructive inspection baselines, and certified machining and welding repairs required to return unserviceable F100 engine gearbox modules to original operational tolerances without relying on third-party estimation.

Depot Disassembly and Housing Separation Workflows

Maintenance procedures within the Pratt & Whitney F100-PW-229 Engine Gearbox Module Depot Maintenance Manual TO 2J-F100-53-11 establish rigid mechanical separation sequences designed to prevent severe internal component damage during overhaul. Prior to housing separation, technicians must utilize dedicated depot fixtures including the PWA 56579 Handling Fixture or PWA 57071 Fixture mounted on the PWA 50473 Adapter and PWA 57412 or PWA 27606 Main Gearbox Overhaul Stands.

External teardown mandates the systematic removal of externally accessible components: the breather pressurizing valve assembly, remote gearbox driveshaft coupling, the complete reduction gearbox assembly, the oil filter assembly (accounting for both 70-micron cleanable element designs and modernized 30-micron disposable configurations incorporating full-flow bypass valves per TCTO 2J-F100229(V)-501), the main engine oil pump, the No. 2 and No. 3 bearing scavenge pump, and all external face seal retainers. For housing separation, the manual mandates the use of the PWA 56683 Front Housing Puller. The technical order details critical clearance cautions: because the internal stub idler gear remains anchored to the front housing during separation, housing extraction must be performed slowly and carefully shifted horizontally to prevent gear teeth from contacting and brinelling the gearbox drive spur bevel gearshaft roller bearing details.

The manual provides bifurcated procedures for rear housing teardown to address evolving mechanical designs: Work Package 014 00 governs original housings incorporating power take-off (PTO) gearshaft duplex ball bearings with two-piece split inner races, while Subordinate Work Package 014 01 dictates the overhaul of modernized housings equipped with one-piece inner race PTO duplex bearings (P/N 4080062-01 installed per TCTO 2J-F100229(V)-504 / ECP 92QA151). Specialized hydraulic removal equipment, such as the PWA 56556 Pusher/Puller actuated via the PWA 55380 Hydraulic Hand Pump, is fully illustrated and specified to extract the PTO duplex bearing without cocking or damaging the precision bearing liner package.

Depot Cleaning Protocols and Material-Specific Standards

Work Package 201 00 details chemical and mechanical cleaning methods formulated to prepare components for non-destructive inspection without degrading protective finishes or surface coatings. Standard Practice Operating Procedures (SPOP) are categorized by increasing severity, requiring personnel to apply the least aggressive effective method:

• AMS 4215 Aluminum Housings: Front and rear cast aluminum gearbox housings must be cleaned using vapor degreasing (SWP 031 01 / SPOP 3) or two-step carbon solvent and paint stripper (SWP 031 04 / SPOP 7). The technical order issues a strict warning prohibiting cleaning in alkaline permanganate solutions (SPOP 11, 13, 211, or 213), as these compounds severely attack metallic flameplate and aluminum hardcoat barrier layers.
• Titanium Alloy Tubing: Main oil pump scavenge lines and packing transfer tubes constructed from titanium are strictly forbidden from contacting trichloroethylene or perchloroethylene cleaning agents to eliminate the risk of stress-corrosion embrittlement. Flushing must be accomplished exclusively using P-D-680 Type II petroleum solvents, followed by immersion in SPS 240 alkaline rust remover (PMC 1269 / SWP 031 08) limited to a maximum 2-minute soak, followed by immediate cold-water power flushes and dry filtered air blasting.
• Carbon Face Type Oil Seals: Carbon seal rings must never be wiped with dry cloths or exposed to kerosene, aromatic hydrocarbons, or aggressive carbon solvents, which leach impregnating lubricants and induce excessive seal porosity. Cleaning is restricted to immersion in clean, warm MIL-L-7808 turbine lubricating oil heated between 120°F and 140°F (49°C to 60°C) for a minimum of 30 minutes, allowing coke deposits to be loosened and gently dislodged using dull-edged non-metallic tools.
• Wrought Steel Gearing and Bearings: All AMS 6265 and AMS 6322 gearshafts, idler shafts, and bearing assemblies undergo controlled solvent degreasing and ultrasonic cleaning. Mechanical tumbling, wire brushing, or abrasive wheel grinding on antifriction bearings is strictly forbidden. Cleaned bearings are immediately dipped in MIL-C-8188 corrosion-preventive oil and sealed in labeled, clean storage containers.

Inspection Standards, NDT Testing, and Repair Limits

Depot inspection work packages outline non-destructive inspection (NDI) criteria, dimensional wear limits, and permissible rework limits across all critical load-bearing details:

• Bearing Precision Profilometry: In addition to visual raceway inspection, the outer race of the oil pump idler shaft roller bearing (P/N 4061214) must be subjected to scriber trace profilometer inspection across eight designated axial locations. Vertical sensitivity must be calibrated to 0.000050 inch per division with horizontal sensitivity not less than 0.005 inch per division; any bearing exhibiting axial wear of 0.000025 inch or greater must be rejected and discarded, along with its mating ball bearing (P/N 4032007).
• Carbon Face Seals & Seal Seats: Carbon face seals are evaluated for lip height (minimum 0.025 inch), spring compression face loading under specified compressed heights, and surface finish (0.000030 to 0.000035 inch). Mating steel seal seats undergo optical flatness checks using monochromatic light and optical flats per SWP 091 06, with lapping repairs authorized under WP 404 00 and WP 409 00 provided minimum lip heights and dimensional thicknesses are maintained.
• Gear Teeth and Spline Limits: Large spur gears (99 teeth) and smaller driving gears (23 teeth) are inspected under magnetic particle inspection (MPI). Isolated tooth pitting and spalling is limited to a maximum depth of 0.010 inch, provided each pit is situated at least 0.025 inch from tooth edges and the major dimension does not exceed 0.020 inch. Small gear teeth are restorable via controlled silver-flash plating per WP 413 00. Internal and external involute splines are checked on Vee-blocks for maximum wear limits of 0.005 inch (internal) and 0.010 inch (external).
• Rear Housing Structural Crack Welding: Through Work Package 402 00, cracks in the 0.120 to 0.180 inch outer cast aluminum housing wall are reparable up to 4.0 inches per crack (total accumulated crack length not exceeding 12.0 inches). Rework entails routing crack indications completely through when within 0.080 inch of opposite surfaces, radiographic inspection per T.O. 33B-1-1, preheating up to 400°F (204°C) maximum, gas tungsten arc welding (GTAW-MA) using AMS 4190 aluminum filler wire, and mandatory two-hour post-weld stress-relief heat treatment at 335°F to 365°F (168°C to 185°C).
• Hardcoat Stripping and Plating: Worn main oil scavenge pump cavities in the rear housing can be restored by stripping depleted aluminum hardcoating, clean-up machining, non-destructive fluorescent penetrant inspection, and electroplating 0.003 to 0.011 inch of nickel per SPOP 43, finished by precision line-boring and beehive symbol deep-etch identification.
• Conical Seat Rework: High-pressure external tube connections with damaged 37-degree conical seats are restored using PWA 51429 (0.875-inch) and PWA 52336 (0.750-inch) precision refacing and lapping tools with PMC 3014 240-grit silicon carbide lapping compound, verified by bluing patterns and mandatory 500 psig hydrostatic proof pressure checks.

Specialized Depot Support Equipment and Tooling Matrix

The Pratt & Whitney F100-PW-229 Engine Gearbox Module Depot Maintenance Manual TO 2J-F100-53-11 provides explicit tooling numbers and engineering illustrations for each depot task. Maintenance technicians rely on calibrated Pratt & Whitney support equipment throughout teardown and assembly, including:

• PWA 56579 / PWA 57071: Gearbox Module and Fuel Pump Handling Fixtures
• PWA 50473 / PWA 57752: Holding and Transportation Stand Adapters
• PWA 57412 / PWA 27606: Main Gearbox Mobile Assembly Stands
• PWA 57388: Torque Adapter for Remote Driveshaft Coupling Center Retention Bolt
• PWA 56801: Oil Filter Shutoff Valve Internal Component Torque Adapter
• PWA 50482: Scavenge Pump Extraction Holder
• PWA 56752 / PWA 56317: PTO Driveshaft Baffle, Oil Seal Retainer, and Impeller Pullers
• PWA 56683: Front Gearbox Housing Extraction Puller Assembly
• PWA 57048 / PWA 57049: Bevel Spur Gearshaft Retaining Nut Wrench and Splined Holder Adapter
• PWA 57050: Bevel Gearshaft Upper Duplex Bearing Inner Race Puller
• PWA 50406 / PWA 50407 / PWA 55824 / PWA 57108: Deaerator Impeller Shaft Holding Fixtures and Bearing Retaining Nut Wrenches
• PWA 57105 / PWA 57117: Deaerator Impeller Shaft Retainer and Extraction Puller
• PWA 56556 / PWA 55380: Power Take-Off Duplex Bearing Hydraulic Pusher/Puller and Manual Hydraulic Hand Pump
• PWA 50451 / PWA 57046: Oil Pump Drive Idler Roller Bearing Outer Race and Bearing Housing Pullers
• PWA 55535 / PWA 57369 / PWA 57124: Gearbox Bearing Packing Transfer Tube Pullers and Bearing Retaining Plate Pullers
• PWA 52514 / PWA 52515: Oil Pump Drive Bushing Drill Jig and Installation Drift

Professional Maintenance Capability and Digital Delivery

Acquiring the Pratt & Whitney F100-PW-229 Engine Gearbox Module Depot Maintenance Manual TO 2J-F100-53-11 provides aerospace repair stations, military contractors, and propulsion facilities with authoritative technical instructions for overhauling the F100-PW-229 accessory gearbox. Adhering to verified USAF depot work packages eliminates assembly errors, prevents premature bearing and gear failure, protects against oil contamination, and ensures strict compliance with military flight safety specifications. Whether executing complete gearbox teardown, calibrating oil pump transfer clearances, machining bearing bores, or welding housing castings, this technical order provides the exact dimensions, torque values, and inspection criteria required. This manual is delivered as an instant, downloadable PDF, providing immediate accessibility across workshop terminals, maintenance laptops, and tablets, fully printable for immediate use on the clean-room workbench.
