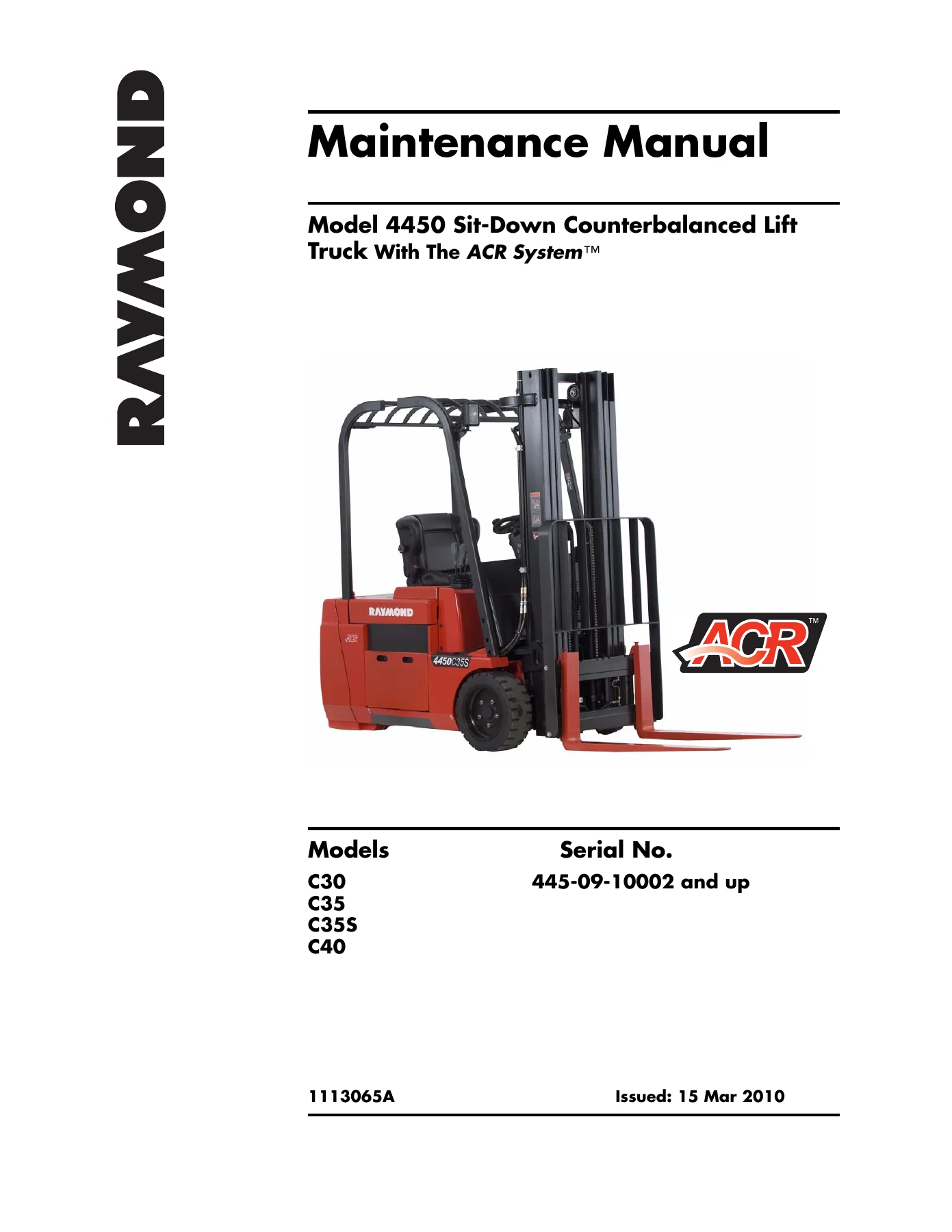

Raymond 4450 ACR Sit-Down Counterbalanced Lift Truck Maintenance Manual – C30 C35 C35S C40 (2010)

Description

Raymond 4450 ACR Maintenance Manual – Publication 1113065

This is the complete maintenance manual for the Raymond Model 4450 sit-down counterbalanced lift truck equipped with the ACR System. It covers the C30, C35, C35S and C40 configurations starting at serial number 445-09-10002 and up. With 240 pages of Raymond-authored service information, this manual is the reference document for anyone maintaining, diagnosing or repairing the 4450 ACR truck.

The 4450 ACR uses 36V or 48V battery power, AC traction and pump motors, dual independent traction power amplifiers, and a CAN-Bus network linking the Vehicle Manager, Operator Display, Armrest Board and Hydraulic Control Board. The manual reflects that architecture in full – from scheduled maintenance intervals through to detailed component procedures and the operating theory behind each system.

File Details

• Manual type: Maintenance Manual
• Brand: Raymond
• Model: 4450 ACR (sit-down counterbalanced lift truck)
• Covered models: C30, C35, C35S, C40
• Serial number range: 445-09-10002 and up
• Publication number: 1113065
• Edition: Original issue (1113065A)
• Date issued: 15 March 2010
• Language: English
• Page count: 240 pages
• File format: PDF

Chapters Covered

• How to Use This Manual – map of the manual, manual design, abbreviations and symbols
• Safety – definitions, general safety, battery safety, static precautions, jacking safety, welding safety
• Systems Overview – general description, lift truck specifications, controls, FlashWare program, performance modes, alternative LEARN
• Scheduled Maintenance – maintenance guidelines, initial 90 day/250 pump hour service, every 180 days/500 pump hours, every 360 days/2000 pump hours, chain maintenance, fork inspection
• Troubleshooting – electrical troubleshooting, hydraulic troubleshooting, shorts to frame testing, fuses, motor troubleshooting, symptom tables
• Messages and Codes – operator display messages and the full electrical fault code list

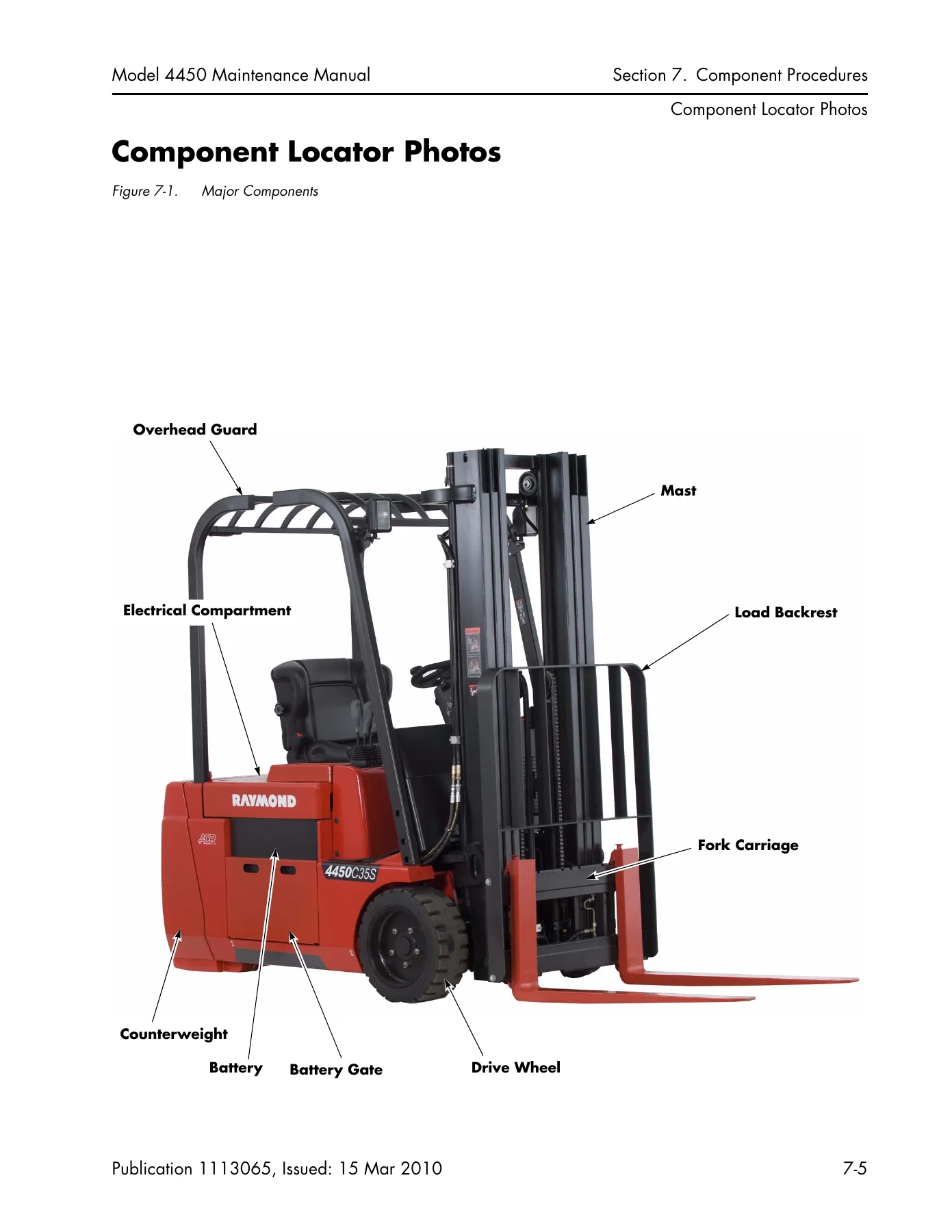

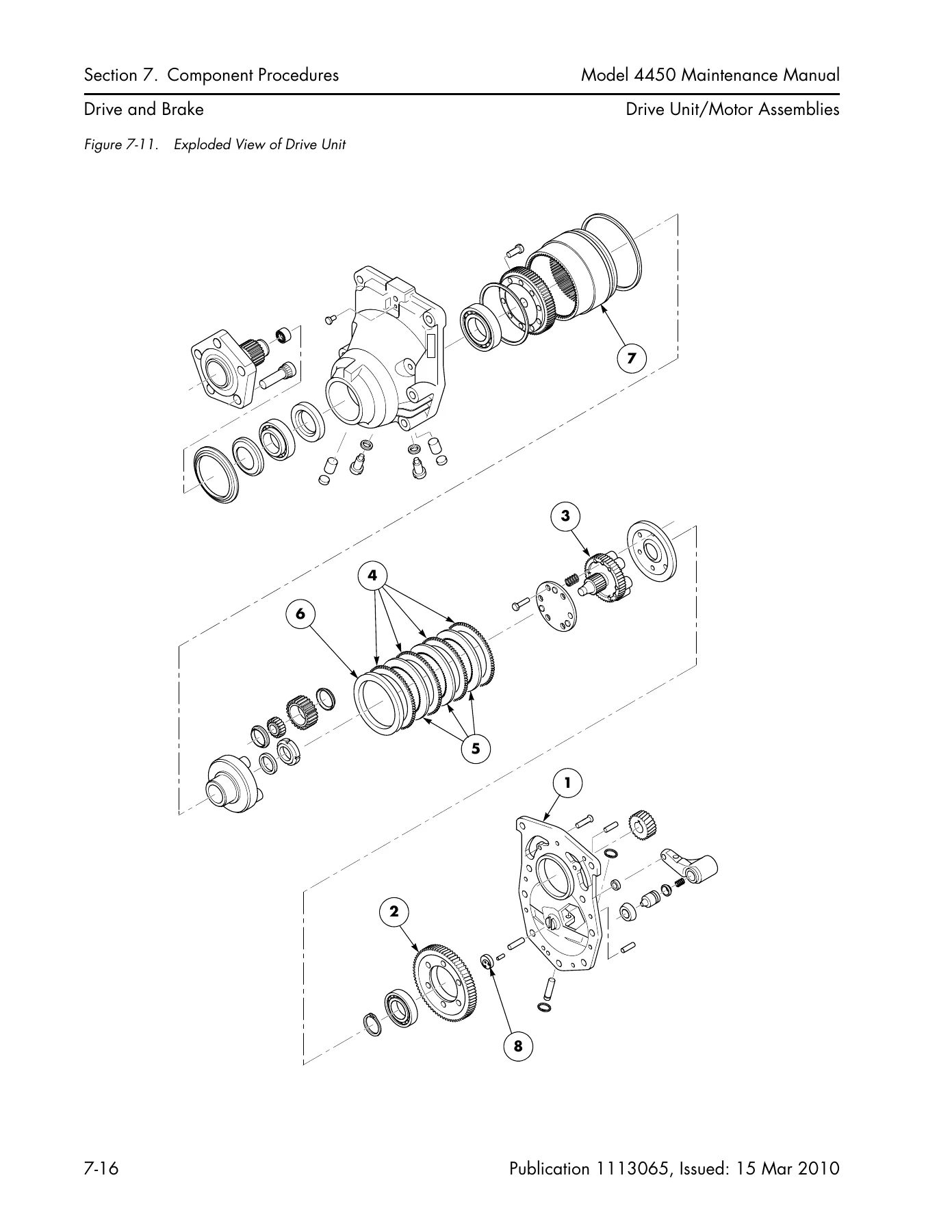

• Component Procedures – component locator photos, special tools, steering and controls, drive and brake, electrical components, hydraulic components, mast service
• Theory of Operation – system architecture, traction system, hydraulic system, auxiliary functions, steering system, options, pinout matrix
• Appendix – lubrication specification chart, thread adhesives, sealants and lubricants, component torque chart, standard and metric torque charts, decimal equivalents, standard/metric conversions, schematics
• Index

What this manual gives a technician is continuity. The troubleshooting chapter does not just list symptoms – it points you to specific tests in a sequence so you can isolate the failing component. The Messages and Codes chapter carries the operator display icons and the full fault code list with descriptions and corrective actions. Component Procedures breaks down every major assembly by truck system with step-by-step removal, installation, adjustment and test instructions. The Theory of Operation chapter explains signal flow within the electrical and hydraulic systems under different operating conditions and is supported by a full pinout matrix that ties each connector, wire and voltage level together. The appendix then provides the torque, lubricant and conversion data needed to actually perform the work. Together these chapters cover the whole ACR truck – traction, hydraulic, steering, mast, brakes, and the electronic control architecture that coordinates them.

Traction, Hydraulic and Steering Coverage

The Raymond 4450 ACR maintenance manual treats the traction system in depth. Two AC motor/drive unit assemblies each have their own traction power amplifier – the right motor controlled by the Master TPA, the left by the Slave TPA. The manual explains how travel requests travel from the Vehicle Manager across the CAN-Bus, how the amplifiers respond, and how encoders verify that direction and speed match what was asked. Steer feedback is handled through the steer potentiometer to the Master TPA, and the manual documents its removal, installation and Learn procedure.

Hydraulic coverage is equally thorough. Lift, tilt, sideshift and 4th auxiliary function pressures are adjusted at the control valve, and the manual gives the exact adjustment procedure for both lever and fingertip control configurations. Steering pressure adjustment, priority valve function, hydraulic pump and motor separation, quad mast cylinder service, and hydraulic system bleeding for TF, TT and quad masts are all covered.

Diagnostics, Error Codes and FlashWare

For anyone diagnosing a 4450 ACR truck, this manual includes the full fault code table with descriptions and corrective actions. Codes span the Master TPA, Slave TPA, PPA, Vehicle Manager, Hydraulic Control Board and Armrest Board, including internal faults, battery sense out-of-range, motor encoder errors, overtemperature conditions, seat switch faults, CAN-Bus communication errors and solenoid valve errors. Each code points to a specific testing path.

The manual also documents the FlashWare program used to configure the truck – viewing and updating software, setting LPH parameters, calibrating battery voltage, restoring defaults and running Learn on the travel, steer and lift potentiometers. The alternative LEARN procedure using the LPH and Turtle buttons is included for when a laptop is not available.

Scheduled Maintenance and Service Intervals

Scheduled maintenance is structured by pump hours rather than calendar time. The manual gives an initial 90 day/250 pump hour service, a 180 day/500 pump hour service, and a 360 day/2000 pump hour service, along with adjusted intervals for severe and extreme operating conditions such as freezer operation, dusty or sandy environments, and high temperature areas. Chain inspection with a chain gauge, fork inspection for angle, wear, tip height, hooks and markings, and a full set of inspection tasks across brakes, contactors, drive units, electrical cables, hardware, hydraulic hoses and reservoir are all listed with torque values and referenced page numbers.

Schematics and Diagrams

The appendix includes the power distribution diagram, the full Model 4450 electrical schematic broken across six sheets, and the hydraulic schematics for lever controls, Bottler’s Tilt and fingertip controls. These are the wiring and fluid-path references needed to trace faults through the truck rather than guessing at connector locations.

What This Manual Enables

With this Raymond 4450 ACR maintenance manual, a technician can perform scheduled servicing at the correct pump-hour intervals, diagnose faults down to a specific component using the codes and symptom tables, remove and reinstall traction motors, drive units, brake packs, hydraulic pumps, cylinders, masts and carriages, adjust lift, tilt, sideshift and steering pressures, bleed the hydraulic system, replace encoders and temperature switches, run Learn procedures through FlashWare, and reference the correct torque for each fastener along the way.

Using the correct procedures and specifications matters on a machine like this. The ACR system relies on communicating electronic managers, learned potentiometer values and configured parameters. A maintenance manual that gives the correct torque, the correct pressure, the correct test point and the correct configuration step is what keeps the truck working as designed rather than as guessed at.

IMAGES PREVIEW

This is delivered as an instant PDF download. No shipping, no waiting for a physical book. It can be read on any device – desktop, laptop, tablet or phone – and printed pages can be carried out to the truck when needed.
