Still EGV-S 14/20 & EGV-S 14/20LB Electric Fork Truck Spare Parts Catalogue

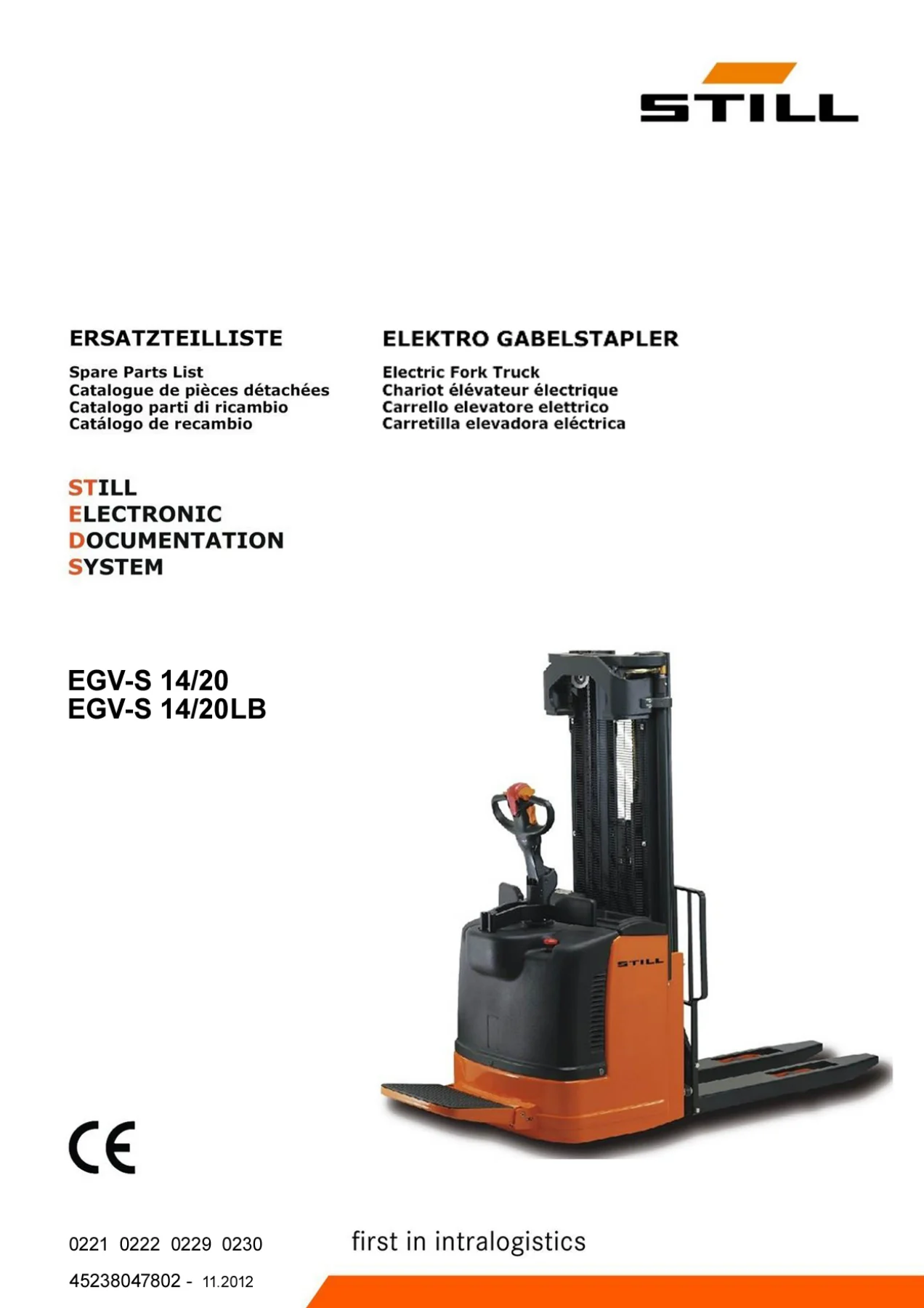

This is the complete spare parts catalogue for the Still EGV-S 14/20 and EGV-S 14/20LB electric fork trucks. Published under the Still Electronic Documentation System and dated 01.02.2013, this 455-page PDF gives you every component group, part number, quantity and exploded diagram you need to identify, order and replace parts on these electric pallet stackers and low-lift platform trucks. Whether you are maintaining a single truck or running a fleet, this Still EGV-S 14/20 parts catalogue puts the complete factory parts breakdown at your fingertips.

File Details

• Manual type: Spare Parts Catalogue (Ersatzteilliste / Catalogue de pièces détachées / Catalogo parti di ricambio / Catálogo de recambio)
• Brand: Still
• Models covered: EGV-S 14/20, EGV-S 14/20LB
• Document system: Still Electronic Documentation System
• Language: English, German, French, Italian, Spanish
• Page count: 455
• File format: PDF
• Date: 01.02.2013
• Document codes: FG-221, FG-343, FG-421, FG-601, FG-604, FG-607, FG-691, FG-701, FG-711, FG-768, FG-811, FG-812, FG-813, FG-814, FG-817, FG-841, FG-842, FG-843

Chapters Covered

• Product Information
• Electric Motor
• Axis Motor Mechanical
• Chassis
• Drivers Place
• Steering Column
• Loading Wheels
• Braking System
• Electr. Installation
• Battery Extraction Carriage
• Basic Hydraulics
• Hydraulic Operating System
• Valves
• Lift Frame
• Load Support
• Other Accessories

Product Information & Documentation

The catalogue opens with product information covering the manuals, operating instructions and spare parts catalogue references supplied with the EGV-S 14/20 and EGV-S 14/20LB. You get the full list of guideline documents and operating instructions in multiple languages, plus the spare parts catalogue reference itself. This section is your starting point for understanding the documentation set that accompanies these Still electric fork trucks.

Electric Motor & Drive Components

Detailed breakdowns for the 1.2 kW drive motor, 3.0 kW electropump and 2.2 kW electropump assemblies. The catalogue lists motor pumps, brush kits, brush holders, couplings, valves, oil pumps, traps, clamps, collars and pump units with individual part numbers and quantities. Exploded diagrams show the complete motor and pump assemblies, making it straightforward to identify and order the exact brush, seal, bearing or valve you need for a Still EGV-S 14/20 or EGV-S 14/20LB electric motor service.

Transmission & Reduction Gear

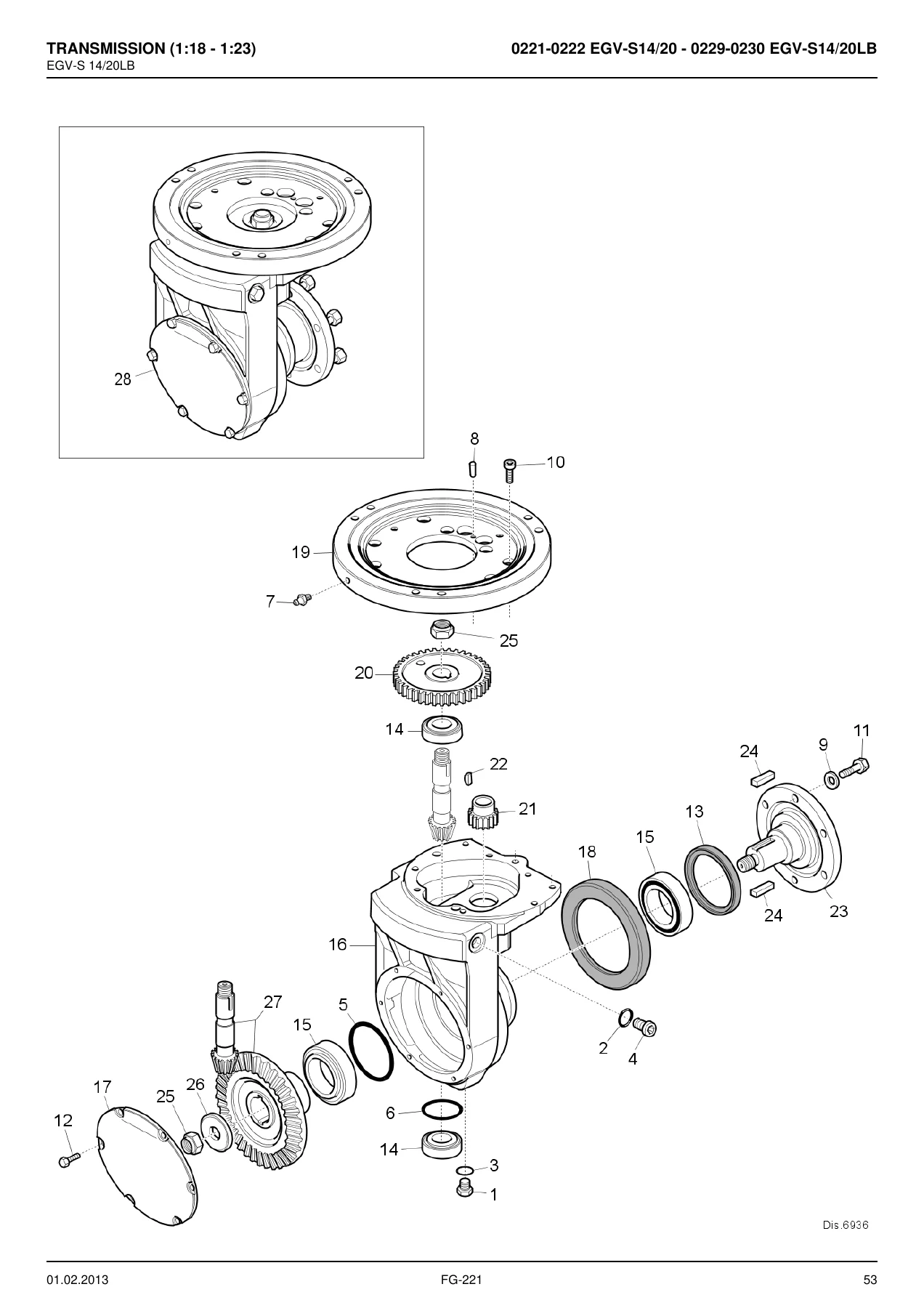

The transmission section covers the 1:18 and 1:23 reduction gears used across the EGV-S 14/20 and EGV-S 14/20LB range, including 2.2 kW and 3.0 kW variants. Every component is listed: plugs, facings, seal rings, nipples, bevel sets, lock washers, shafts, washers, bottom plates, pinions, gears, nuts, tapered roller bearings, sealing rings, screws, shims kits and parallel keys. Multiple exploded views break down the transmission housing, gear sets and bearing arrangements so you can rebuild or repair the drive unit with confidence.

Chassis, Frame & Drive Chassis

The chassis section documents the drive chassis assemblies for both standard and DIN wide configurations, with frame components, screw, washer, hexagon bolt, spring washer, ring and slotted nut part numbers. Later pages cover the frame, drive chassis and associated mounting hardware for the EGV-S 14/20 and EGV-S 14/20LB. These diagrams are essential when you need to replace a damaged frame component or verify the correct fastener for a chassis repair.

Driver’s Place, Bonnet & Steering Column

This group covers the driver’s compartment: hood, bonnet, hinge, terminal, rivet, screw, gasket and spring dowel sleeve. The steering column section includes the drop arm steering, liners, bushings, dowels, pins, pads, springs, plungers, O-rings, hexagon nuts and socket head screws. Exploded diagrams show the complete tiller arm head assembly, steering controller and sensor arrangements. For the EGV-S 14/20LB, additional safety guard and floor plate components are listed with their mounting hardware.

Wheels, Castors & Braking System

Loading wheels, wheel assemblies and castor wheel twin rollers are covered in detail, including tractothan, antistatic and carved wheel options. The brake section lists coils, pinions, brake disks, washers, complete brakes (Ø 100 mm) and brake assemblies for both 2.2 kW and 3.0 kW trucks. You will find every spring washer, socket head screw, locking piece, bearing block, bolt, bush and lubricating nipple needed to service the braking system on these Still electric fork trucks.

Electrical Installation & Wiring

The electrical installation chapter is extensive, covering control modules, electronic control units, electronic panels, emergency off switches, steering controllers, relays, fuses (30A, 10A, 5A, 2A), fuse boxes, lids, circuit boards, utility sockets, supports, hexagon head screws, washers, nuts and bearing bushes. Separate wiring sections document the cable assemblies, electrical cables, cable ties, labels and harness assemblies for both EGV-S 14/20 and EGV-S 14/20LB. The rectifier section adds battery chargers, charging sets, supports, frames, shells, hoods and clamping pieces. Sensor assemblies, potentiometers, resistors and signal transmitters are also broken out with their part numbers.

Basic Hydraulics, Valves & Hydraulic Operating System

The hydraulics coverage includes oil tanks, hoses, straps, shims, plugs, sensors and sealing plugs for both standard and LB variants. The basic hydraulics section lists banjo connectors, valves, solenoid valves, pressure switches, terminals and connections. Valve bank assemblies for the EGV-S 14/20LB are fully documented with valve blocks, solenoid valves, coils, taps, filters and O-rings. The hydraulic operating system pages cover the 2.2 kW and 3.0 kW electropumps with their motor pumps, couplings, brush kits, brush holders, bearings, traps, clamps, collars and pump units. Every hydraulic hose, pipe, connection and guide is listed with its part number and the truck variants it applies to.

Lift Frame, Lifting Columns & Load Support

This is one of the largest sections. It covers single-stage, simplex, duplex and triplex lifting systems with their respective lift cylinders, central cylinders, right and left lateral cylinders, cylinder heads, adapters, pins and seals. Lifting columns are documented for every mast height and capacity variant, with masts, pads, clasps, screws, pulleys, pins, bearings, brackets, shields, retaining rings, shims, slide pads, rollers and guide components. The load support section covers fixed fork mounts, mobile fork mounts, fork carriages, forks, chains, chain assemblies, piston rings, split pins and all associated hardware. Jacket Lexan guards and protective grilles are also included. Whether you are repairing a simplex column on an EGV-S 14/20 or rebuilding a triplex mast on an EGV-S 14/20LB, this catalogue gives you the exploded views and part numbers to get it right.

Battery Extraction Carriage & Accessories

The battery extraction carriage section documents the trolley battery assembly, rollers, battery stops, bars, beam supports and support assemblies with their spring washers and socket head screws. The accessories chapter includes decals, plates, labels, adhesive labels, stickers and technical documents. A comprehensive index at the end of the catalogue cross-references every part number to its page, making lookup fast and accurate across the entire 455-page document.

Why This Still EGV-S 14/20 & EGV-S 14/20LB Parts Catalogue Matters

Ordering the wrong part for an electric fork truck costs time, money and downtime. This Still EGV-S 14/20 spare parts catalogue eliminates guesswork by giving you the exact part number, quantity and assembly context for every component on the truck. The exploded diagrams show how parts fit together, so you can identify a failed bearing, seal, valve or chain by sight and order the correct replacement first time. For workshops, fleet managers and independent technicians working on EGV-S 14/20LB or EGV-S 14/20 trucks, this is the reference that keeps repairs moving.

Because it is a searchable PDF, you can jump straight to a section, zoom into a diagram and print the page you need for the workshop floor. Use it on a laptop, tablet or phone. No shipping, no waiting for a physical book — the download link is available immediately after purchase. Whether you are performing routine maintenance, a major hydraulic repair or a complete mast rebuild, this Still electric fork truck spare parts catalogue is the professional-grade reference you will reach for every time.
