Toyota 7FBEU15-20 7FBEHU18 Electric Forklift Service Repair Manual (April 2003)

Description

The Toyota 7FBEU15-20 7FBEHU18 Electric Forklift Service Repair Manual is the full workshop reference for the 7FBEU15, 7FBEU18, 7FBEU20 and 7FBEHU18 electric powered forklifts. It combines specifications, maintenance, repair, diagnostic and service procedures for the chassis, body, electrical controller and material handling system in a single document, dated April 2003 and issued by Toyota Material Handling Company, a division of Toyota Industries Corporation. Everything a technician needs to strip, test, adjust and rebuild these trucks is contained in the 18 numbered sections of this manual, from battery electrolyte gravity checks through to mast roller shimming and SAS sensor matching.

File Details

• Manual type: Service Manual (specifications, maintenance, repair, diagnostic and service procedures)
• Brand: Toyota / Toyota Material Handling Company
• Models covered: 7FBEU15, 7FBEU18, 7FBEU20, 7FBEHU18
• Language: English
• Page count: 564 pages
• File format: PDF
• Document date: April 2003
• Control method: AC microcomputer controller, 36 V (48 V)

Chapters Covered

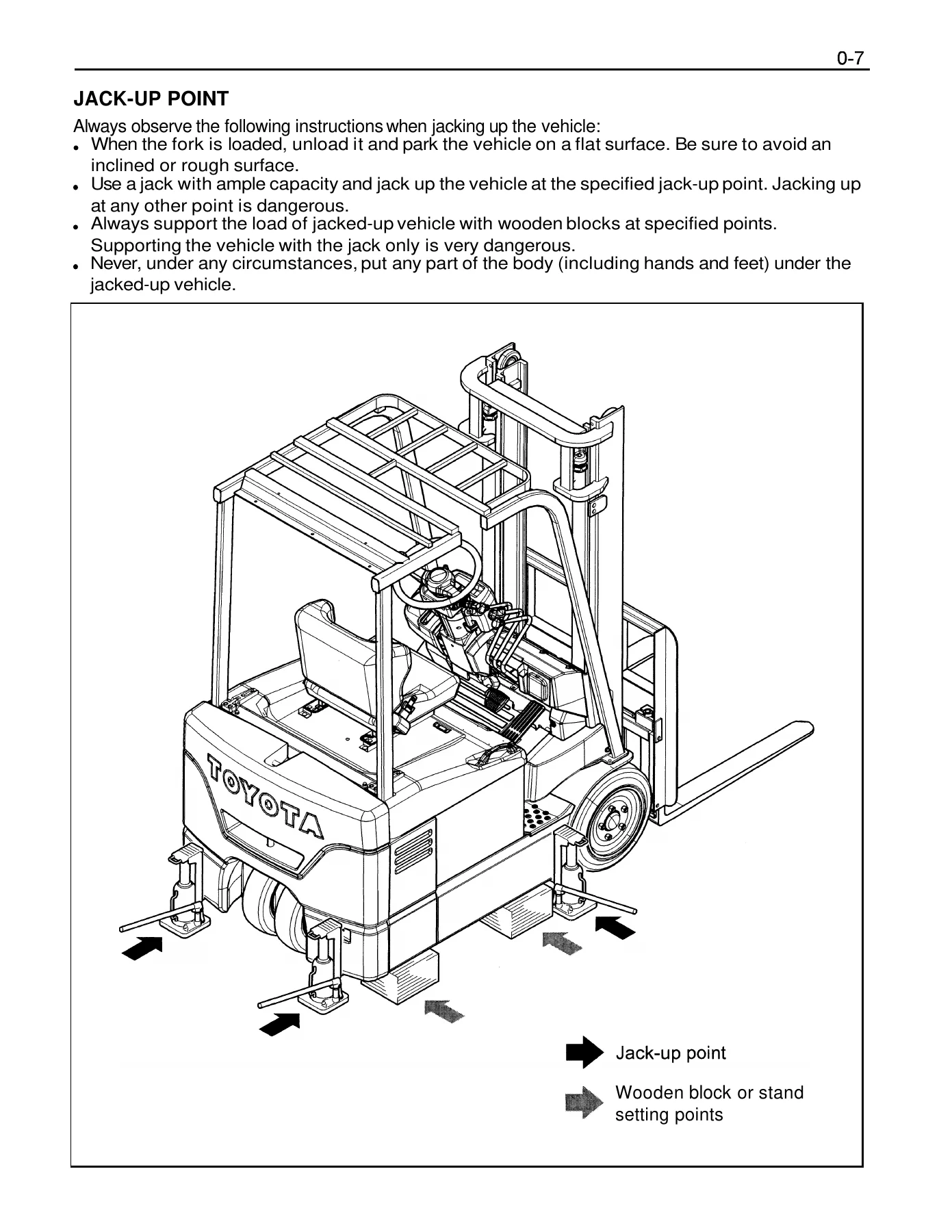

• GENERAL – vehicle models, frame number punching format, how to use the manual, terminology, abbreviations, operating tips, jack-up point, hoisting the vehicle, wire rope suspension angle list, member weights, towing the vehicle
• BATTERY – battery compartment and required weight, service standards, battery charge indicator display, electrolyte inspection and specific gravity, insulation resistance inspection, battery control table, battery plug cable replacement

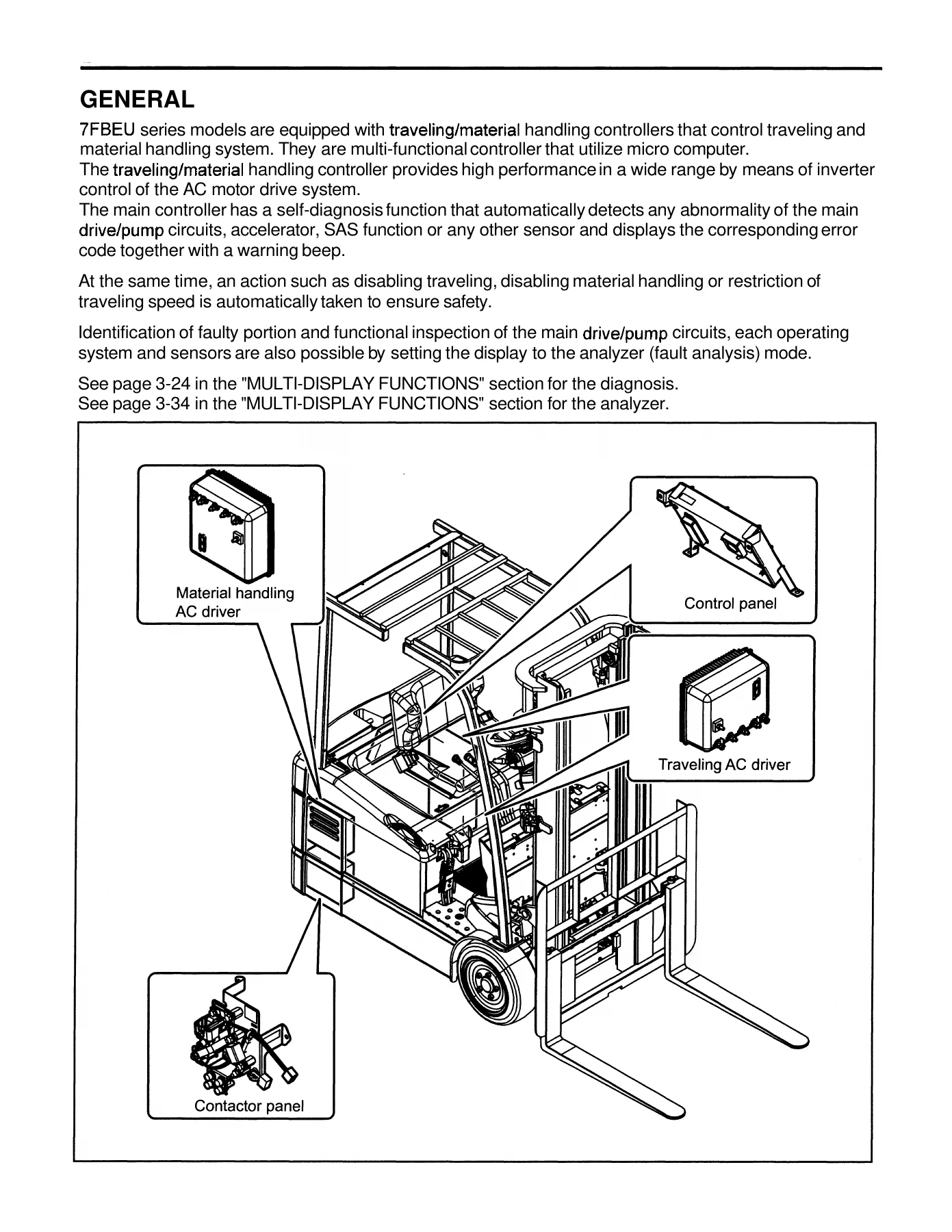

• CONTROLLER – specifications and components, before repair checks, connector inspection with SST setting method, main controller ASSY, traveling AC driver, material handling AC driver and contactor panel ASSY, check motor input voltage, display, direction switch, accelerator potentiometer adjustment, brake switch adjustment, material handling lever switch adjustment
• MULTI-DISPLAY FUNCTIONS – display and buttons, general function and manager’s function, display indication list, password entry, travel speed limiter, overspeed alarm, power control level setting, planned maintenance hour setting, clock set, mask functions, analyzer, I/O monitor 1 to 4, active test, tuning, option set, matching, tire constant set
• TROUBLESHOOTING – before troubleshooting and connector handling, troubleshooting method, SST setting method, diagnosis code list, when an error code is displayed (CPU board, traveling/material handling AC driver, SAS system, multi-display), when no error code is displayed
• MOTOR – drive motor and pump motor: general, specifications, components, removal and installation, disassembly, inspection and reassembly
• DRIVE UNIT & FRONT AXLE – specifications and components, front axle hub and drive unit removal and installation, disassembly, inspection and reassembly
• REAR AXLE – rear axle ASSY, rear axle hub, rear axle cylinder ASSY, tire angle sensor (OPT)
• STEERING – steering wheel mast jacket, hydrostatic steering valve ASSY with troubleshooting, relief pressure inspection and adjustment, priority valve, steering knob synchronizer valve (OPT)
• BRAKE – parking brake, brake pedal, disc brake removal and disassembly, disc brake adjustment, brake disc wheel, brake pedal adjustment, parking brake adjustment
• BODY & FRAME – components, battery hood ASSY, counterweight, operator’s seat, fuse installation locations, names and capacities
• MATERIAL HANDLING SYSTEM – hydraulic circuit, components, return filter, natural drop test, natural forward tilt test, oil leak test for lift and tilt cylinders
• MAST – V mast ASSY and FV/FSV mast ASSY, removal and installation with or without lift bracket, disassembly, inspection and reassembly, mast adjustment, mast roller removal and installation, chain inspection and adjustment, fork removal, installation and inspection
• CYLINDER – lift cylinder (V), rear lift cylinder (FV/FSV), flow regulator valve, safety down valve, front lift cylinder (FV/FSV), tilt cylinder, mast forward/backward tilt angle adjustment
• OIL PUMP – general and components, removal and installation, disassembly, inspection and reassembly, test method with lifting speed reference values
• OIL CONTROL VALVE – standard oil control valve and mini lever oil control valve: hydraulic circuit diagrams, components, removal and installation, disassembly, inspection and reassembly, relief pressure adjustment, lift lock unlocking bolt, control valve lever ASSY, mini lever box
• SAS FUNCTIONS – general and components, for repair work, tilt angle sensor, load sensor, mast lifting height switch, matching, vehicle standard state, cautions on modifying vehicles
• APPENDIX – SST list, service standards, connector drawing, connecting diagram, electric wiring diagram

Taken as a whole, this Toyota 7FBEU15-20 7FBEHU18 service manual gives a technician a complete working picture of the truck rather than a single subsystem. The electrical half of the book explains how the AC microcomputer controller manages traveling and material handling through the traveling AC drivers and the material handling AC driver, then shows how to interrogate that controller through the multi-display analyzer, I/O monitor and active test screens, and how to read every stored diagnosis code. The mechanical half strips the vehicle down to its components: motors, drive unit, front and rear axles, hydrostatic steering, disc brake, mast, lift and tilt cylinders, oil pump and oil control valve, each with its own disassembly sequence, inspection limits and reassembly notes. Around those two halves sit the routine items that keep a fleet running, including inspection intervals, lubricant and oil quantities, natural drop and oil leak test procedures, and the tightening torque and service standard tables that decide whether a part is reusable or must be replaced.

Diagnostics and the Multi-Display Analyzer

One of the most useful parts of the 7FBEU15-20 and 7FBEHU18 electric forklift repair manual is the troubleshooting section, which works hand in hand with the multi-display mask functions. The controller stores recent faults, and the manual lists the displayed code and diagnostic memory code for each one, together with the faulty area, the symptom the operator will notice and the controller that detects it. Codes cover low and high voltage, low starting voltage, EEPROM and CPU faults, communication faults between the main controller and each AC driver, accelerator potentiometer faults, direction switch faults, MB contactor faults, motor overheat and thermo-sensor faults, rpm sensor faults, SAS sensor faults and lift, tilt, attachment and unload valve solenoid faults. Each code is supported by a decision-tree style procedure that moves from the analyzer screen to a voltage or resistance measurement and finally to the part to repair or replace.

Service Data and Adjustment Values

Adjustment and limit values appear throughout the manual rather than in a single place, which is why the appendix service standards section is worth knowing about early. The Toyota 7FBEU15-20 7FBEHU18 workshop manual documents battery electrolyte specific gravity, discharge end voltage, insulation resistance, drive and pump motor input voltage, stator insulation resistance and motor cable continuity, thermo-sensor resistance, hub and axle starting force, steering wheel play, relief set pressure, brake pad and disc thickness limits, mast roller and mast strip clearances, mast strip thickness limits, lift and tilt cylinder oil leak allowances, cylinder bore and piston rod limits, chain elongation and fork tip misalignment limits. Hydraulic pressures, gear oil and hydraulic oil types and capacities, grease points and tightening torques for the frame, mast, cylinders and axle components are all listed with the units exactly as used in service.

Procedures for the Whole Machine

Removal and installation procedures are written in a consistent sequence that begins by disconnecting the battery plug and working outward, and every reassembly step carries its own cautions, notes and point operations. That matters on a machine like this, where an incorrectly connected controller, an unnoticed connector fault, or a sensor that has not been matched after replacement will produce further faults rather than simply not working. The manual also explains the SAS function repair cautions, the conditions under which matching is required for the tilt angle sensor, load sensor, tire angle sensor and the mini lever angle sensors, and the vehicle standard state that matching must be performed in.

Routine Maintenance and Periodic Replacement

• Inspection schedules at every 8 hours, 40 hours, 250 hours, 500 hours, 1000 hours and 2000 hours
• Electrical system checks covering motors, battery, magnet switch, micro switch, direction switch, controller, fuses and wiring
• Power transmission, drive system, steering system, braking system, material handling system, hydraulic system, safety devices and SAS checks
• Periodic replacement of drive unit gear oil, hydraulic oil, hydraulic oil filter, rear wheel bearing grease, power steering hose and rubber parts, hydraulic hose and lift chain

Because the inspection and replacement tables name the specific component, the specific interval and the action required, this manual is equally usable for a planned maintenance programme as it is for a breakdown repair.

What This Manual Lets You Do

With the Toyota 7FBEU15-20 7FBEHU18 Electric Forklift Service Repair Manual on hand you can carry out full electrical diagnostics on the AC controller and drivers using the analyzer screens, diagnose and clear faults using the diagnosis code list, remove and overhaul the drive motor and pump motor, rebuild the front axle hub and drive unit, service the rear axle and rear axle cylinder, repair the hydrostatic steering valve and priority valve, replace and adjust the disc brake, rebuild the lift and tilt cylinders, service the oil pump and oil control valve, adjust the mast rollers, chains and forks, and perform the SAS matching that the controller requires after sensor or mast work. Having the correct tightening torques, clearances, limit values and pressure settings to hand is what separates a repair that lasts from one that comes back, and on a forklift with a microcomputer controller the diagnostic procedures matter just as much as the mechanical ones.

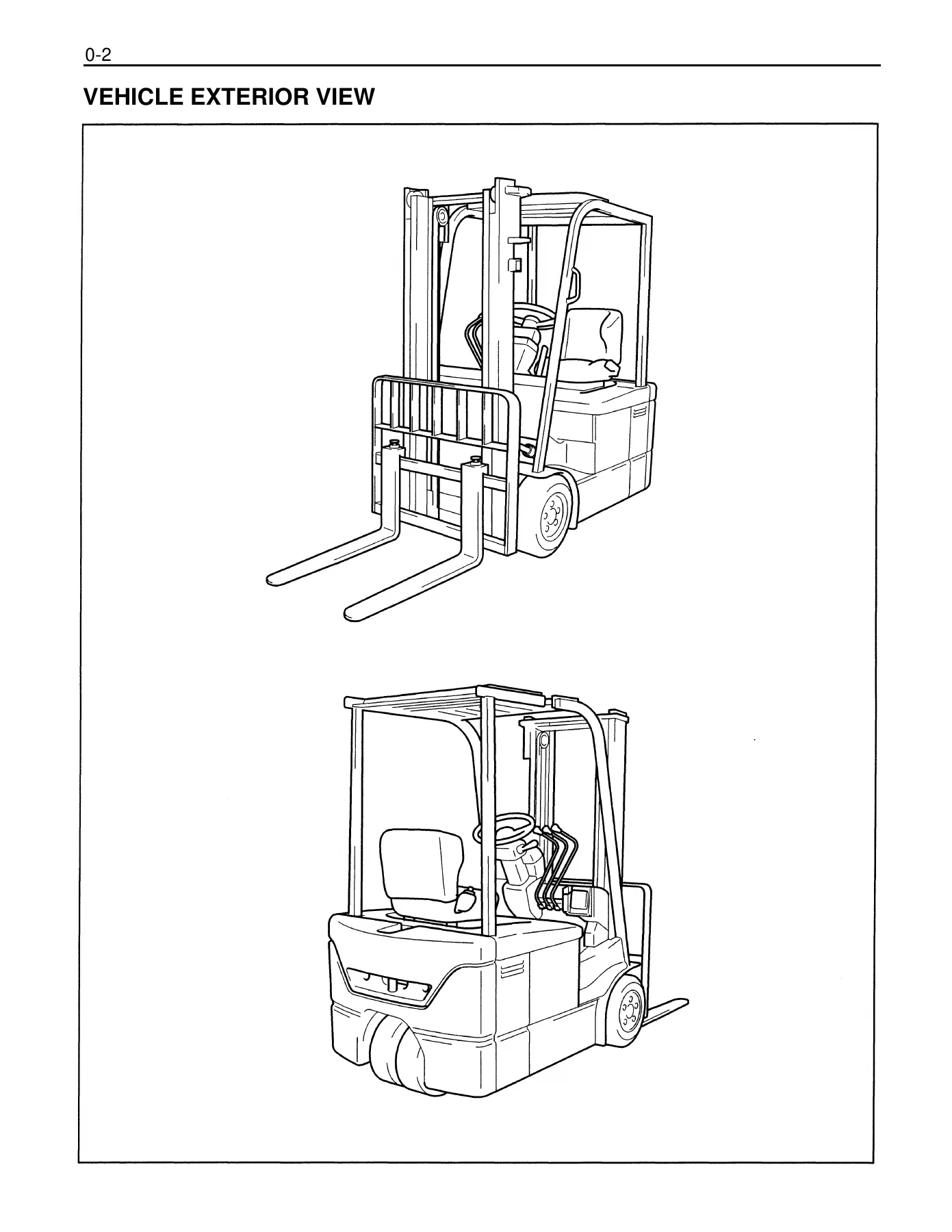

IMAGES PREVIEW

Delivery is instant. The file is a PDF download with no shipping and no waiting, ready to open on a workshop computer, laptop, tablet or phone, and individual pages can be printed and taken to the machine when you would rather not have a screen next to the hydraulic oil.
